Part Number:

DUG08C

www.SunLED.com

9.9mm (0.39") SINGLE DIGIT NUMERIC DISPLAY

Features

●

0.39 INCH DIGIT HEIGHT.

●

LOW CURRENT OPERATION.

●

EXCELLENT CHARACTER APPEARANCE.

●

EASY MOUNTING ON P.C. BOARDS OR SOCKETS.

●

I.C. COMPATIBLE.

●

MECHANICALLY RUGGED.

STANDARD: GRAY FACE, WHITE SEGMENT.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3. Specifications are subject to change without notice

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Tstg

(GaP)

140

62.5

-40 ~ +85

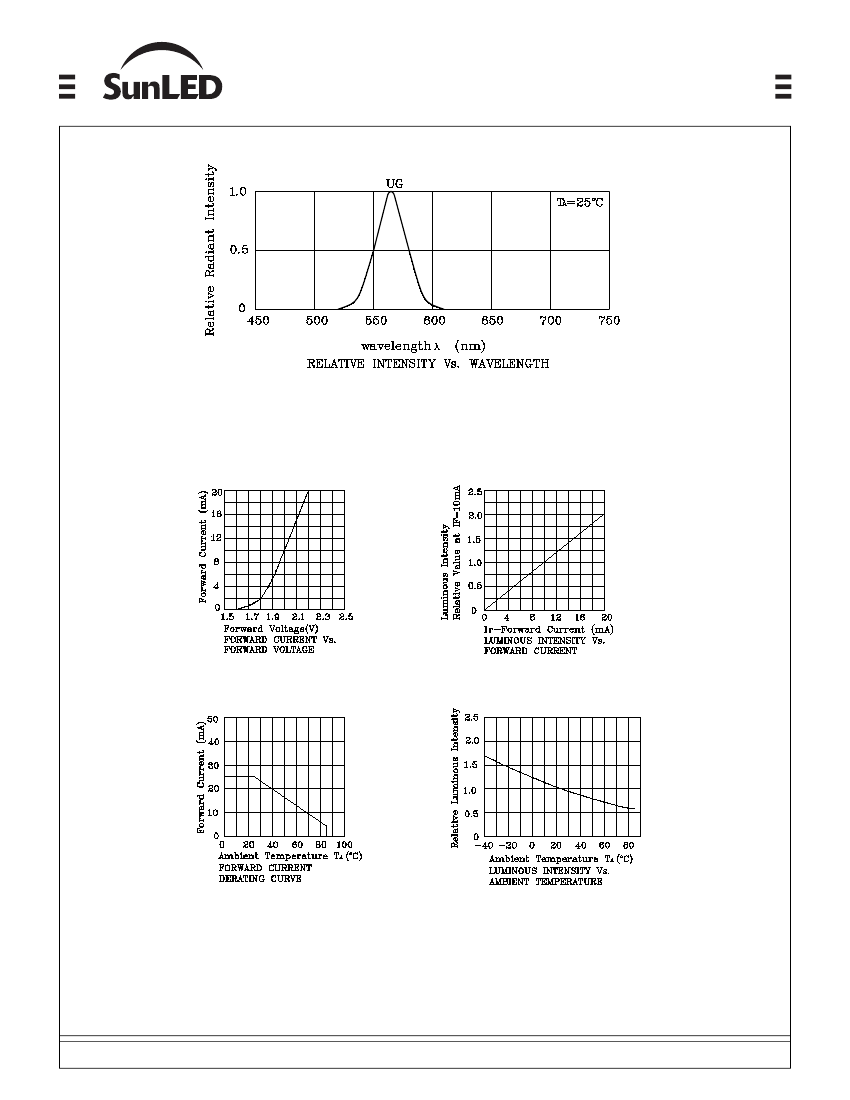

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Unit

°C

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=10mA)

Wavelength Of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaP)

2.0

2.5

Unit

565

568

Δλ

260°C For 3~5 Seconds

Part

Number

Emitting

Color

Emitting

Material

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

6390

Wavelength

Description

DUG08C

Green

GaP

1200

565

Common Cathode, Rt. Hand Decimal.

Checked : Shin Chi

P.1/4

Published Date : MAR 05,2008

Drawing No : SDSA2021
