VSC8489-01
Dual Channel WAN/LAN/Backplane RXAUI/XAUI to SFP+/KR 10 GbE SerDes PHY
Microsemi's full dual channel SerDes PHY provides hardware-based KR
support for timing-critical applications, including all industry-standard
protocol encapsulations.
The VSC8489-01 device meets the SFP+ SR/LR/ER/220MMF host
requirements in accordance with the SFF-8431 specifications. It also
compensates for optical impairments in SFP+ applications, along with
degradations of the PCB.
The VSC8489-01 device provides full KR support, including KR state
machine, for autonegotiation and link optimization. The transmit
path incorporates a multitap output driver to provide flexibility to
meet the demanding 10GBASE-KR (IEEE 802.3ap) Tx output launch
requirements.
Highly flexible clocking options enable Layer 1 support for Synchronous
Ethernet. The VSC8489-01 device uses a single 156.25 MHz reference
clock for LAN/WAN operation. It includes a failover switching capability
for protection routing, along with selectable lane ordering. A complete
suite of BIST functionality includes line and client loopbacks along with
pattern generation and error detection.
Highlights
• Failover switching and lane ordering
• Simultaneous LAN and WAN support
• RXAUI/XAUI support
• SFP+ I/O with KR support
• 1 GbE support
• Seamless upgrade path for IEEE 1588v2
and MACsec functionality
Applications
• Multiple-port RXAUI/XAUI to
SFI/ SFP+ line cards or NICs
• 10GBASE-KR compliant backplane
transceivers
• Secure data center to data center
interconnects
• 10 GbE switch cards and router
cards
10 GbE
Switch Module
10 GbE Line Card or NIC
RXAUI/XAUI
Dual
10 GbE
MAC/NIC
2/4
2/4
VSC8489
2 × 10G
2 × 1G
Module
Module
2/4
VSC8489
2 × 10G/
2 × 1G
10GBASE-KR
Backplane
2/4
RXAUI/
XAUI
RXAUI/
XAUI
Switch
Microsemi makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its products and services for any particular purpose, nor does Microsemi assume any liability
whatsoever arising out of the application or use of any product or circuit. The products sold hereunder and any other products sold by Microsemi have been subject to limited testing and should not be used in conjunction
with mission-critical equipment or applications. Any performance specifications are believed to be reliable but are not verified, and Buyer must conduct and complete all performance and other testing of the products, alone
and together with, or installed in, any end-products. Buyer shall not rely on any data and performance specifications or parameters provided by Microsemi. It is the Buyer’s responsibility to independently determine suitability
of any products and to test and verify the same. The information provided by Microsemi hereunder is provided “as is, where is” and with all faults, and the entire risk associated with such information is entirely with the Buyer.
Microsemi does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other IP rights, whether with regard to such information itself or anything described by such information. Information provided in
this document is proprietary to Microsemi, and Microsemi reserves the right to make any changes to the information in this document or to any products and services at any time without notice.
VSC8489
Dual Channel WAN/LAN/Backplane RXAUI/XAUI to SFP+/KR 10 GbE SerDes PHY
Range of Support
• Compliant to IEEE 802.3ae and SFF-8431 electrical (SFI)
specifications
• 9.95 Gbps WAN and 10.3 Gbps LAN operation, as well as
1.25 Gbps Ethernet support
• Supports all standard SFP+ applications
• Support for 10GBASE-KR (IEEE 802.3ap) for 10G backplanes,
including 1.25 Gbps and 10.3 Gbps autonegotiation
• Adaptive equalization receiver and programmable, multitap
transmitter pre-emphasis
• Synchronous Ethernet support
• MDIO/SPI and two-wire serial slave management interfaces
• IEEE 1588v2/Y.1731 OAM precision timing support at 1.25
Gbps and 10.3 Gbps using pin-compatible VSC8489-11 and
VSC8489-14 devices
Flexibility
•
•
•
•
•
•
•
•
•
Failover switching and lane ordering
VScope input signal monitoring integrated circuit
Host-side and line-side loopbacks with BIST functions
I/O programmability for lane swap, invert, amplitude, slew,
pre-emphasis, and equalization
Optional forward error correction (FEC)
Synchronous Ethernet support with flexible clocking
Passive copper cable support for minimum transmission cost
Extended temperature range (–40 °C to 110 °C) using pin-
compatible VSC8489-14
Pin compatible with VSC8489-11, VSC8489-14,
VSC8490-11, and VSC8491-11
Related Products
Visit www.microsemi.com for information about these related
products:
• VSC8490-11
• VSC8491-11
• VSC8572
• VSC8574
• VSC8584
Key Specifications
• 875 mW typical for each bidirectional channel
• 1.2 V and 1.0 V core power supplies (2.5 V TTL supply)

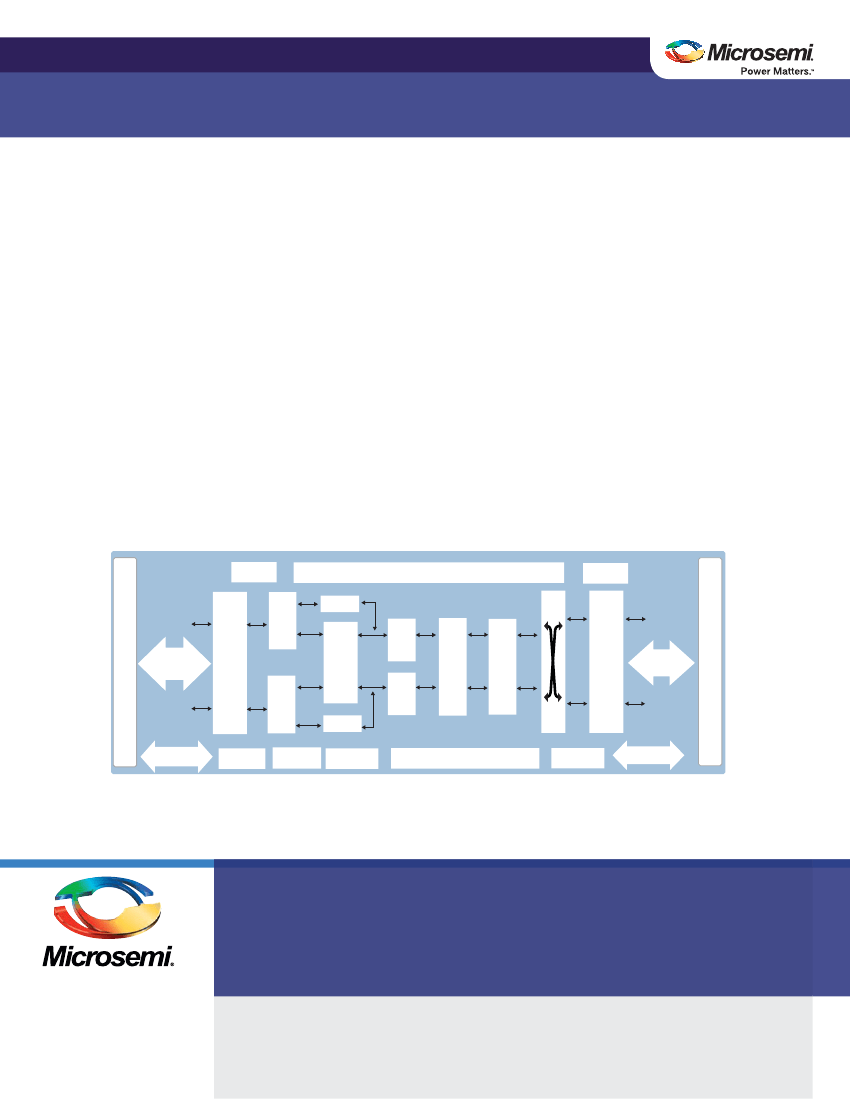

PLL
Clocking Network for Timing and Retiming (including SyncE support)
PLL
RXAUI
XAUI
1 GbE
PCS
MUX
FIFO
SFP+
KR
1GbE
Host/Client
2× 2× 6.25 G
2× 4× 3.125 G
2× 4× 3.125 G
SERDES
XGXS
PCS
FIFO
WIS
SERDES
2× 10 G
2× 1 G
SFP+
KR
1GbE
Line
RXAUI
XAUI
1 GbE
SPI/MDIO/
Two-Wire Serial
MUX
PCS
SPI Slave
MDIO Slave
Two-Wire
Serial Slave
Configuration and Status Registers
Two-Wire
Serial Master
Two-Wire Serial
