ZXRE4041
SOT23 MICROPOWER 1.225V VOLTAGE REFERENCE
SUMMARY
DESCRIPTION
The ZXRE4041 is a bandgap circuit designed to achieve a precision
micropower voltage reference of 1.225 volts. The device is available in the
small outline SOT23 surface mount package which is ideal for applications
where space saving is important.
SOT23 tolerance is available to 0.5% C grade for precision applications.
Excellent performance is maintained over the 30 A to 12mA operating
current range with a typical temperature coefficient of only 20ppm/°C. The
device has been designed to be highly tolerant of capacitive loads so
maintaining excellent stability.
This device offers a SOT23 pin for pin compatible alternative to LM4041
voltage references.
SOT23
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
High performance alternative to LM4041
Small outline SOT23
30 A knee current
20ppm/°C typical temperature coefficient
Unconditionally stable
0.5%, 1%, 2% and 3% tolerance
APPLICATIONS
Battery powered equipment
Precision power supplies
Portable instrumentation
Portable communications devices
Notebook and palmtop computers
Data acquisition systems
A/D and D/A converters
Test equipment
SOT23
Package Suffix - F
ORDERING INFORMATION
DEVICE
ZXRE4041CF
ZXRE4041DF
ZXRE4041EF
ZXRE4041FF
TOL%
0.5
1
2
3
GRADE
C
D
E
F
PACKAGE
SOT23
SOT23
SOT23
SOT23
PARTMARKING
10J
10H
10G
10F
Top view -
Pin 1 floating or
connected to pin 2
NOTE:
For tape and reel options add suffix TA to part number - e.g. ZXRE4041DFTA
ISSUE 5 - AUGUST 2003
1
SEMICONDUCTORS
ZXRE4041
ELECTRICAL CHARACTERISTICS
(at T
amb
= 25°C unless otherwise stated)
PARAMETER
SYMBOL CONDITIONS
I
R
= 100 A
MIN.
1.219
1.213
1.200
1.189
Minimum Knee Current
Recommended Operating
Current Range
Average Reverse
Breakdown Voltage
Temperature Coefficient
I
MIN
I
R
T
C (1)
I
R(min)
to I
R(max)
0.03
20
TYP.
1.225
1.225
1.225
1.225
MAX.
1.231
1.237
1.250
1.261
30
12
100
GRADE/ UNITS
TOL%
C/0.5
D/1
E/2
F/3
V
V
V
V
A
mA
ppm/°C
Reverse Breakdown Voltage V
R
Reverse Breakdown Change
∆
V
R
with Current Voltage
∆
I
R
Reverse Dynamic
Impedance
Z
R
I
R
= 30 A to 1
I
R
= 1mA
f = 100Hz
A
0.2
1
10
0.6
mV
mV
I
R
= 1mA to 12mA
Wideband Noise Voltage
E
N
I
AC
= 0.1I
R
IR = 8 A to 100 A
f = 10Hz to 10kHz
60
V(rms)
NOTE:
(1)
T
C
=
(
V
R
(max)
−
V
R
(min)
)
x
1000000
V
R
x
(
T
(max)
−
T
(min)
)
VR(max) - VR(min) is the maximum deviation in reference voltage measured from -40°C to 85°C.

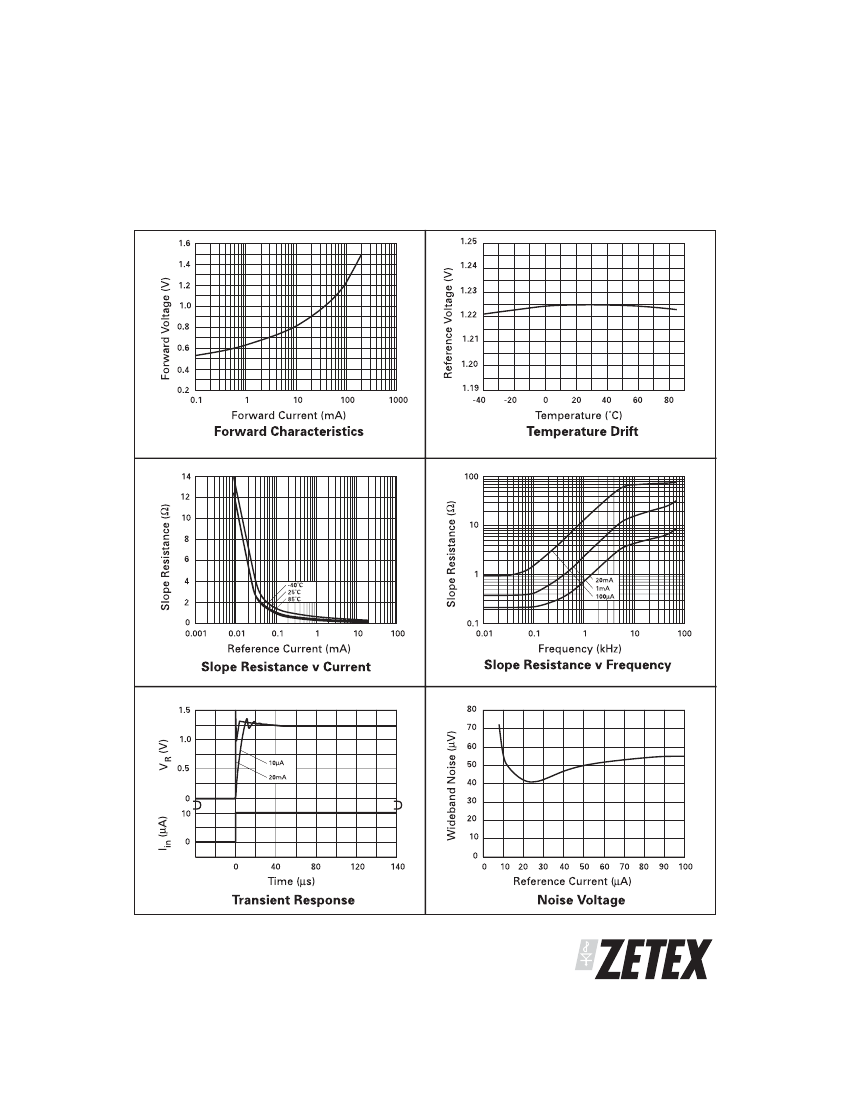

REVERSE CHARACTERISTICS
