ESI-5L1.960G-T

Description
5mm SQUARE THIN TYPE ISOLATOR
File Size36KB,1 Pages
ManufacturerHitachi Metals
Websitehttp://www.hitachi-metals.co.jp/e/
Download Datasheet View All

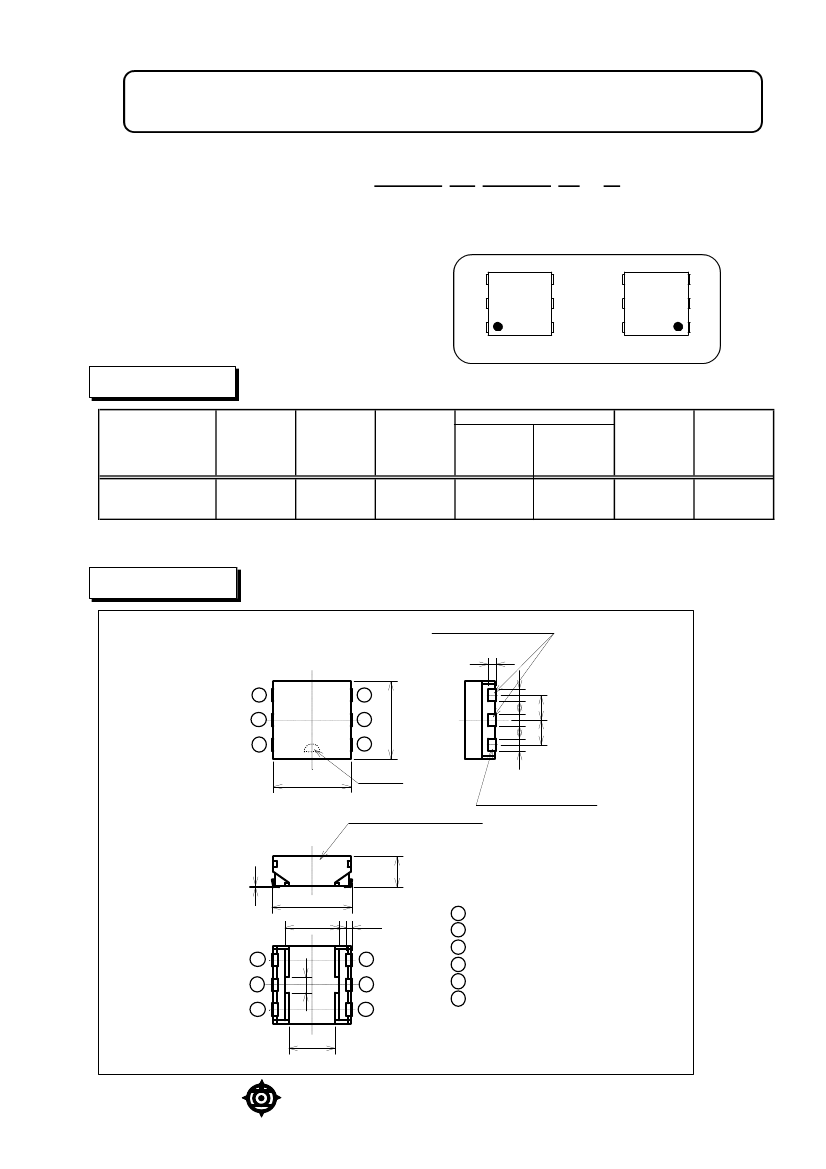

ESI-5L1.960G-T Overview

5mm SQUARE THIN TYPE ISOLATOR

5mm SQUARE THIN TYPE ISOLATOR
MODEL
ESI-5 [ ] 1.880 G - T
(4)
(5)
(1)
(2)
(3)
(1) 5mm Square Lumped Element Isolator
(2) Rotating Direction (R or L)
(3) Center Frequency
(4) G ; GHz
(5) T ; Taping
Blank ; Bulk
IN
OT
U
OT
U
IN
L
r ot at i on
R
r ot at i on
Specification
Frequency
(GHz)
Ins. Loss
Max.
(dB)
Isolation
Min.
(dB)
V.S.W.R.
Max.
Attenuation
at 2f
at 3f
Min.
Min.
(dB)
(dB)
Handling
Power
Max.
(W)
Reflection
Power
Max.
(W)
1.850-1.910
0.60
15
1.5
8
15
5.0
1.0
Operating Temperature(deg.C) ; -35 to +85
Impedance ; 50 ohms Typ.
Shape & Size
GROUND
SI LVER PLATI NG
0. 5
3
2
1
5. 0
4
5
6
R0 . 5
B OX , ( S T E E L )
SI L VER PL ATI NG
2 . 0
- 0. 2
+0
0. 8 0. 8 0. 8
1
2
3
4
5
6
STRI PL I NE
SI LVER PLATI NG
0 . 1 +/ - 0 . 1
5. 2
3. 5
0. 4
6
1. 0
1
2
3
5
4
I N or
OU T
GR OU N D
GR OU N D
GR OU N D
GR OU N D
I N or
OU T
Weight ; 0.2g
3. 0
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS ARE IN mm
TOLERANCES ARE +/-0.2mm
1. 6 1. 6
5. 0
TAE926
Hitachi Metals, Ltd. Tottori Works
