NJM2041
LOW-NOISE DUAL OPERATIONAL AMPLIFIER
■
GENERAL DESCRIPTION
The NJM2041 is a bipolar operational amplifier which is
designed as low noise version of the NJM4558 with high
output current and fast slew rate ( 3V/µs ) and wide unity gain
bandwidth ( 7MHz ) constructed using New JRC Planar
epitaxial process.
■
FEATURES
●
Operating Voltage
●
High Output Current
●
Slew Rate
●
Unity Gain Bandwidth
●
Package Outline
●
Bipolar Technology
■

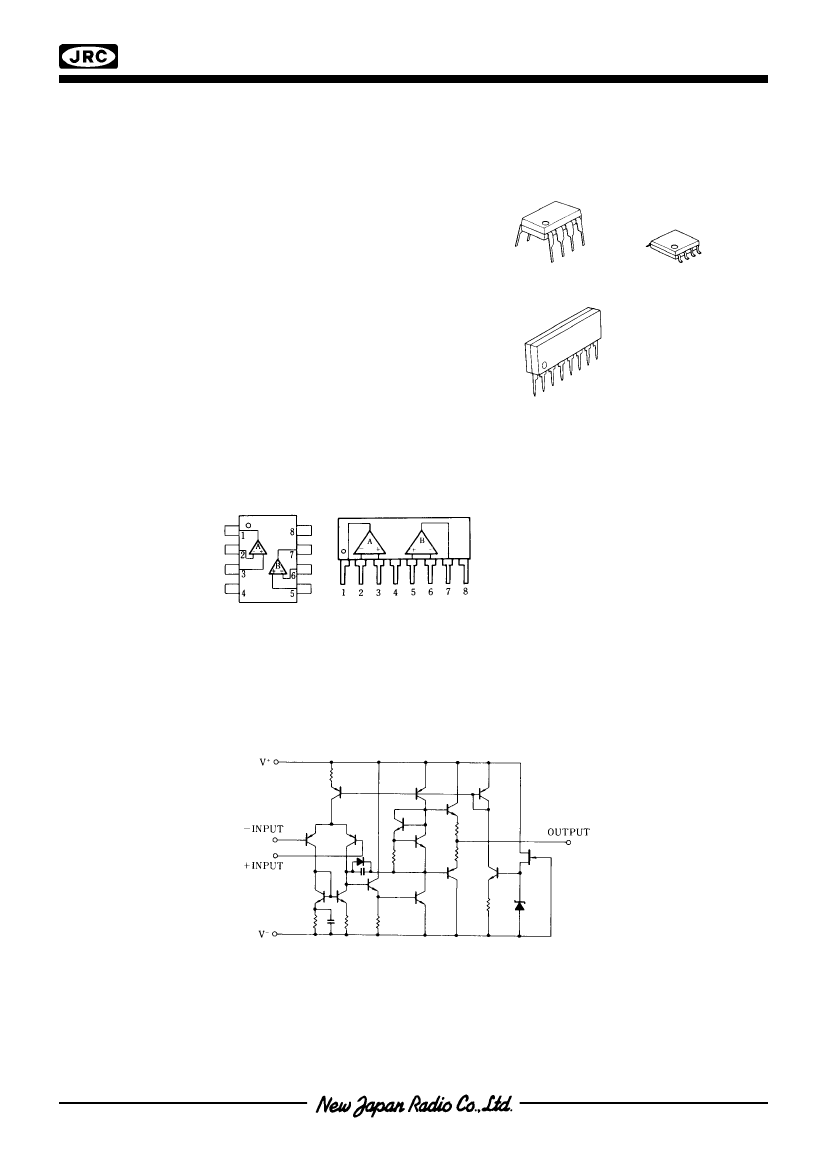

PIN CONFIGURATION
PIN FUNCTION
1.A OUTPUT
2.A –INPUT
3.A +INPUT
-
4.V
5.B +INPUT
6.B –INPUT
7.B OUTPUT
+
8.V
■
PACKAGE OUTLINE
NJM2041D
NJM2041M
( ±4V~±22V )
( 25mA. )
( 3V/µs typ. )
( 7MHz typ. )
DIP8,DMP8,SIP8
NJM2041L
NJM2041D
NJM2041M
NJM2041L
■
EQUIVALENT CIRCUIT
( 1/2 Shown )
Ver.2003-03-17
-1-
NJM2041
■
ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Differential Input Voltage
Input Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
SYMBOL
+ -
V /V
V
ID
V
IC
P
D
T
opr
T
stg
RATINGS
± 22
± 30
± 15 ( note )
( DIP8 ) 500
( DMP8 ) 300
( SIP8 ) 800
-20~+75
-40~+125
UNIT
V
V
V
mW
˚C
˚C
( note ) For supply voltage less than ±15V. the absolute maximum input voltage is equal to the supply voltage.
■
ELECTRICAL CHARACTERISTICS
( Ta=25˚C,V
+
/V
-
=±15V )
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Resistance
Large signal Voltage Gain
Maximum Output Voltage Swing 1
Maximum Output Voltage Swing 2
Input Common Mode Voltage Range
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Operating Current
Slew Rate
Gain Bandwidth Product
Equivalent Input Noise Voltage
SYMBOL
V
IO
I
IO
I
B
R
IN
A
V
V
OM1
V
OM2
V
ICM
CMR
SVR
I
CC
SR
GB
V
NI
TEST CONDITION
R
S
≤
10kΩ
MIN.
-
-
-
50
86
± 12
± 10
± 12
70
76
-
-
-
-
TYP.
0.3
10
200
200
110
± 14
± 11.5
± 14
100
100
6
3
7
0.48
MAX.
3
200
500
-
-
-
-
-
-
-
8
-
-
0.61
UNIT
mV
nA
nA
kΩ
dB
V
V
V
dB
dB
mA
V/µs
MHz
µVrms
R
L
≥2kΩ,V
O
=±10V
R
L
≥10kΩ
I
O
=25mA
R
S
≤
10kΩ
R
S
≤
10kΩ
FLAT+JISA R
S
=300Ω
( note ) New JRC’s general selected products D rank are also prepared for the noise standard ( R
S
=2.2kΩ,RIAA,V
NI
=1.4µV Max. )
-2-
Ver.2003-03-17
