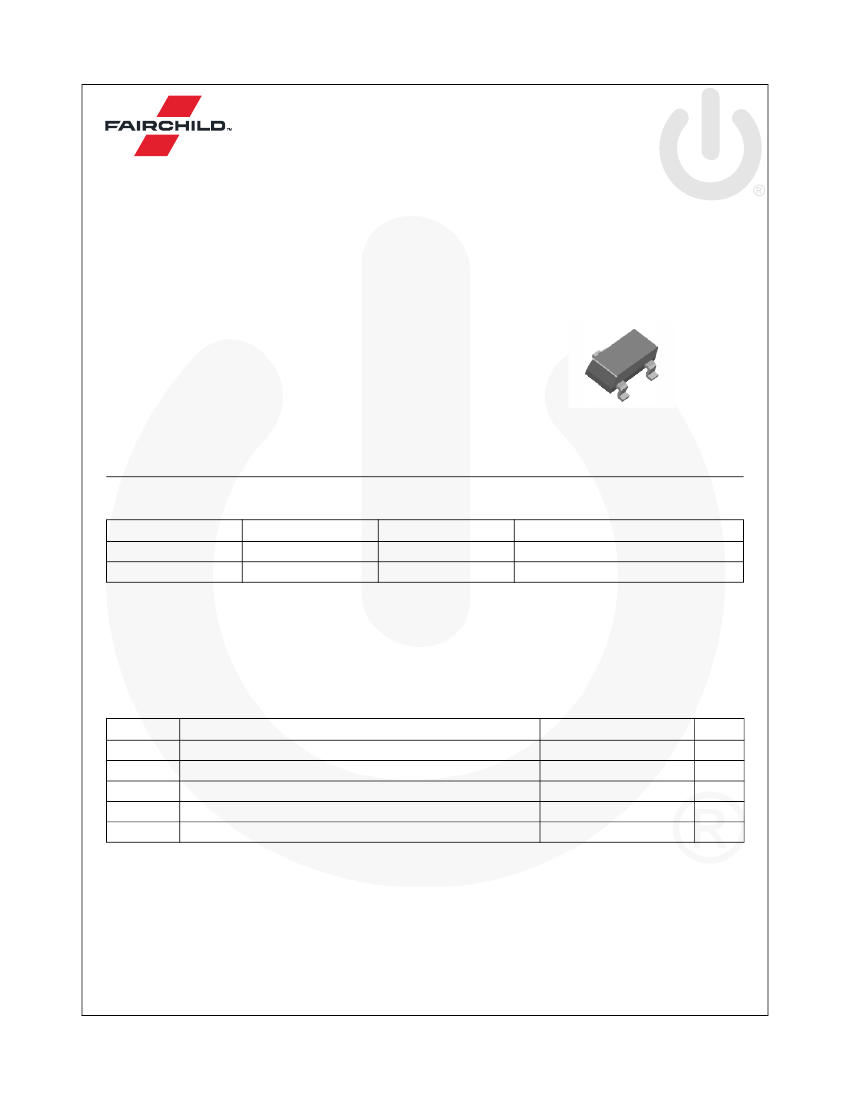

FSB560 / FSB560A — NPN Low-Saturation Transistor
October 2014
FSB560 / FSB560A
NPN Low-Saturation Transistor
Features
• These devices are designed with high-current gain and low-saturation
voltage with collector currents up to 2 A continuous.
C
E
B

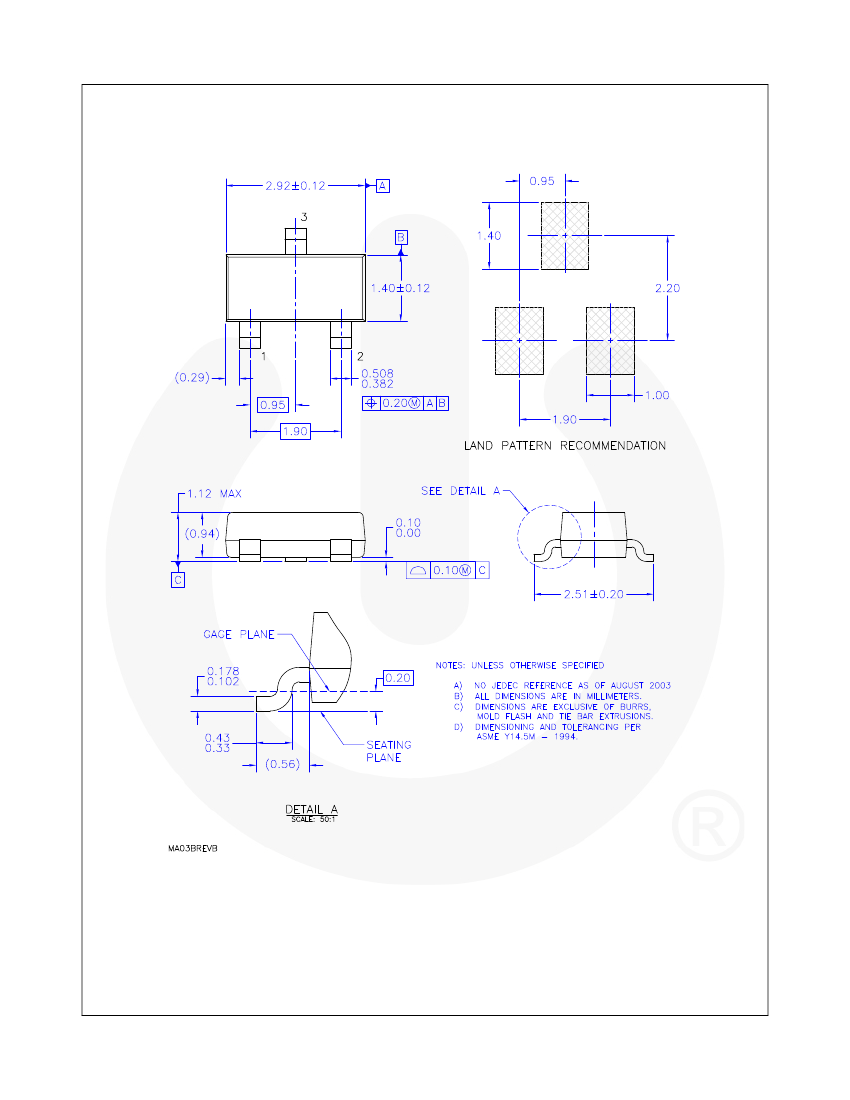

SuperSOT
TM
-3 (SOT-23)
Ordering Information
Part Number
FSB560
FSB560A
Marking
560
560A
Package
SSOT 3L
SSOT 3L
Packing Method
Tape and Reel
Tape and Reel
Absolute Maximum Ratings
(1),(2)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
STG
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Parameter
Value
60
80
5
2
-55 to +150
Unit
V
V
V
A
°C
Collector Current - Continuous
Operating and Storage Junction Temperature Range
Notes:
1. These ratings are based on a maximum junction temperature of 150°C.
2. These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed or
