ASA01F18-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> ASA01F18-L

ASA01F18-L: Description1-OUTPUT 4 W DC-DC REG PWR SUPPLY MODULE; Categorysemiconductor Analog mixed-signal IC; File Size124KB，2 Pages; ManufacturerAstec [Astec America, Inc]

Download Datasheet Parametric View All

ASA01F18-L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASA01F18-L	-	-	View	Buy Now

ASA01F18-L Overview

1-OUTPUT 4 W DC-DC REG PWR SUPPLY MODULE

ASA01F18-L Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Rated input voltage	12 V
Maximum total output power	4 W
Maximum limit input voltage	36 V
Minimum limit input voltage	9 V
Maximum operating temperature	71 Cel
Minimum operating temperature	-40 Cel
Processing package description	ROHS COMPLIANT, DIP-8
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Craftsmanship	HYBRID
packaging shape	RECTANGULAR
Package Size	MICROELECTRONIC ASSEMBLY
Terminal form	PIN/PEG
terminal coating	TIN OVER NICKEL
Terminal location	DUAL
Packaging Materials	UNSPECIFIED
Temperature level	OTHER
Number of outputs	1
Maximum output voltage 1	3.37 V
Minimum output voltage 1	3.23 V
Rated output voltage 1	3.3 V
Analog IC other types	DC-DC REG PWR SUPPLY MODULE
Maximum load adjustment factor	1 %

Preview

Download Datasheet

View All

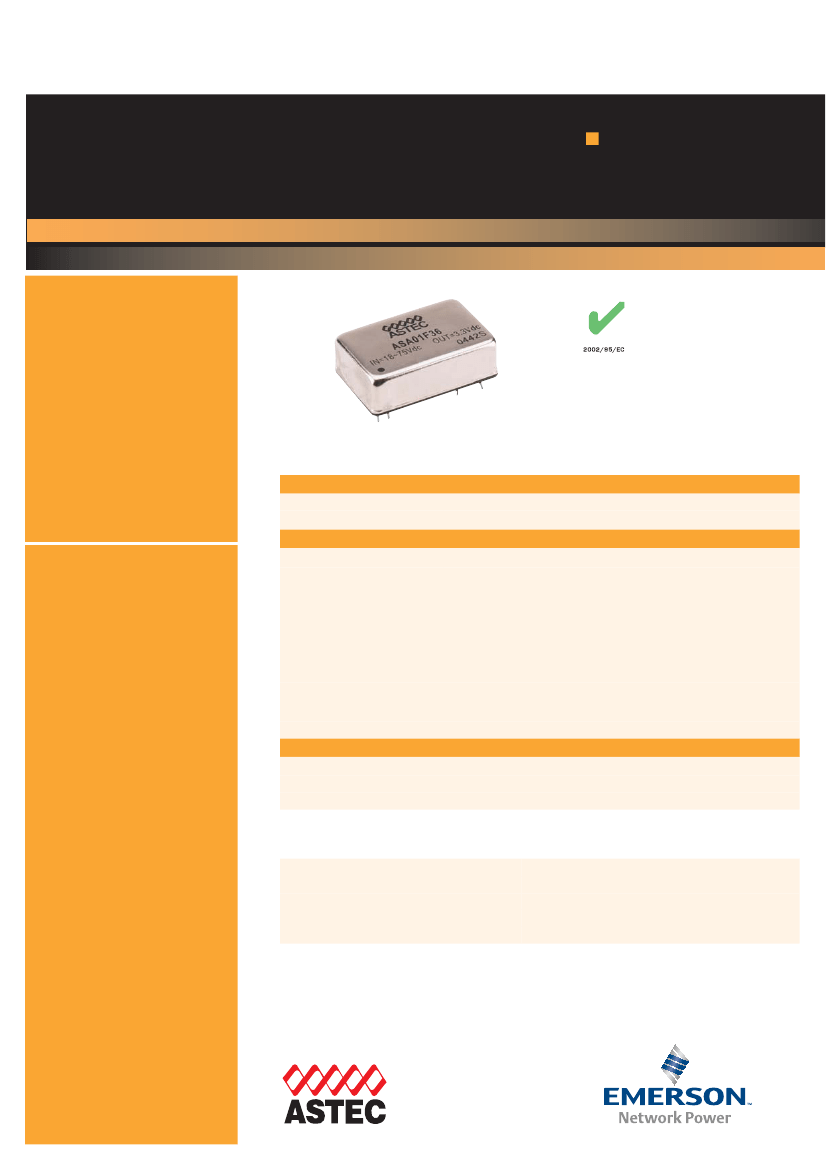

Embedded Power for

Business-Critical Continuity

ASA Series

6 Watts

Total Power:

6 Watts

Input Voltage: 12V, 24V or 48V

# of Outputs: Single, Dual

Rev. 03.03.06

ASA 6W Series

1 of 2

RoHS

Electrical Specifications

Input

Input range

Efficiency

9 to 36 VDC; 18 to 75 VDC

81%@5Vo

±2.0%

±0.5%

Single output: 1% @ 3.3Vo

Other: ± 0.5%

Dual output: ± 3.0%

3.3Vo, 5Vo: 100mV

12Vo: 120mV

15Vo: 150mV

Auto-restart

250KHz

±0.02 /°C

1500 VDC min.

10Mohm

1000pF

Output

Special Features

•

Encapsulated

Wide 4:1 input range

1.25" X 0.8” DIP package

1500Vdc I/O isolation

Single and Dual output

Voltage tolerance

Line regulation

Load regulation

Noise/ripple

Short circuit protection

Switching frequency

Temperature coefficient

Isolation

I/O isolation

Insulation resistance

Insulation capacitance

Environmental Specifications

Operating ambient temperature range

Storage temperature

Humidity

MTBF

RoHS Compliant

-40°C to +71°C (no derating)

-55°C to +105°C

5% to 95% (non-condensing)

1 Mhrs demonstrated MTBF

Safety

CE Mark
