680-1200 Watts

BML 231 002 /204

680 watt -48 VDC rectifier

Electrical Specs - 002

Input

AC Input voltage

Frequency

Efficiency

Power factor

220-240 VAC (176-288 VAC)

50/60 Hz (± 10%)

>90% @ ≥60% load

>0.95 @ ≥50% load

Output

DC output voltage

Maximum output power

-54.0 V @10A load (-45 to -58.5 VDC)

680W @ -45 to -58.5 VDC

Automatic shut-down before -60VDC

> 10ms

Special Features - 002

•

680 W constant power output

High efficiency

PFC

Hot-swappable

Passive load sharing

Front access

Soft start

Over load and over voltage protection

Designed for ETSI mechanical structure

Controls for remote shut-down

size: 2.9” W x 10.4” H x 8.8 “ D

Weight: 4.3 kg (9.5 lbs)

Over voltage protection

Hold-up time

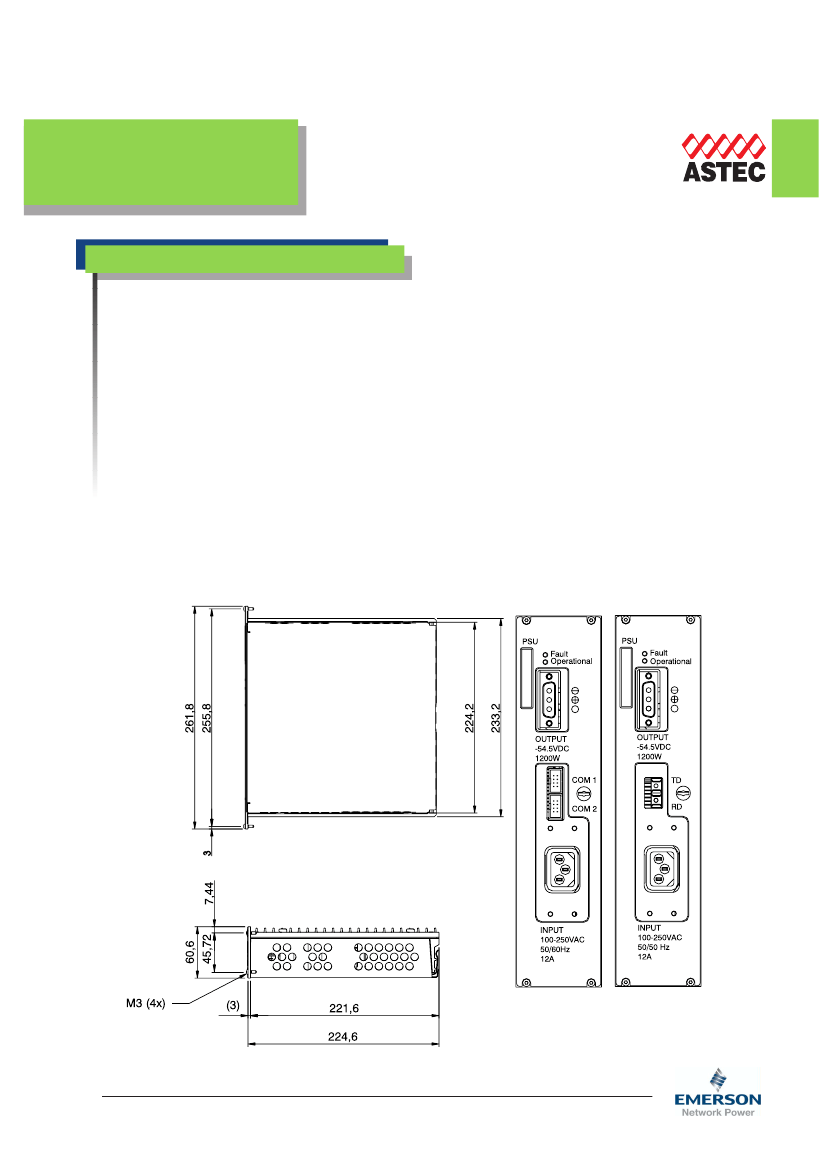

Electrical Specs - 204

Input

AC input voltage range

Frequency

Efficiency

Power factor

100-250 VAC (90-275 VAC)

50 / 60 Hz (45-65 Hz)

> 90% 230 VAC @ ≥50% load

>0.95 230 VAC @ ≥50% load

Special Features - 204

• 1200 W Constant Power Output

• High efficiency

• High power density

• PFC

• Front access

• Soft start

• Analog or opto interface

• Universal input

• Forced convection cooling

• Compact dimensions

Front: 10.3” x 2.4”

Body: 9.2”H x 2.9”W x 8.8”D

weight: 3.5 kg (7.7 lbs)

Output

DC output voltage

Maximum output power

Dynamic regulation

Hold-up time

-54.5 (-44.0 to -58.5 VDC)

1200 W @ 180-275 VDC

1000 W @ 90-140 VDC

±5% of output voltage

>20ms

Ordering Information

BML231002/3

BML231204/1

BML231204/2

680 W -48VDC rectifier

1200 W rectifier with opto interface

1200 W rectifier with analog interface

180

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662

rev 12.01.01
