DPS53-M Overview

PWR SUP DESKTOP ADPT 12V OUT 60W

Preview

Download Datasheet

View All

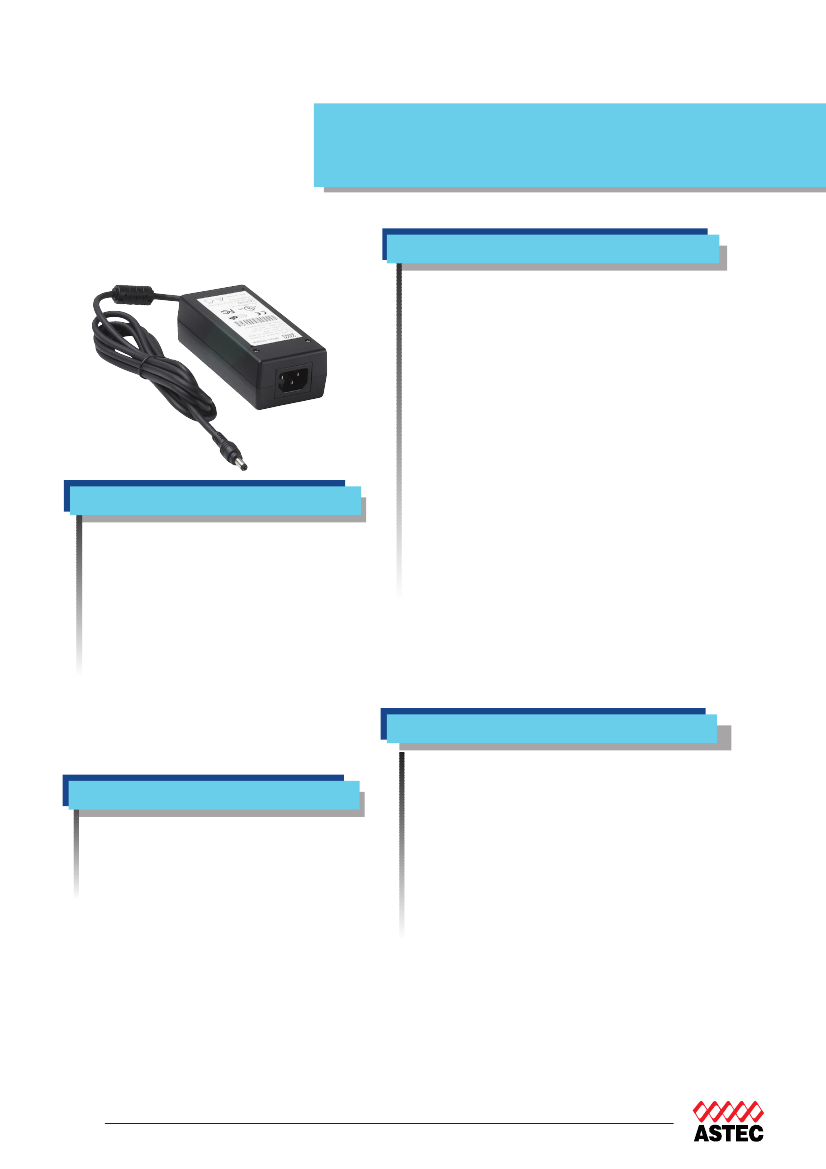

DPS50-M Series

Medical

60 Watts

Total Power:

30 - 60 Watts

Input Voltage:

127 - 300 VDC, 90 - 264 VAC

# of Outputs:

Single

Electrical Specs

Input

Input range

Frequency

Inrush current

Input current

Efficiency

EMI/RFI

Safety ground

leakage current

90 - 264 VAC (wide range),

127 - 300 VDC

47 - 440 Hz

<50A @ 230 VAC, cold start @ 25C

<2.0A rms @ 115 VAC; <1A @ 230 VAC

>80% @ full load typical, @115VAC

FCC Part 15, Subpart B Class B &

EN55022 (CISPR 22) Class B

275µA max. @ 50/60 Hz, 264 VAC input

Output

Special Features

• Medical safety approvals

• CE Mark EMC & LVD

• Universal AC input

• Fully regulated output

• Overload and short circuit protection

• Internal remote sense

• Constant voltage

• High efficiency

• High MTBF

• IEC320 AC receptacle, 3 pin (type C14)

• Built in EMI filter (CISPR 22 Class B)

• LED power good indicator

• Input power <74 watts

• Complies with EN61000-3-2

Maximum Power (Po)

60W (DPS52-M, 30W)

Hold-up time

10 ms. typical at full load @ 115VAC

Overvoltage protection 20% - 45% above nominal output

maximum.

Latching type, recycle AC to reset.

Overload protection

Output short circuit protection

auto recover. Overload protected

@ 120 - 150% above maximum rating.

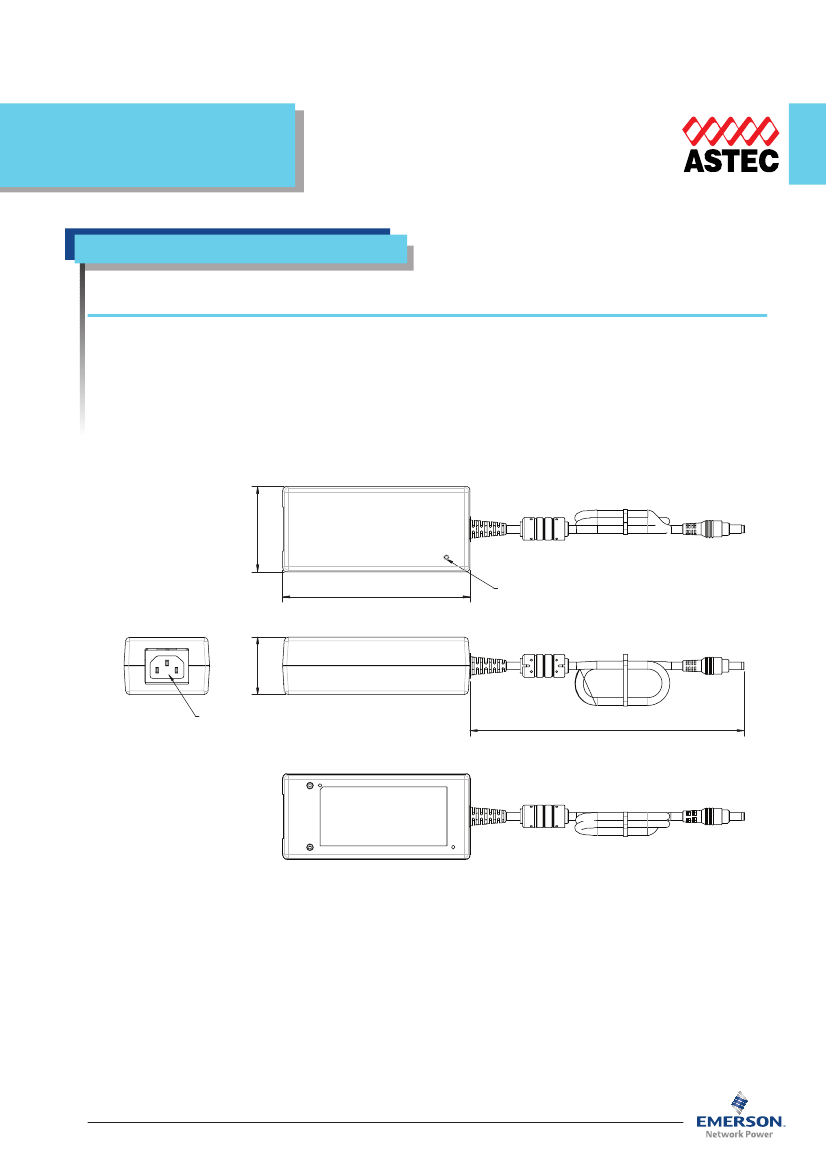

Cable/connector

DC cable with 2.5 mm center plug

barrel type

DC plug center +v

DC plug outer -v

Safety

CSA

VDE

UL60601-1

CSA-C22.2 NO. 601.1-M90

07501/EN60601-1 (IEC601)

EMC & LVD

Environmental

Operating temperature: 0°C to +40°C

ambient. Derate each output as 2.5% per

degree from 40° to 60°C. -20°C start up.

Storage temperature: -40°C to +85°C

Electromagnetic susceptability

designed to meet EN61000-4;

-2, -3, -4, -5, -6, -8, -11, level 3

Humidity: Operating; non-condensing; 10%

to 95% RH

Vibration: Three orthogonal axes, 3 sweeps

per axe at 1 oct/min. 2G peak 8 Hz to 500 Hz,

operational

MTBF demonstrated: >550,000 hours at full

load and 25°C ambient conditions

190

Technical Support: (888) 41ASTEC or (407) 241-2752

Americas: (760) 930-4600

Europe (UK) 44 (1384) 842-211

Asia (HK) 852-2437-9662

rev 06.14.05
