LF8114: DescriptionBANDPASS FILTER; File Size47KB，1 Pages; ManufacturerETC

Download Datasheet Compare View All

LF8114 Overview

BANDPASS FILTER

Preview

Download Datasheet

View All

HOME PNA

BANDPASS FILTER

Networking Components

8 11

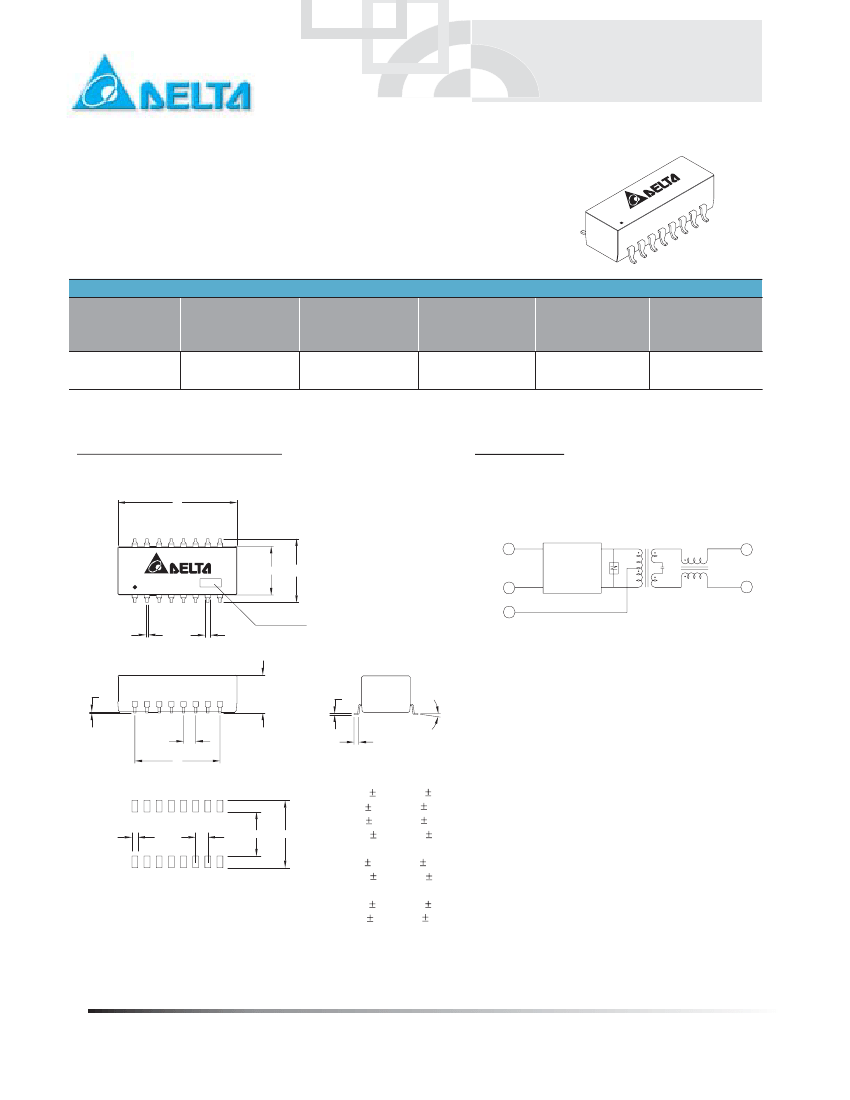

ELECTRICAL CHARACTERISTICS @25 C

Hi-Pot Test @60Sec, 1500Vrms

Model

Filter

Type

BandPass

LF8114

Filter

Insertion

Loss

(dB Max)

6~9MHz

-3.0

Cut-Off

Freq.

(Mhz)

9~10

5.2~5.8

Attenuation

(dB Min)

-60 (1MHz)

-50 (27MHz)

Return

Loss

(dB Min)

6~9MHz

-10

MECHANICAL

CONSTRUCTION

SCHEMATICS

BANDPASS

FILTER

1:1

LF8114

DATE CODE

0 ~8

UNIT : mm / inch

A = 25.40 0.254 / 1.000 0.010

B = 9.91 0.254 / 0.390 0.010

C = 8.90 0.254 / 0.350 0.010

1.02

2.54 8.84

13.92

D = 12.70 0.254 / 0.500 0.010

E = 2.54 / 0.100 (TYP)

F = 1.20 0.127 / 0.047 0.005

G = 0.254 0.127 / 0.010 0.005

H = 0.254 / 0.010 (TYP)

I = 0.635 0.254 / 0.025 0.010

J = 0.50 0.127 / 0.020 0.005

K = 17.78 / 0.700 (TYP)

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

Http://www.deltaww.com/products/networking

B-12
