MAX180AMJL-883B datasheet, PDF

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> MAX180AMJL-883B

MAX180AMJL-883B: DescriptionData Acquisition ADCs/DACs - Specialized; Categorysemiconductor Analog mixed-signal IC; File Size732KB，20 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX180AMJL-883B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX180AMJL-883B	-	-	View	Buy Now

MAX180AMJL-883B Overview

Data Acquisition ADCs/DACs - Specialized

MAX180AMJL-883B Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Maxim
Product Category	Data Acquisition ADCs/DACs - Specialized
Resolution	12 bit
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Package / Case	CDIP-Wide-40
Height	3.98 mm (Max)
Input Type	Single Ended, Differential
Length	53.24 mm (Max)
Sampling Rate	100 kS/s
Width	15.75 mm (Max)
Interface Type	Parallel
INL - Integral Nonlinearity	+/- 0.5 LSB
SNR - Signal to Noise Ratio	Yes
Supply Voltage - Max	7 V
Supply Voltage - Min	- 0.3 V

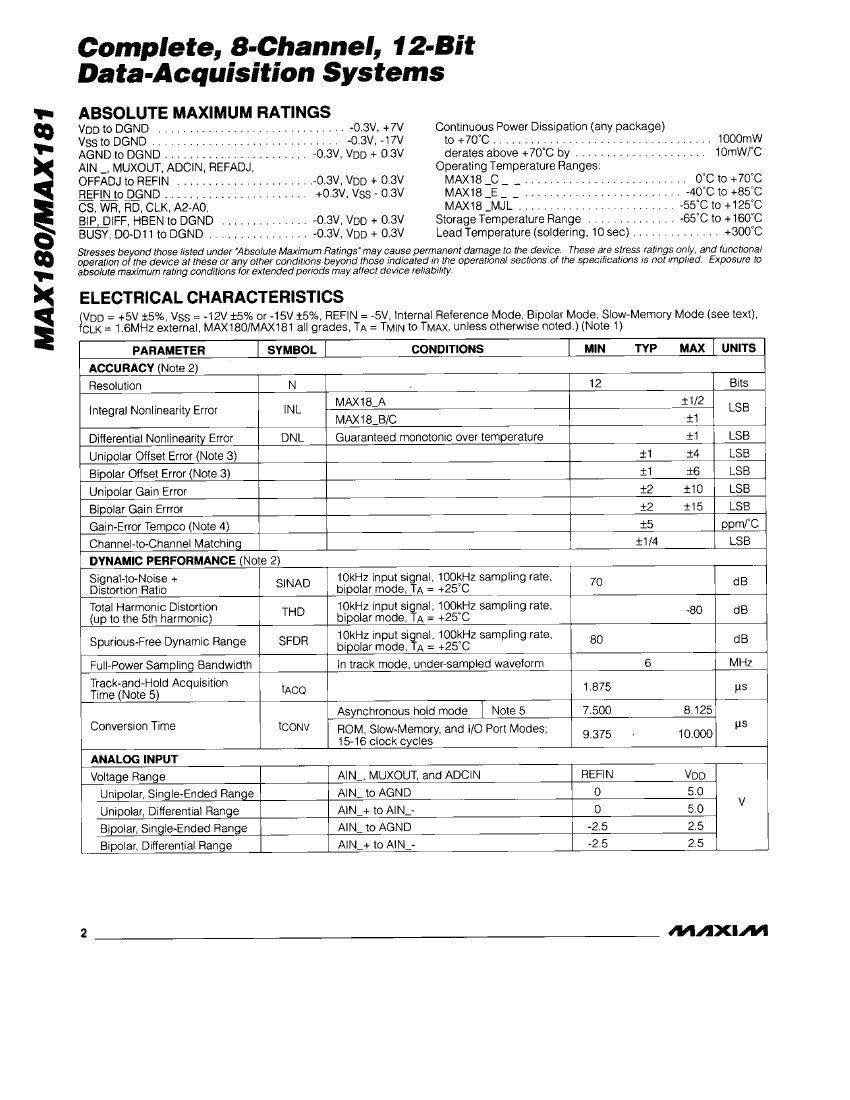

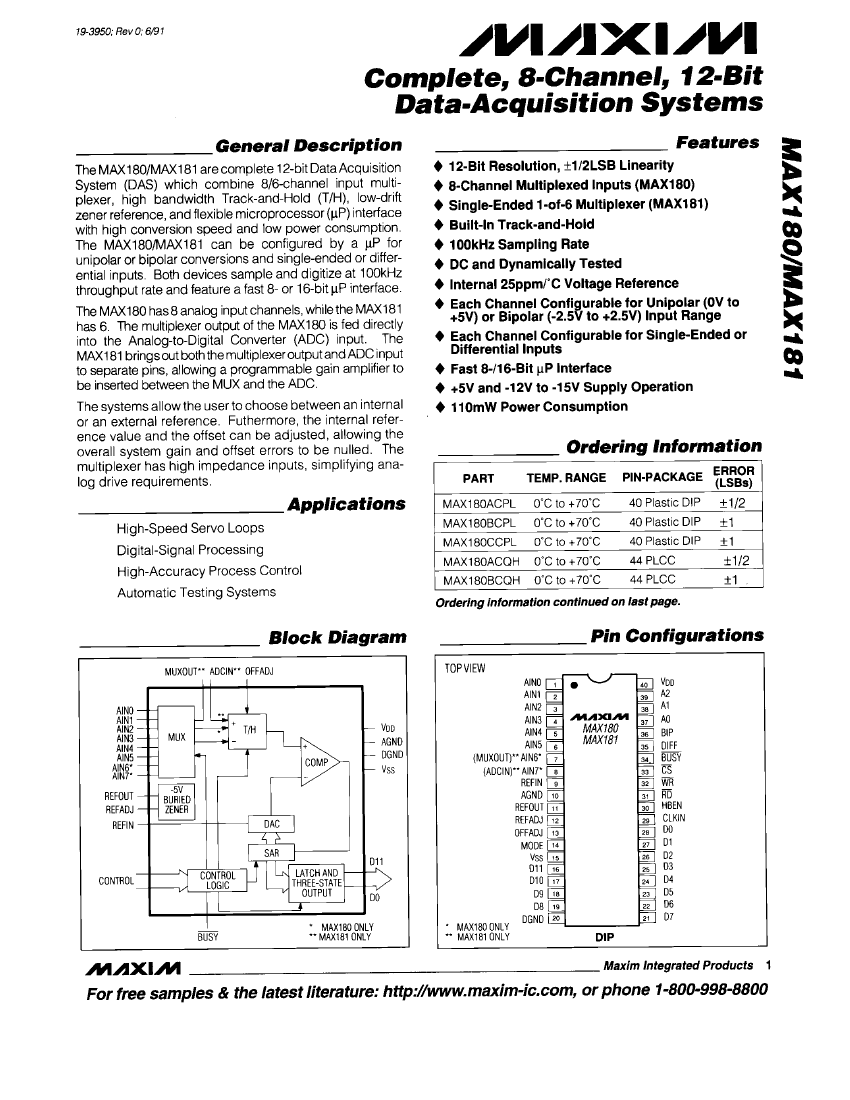

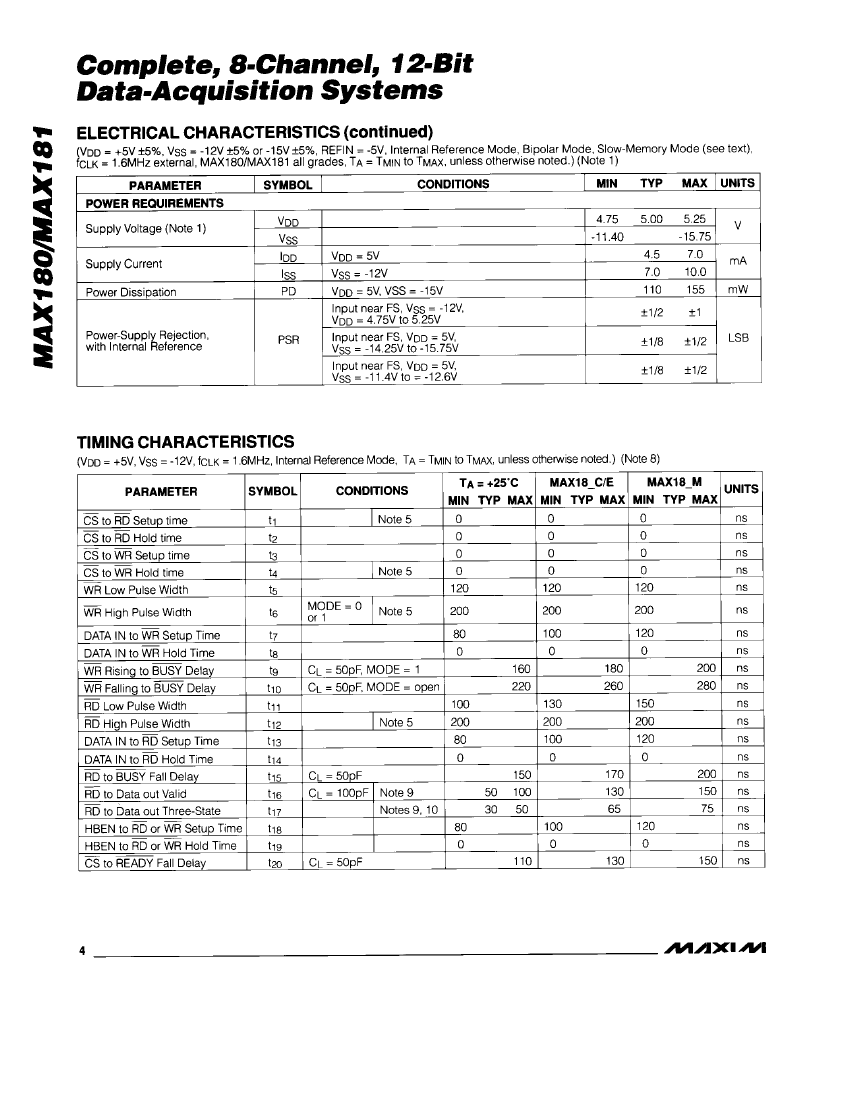

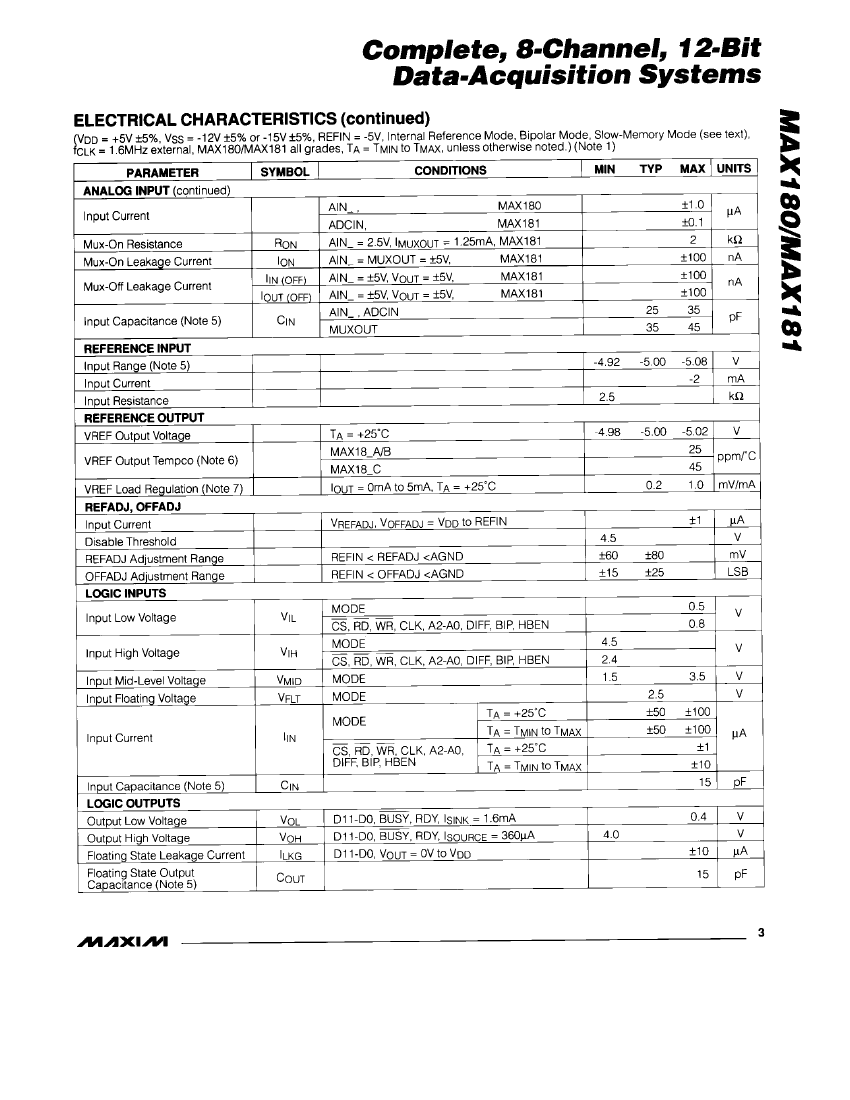

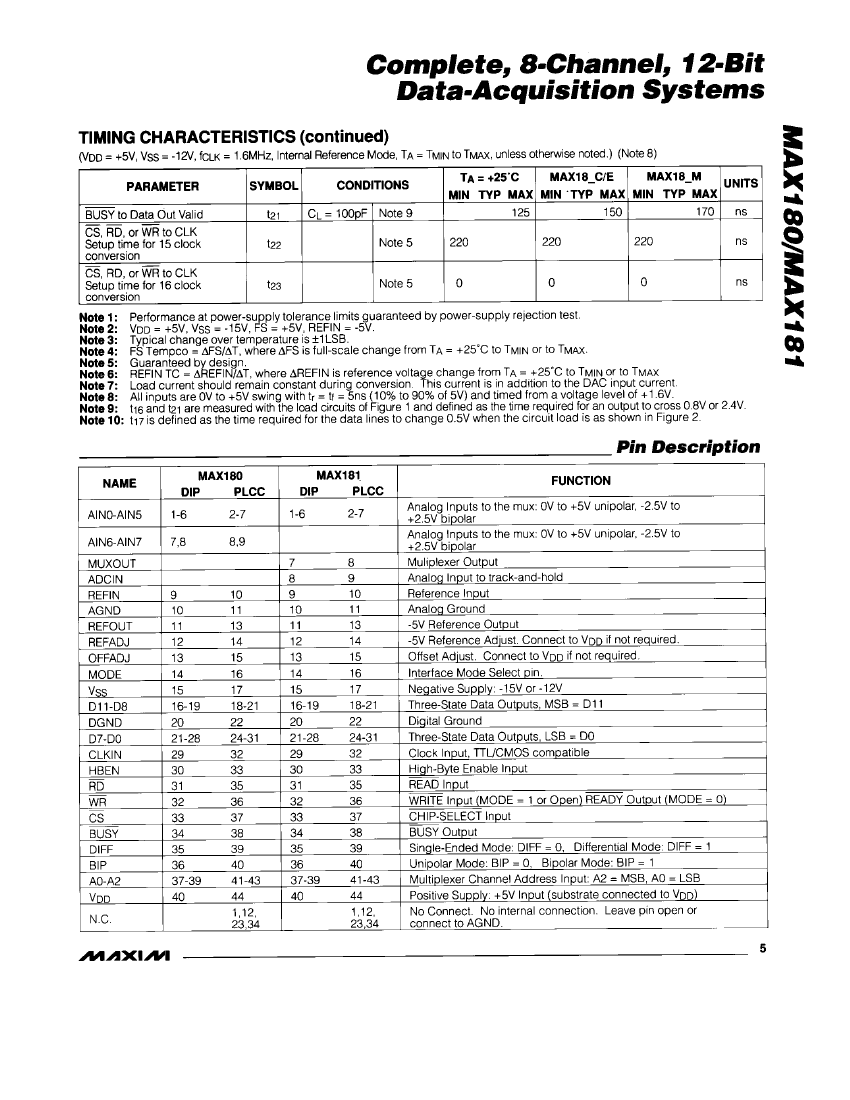

Preview

Download Datasheet

View All

MAX180AMJL-883B Related Products

	MAX180AMJL-883B	MAX181AMDL	MAX181BMDL	MAX180AMJL	MAX180AMDL	MAX181AMJL	MAX180BMDL	MAX181BMJL	MAX181CMJL
Description	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	-	Maxim	Maxim	Maxim	-	Maxim	Maxim	Maxim	Maxim
Parts packaging code	-	MODULE	MODULE	DIP	MODULE	DIP	MODULE	DIP	DIP
package instruction	-	SDBRZ-40	SDBRZ-40	CERDIP-40	SDBRZ-40	CERDIP-40	SDBRZ-40	CERDIP-40	CERDIP-40
Contacts	-	40	40	40	40	40	40	40	40
Reach Compliance Code	-	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	-	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Minimum analog input voltage	-	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V
Maximum conversion time	-	10 µs	10 µs	10 µs	10 µs	10 µs	10 µs	10 µs	10 µs
Converter type	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
Maximum linear error (EL)	-	0.0244%	0.0244%	0.0244%	0.0244%	0.0244%	0.0244%	0.0244%	0.0244%
Nominal negative supply voltage	-	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V
Number of analog input channels	-	8	8	8	8	8	8	8	8
Number of digits	-	12	12	12	12	12	12	12	12
Number of functions	-	1	1	1	1	1	1	1	1
Number of terminals	-	40	40	40	40	40	40	40	40
Maximum operating temperature	-	85 °C	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	-	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	-	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	-	UNSPECIFIED	UNSPECIFIED	CERAMIC, GLASS-SEALED	UNSPECIFIED	CERAMIC, GLASS-SEALED	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	-	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	UNSPECIFIED	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	245	NOT SPECIFIED	245	NOT SPECIFIED	245	245
Sampling rate	-	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Sample and hold/Track and hold	-	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK
Nominal supply voltage	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Temperature level	-	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	-	UNSPECIFIED	UNSPECIFIED	THROUGH-HOLE	UNSPECIFIED	THROUGH-HOLE	UNSPECIFIED	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	UNSPECIFIED	UNSPECIFIED	DUAL	UNSPECIFIED	DUAL	UNSPECIFIED	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
