FSLT-S009T datasheet, PDF - EEWORLD Datasheet

FSLT-S009T: Description2012 Size Chip Multilayer RF Transformer; File Size87KB，8 Pages; ManufacturerHitachi Metals; Websitehttp://www.hitachi-metals.co.jp/e/

Download Datasheet Compare View All

FSLT-S009T Overview

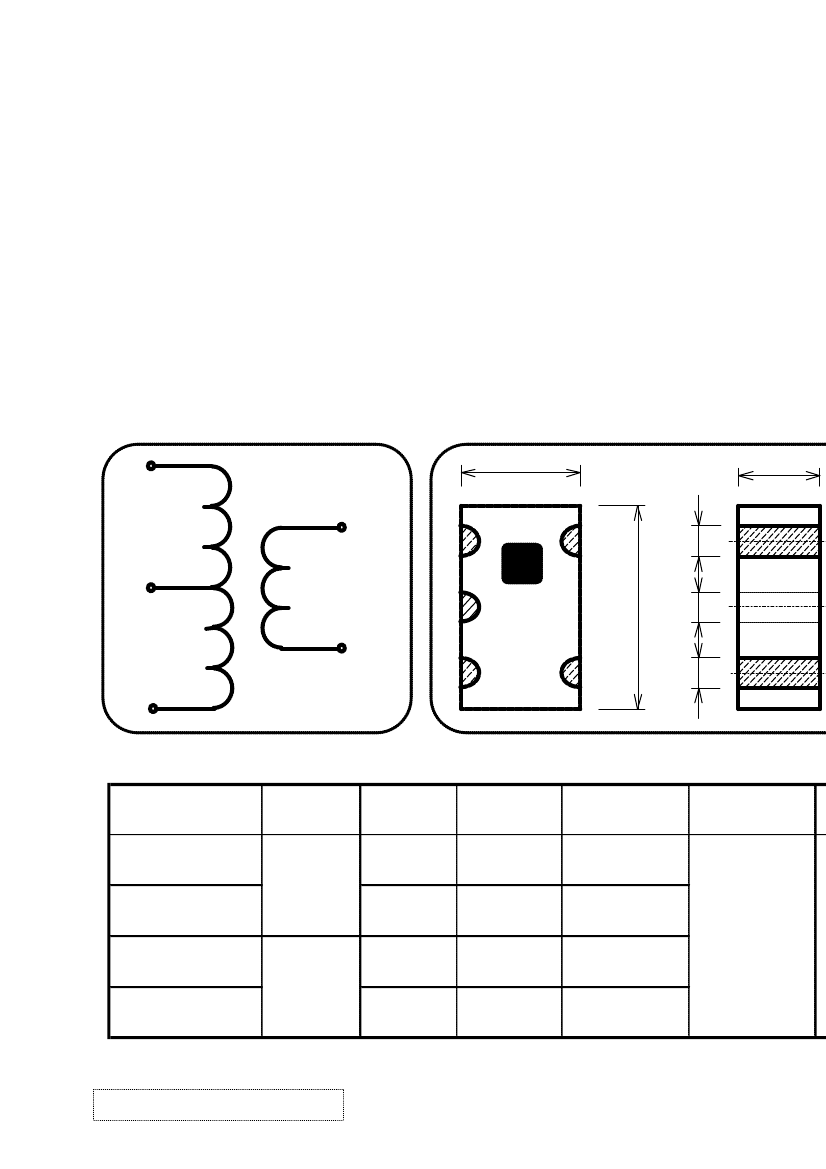

2012 Size Chip Multilayer RF Transformer

2012 Size

Chip Multilayer RF Transform

FSLT-S009T[ ]-[ ]

All the technical data and information contained

herein are subject to change without notice.

	FSLT-S009T	FSLT-S009T4-019	FSLT-S009T8-019	FSLT-S009T4-038	FSLT-S009T8-038
Description	2012 Size Chip Multilayer RF Transformer	2012 Size Chip Multilayer RF Transformer	2012 Size Chip Multilayer RF Transformer	2012 Size Chip Multilayer RF Transformer	2012 Size Chip Multilayer RF Transformer
Maker	-	Hitachi Metals	Hitachi Metals	Hitachi Metals	Hitachi Metals
Reach Compliance Code	-	unknow	unknow	unknow	unknow
ECCN code	-	EAR99	EAR99	EAR99	EAR99
Other features	-	IMPEDENCE RATIO IS 50:200	IMPEDENCE RATIO IS 50:400	IMPEDENCE RATIO IS 50:200	IMPEDENCE RATIO IS 50:400
maximum cutoff frequency	-	190 MHz	190 MHz	380 MHz	380 MHz
high	-	1 mm	1 mm	1 mm	1 mm
Insertion loss	-	4 dB	4 dB	4 dB	4 dB
length	-	2 mm	2 mm	2 mm	2 mm
Manufacturer's serial number	-	FSLT-S009T4-019	FSLT-S009T8-019	FSLT-S009T4-038	FSLT-S009T8-038
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-35 °C	-35 °C	-35 °C	-35 °C
physical size	-	2.0mm X 1.25mm X 1.0mm	2.0mm X 1.25mm X 1.0mm	2.0mm X 1.25mm X 1.0mm	2.0mm X 1.25mm X 1.0mm
surface mount	-	YES	YES	YES	YES
Transformer type	-	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER
width	-	1.25 mm	1.25 mm	1.25 mm	1.25 mm
