SMD Schottky Barrier Diode
CDBUR70
I
o
= 70 mA
V
R
= 70 Volts
RoHS Device
Features
- Low forward voltage.
-Designed for mounting on small surface.
-Extremely thin / leadless package.
-Majority carrier conduction.
0.039(1.00)
0.031(0.80)
0603/SOD-523F
0.071(1.80)
0.063(1.60)
Mechanical data
-Case: 0603/SOD-523F standard package,
molded plastic.
-Terminals: Gold plated, solderable per
MIL-STD-750,method 2026.
-Polarity: Indicated by cathode band.
-Marking code: BG
-Mounting position: Any.
-Weight: 0.003 gram(approx.).
0.028(0.70) Typ.
0.018(0.45) Typ.
0.033(0.85)
0.027(0.70)
Dimensions in inches and (millimeter)
Maximum Rating
(at T
A
=25 C unless otherwise noted)
O
Parameter
Peak reverse voltage
Reverse voltage
RMS reverse voltage
Average forward rectified current
Forward current,surge peak
Power dissipation
Storage temperature
Junction temperature
Conditions
Symbol Min Typ Max Unit
V
RM
V
R
V
R(RMS)
I
O
70
70
49
70
0.1
150
-65
+125
+125
V
V
V
mA
A
mW
O
8.3 ms single half sine-wave superimposed
on rate load(JEDEC method)
I
FSM
P
D
T
STG
T
j
C
C
O
Electrical Characteristics
(at T
A
=25 C unless otherwise noted)
O
Parameter
Forward voltage
Reverse current
Capacitance between terminals
Reverse recovery time
I
F
= 1mA
I
F
= 15mA
V
R
= 50V
Conditions
Symbol Min Typ Max Unit
V
F
I
R
C
T
T
rr
0.41
1
0.1
2
5
V
uA
pF
nS
REV:B
f = 1 MHz, and 0 VDC reverse voltage
I
F
=I
R
=10mA,Irr=0.1xIR,RL=100 Ohm
QW-A1086
Page 1
Comchip Technology CO., LTD.
SMD Schottky Barrier Diode
RATING AND CHARACTERISTIC CURVES (CDBUR70)
Fig. 1 - Forward characteristics
100
C
O
Fig. 2 - Reverse characteristics
100u
O
12
5
75
C
25 C
O
Forward current (mA )
Reverse current ( A )
0 C
O
-4 0 C
O
10u
125 C
O
10
1u
75 C
O
100n
25 C
O
1
10n
0 C
O
1n
-40 C
O
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.1n
0
10
20
30
40
50
60
70
Forward voltage (V)
Reverse voltage (V)
Fig.3 - Capacitance between
terminals characteristics
Capacitance between terminals (
P
F)
2.0
120
Fig.4 - Current derating curve
Average forward current(%)
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
f=1MHz
O
T
A
=25 C
Mounting on glass epoxy PCBs
100
80
60
40
20
0
25
30
35
40
0
25
50
75
100
O
125
150
Reverse voltage (V)
Ambient temperature ( C)
REV:B
QW-A1086
Page 2
Comchip Technology CO., LTD.
SMD Schottky Barrier Diode

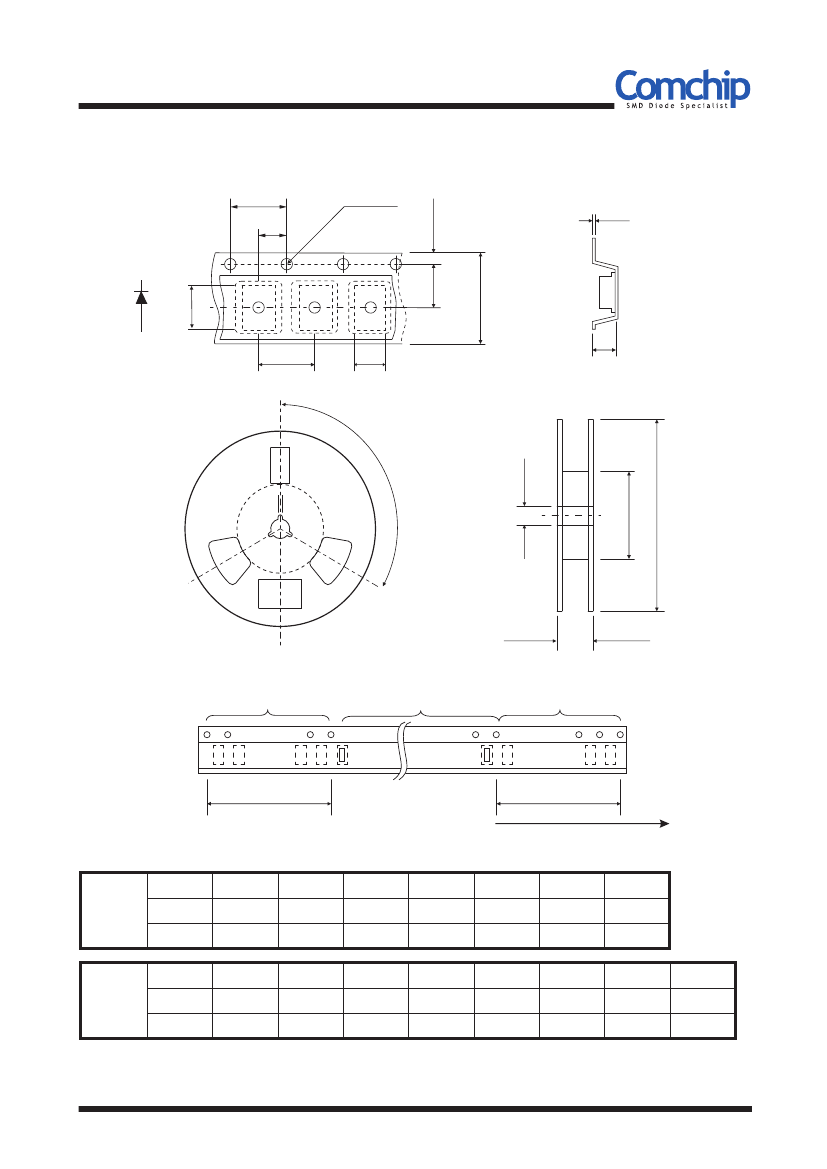

Reel Taping Specification
P
0
P
1
d
Index hole
E
T
F
B
Polarity
W
C
P
A
12
0
o
D
2
D
1
D
W
1
Trailer
.......
.......
10 pitches (min)
Device
.......
.......
.......
.......
Leader
.......
.......
10 pitches (min)
End
Start
Direction of Feed
SYMBOL
A
1.00 ± 0.10
0.039
±
0.004
B
1.85 ± 0.10
0.073
±
0.004
C
1.00 ± 0.10
0.039
±
0.004
d
1.55 ± 0.05
0.061
±
0.002
D
178 ± 1
7.008
±
0.04
D
1
60.0 MIN.
2.362 MIN.
D
2
13.0 ± 0.20
0.512
±
0.008
0603
(SOD-523F)
(mm)
(inch)
SYMBOL
E
1.75 ± 0.10
0.069
±
0.004
F
3.50 ± 0.05
0.138
±
0.002
P
4.00 ± 0.10
0.157
±
0.004
P
0
4.00 ± 0.10
0.157
±
0.004
P
1
2.00 ± 0.05
0.079
±
0.004
T
0.23 ± 0.05
0.009
±
0.002
W
8.00 ± 0.20
0.315
±
0.008
W
1
13.5 MAX.
0.531 MAX.
0603
(SOD-523F)
(mm)
(inch)
REV:B
QW-A1086
Page 3
