TOP247Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TOP247Y

TOP247Y: DescriptionAC/DC Converters 125 W 85-265 VAC 165 W 230 VAC; CategoryPower/power management The power supply circuit; File Size2MB，52 Pages; ManufacturerPower Integrations; Websitehttps://www.powerint.cn

Download Datasheet Parametric Compare View All

TOP247Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TOP247Y	-	-	View	Buy Now

TOP247Y Overview

AC/DC Converters 125 W 85-265 VAC 165 W 230 VAC

TOP247Y Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Power Integrations
Parts packaging code	SFM
package instruction	TO-220, 7/6 PIN
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REQUIRES AN AC SUPPLY OF 85 TO 265 V
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
JESD-30 code	R-PZFM-T6
JESD-609 code	e0
Number of functions	1
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	5.76 A
Package body material	PLASTIC/EPOXY
encapsulated code	TO-220
Encapsulate equivalent code	ZIP6,.27,.06,100/50TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	140 kHz
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

TOP242-250

TOPSwitch-GX

Family

Product Highlights

Lower System Cost, High Design Flexibility

• Extended power range for higher power applications

• No heatsink required up to 34 W using P/G packages

• Features eliminate or reduce cost of external components

• Fully integrated soft-start for minimum stress/overshoot

• Externally programmable accurate current limit

• Wider duty cycle for more power, smaller input capacitor

• Separate line sense and current limit pins on Y/R/F packages

• Line under-voltage (UV) detection: no turn off glitches

• Line overvoltage (OV) shutdown extends line surge limit

• Line feed-forward with maximum duty cycle (DC

MAX

)

reduction rejects line ripple and limits DC

MAX

at high line

• Frequency jittering reduces EMI and EMI ﬁltering costs

• Regulates to zero load without dummy loading

• 132 kHz frequency reduces transformer/power supply size

• Half frequency option in Y/R/F packages for video applications

• Hysteretic thermal shutdown for automatic fault recovery

• Large thermal hysteresis prevents PC board overheating

EcoSmart

–

Energy Efﬁcient

• Extremely low consumption in remote off mode

(80 mW at 110 VAC, 160 mW at 230 VAC)

• Frequency lowered with load for high standby efﬁciency

• Allows shutdown/wake-up via LAN/input port

Extended Power, Design Flexible,

EcoSmart,

Integrated Off-line Switcher

OUT

CONTROL

TOPSwitch-GX

PI-2632-060200

Figure 1. Typical Flyback Application.

OUTPUT POWER TABLE

PRODUCT

230 VAC ±15%

Adapter

85-265 VAC

Description

TOPSwitch-GX

uses the same proven topology as

TOPSwitch,

cost effectively integrating the high voltage power MOSFET,

PWM control, fault protection and other control circuitry onto

a single CMOS chip. Many new functions are integrated to

reduce system cost and improve design ﬂexibility, performance

and energy efﬁciency.

Depending on package type, either 1 or 3 additional pins over

the

TOPSwitch

standard DRAIN, SOURCE and CONTROL

terminals allow the following functions: line sensing (OV/UV,

line feed-forward/DC

MAX

reduction), accurate externally set

current limit, remote ON/OFF, synchronization to an external

lower frequency, and frequency selection (132 kHz/66 kHz).

All package types provide the following transparent features:

Soft-start, 132 kHz switching frequency (automatically reduced

at light load), frequency jittering for lower EMI, wider DC

MAX

hysteretic thermal shutdown, and larger creepage packages. In

addition, all critical parameters (i.e. current limit, frequency,

PWM gain) have tighter temperature and absolute tolerances

to simplify design and optimize system cost.

TOP242 P or G 9 W

TOP242 R

15 W

TOP242 Y or F 10 W

TOP243 P or G 13 W

TOP243 R

29 W

TOP243 Y or F 20 W

TOP244 P or G 16 W

TOP244 R

34 W

TOP244 Y or F 30 W

TOP245 P or G 19 W

TOP245 R

37 W

TOP245 Y or F 40 W

TOP246 P or G 21 W

TOP246 R

40 W

TOP246 Y or F 60 W

42 W

TOP247 R

TOP247 Y or F 85 W

43 W

TOP248 R

TOP248 Y or F 105 W

44 W

TOP249 R

TOP249 Y or F 120 W

45 W

TOP250 R

TOP250 Y or F 135 W

Open

Adapter

Frame

15 W

6.5 W

10 W

22 W

11 W

14 W

22 W

14 W

25 W

15 W

45 W

17 W

23 W

45 W

15 W

30 W

28 W

20 W

11 W

50 W

20 W

28 W

65 W

20 W

45 W

30 W

13 W

22 W

57 W

23 W

33 W

85 W

26 W

60 W

34 W

15 W

26 W

64 W

26 W

38 W

125 W

40 W

90 W

70 W

28 W

43 W

165 W

55 W

125 W

75 W

30 W

48 W

205 W

70 W

155 W

79 W

31 W

53 W

250 W

80 W

180 W

82 W

32 W

55 W

290 W

90 W

210 W

Table 1.

Notes:

Typical continuous power in a non-ventilated enclosed

adapter measured at 50

°C

ambient.

Maximum practical continuous

power in an open frame design at 50

°C

ambient. See Key Applications

for detailed conditions.

For lead-free package options, see Part

Ordering Information.

230 VAC or 100/115 VAC with doubler.

November 2005

TOP242-250

Section List

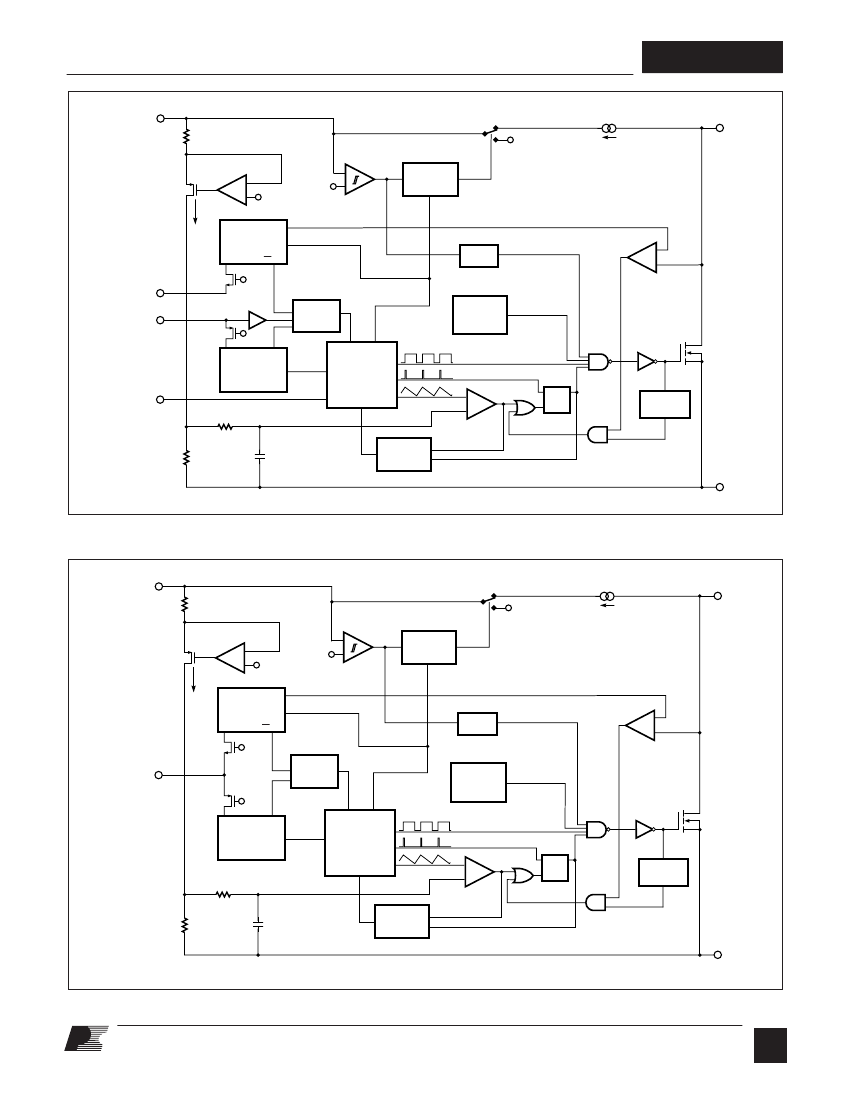

Functional Block Diagram

....................................................................................................................................... 3

Pin Functional Description

...................................................................................................................................... 4

TOPSwitch-GX

Family Functional Description

....................................................................................................... 5

CONTROL (C) Pin Operation.................................................................................................................................. 6

Oscillator and Switching Frequency ........................................................................................................................ 6

Pulse Width Modulator and Maximum Duty Cycle .................................................................................................. 7

Light Load Frequency Reduction ............................................................................................................................ 7

Error Ampliﬁer ......................................................................................................................................................... 7

On-Chip Current Limit with External Programmability ............................................................................................ 7

Line Under-Voltage Detection (UV)......................................................................................................................... 8

Line Overvoltage Shutdown (OV) ........................................................................................................................... 8

Line Feed-Forward with DC

MAX

Reduction .............................................................................................................. 8

Remote ON/OFF and Synchronization ................................................................................................................... 9

Soft-Start ................................................................................................................................................................. 9

Shutdown/Auto-Restart ........................................................................................................................................... 9

Hysteretic Over-Temperature Protection ................................................................................................................. 9

Bandgap Reference .............................................................................................................................................. 10

High-Voltage Bias Current Source ........................................................................................................................ 10

Using Feature Pins

................................................................................................................................................... 10

FREQUENCY (F) Pin Operation ........................................................................................................................... 10

LINE-SENSE (L) Pin Operation ............................................................................................................................ 10

EXTERNAL CURRENT LIMIT (X) Pin Operation .................................................................................................. 11

MULTI-FUNCTION (M) Pin Operation .................................................................................................................. 11

Typical Uses of FREQUENCY (F) Pin

...................................................................................................................... 14

Typical Uses of LINE-SENSE (L) and EXTERNAL CURRENT LIMIT (X) Pins

...................................................... 15

Typical Uses of MULTI-FUNCTION (M) Pin

........................................................................................................... 17

Application Examples

.............................................................................................................................................. 20

A High Efﬁciency, 30 W, Universal Input Power Supply ........................................................................................ 20

A High Efﬁciency, Enclosed, 70 W, Universal Adapter Supply .............................................................................. 20

A High Efﬁciency, 250 W, 250-380 VDC Input Power Supply ............................................................................... 22

Multiple Output, 60 W, 185-265 VAC Input Power Supply .................................................................................... 23

Processor Controlled Supply Turn On/Off ............................................................................................................. 24

Key Application Considerations

............................................................................................................................. 26

TOPSwitch-II

vs.

TOPSwitch-GX

.......................................................................................................................... 26

TOPSwitch-FX

vs.

TOPSwitch-GX

....................................................................................................................... 28

TOPSwitch-GX

Design Considerations ............................................................................................................... 28

TOPSwitch-GX

Layout Considerations ................................................................................................................. 30

Quick Design Checklist ......................................................................................................................................... 32

Design Tools ......................................................................................................................................................... 32

Product Speciﬁcations and Test Conditions

......................................................................................................... 33

Typical Performance Characteristics

.................................................................................................................... 40

Part Ordering Information

....................................................................................................................................... 46

Package Outlines

..................................................................................................................................................... 47

11/05

TOP247Y Related Products

	TOP247Y	TOP250Y
Description	AC/DC Converters 125 W 85-265 VAC 165 W 230 VAC	AC/DC Converters 210 W 85-265 VAC 290 W 230 VACX
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Power Integrations	Power Integrations
Parts packaging code	SFM	SFM
package instruction	TO-220, 7/6 PIN	TO-220, 7/6 PIN
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	REQUIRES AN AC SUPPLY OF 85 TO 265 V	REQUIRES AN AC SUPPLY OF 85 TO 265 V
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
JESD-30 code	R-PZFM-T6	R-PZFM-T6
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	6	6
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	5.76 A	10.08 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-220	TO-220
Encapsulate equivalent code	ZIP6,.27,.06,100/50TB	ZIP6,.27,.06,100/50TB
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Switch configuration	SINGLE	SINGLE
Maximum switching frequency	140 kHz	140 kHz
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED

Recommended Resources

Why can offline LED lighting power supply dominate the market?

AD7730 digital pressure measurement circuit

High Voltage Regulator with Feedback Current Limitation

SWR (standing wave ratio) measuring instrument

0.1 second to 6 hours timing circuit

555 reading kiosk automatic lighting circuit

Ask about the use of msp430f425: 1. Can the I+ and I- of sd16 be used to collect voltage signals? If so, how should they be set?2. Can sd16 collect differential signals? If so, can it identify negative voltages? (i.e. collect the dif...; dongdongbo119 Microcontroller MCU

Implementing web server on window mobile 5.0: The question is as the title says! Hope you can give me some advice!...; kedou000007 Embedded System

Pocket PC emulator connection issues: I have some knowledge of using Pocket PC 2003 simulator with VS.NET 2005. Now I want to use VS.NET 2003 to develop PDA project, using Pocket PC 2002 simulator. There is a device simulator manager in ....; lololo Embedded System

Help!! Can any expert provide me with a test circuit diagram for testing the performance of VDMOS power tube? I will be very grateful!: I just started working and I still have many difficulties in designing. Now I urgently need a test circuit diagram for testing the performance of VDMOS power devices. This power device is used for ele...; xjnqwjx Analog electronics

"Playing with the Board" + Replaying MicroPython on the STM32F7DISC (5): With the LCD and TS driver, we can do some complex demonstrations. The following is a fractal (mandelbrot) demonstration program, which first draws the initial pattern, then reads the touch screen inp...; dcexpert Special Edition for Assessment Centres

The first programming went wrong: Please help me, module error...; tao147258 FPGA/CPLD

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
