EMY1T2R

Description
Bipolar Transistors - BJT DUAL PNP/NPN 50V
CategoryDiscrete semiconductor    The transistor
File Size3MB,13 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

EMY1T2R Online Shopping

Suppliers Part Number Price MOQ In stock
EMY1T2R - - View Buy Now

EMY1T2R Overview

Bipolar Transistors - BJT DUAL PNP/NPN 50V

EMY1T2R Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerROHM Semiconductor
Parts packaging codeSC-107
package instructionSMALL OUTLINE, R-PDSO-F5
Contacts5
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks
Maximum collector current (IC)0.15 A
Collector-emitter maximum voltage50 V
ConfigurationCOMMON EMITTER, 2 ELEMENTS
Minimum DC current gain (hFE)120
JESD-30 codeR-PDSO-F5
JESD-609 codee2
Humidity sensitivity level1
Number of components2
Number of terminals5
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN AND PNP
Maximum power dissipation(Abs)0.15 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Copper (Sn/Cu)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperature10
Transistor component materialsSILICON
Nominal transition frequency (fT)180 MHz

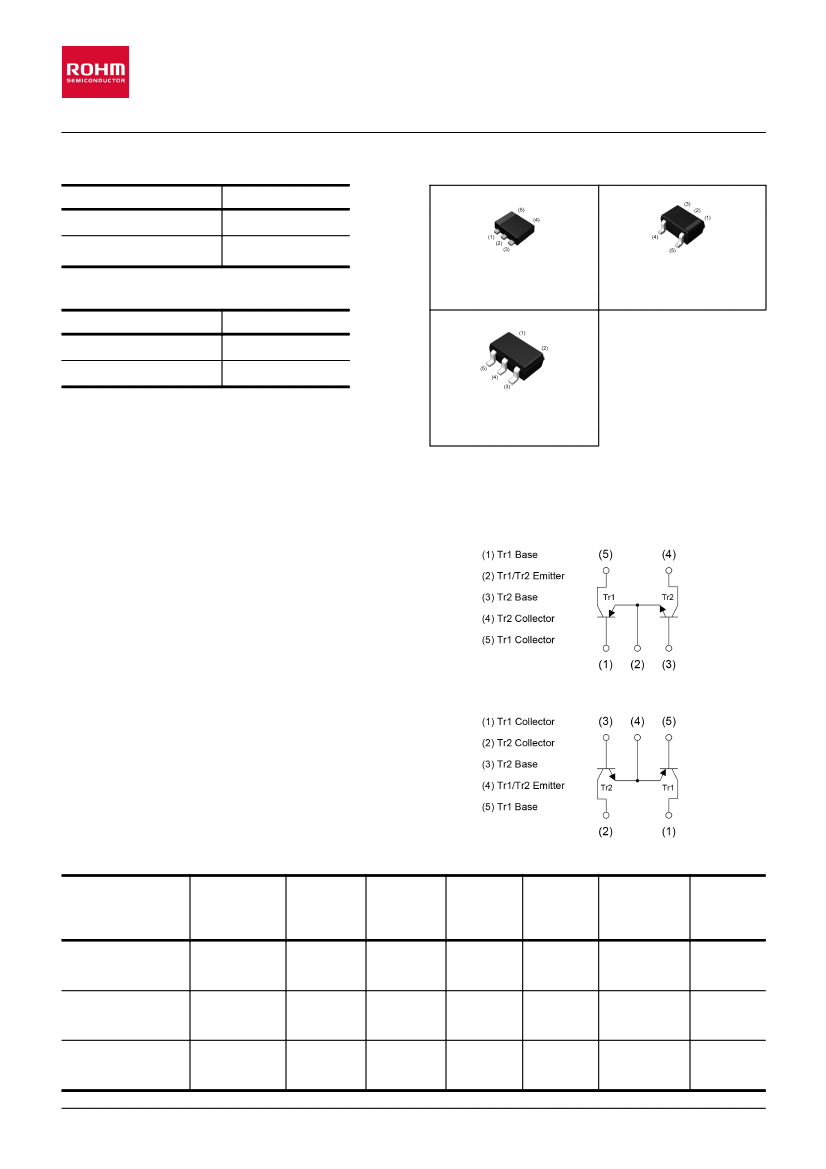

EMY1 / UMY1N / FMY1A
Emitter common (dual transistors)
<For Tr1(PNP)>
Datasheet
l
Outline
Parameter
V
CEO
I
C

<For Tr2(NPN)>
Value
-50V
-150mA

SOT-553
SOT-353


EMY1
(EMT5)
SOT-25
UMY1N
(UMT5)




Parameter
V
CEO
I
C
Value
50V
150mA

FMY1A
(SMT5)


l
Features
1) Included a 2SA1037AK and a 2SC2412K

transistor in a EMT, UMT or SMT package.
2)Mounting possible with EMT3 or UMT3 or SMT3

automatic mounting machines.
3) PNP and NPN transistors have common emitters.
4) Mounting cost and area can be cut in half.
l
Inner circuit
EMY1 / UMY1N
FMY1A
l
Application
GENERAL PURPOSE SMALL SIGNAL AMPLIFIER
l
Packaging specifications


Part No.
EMY1
UMY1N
FMY1A
Package
SOT-553
(EMT5)
SOT-353
(UMT5)
SOT-25
(SMT5)
Package
size
1616
2021
2928
Taping
code
T2R
TR
T148
Reel size Tape width
(mm)
(mm)
180
180
180
8
8
8
Basic
ordering
unit.(pcs)
8000
3000
3000
Marking
Y1
Y1
Y1

www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/11
20150825 - Rev.003
