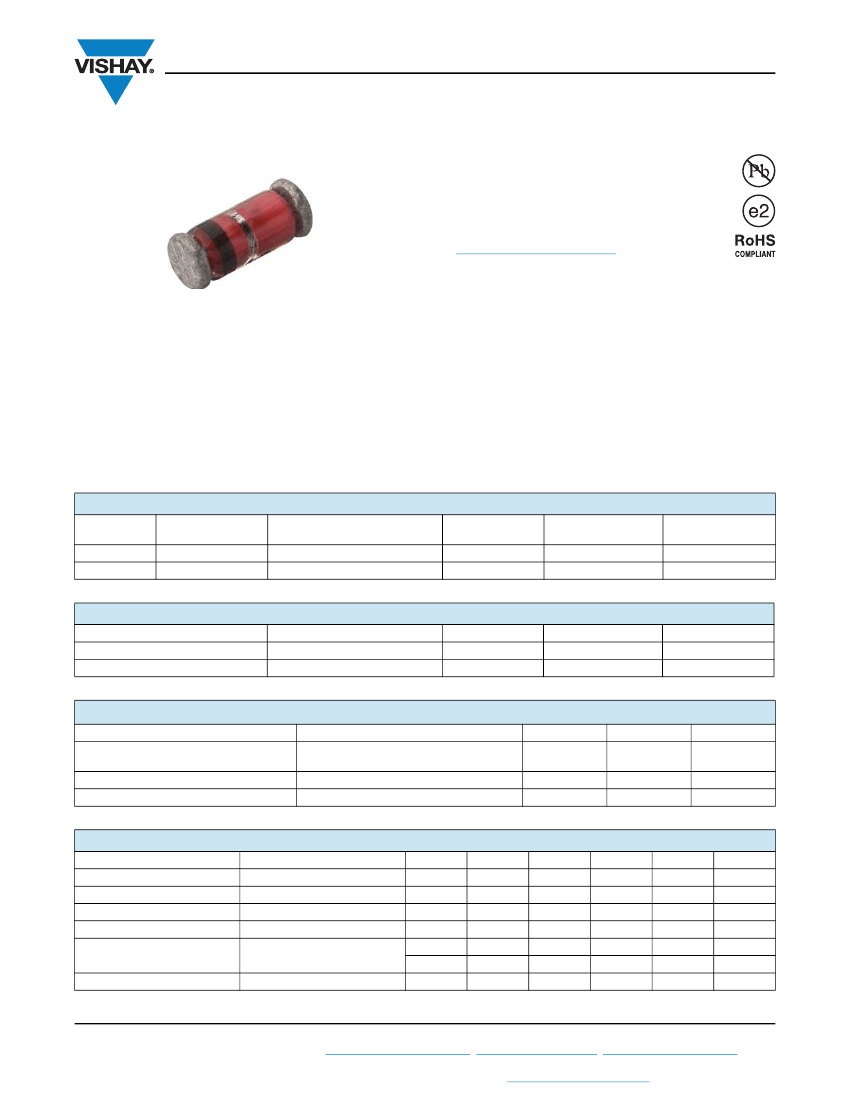

BA679, BA679S
www.vishay.com
Vishay Semiconductors
RF PIN Diodes - Single in MiniMELF SOD-80
FEATURES
• Wide frequency range 10 MHz to 1 GHz
• AEC-Q101 qualified
• Material categorization:
For definitions of compliance
www.vishay.com/doc?99912
please
see
APPLICATIONS
• Current controlled
attenuators
HF
resistance
in
adjustable
MECHANICAL DATA
Case:
MiniMELF SOD-80
Weight:
approx. 31 mg
Cathode band color:
black
Packaging codes/options:
GS18/10K per 13" reel (8 mm tape), 10K/box
GS08/2.5K per 7" reel (8 mm tape), 12.5K/box
PARTS TABLE
PART
BA679
BA679S
TYPE
DIFFERENTIATION
z
r
> 5 k
z
r
> 9 k
ORDERING CODE
BA679-GS18 or BA679-GS08
BA679S-GS18 or BA679S-GS08
TYPE MARKING
-
-
INTERNAL
CONSTRUCTION
Single diode
Single diode
REMARKS
Tape and reel
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PART
Reverse voltage
Forward continuous current
TEST CONDITION
SYMBOL
V
R
I
F
VALUE
30
50
UNIT
V
mA
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
TEST CONDITION
on PC board
50 mm x 50 mm x 1.6 mm
SYMBOL
R
thJA
T
j
T
stg
VALUE
500
125
- 55 to + 150
UNIT
K/W
°C
°C
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Forward voltage
Reverse current
Diode capacitance
Differential forward resistance
Reverse impedance
Minority carrier lifetime
TEST CONDITION
I
F
= 20 mA
V
R
= 30 V
f = 100 MHz, V
R
= 0 V
f = 100 MHz, I
F
= 1.5 mA
f = 100 MHz, V
R
= 0 V
I
F
= 10 mA, I
R
= 10 mA
BA679
BA679S
PART
SYMBOL
V
F
I
R
C
D
r
f
z
r
z
r
5
9
4
MIN.
TYP.
MAX.
1
0.05
0.5
50
UNIT
V
μA
pF
k
k
μs
Rev. 1.8, 16-May-12
Document Number: 85529
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BA679, BA679S
www.vishay.com
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
100
Vishay Semiconductors
I
F
- Forward Current (mA)
10
T
amb
= 25 °C
1
Scattering Limit
0.1
0.01
0
95 9735
0.4
0.8
1.2
1.6
2.0
V
F
- Forward
Voltage
(V)
Fig. 1 -
Forward Current vs. Forward Voltage
r
f
- Differential Forward Resistance (Ω)
10 000
1000
100
f > 20 MHz
T
j
= 25 °C
10
1
0.001
0.01
0.1
1
10
95 9734
I
F
- Forward Current (mA)
Fig. 2 -
Differential Forward Resistance vs. Forward Current
a - Typical Cross Modulation Distortion (dB)
20
Π
- Circuit
with
10 dB Attenuation
V
0
= 40 dBmV
f
1
= 100 MHz
unmodulated
- 20
0
- 40
- 60
-
80
0
20
40
60
80
f
2
, modulated
with
200 kHz, m = 100 % (MHz)
95 9733
Fig. 3 - Typ. Cross Modulation Distortion vs. Frequency f
2
Rev. 1.8, 16-May-12
Document Number: 85529
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BA679, BA679S
www.vishay.com
PACKAGE DIMENSIONS
in millimeters (inches):
MiniMELF SOD-80
Cathode indentification
Vishay Semiconductors
*
0.47 (0.019) max.
3.7 (0.146)
3.3 (0.130)
* The gap
between
plug and glass can
be
either on cathode or anode side
Foot print recommendation:
2.5 (0.098) max.
1.6 (0.063)
1.4 (0.055)
1.25 (0.49) min.
Document no.:6.560-5005.01-4
Rev.
8
- Date: 07.June.2006
96 12070
5 (0.197) ref.
Rev. 1.8, 16-May-12
Document Number: 85529
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
2 (0.079) min.
