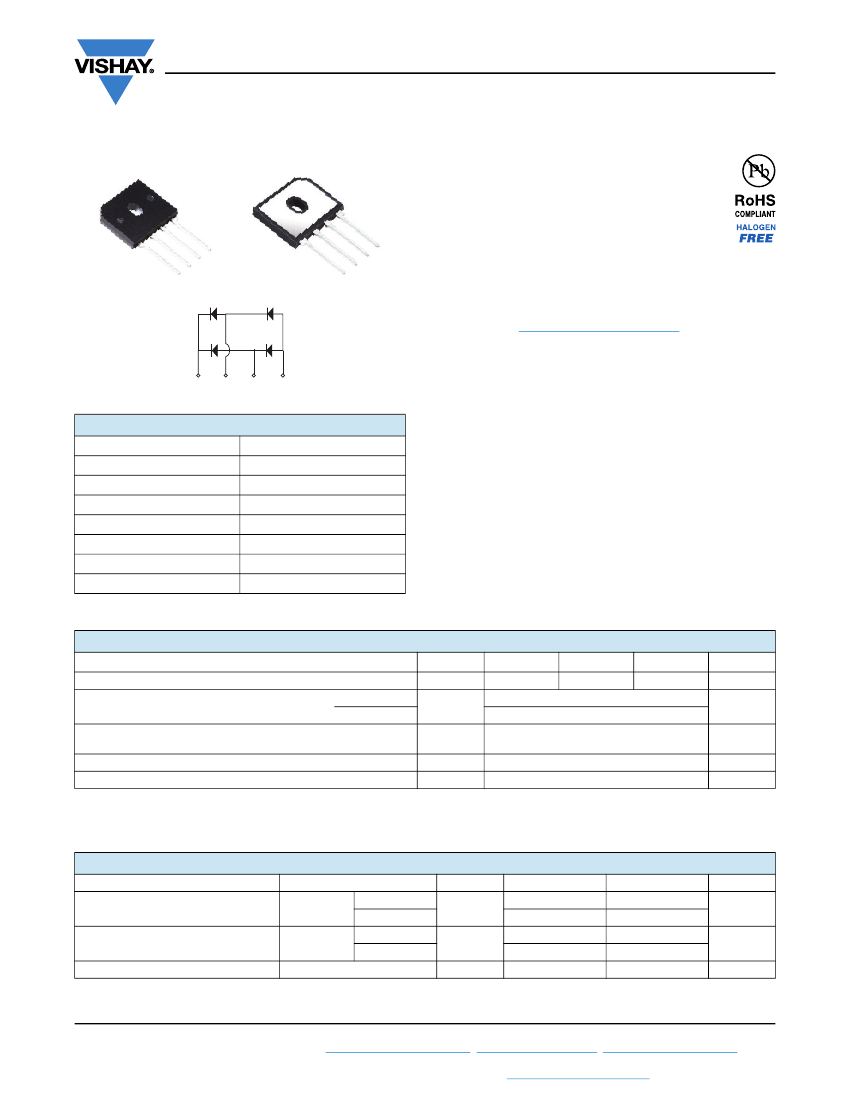

BU1006A, BU1008A, BU1010A

www.vishay.com

Vishay General Semiconductor

Enhanced isoCink+™ Bridge Rectifiers

isoCink+™

FEATURES

• UL recognition file number E312394

• Thin single in-line package

• Glass passivated chip junction

• Available for BU-5S lead forming option (part

number with “5S” suffix, e.g. BU1006A5S)

• Superior thermal conductivity

• Solder dip 275 °C max. 10 s, per JESD 22-B106

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Available

Case Style BU

TYPICAL APPLICATIONS

General purpose use in AC/DC bridge full wave rectification

for switching power supply, home appliances, and

white-goods applications.

PRIMARY CHARACTERISTICS

Package

F(AV)

RRM

FSM

at I

= 5.0 A

max.

Circuit configuration

10 A

600 V, 800 V, 1000 V

90 A

5 μA

0.94 V

150 °C

In-line

MECHANICAL DATA

Case:

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, and

commercial grade

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 and M3 suffix meet JESD 201 class 1A whisker test

Polarity:

as marked on body

Mounting Torque:

10 cm-kg (8.8 inches-lbs) max.

Recommended Torque:

5.7 cm-kg (5 inches-lbs)

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Average rectified forward current (Fig. 1, 2)

Non-repetitive peak forward surge current

8.3 ms single sine-wave, T

= 25 °C

Rating for fusing (t < 8.3 ms) T

= 25 °C

Operating junction and storage temperature range

Notes

(1)

With 60 W air cooled heatsink

(2)

Without heatsink, free air

= 90 °C

= 25 °C

(1)

(2)

SYMBOL

RRM

FSM

, T

STG

BU1006A

600

BU1008A

800

3.0

-55 to +150

BU1010A

1000

UNIT

°C

ELECTRICAL CHARACTERISTICS

= 25 °C unless otherwise noted)

PARAMETER

Maximum instantaneous forward

voltage per diode

(1)

Maximum reverse current per diode

Typical junction capacitance per diode

TEST CONDITIONS

= 5.0 A

rated V

4.0 V, 1 MHz

= 25 °C

= 125 °C

= 25 °C

= 125 °C

SYMBOL

TYP.

1.02

0.94

MAX.

1.10

1.00

5.0

250

UNIT

μA

Note

(1)

Pulse test: 300 μs pulse width, 1 % duty cycle

Revision: 29-Aug-17

Document Number: 84800

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
