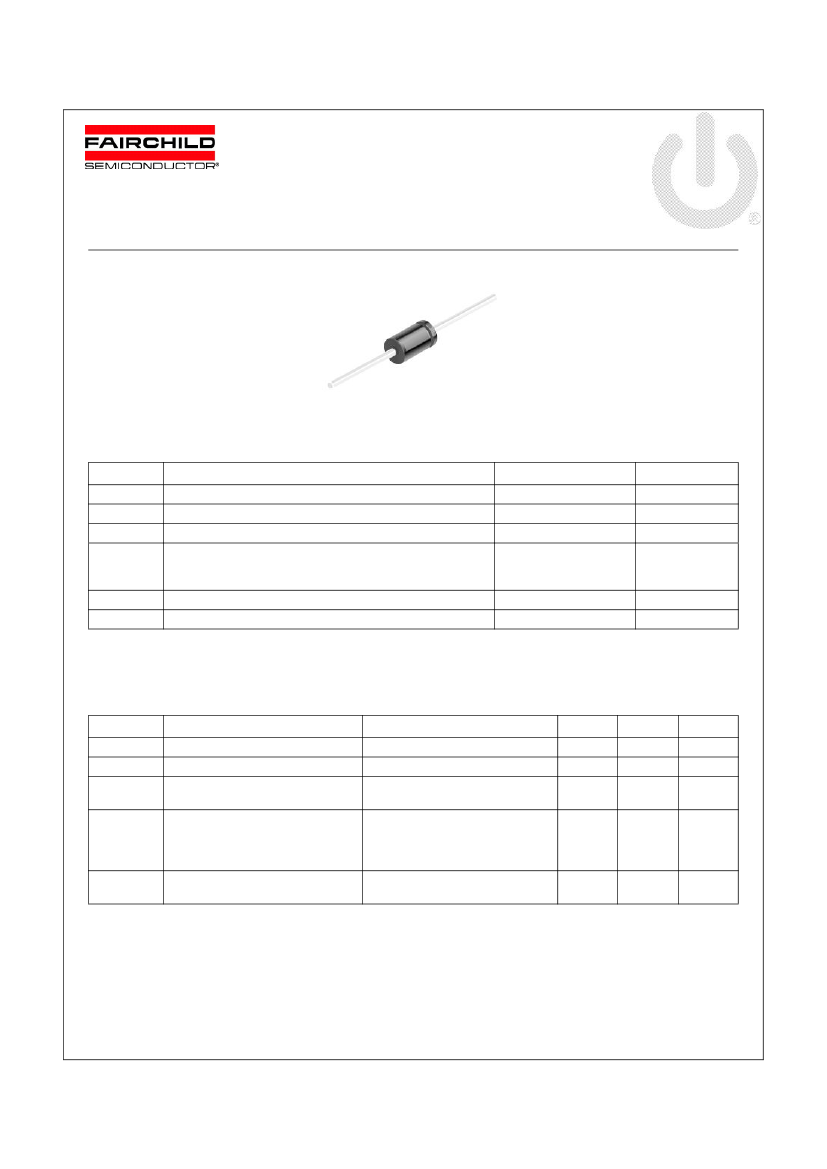

BAX16 — High Voltage General Purpose Diode
April 2008
BAX16
High Voltage General Purpose Diode
DO-35 Glass case
COLOR BAND DENOTES CATHODE
Absolute Maximum Ratings
Symbol
V
RRM
I
F(AV)
i
f
I
FSM
* T
a
= 25°C unless otherwise noted
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Recurrent Peak Forward Current
Non-repetitive Peak Forward Surge Current
Pulse Width = 1.0 s
Pulse Width = 1.0
ms
Storage Temperature Range
Operating Junction Temperature
Value
150
200
600
1
4
-65 to 200
175
Unit
V
mA
mA
A
A
°C
°C
T
STG
T
J
* These ratings are limiting values above which the serviceability of the diode may be impaired.
Notes:
1) These ratings are based on a maximum junction temperature of 200degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
