High-Output-Drive, Precision, Low-Power, Single-
Supply, Rail-to-Rail I/O Op Amps with Shutdown
General Description
The MAX4165–MAX4169 family of operational amplifiers
combines excellent DC accuracy with high output current
drive, single-supply operation, and rail-to-rail inputs and
outputs. These devices operate from a single +2.7V to
+6.5V supply, or from dual ±1.35V to ±3.25V supplies.
They typically draw 1.2mA supply current, and are guar-
anteed to deliver 80mA output current.
The MAX4166/MAX4168 have a shutdown mode that
reduces supply current to 38µA per amplifier and
places the outputs into a high-impedance state. The
MAX4165–MAX4169’s precision performance com-
bined with high output current, wide input/output
dynamic range, single-supply operation, and low power
consumption makes them ideal for portable audio
applications and other low-voltage, battery-powered
systems. The MAX4165 is available in the space-saving
5-pin SOT23 package and the MAX4166 is available in
a tiny 2mm x 2mm x 0.8mm µDFN package.
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
Features
80mA (min) Output Drive Capability
Rail-to-Rail Input Common-Mode Voltage Range
Rail-to-Rail Output Voltage Swing
1.2mA Supply Current per Amplifier
+2.7V to +6.5V Single-Supply Operation
5MHz Gain-Bandwidth Product
250µV Offset Voltage
1
Ω
120dB Voltage Gain (R
L
= 100kΩ)
88dB Power-Supply Rejection Ratio
No Phase Reversal for Overdriven Inputs
Unity-Gain Stable for Capacitive Loads to 250pF
Low-Power Shutdown Mode:
Reduces Supply Current to 38µA Places
Outputs in High-Impedance State
♦
Available in 5-Pin SOT23 Package (MAX4165) or
2mm x 2mm x 0.8mm µDFN (MAX4166)
MAX4165–MAX4169
Selector Guide
PART
MAX4165
MAX4166
MAX4167
MAX4168
MAX4169
AMPS PER
PACKAGE
Single
Single
Dual
Dual
Quad
SHUTDOWN
MODE
—
Yes
—
Yes
—
MAX4165EUK-T
MAX4166EPA
MAX4166ESA
MAX4166EUA
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
Ordering Information
PART
TEMP RANGE
PIN-
PACKAGE
5 SOT23-5
8 Plastic DIP
8 SO
8 µMAX
TOP
MARK
AABY
—
—
—
AAG
Applications
Portable/Battery-Powered Audio Applications
Portable Headphone Speaker Drivers
Laptop/Notebook Computers
Sound Ports/Cards
Set-Top Boxes
Cell Phones
Hands-Free Car Phones (kits)
Signal Conditioning
Digital-to-Analog Converter Buffers
Transformer/Line Drivers
Motor Drivers
Typical Operating Circuit appears at end of data sheet.
MAX4166ELA+T -40°C to +85°C 8 µDFN-8
+Denotes
lead-free package.
Ordering Information continued on last page.
Pin Configurations
TOP VIEW
OUT 1
5
V
CC
V
EE
2
MAX4165
IN+ 3
4
IN-
SOT23-5
Pin Configurations continued at end of data sheet.
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
High-Output-Drive, Precision, Low-Power, Single-
Supply, Rail-to-Rail I/O Op Amps with Shutdown
MAX4165–MAX4169
ABSOLUTE MAXIMUM RATINGS
Supply Voltage (V
CC
to V
EE
) ....................................................7V
IN_+, IN_-,
SHDN_............................(V
EE
- 0.3V) + (V
CC
+ 0.3V)
OUT_ (shutdown mode) ...................(V
EE
- 0.3V) + (V
CC
+ 0.3V)
Output Short-Circuit Duration to V
CC
or V
EE
(Note 1) .....Continuous
Continuous Power Dissipation (T
A
= +70°C)
5-Pin SOT23 (derate 7.10mW/°C above +70°C)..........571mW
8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ...727mW
8-Pin SO (derate 5.88mW/°C above +70°C)................471mW
8-Pin µMAX (derate 4.10mW/°C above +70°C) ...........330mW
Note 1:
Continuous power dissipation should also be observed.
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
8-Pin µDFN (derate 4.8mW/°C above +70°C) .............380mW
10-Pin µMAX (derate 5.60mW/°C above +70°C) ..........444mW
14-Pin Plastic DIP (derate 10.00mW/°C above +70°C) 800mW
14-Pin SO (derate 8.33mW/°C above +70°C)...............667mW
Operating Temperature Range ...........................-40°C to +85°C
Junction Temperature ......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
DC ELECTRICAL CHARACTERISTICS
(V
CC
= +2.7V to +6.5V, V
EE
= 0V, V
CM
= 0V, V
OUT
= (V
CC
/ 2), R
L
= 100kΩ to (V
CC
/ 2), V
SHDN
≥
2V,
T
A
= +25°C,
unless otherwise
noted.)
PARAMETER
SYMBOL
CONDITIONS
MAX416_EPA/EPD
MAX416_ESA/ESD
MIN
TYP
0.25
0.25
0.35
0.35
0.25
±50
±1
MAX
0.85
0.85
1.7
1.5
1.0
±150
±15
UNITS
Input Offset Voltage
V
OS
V
CM
= V
EE
to V
CC
MAX416_EUA/EUB/ELA
MAX416_EUK
MAX4169E_D
mV
Input Bias Current
Input Offset Current
Differential Input Resistance
Common-Mode Input
Voltage Range
I
B
I
OS
R
IN(DIFF)
V
CM
V
CM
= V
EE
to V
CC
V
CM
= V
EE
to V
CC
nA
nA
kΩ
|
V
IN
+ - V
IN
-
|
≤
1.8V
|
V
IN
+ - V
IN
-
|
> 1.8V
Inferred from CMRR test
MAX416_EPA/EPD
500
2
V
EE
- 0.25
72
72
62
63
71
72
72
72
72
70
93
93
89
90
93
88
88
86
86
88
0.1
±0.001
95
71
120
83
±2
V
CC
+ 0.25
V
Common-Mode
Rejection Ratio
CMRR
V
EE
- 0.25V <
V
CM
< (V
CC
+ 0.25V)
MAX416_ESA/ESD
MAX416_EUA/EUB/ELA
MAX416_EUK
MAX4169E_D
MAX416_EPA/EPD
MAX416_ESA/ESD
dB
Power-Supply Rejection Ratio
PSRR
V
CC
= 2.7V to 6.5V
MAX416_EUA/EUB/ELA
MAX416_EUK
MAX4169E_D
dB
Output Resistance
Off-Leakage Current
in Shutdown
Large-Signal Voltage Gain
R
OUT
I
OUT(SHDN)
A
VOL
A
VCL
= +1V/V
V
SHDN
< 0.8V, V
OUT
= 0V to V
CC
V
CC
= 5V
V
OUT
= 0.2V to 4.8V, R
L
= 100k
Ω
V
OUT
= 0.6V to 4.4V, R
L
= 25
Ω
kΩ
μA
dB
2
_______________________________________________________________________________________
High-Output-Drive, Precision, Low-Power, Single-
Supply, Rail-to-Rail I/O Op Amps with Shutdown
DC ELECTRICAL CHARACTERISTICS (continued)
(V
CC
= +2.7V to +6.5V, V
EE
= 0V, V
CM
= 0V, V
OUT
= (V
CC
/ 2), R
L
= 100kΩ to (V
CC
/ 2), V
S HDN
≥
2V,
T
A
= +25°C,
unless otherwise
noted.)
PARAMETER
SYMBOL
CONDITIONS
R
L
= 100kΩ
Output Voltage Swing
V
OUT
V
CC
= 5V
R
L
= 25Ω
Output Source/Sink Current
(Note 2)
SHDN
Logic Threshold
(Note 3)
SHDN
Input Bias Current
Operating Supply-Voltage
Range
Quiescent Supply Current
(per Amplifier)
Shutdown Supply Current
(per Amplifier)
V
CC
I
CC
I
CC(SHDN)
V
IL
V
IH
V
OUT
= 0.6V to (V
CC
- 0.6V)
Shutdown mode
Normal mode
V
EE
< V
S HDN
< V
CC
Inferred from PSRR test
V
CC
= 5V
V
CC
= 3V
V
S HDN
< 0.8V
V
CC
= 5V
V
CC
= 3V
2.7
1.3
1.2
58
38
2.0
±3.0
6.5
1.5
1.4
75
49
V
CC
- V
OH
V
OL
- V
EE
V
CC
- V
OH
V
OL
- V
EE
±80
MIN
TYP
15
10
340
160
±125
0.8
MAX
30
25
430
350
mA
V
µA
V
mA
µA
mV
UNITS
MAX4165–MAX4169
DC ELECTRICAL CHARACTERISTICS
(V
CC
= +2.7V to +6.5V, V
EE
= 0V, V
CM
= 0V, V
OUT
= (V
CC
/ 2), R
L
= 100kΩ to (V
CC
/ 2), V
S HDN
≥
2V,
T
A
= -40°C to +85°C,
unless
otherwise noted.) (Note 4)
PARAMETER
SYMBOL
CONDITIONS
MAX416_EPA/EPD
MAX416_ESA/ESD
MAX416_EUA/EUB/ELA
MAX416_EUK
MAX4169E_D
Offset-Voltage Tempco
Input Bias Current
Input Offset Current
Common-Mode Input
Voltage Range
ΔV
OS
/ΔT
I
B
I
OS
V
CM
V
CM
= V
EE
to V
CC
V
CM
= V
EE
to V
CC
Inferred from CMRR test
MAX416_EPA/EPD
MAX416_ESA/ESD
MAX416_EUA/EUB/ELA
MAX416_EUK
MAX4169E_D
MAX416_EPA/EPD
MAX416_ESA/ESD
MAX416_EUA/EUB/ELA
MAX416_EUK
MAX4169E_D
V
EE
- 0.15
±3
±225
±21
V
CC
+ 0.15
71
71
56
57
69
67
67
65
65
66
MIN
TYP
MAX
1.0
1.0
4.9
4.3
1.2
µV/°C
nA
nA
V
UNITS
Input Offset Voltage
V
OS
V
CM
= V
EE
to V
CC
mV
Common-Mode
Rejection Ratio
CMRR
V
EE
- 0.15V < V
CM
<
(V
CC
+ 0.15V)
dB
Power-Supply Rejection Ratio
PSRR
V
CC
= 2.7V to 6.5V
dB
_______________________________________________________________________________________
3
High-Output-Drive, Precision, Low-Power, Single-
Supply, Rail-to-Rail I/O Op Amps with Shutdown
MAX4165–MAX4169
DC ELECTRICAL CHARACTERISTICS (continued)
(V
CC
= +2.7V to +6.5V, V
EE
= 0V, V
CM
= 0V, V
OUT
= (V
CC
/ 2), R
L
= 100kΩ to (V
CC
/ 2), V
S HDN
≥
2V,
T
A
= -40°C to +85°C,
unless
otherwise noted.)
PARAMETER
Off-Leakage Current
in Shutdown
Large-Signal Voltage Gain
SYMBOL
I
OUT(SHDN)
A
VOL
CONDITIONS
V
SHDN
< 0.8V, V
OUT
= 0V to V
CC
V
CC
= 5V
V
OUT
= 0.2V to 4.8V, R
L
= 100kΩ
V
OUT
= 0.6V to 4.4V, R
L
= 25Ω
V
CC
- V
OH
R
L
= 100kΩ
V
OL
- V
EE
V
CC
- V
OH
R
L
= 25Ω
V
OL
- V
EE
90
66
40
30
490
400
±80
0.8
2.0
±3.5
2.7
6.5
1.7
1.6
82
54
MIN
TYP
MAX
±5
UNITS
µA
dB
Output Voltage Swing
Output Source/Sink Current
(Note 2)
SHDN
Logic Threshold
(Note 3)
SHDN
Input Bias Current
Operating Supply-Voltage
Range
Quiescent Supply Current
(per Amplifier)
Shutdown Supply Current
(per Amplifier)
V
OUT
V
CC
= 5V
mV
V
OUT
= 0.6V to (V
CC
- 0.6V)
V
IL
V
IH
Shutdown mode
Normal mode
V
EE
< V
S HDN
< V
CC
V
CC
I
CC
I
CC(SHDN)
Inferred from PSRR test
V
CC
= 5V
V
CC
= 3V
V
S HDN
< 0.8V
V
CC
= 5V
V
CC
= 3V
mA
V
µA
V
mA
µA
Note 2:
Although the minimum output current is guaranteed to be ±80mA, exercise caution to ensure that the absolute maximum
power-dissipation rating of the package is not exceeded.
Note 3:
SHDN
logic thresholds are referenced to V
EE
.
Note 4:
The MAX4165EUK is 100% tested at +25°C. All temperature limits are guaranteed by design.
AC ELECTRICAL CHARACTERISTICS
(V
CC
= +2.7V to +6.5V, V
EE
= 0V, V
CM
= 0V, V
OUT
= (V
CC
/ 2), R
L
= 2.5kΩ to (V
CC
/ 2), V
S HDN
≥
2V, C
L
= 15pF,
T
A
= +25°C,
unless
otherwise noted.)
PARAMETER
Gain-Bandwidth Product
Full-Power Bandwidth
Slew Rate
Phase Margin
Gain Margin
Total Harmonic Distortion
Settling Time to 0.01%
Input Capacitance
Input Voltage-Noise Density
Input Current-Noise Density
Channel-to-Channel Isolation
Capacitive Load Stability
Shutdown Time
Enable Time from Shutdown
Power-Up Time
4
SYMBOL
GBWP
FPBW
SR
PM
GM
THD
t
S
C
IN
e
n
i
n
CONDITIONS
V
OUT
= 4Vp-p, V
CC
= 5V
MIN
TYP
5
260
2
68
21
0.005
2.1
3
26
0.4
125
250
1
1
5
MAX
UNITS
MHz
kHz
V/µs
degrees
dB
%
µs
pF
nV/√Hz
pA/√Hz
dB
pF
µs
µs
µs
f = 10kHz, V
OUT
= 2Vp-p, A
VCL
= +1V/V
A
VCL
= +1V/V, 2V step
f = 1kHz
f = 1kHz
f = 1kHz, R
L
= 100kΩ (MAX4167–MAX4169)
A
VCL
= +1V/V, no sustained oscillations
t
S HDN
t
ENABLE
t
ON
_______________________________________________________________________________________
High-Output-Drive, Precision, Low-Power, Single-
Supply, Rail-to-Rail I/O Op Amps with Shutdown

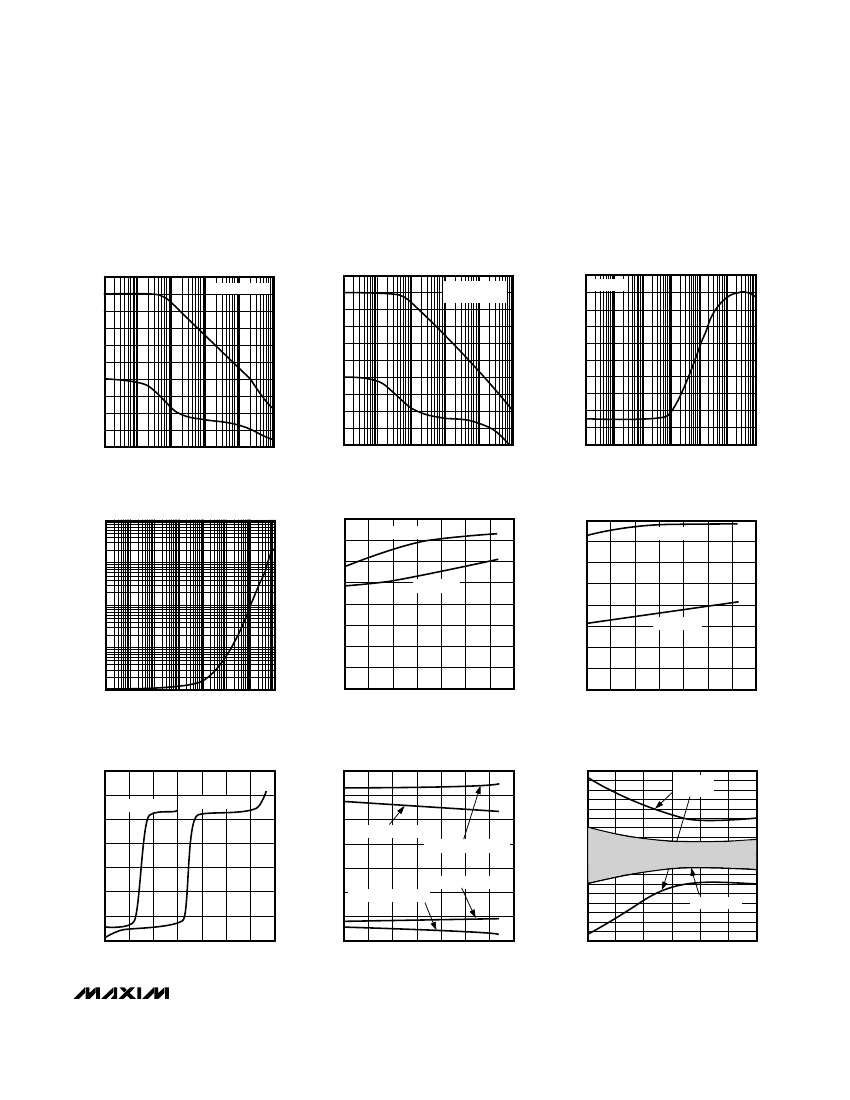

__________________________________________Typical Operating Characteristics
(V
CC
= +5.0V, V
EE
= 0V, R
L
= 100kΩ, T
A
= +25°C, unless otherwise noted.)
MAX4165–MAX4169
GAIN AND PHASE vs. FREQUENCY
70
60
50
40
GAIN (dB)
30
20
10
0
-10
-20
-30
100
1k
10k
100k
1M
FREQUENCY (Hz)
MAX4165-01
GAIN AND PHASE vs. FREQUENCY
(C
L
= 250pF)
216
180
144
PHASE (DEGREES)
108
72
36
0
-36
-72
-108
-144
10M
70
60
50
40
GAIN (dB)
30
20
10
0
-10
-20
-30
100
1k
10k
100k
1M
FREQUENCY (Hz)
POWER-SUPPLY REJECTION RATIO
vs. FREQUENCY
180
144
PHASE (DEGREES)
108
72
36
0
-36
-72
-108
-144
10M
0
-10
-20
PSRR (dB)
-30
-40
-50
-60
-70
-80
-90
100
1k
10k
100k
1M
10M
100M
FREQUENCY (Hz)
A
VCL
= +1
MAX4165-03A
MAX4165-02
216
10
A
VCL
= +1000V/V
A
VCL
= +1000V/V
C
L
= 250pF
OUTPUT IMPEDANCE vs. FREQUENCY
MAX4165-03B
SUPPLY CURRENT PER AMPLIFIER
vs. TEMPERATURE
MAX4165-04
SHUTDOWN SUPPLY CURRENT
PER AMPLIFIER vs. TEMPERATURE
70
SUPPLY CURRENT (µA)
60
50
40
30
20
10
0
V
CC
= +2.7V
V
CC
= +6.5V
MAX4165-05
1000
1.6
1.4
SUPPLY CURRENT (mA)
1.2
1.0
0.8
0.6
0.4
0.2
V
CC
= +2.7V
V
CC
= +6.5V
80
OUTPUT IMPEDANCE (Ω)
100
10
1
0.1
1
10
100
1k
10k 100k
1M
10M
FREQUENCY (Hz)
0
-40
-20
0
20
40
60
80
100
TEMPERATURE (°C)
-40
-20
0
20
40
60
80
100
TEMPERATURE (°C)
INPUT BIAS CURRENT
vs. COMMON-MODE VOLTAGE
MAX4165-06
INPUT BIAS CURRENT
vs. TEMPERATURE
MAX4165-07
INPUT OFFSET VOLTAGE
vs. TEMPERATURE
1.75
1.25
SOT23-5
PACKAGE
MAX4165-08
80
60
INPUT BIAS CURRENT (nA)
V
CC
= +2.7V
40
20
0
-20
-40
-60
0
1
2
3
4
5
6
7
COMMON-MODE VOLTAGE (V)
V
CC
= +6.5V
80
60
INPUT BIAS CURRENT (nA)
40
20
0
-20
-40
-60
-40
-20
0
20
40
60
80
V
CC
= +2.7V, V
CM
= V
EE
V
CC
= +6.5V, V
CM
= V
EE
V
CC
= +6.5V, V
CM
= V
CC
2.25
VOLTAGE (mV)
V
CC
= +2.7V, V
CM
= V
CC
0.75
0.25
-0.25
-0.75
-1.25
-1.75
-2.25
SO PACKAGE
100
-40
-20
0
20
40
60
80
TEMPERATURE (°C)
TEMPERATURE (°C)
_______________________________________________________________________________________
5
京公网安备 11010802033920号
EEWORLD
