M80-4C15005FC: DescriptionHeaders & Wire Housings 25+25 WAY FEM S/BORE 101LOK; CategoryThe connector The connector; File Size309KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4C15005FC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4C15005FC	-	-	View	Buy Now

M80-4C15005FC Overview

Headers & Wire Housings 25+25 WAY FEM S/BORE 101LOK

M80-4C15005FC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.219 inch
subject depth	0.297 inch
body length	2.362 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	50
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

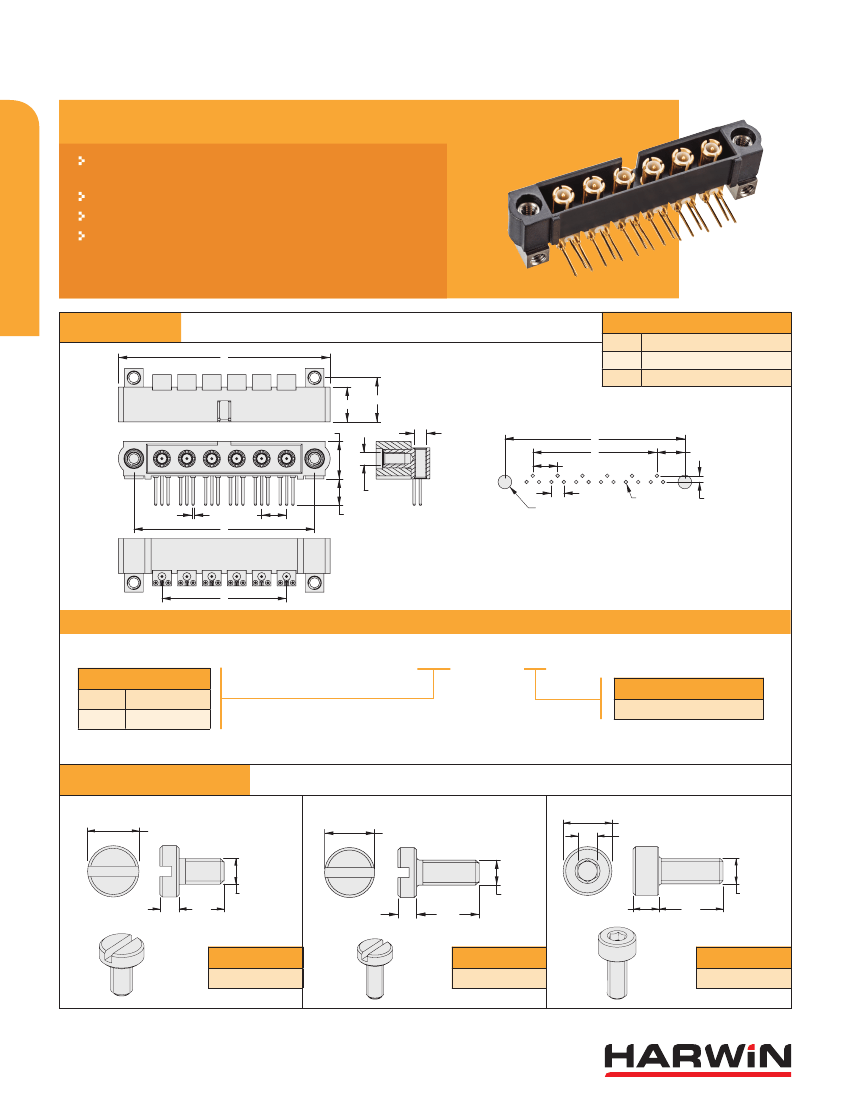

Datamate Coax Connectors

Plug (Male) Horizontal PC Tail

Stocked coax connectors in horizontal orientation,

with board-mount jackscrews for added security.

6GHz, 50Ω Coax contacts.

Choice to suit two PCB thicknesses.

Order board mount bolts separately.

DATAMATE COAX

HORIZONTAL

A

CALCULATION

A

B

C

5.60

6.05

7.10

M2

4.00

M2

2.00

Ø2.20 min

Ø0.60 min

1.00

B + 14

(No. of Coax contacts - 1) x 4

B+9

C

B

4.50

Ø0.40

C

4.00

Tail

Recommended PCB Board Pattern

B

HOW TO ORDER

TYPE

313

314

3mm PC Tail

4.5mm PC Tail

M80

-

MH 3XX M5

-

XX

NO. OF COAX CONTACTS

02, 04, 06, 08

REQUIRED HARDWARE

Ø4.00

Order separately from connector

5mm Slotted

Board Mount Bolt

Ø3.70

1.55 A/F

3.5mm Slotted

Board Mount Bolt

Ø4.00

5mm Hex Socket

Board Mount Bolt

M2

1.50 max

3.50

1.50 max

5.00

M2

2.00 max

5.00

M2

ORDER CODE

M80-2260000B

All dimensions in mm.

ORDER CODE

M80-2270000B

ORDER CODE

M80-2320000B

www.harwin.com

83

M80-4C15005FC Related Products

	M80-4C15005FC	M80-4C12642FC	M80-4863442	M80-4C10842FC	M80-4C11405FC
Description	Headers & Wire Housings 25+25 WAY FEM S/BORE 101LOK	Power to the Board 13+13 WAY FEM S/BORE 101LOK	Headers & Wire Housings 17+17 WAY F CRIMP S/BORE HX/JS	Power to the Board 04+04 WAY FEM S/BORE 101LOK	Power to the Board 07+07 WAY FEM S/BORE 101LOK
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE	COMPATIBLE CONTACT: M80-0130001	PANEL MOUNTABLE	PANEL MOUNTABLE
body width	0.219 inch	0.219 inch	0.262 inch	0.219 inch	0.219 inch
subject depth	0.297 inch	0.297 inch	0.494 inch	0.297 inch	0.297 inch
body length	2.362 inch	1.417 inch	1.732 inch	0.709 inch	0.945 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	LOOSE	LOOSE	LOOSE	LOOSE	LOOSE
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Gold (Au)	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4	e3	e3	e3	e4
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	M2X0.4	LOCKING	LOCKING
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	120 °C	120 °C	125 °C	120 °C	120 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	12u inch	12u inch	12u inch	12u inch	12u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	50	26	34	8	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
