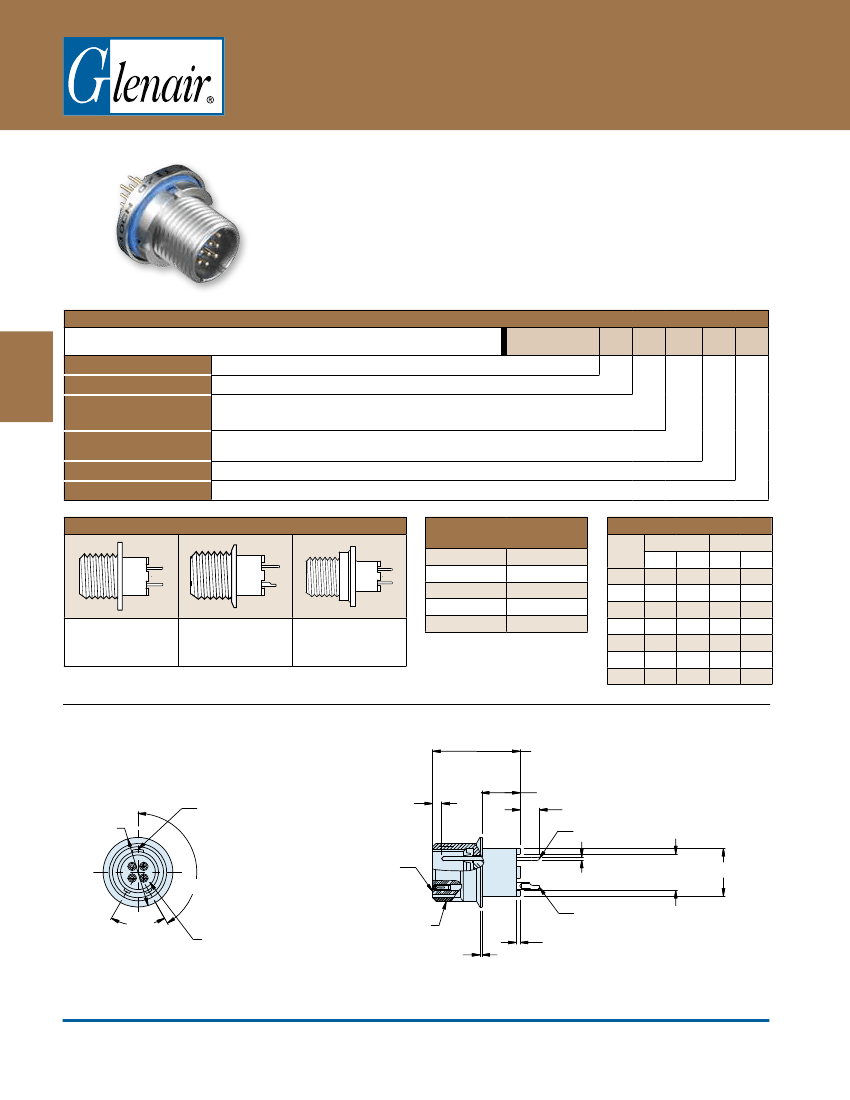

Series 800 Mighty Mouse Hermetic UN Mating Thread
Hermetic Receptacle
800-013 Ordering Information
Compact, Rugged Series 800
hermetic receptacles feature 304L stainless steel
shells and vitreous glass insulators. Contacts are gold-plated iron alloy. UN mating
thread. Available with male pin contacts (contact Glenair for hermetic connectors
with female socket contacts). 100% helium leak tested to meet 1 x 10-7 cc/second
maximum leak rate. 1000 psi open face (unmated) pressure rating. Contacts are
factory-installed and are non-removable. Terminate to wires with solder cup
versions, or choose PC tail versions for thru-hole soldering to rigid or flexible circuit
boards. Available in all contact and insert arrangements between size 5 and 12.
How To Order
Sample Part Number
800-013
800-013
Hermetic Receptacle
02
= Square Flange
03
= Solder Mount
07
= Jam NutSee Shell
Z1
= Stainless Steel / Passivated RoHS Compliant
ZL
= Stainless Steel / Nickel Plated
See Contact Arrangements page C-2
P
= Pin, Solder Cup
N
= Normal
S
= Socket, Solder Cup
Y
= Pos. Y
C
= Pin, PC Tail
D
= Socket, PC Tail
C
Series 800
Series
Shell Style (See Table I)
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Position
-02
Square Flange
ØM
150°
60°
© 2014 Glenair, Inc.
-02
Z1
6-7
P
N
X
= Pos. X
Z
= Pos. Z See page C-3
Table I: Shell Style
Table II: Contact
Dimensions
Contact Size
23
20
16
Ø EE
.022/.018
.028/.024
.064/.060
.096/.092
Table III: CC and DD Dia.
Shell
Size
5
6
7
8
9
10
12
Ø CC O.D.
in.
.290
.330
.380
.450
.500
.575
.660
mm.
7.37
8.38
9.65
11.43
12.70
14.61
16.76
Ø DD O.D.
in.
.197
.256
.325
.390
.452
.520
.610
mm.
5.00
6.50
8.26
9.91
11.48
13.21
15.49
-03
Solder Mount
-07
Jam Nut
12
Solder mount receptacle - shell style 03 - shell size 5 and 6
.575 (14.61) MAX PIN
.675 (17.15) MAX SOCKET
.060 (1.52)
PIN CONTACT
LOCATION
.180 (4.57)
.125 (3.18) MIN
PC TAIL
SOCKET
INSERT
ø DD*
ø CC*
MASTER
KEYWAY REF
See Table II
SOLDER CUP
INSERT
ARRANGEMENT
FOR REFERENCE
ONLY
N THREAD
.013 (0.33)
* See Table III
.025 (0.64) HEIGHT
4X .080 WIDTH
Dimensions in Inches (millimeters) are subject to change without notice.
