CD54HCT258F/3A

Description
Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16
Categorylogic    logic
File Size127KB,2 Pages
ManufacturerRCA
Download Datasheet Parametric View All

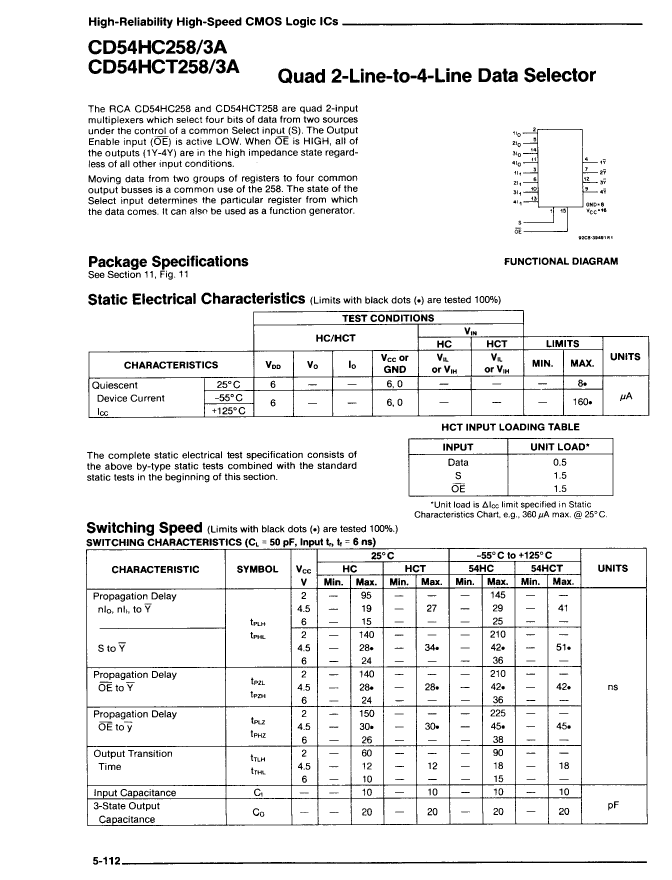

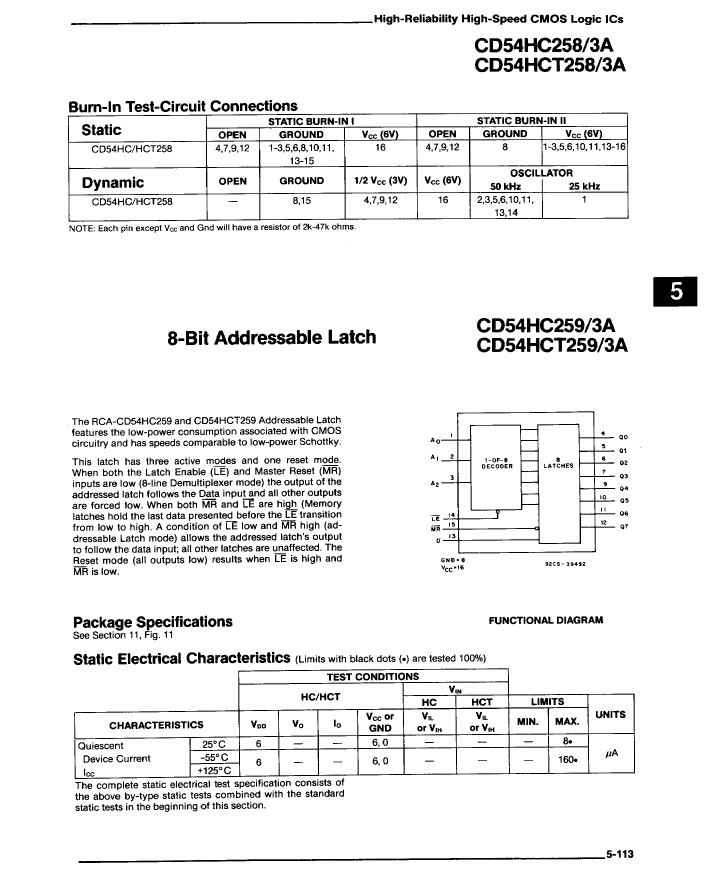

CD54HCT258F/3A Overview

Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16

CD54HCT258F/3A Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerRCA
Reach Compliance Codeunknown
JESD-30 codeR-XDIP-T16
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeMULTIPLEXER
MaximumI(ol)0.006 A
Number of functions4
Number of entries2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Prop。Delay @ Nom-Sup41 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1
