22-56-6167 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 22-56-6167

Preview

22-56-6167: DescriptionHeaders & Wire Housings DUAL ROW HSG. 16 PIN Version F; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

22-56-6167 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-56-6167	-	-	View	Buy Now

22-56-6167 Overview

Headers & Wire Housings DUAL ROW HSG. 16 PIN Version F

22-56-6167 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED
body width	0.304 inch
subject depth	0.6 inch
body length	0.799 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 02/19/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

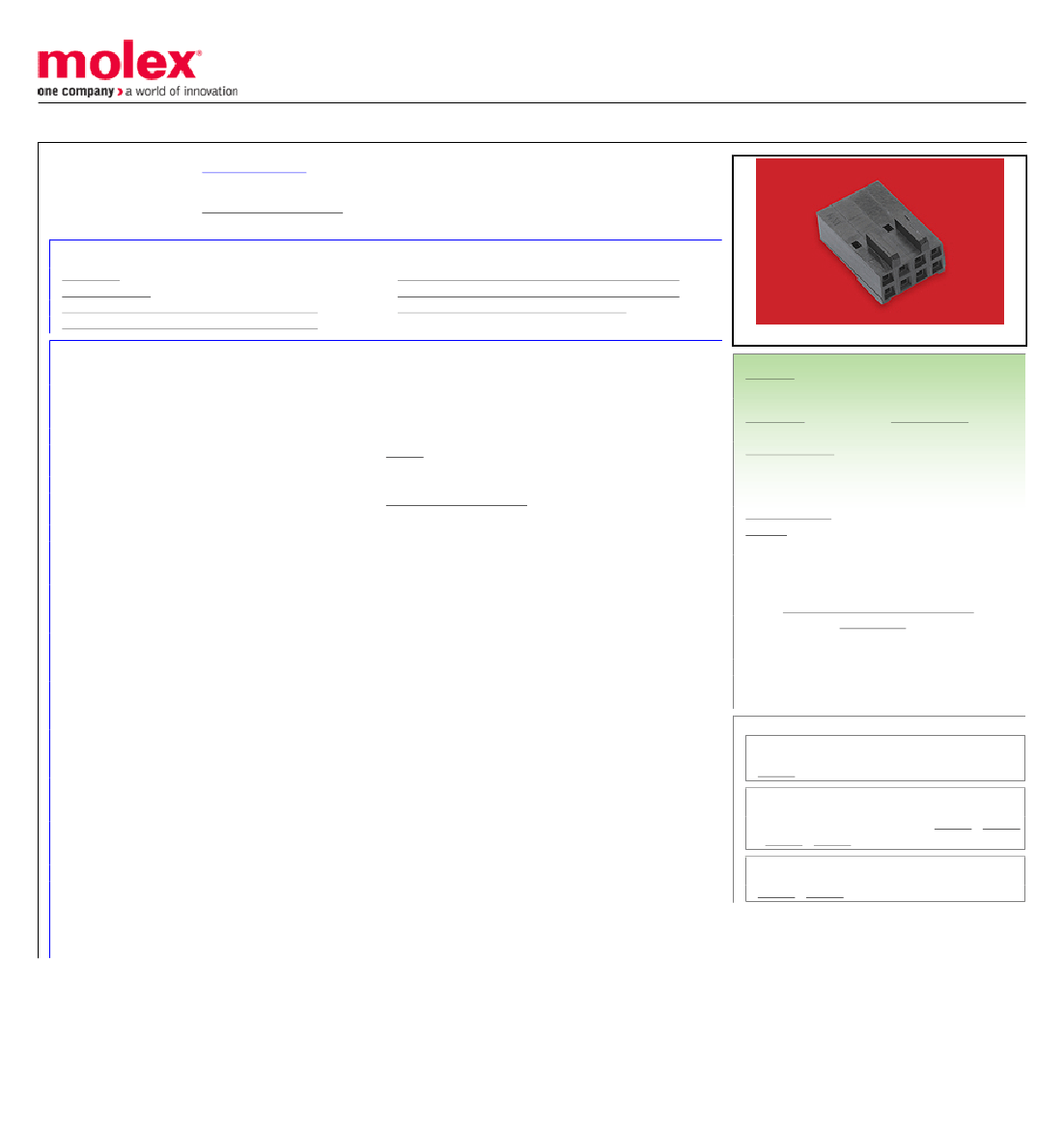

0022566167

Active

SL Modular Connectors

2.54mm Pitch SL Crimp Housing, Dual Row, Version F, 16 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-70058-001 (PDF)

Product Specification PS-70400-001 (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification TS-70058-001-001 (PDF)

Product Specification TS-70541-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

Crimp Housings

70450

Signal, Wire-to-Board

Version F

SL Modular Connectors

SL

800754201186

No

16

Black

94V-0

Receptacle

No

Polyester

1.424/g

2

Bag

No

2.54mm

No

-40°C to +105°C

N/A

70450-0256

PS-70058-001, PS-70400-001, TS-70058-001-001,

TS-70541-001-001

SD-70450-0250-0275

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

70450 Series

Mates With

2.54mm Pitch C-Grid Header 70229 , 70280

, 70246 , 70247

Use With

70058 , 71851

This document was generated on 02/19/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

22-56-6167 Related Products

	22-56-6167	0022566167
Description	Headers & Wire Housings DUAL ROW HSG. 16 PIN Version F	Headers & Wire Housings CGrid SL Hsg Opt F DR 16Ckt
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
