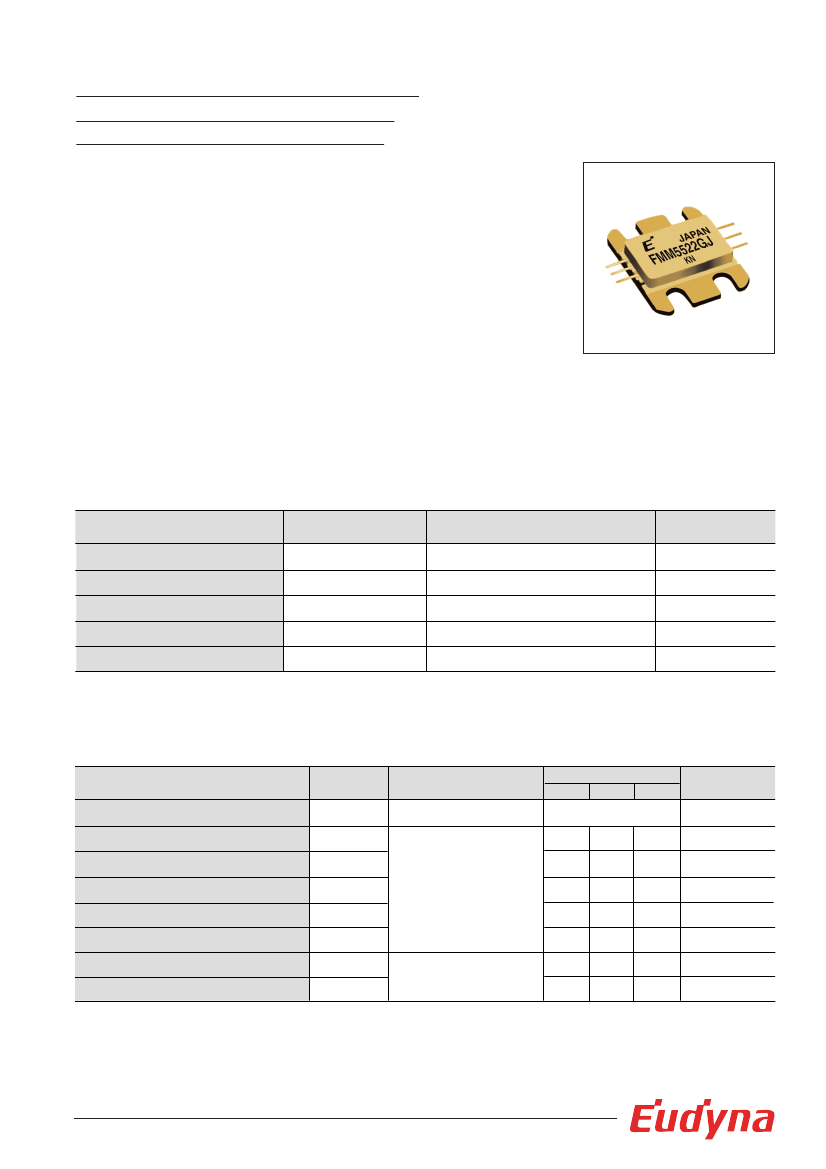

FMM5522GJ
VSAT MMIC
FEATURES
•
•
•
•
•
•
High Output Power: P
1dB
= 35.0dBm(Typ.)
High Gain: G
1dB
= 26.0dB(Typ.)
Low In/Out VSWR
Broad Band: 14.0 ~ 14.5GHz
Impedance Matched Zin/Zout = 50Ω
Hermetically Sealed Package (12 X 15 X 3.5mm)
DESCRIPTION
The FMM5522GJ is a module that contains a two-stage amplifier,
internally matched, for standard communications in the 14.0 to 14.5GHz
frequency range. This product is well suited for VSAT applications as it
offers high power, high gain, and low VSWR.
Eudyna’s stringent Quality Assurance Program assures the highest
reliability and consistent performance.
ABSOLUTE MAXIMUM RATINGS (Ambient Temperature Ta = 25°C)
Parameter
DC Input Voltage
DC Input Voltage
Input Power
Storage Temperature
Operating Case Temperature
Symbol
VDD1,2
VGG1,2
Pin
Tstg
Top
Rating
12
-7
12
-55 to +125
-55 to +85
Unit
V
V
dBm
°C
°C
Eudyna
recommends the following conditions for the reliable operation of GaAs modules:
1. The drain operating voltage (VDD1,2) should not exceed 10 volts.
2. The gate operating voltage (VGG1,2) should not exceed -5 volts.
ELECTRICAL CHARACTERISTICS (Case Temperature Tc = 25°C)
Item
Frequency Range
Output Power at 1dB G.C.P.
Power Gain at 1dB G.C.P.
Gain Flatness
Input VSWR
Output VSWR
DC Input Current
DC Input Current
Symbol
f
P1dB
G1dB
∆G
VSWRi
VSWRo
IDD
IGG
VDD1,2 = 10V
VGG1,2 = -5V
VDD1,2 = 10V
VGG1,2 = -5V
f = 14.0 ~ 14.5GHz
Condition
Min.
Limit
Typ. Max.
35.0
26.0
1.0
2:1
3:1
1.75
22
-
-
2.0
2.5:1
3.5:1
2.0
25
Unit
GHz
dBm
dB
dB
-
-
A
mA
14.0 - 14.5
33.5
23.0
-
-
-
-
-

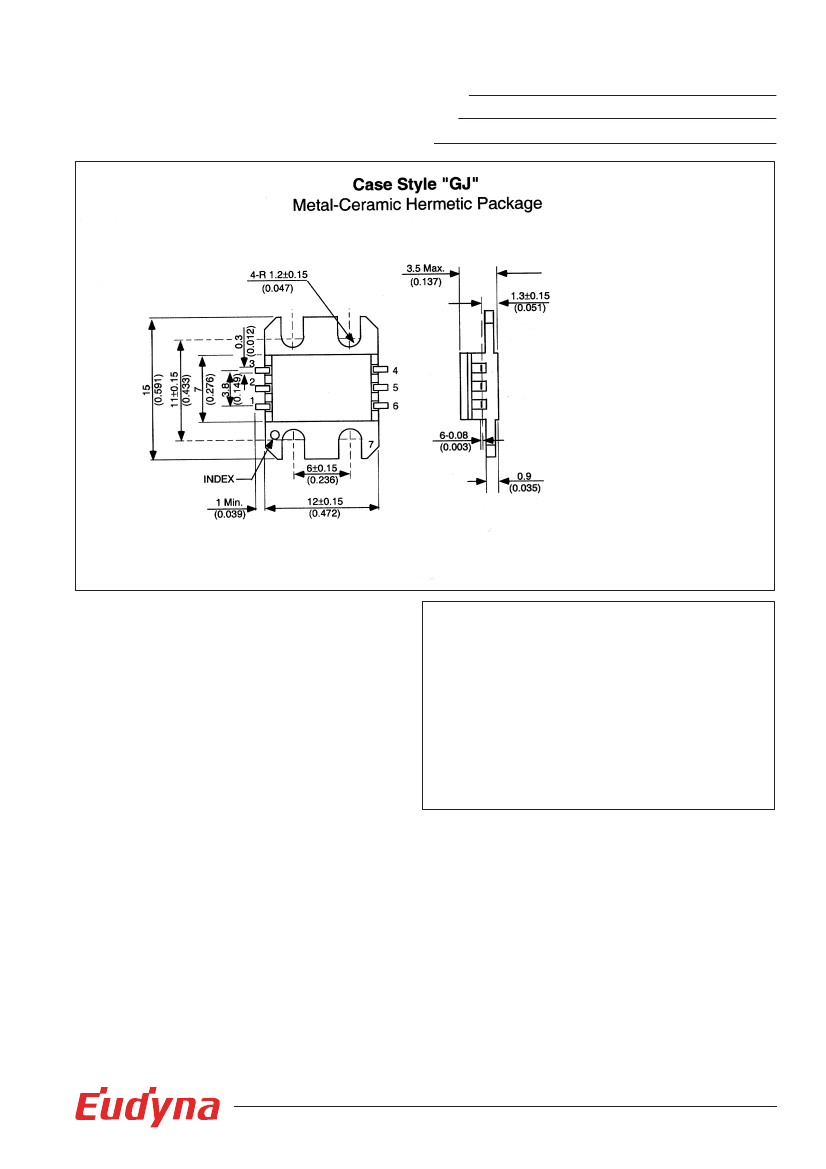

CASE STYLE:
GJ
G.C.P.: Gain Compression Point
Edition 1.7
September 2004
1
FMM5522GJ
VSAT MMIC
OUTPUT POWER vs. FREQUENCY
OUTPUT POWER vs. INPUT POWER
37
VDD1,2 = 10V
P1dB
Pin=7dBm
36
5dBm
3dBm
VDD1,2=10V
f = 14.25 GHz
35
Output Power (dBm)
33
31
29
34
Output Power (dBm)
32
30
28
26
24
30
20
10
η
add (%)
1dBm
-3dBm
27
14
14.1
14.2
14.3
14.4
14.5
Frequency (GHz)
-2
0
2
4
6
Input Power (dBm)
RECOMMENDED BIAS CIRCUIT
1000pF
50Ω
V
GG1
V
DD1
50Ω
1000pF
3
2
RFin
1
1000pF
50Ω
4
5
RFout
6
50Ω
1000pF
V
GG2
V
DD2
Note: The R/C networks are recommended on the bias supply lines, close to the
package, to prevent video oscillations which could damage the module.
2

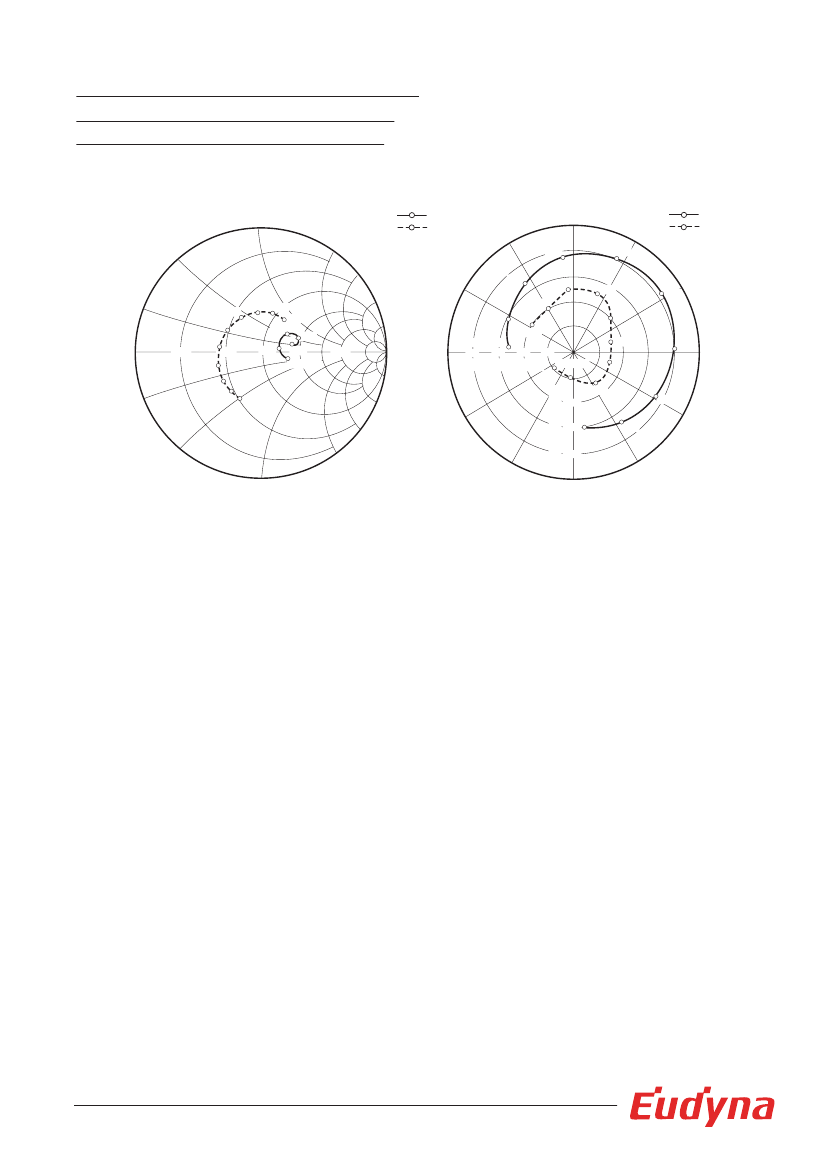

FMM5522GJ
VSAT MMIC
1. V
DD1
2. RF
in
3. V
GG1
4. V
GG2
5. RF
out
6. V
DD2
7. GND (Body)
Unit: mm (inches)
