5745781-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5745781-2

5745781-2: Description09 MSFL RCPT RA 318 (FM); CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5745781-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5745781-2	-	-	View	Buy Now

5745781-2 Overview

09 MSFL RCPT RA 318 (FM)

5745781-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1800633463
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks 3 days
Samacsys Description	09 MSFL RCPT RA 318 (FM)
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:44
YTEOL	8.5
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.243 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	20.016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	6A
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	6 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	ZINC ALLOY
Housing size	1/E
Terminal length	0.125 inch
Terminal pitch	2.74 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	20.016 N

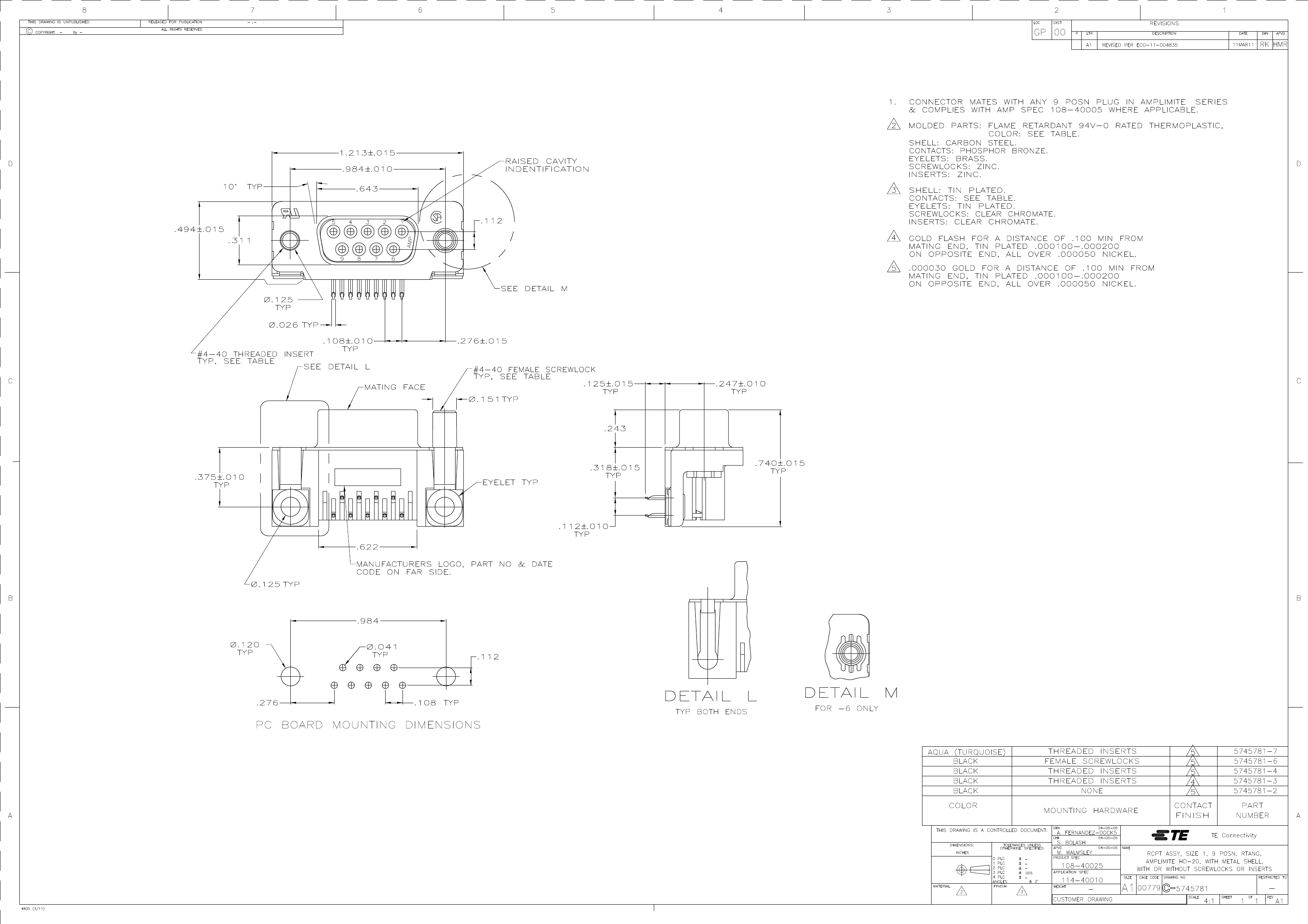

Preview

Download Datasheet
