HFW20S-2STE9LF datasheet, PDF - EEWORLD Datasheet

HFW20S-2STE9LF: DescriptionFFC & FPC Connectors 20P TOP ENTRY SMT 1MM NON-ZIF; CategoryThe connector; File Size277KB，5 Pages; ManufacturerFCI [First Components International]

Download Datasheet Parametric Compare View All

HFW20S-2STE9LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HFW20S-2STE9LF	-	-	View	Buy Now

FFC & FPC Connectors 20P TOP ENTRY SMT 1MM NON-ZIF

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI [First Components International]
Product Category	FFC & FPC Connectors
RoHS	Details
Product	Board Mount
Number of Positions	20 Position
Pitch	1 mm
Termination Style	SMD
Mounting Angle	Straight
Contact Location	Bottom Contact
Contact Plating	Tin
Current Rating	1 A
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 85 C
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Housing Material	Polyamide (PA)
Voltage Rating	100 VAC/DC
Contact Material	Phosphor Bronze
Actuation Type	Non ZIF
Insulation Resistance	500 MOhms
Factory Pack Quantity	500

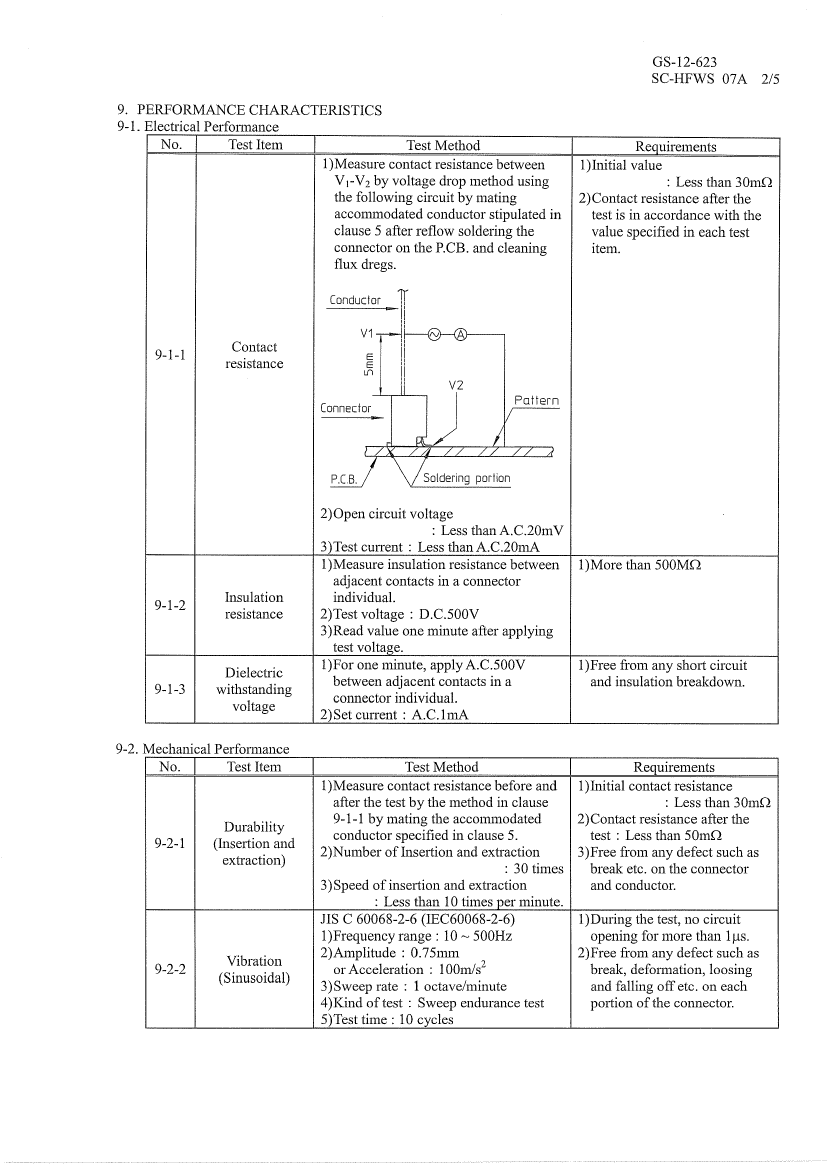

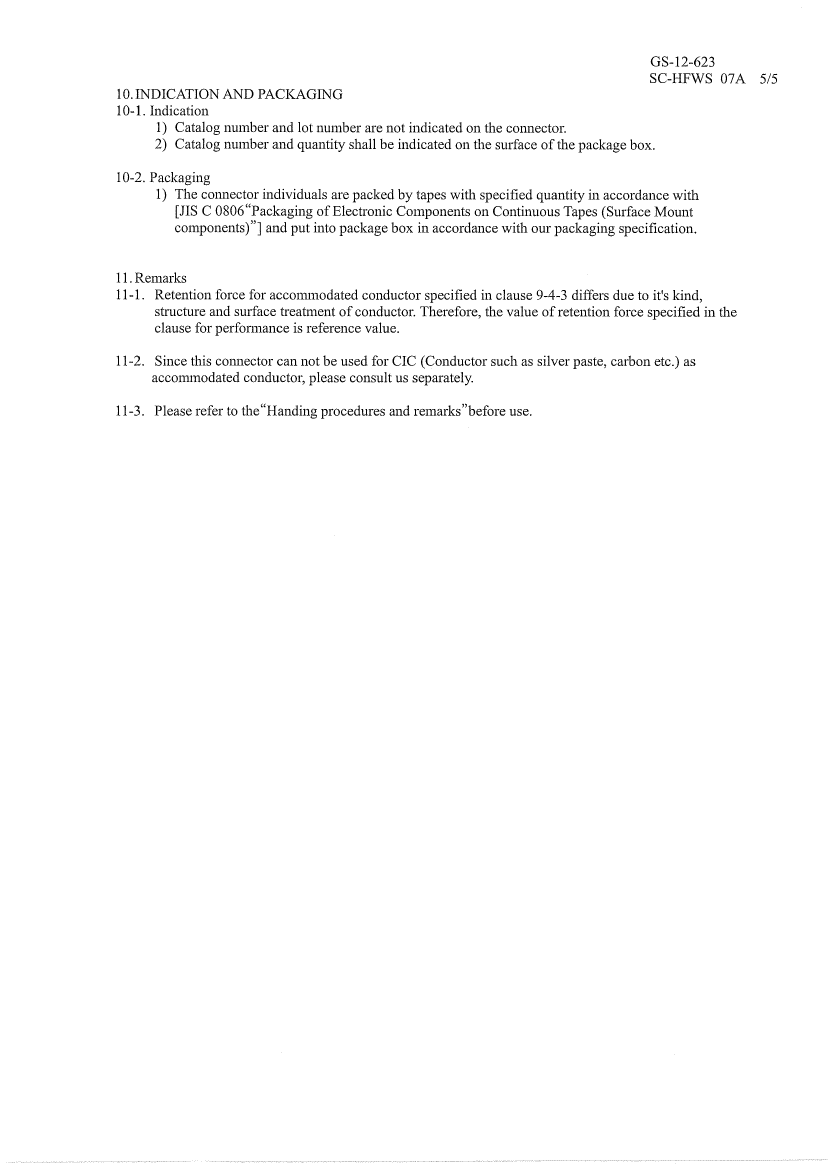

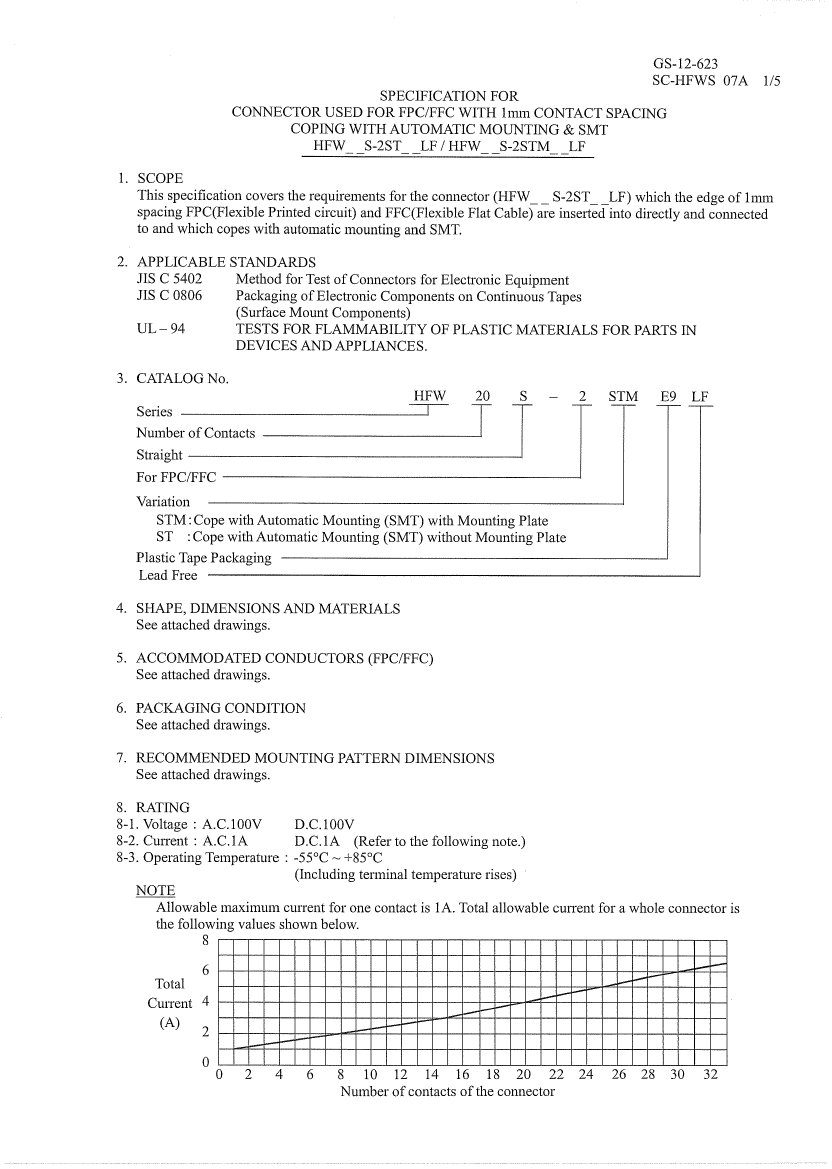

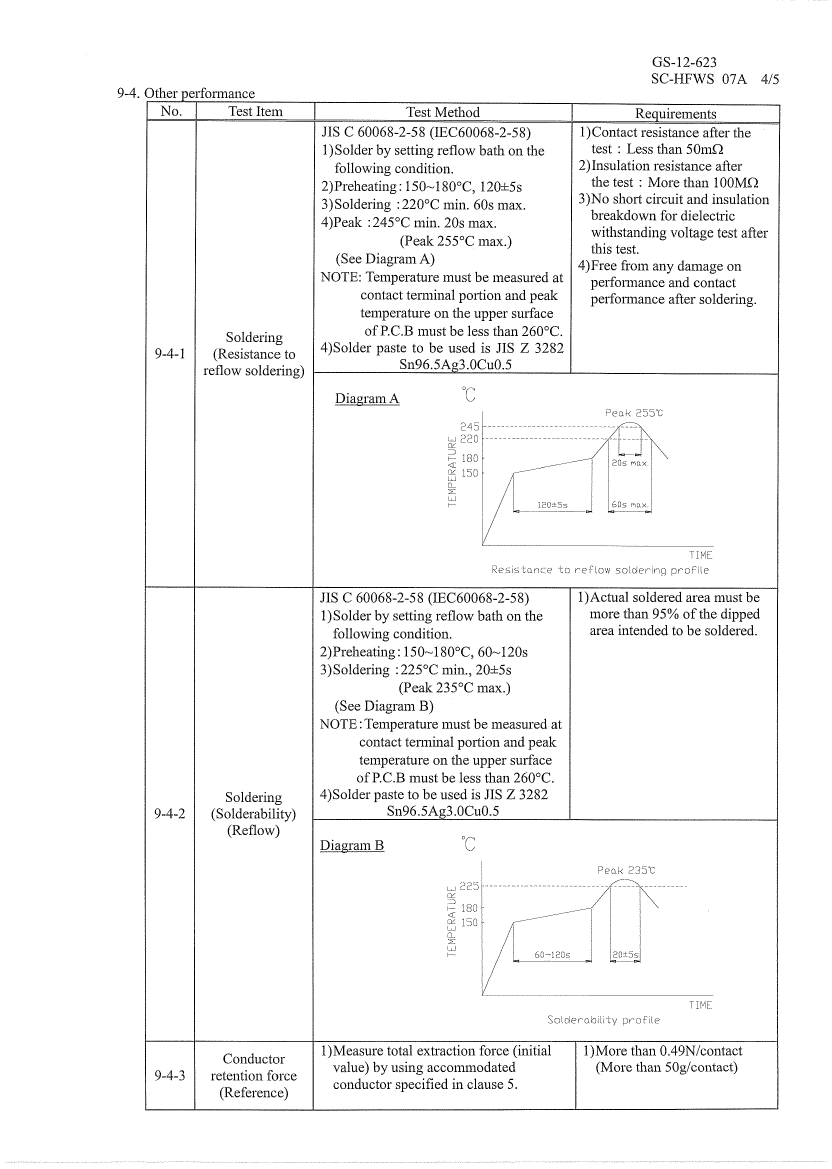

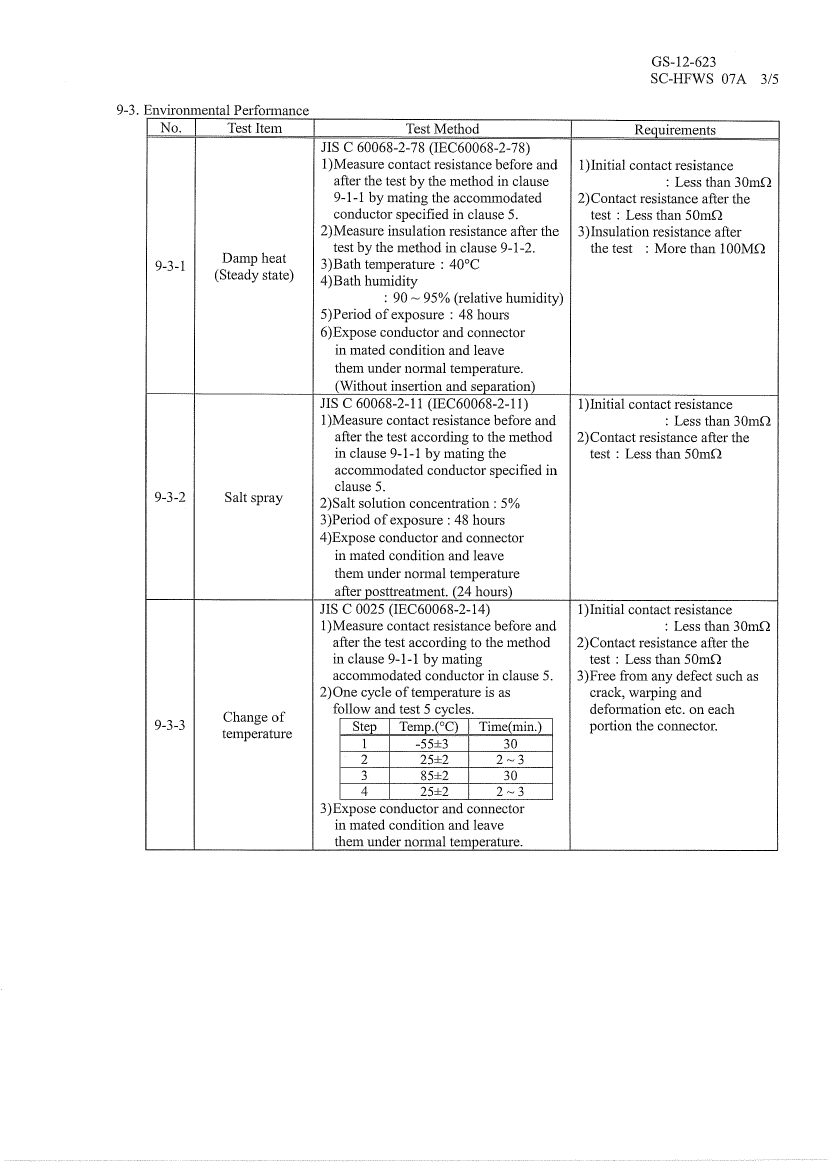

PDM: Rev:A

STATUS:

Released

Printed: May 28, 2009

.

	HFW20S-2STE9LF	HFW8S-2STE9LF
Description	FFC & FPC Connectors 20P TOP ENTRY SMT 1MM NON-ZIF	FFC & FPC Connectors 8P TOP ENTRY SMT 1MM NON-ZIF
Product Attribute	Attribute Value	Attribute Value
Manufacturer	FCI [First Components International]	FCI [First Components International]
Product Category	FFC & FPC Connectors	FFC & FPC Connectors
RoHS	Details	Details
Product	Board Mount	Board Mount
Number of Positions	20 Position	8 Position
Pitch	1 mm	1 mm
Termination Style	SMD	SMD
Mounting Angle	Straight	Straight
Contact Location	Bottom Contact	Bottom Contact
Contact Plating	Tin	Tin
Current Rating	1 A	1 A
Minimum Operating Temperature	- 55 C	- 55 C
Maximum Operating Temperature	+ 85 C	+ 85 C
Housing Material	Polyamide (PA)	Polyamide (PA)
Voltage Rating	100 VAC/DC	100 VAC/DC
Contact Material	Phosphor Bronze	Phosphor Bronze
Actuation Type	Non ZIF	Non ZIF
Insulation Resistance	500 MOhms	500 MOhms
Factory Pack Quantity	500	500
Packaging	Reel	Reel
