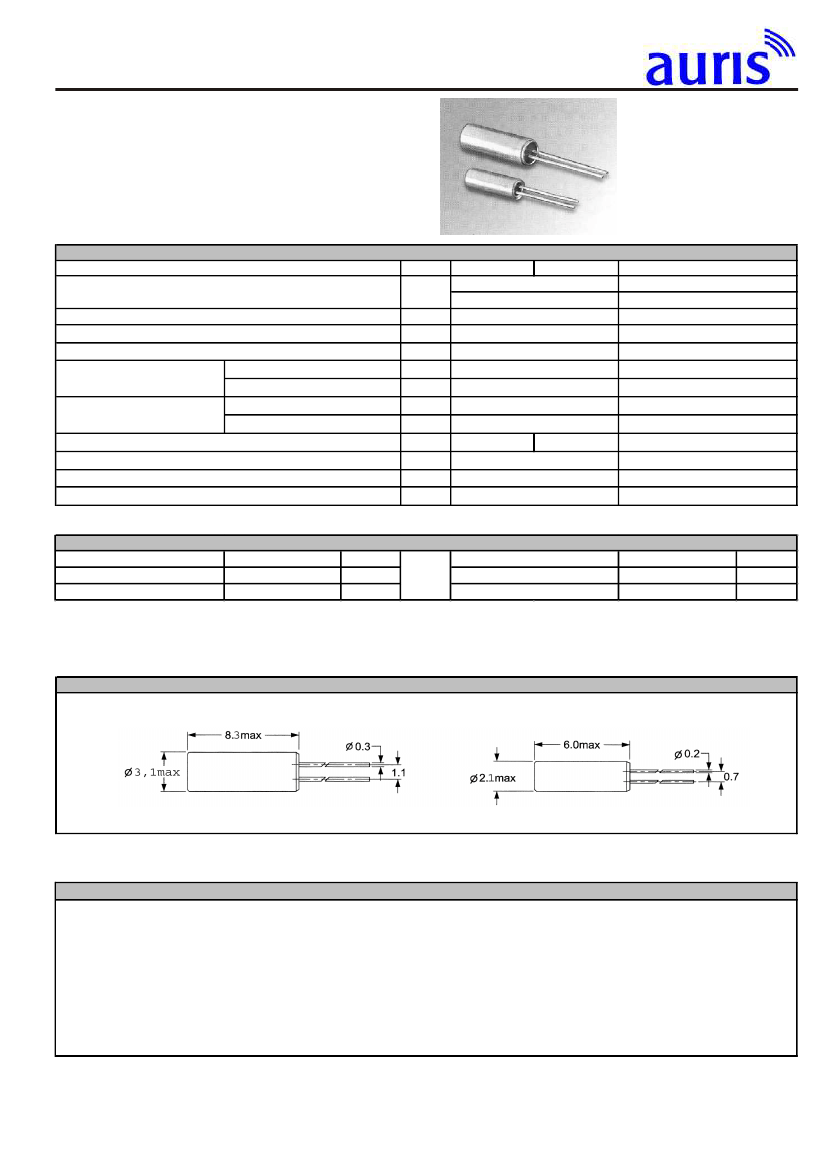

TC26: DescriptionQuartz THT; File Size282KB，1 Pages; ManufacturerAuris

Download Datasheet Compare View All

TC26 Overview

Quartz THT

Preview

Download Datasheet

View All

Quartz THT

Features:

- Small size

- Tuning fork reliability

- Thru-hole package

- Wide frequency range

Specifications

Frequency range

Frequency tolerance,Ta=25°C

Load capacitance

Temp. coefficient

Temperature range

Drive level

Series resistance

Shunt capacitance

Insulation resistance

Aging

Storage temp.

Operating temp.

Maximum drive level

Recommended drive level

Symbol

Df/f

STG

OPR

35kOhm max

TC-38

TC-26

32.768kHz

20kHz ~ 200kHz

± 20ppm ~ ± 50ppm

6pF ~ 12.5pF

-0,04 x 10

-6

/ °C²

-30°C ~ +85°C

-10°C ~ +60°C

1µW

TC38

TC26

Remarks

Standard

Available

Others are offered

Please specify

Max

Others are offered

Standard, others are offered

50kOhm max As per table (25°C)

Max

5pF

500M Ohm

± 5ppm/Year

Res is tance of s eries res onance (ESR)

Frequency

Mode

30kHz <= f < 40kHz

Fundam ental

40kHz <= f < 60kHz

Fundam ental

Ohm m ax

50k

30k

Frequency

60kHz <= f < 70kHz

70kHz <= f < 200kHz

Mode

Fundam ental

Ohm m ax

25k

22k

Drawing

TC38

TC26

Dimensions in mm

Order key

Part

- 32.768000K

Frequency

- TC38

Package

- 30

Frequency

tolerance

+/-ppm

(25°C)

- B

Temperature

range

0°C ~ 70°C

- 12.5

Load

capacitance

Q=Quartz

K=kHz

TC38

TC26

B=-10°C ~ 60°C

C=-10°C ~ 70°C

D=-20°C ~ 70°C

E=-40°C ~ 85°C

Remarks: All specifications subject to change without notice!

1.1
