COMBI receptacle - SC 4-RZ/ 8 - 3042683
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
COMBI receptacle, Connection method: Spring-cage connection, Number of positions: 8, Cross section: 0.08
mm² - 6 mm², AWG: 28 - 10, Width: 49.6 mm, Height: 31 mm, Color: gray, Mounting type: On mounting plate

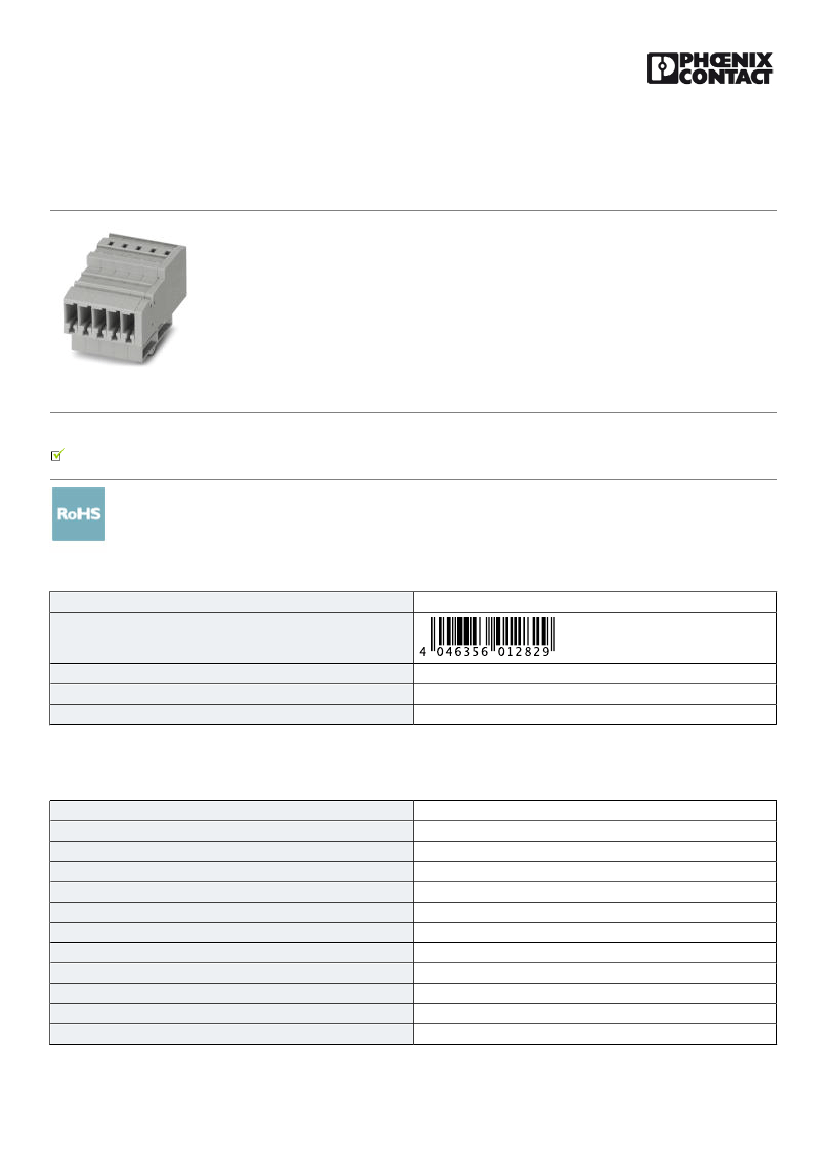

The illustration shows the 5-position
version of the product
Why buy this product
COMBI coupling for direct mounting
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356012829
85366990
Made to Order (non-returnable)
25 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
8
1
2
4 mm²
gray
PA
V0
32 A (with 6 mm² conductor cross section)
8 kV
3
III
I
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3042683
COMBI receptacle - SC 4-RZ/ 8 - 3042683
Technical data
General
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
32 A (with 6 mm² conductor cross section)
32 A
800 V
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height
Hole diameter
Drill hole spacing
Plate thickness
Pitch
49.6 mm
3.2 mm
48.6 mm
31 mm
3.5 mm
6.2 mm
0.8 mm ... 1.5 mm
6.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Spring-cage connection
IEC 61984
0.08 mm²
6 mm²
28
10
0.08 mm²
4 mm²
28
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3042683
COMBI receptacle - SC 4-RZ/ 8 - 3042683
Technical data
Connection data
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
10
0.14 mm²
0.14 mm²
4 mm²
0.5 mm²
1 mm²
8 mm ... 10 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 61984
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Current strength [A]
35
30
25
20
15
10
5
0
0
20
40
60
80
100
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 10-pos.
= 15-pos.
Diagram
Drilling
diagram
Drilling
plan
SC
4-
RZ...,
example:
1
x
SC
4-
RZ/
6,
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3042683
COMBI receptacle - SC 4-RZ/ 8 - 3042683
metal
thickness:
0.8-1.5
mm
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-10
30 A
600 V
C
28-10
30 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-10
30 A
600 V
C
28-10
30 A
600 V
EAC 7500651.22.01.00246
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
