74059-1013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 74059-1013

74059-1013: DescriptionHigh Speed / Modular Connectors VHDM BP 6 ROW SHLD END ASSY 10 COL; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74059-1013 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74059-1013	-	-	View	Buy Now

74059-1013 Overview

High Speed / Modular Connectors VHDM BP 6 ROW SHLD END ASSY 10 COL

74059-1013 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED, PANEL MOUNTABLE, NO.OF SHIELDED CONTACTS: 10
body width	0.673 inch
subject depth	0.484 inch
body length	1.063 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	13.5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	11
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.0922 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	70
UL Flammability Code	94V-0
Base Number Matches	1

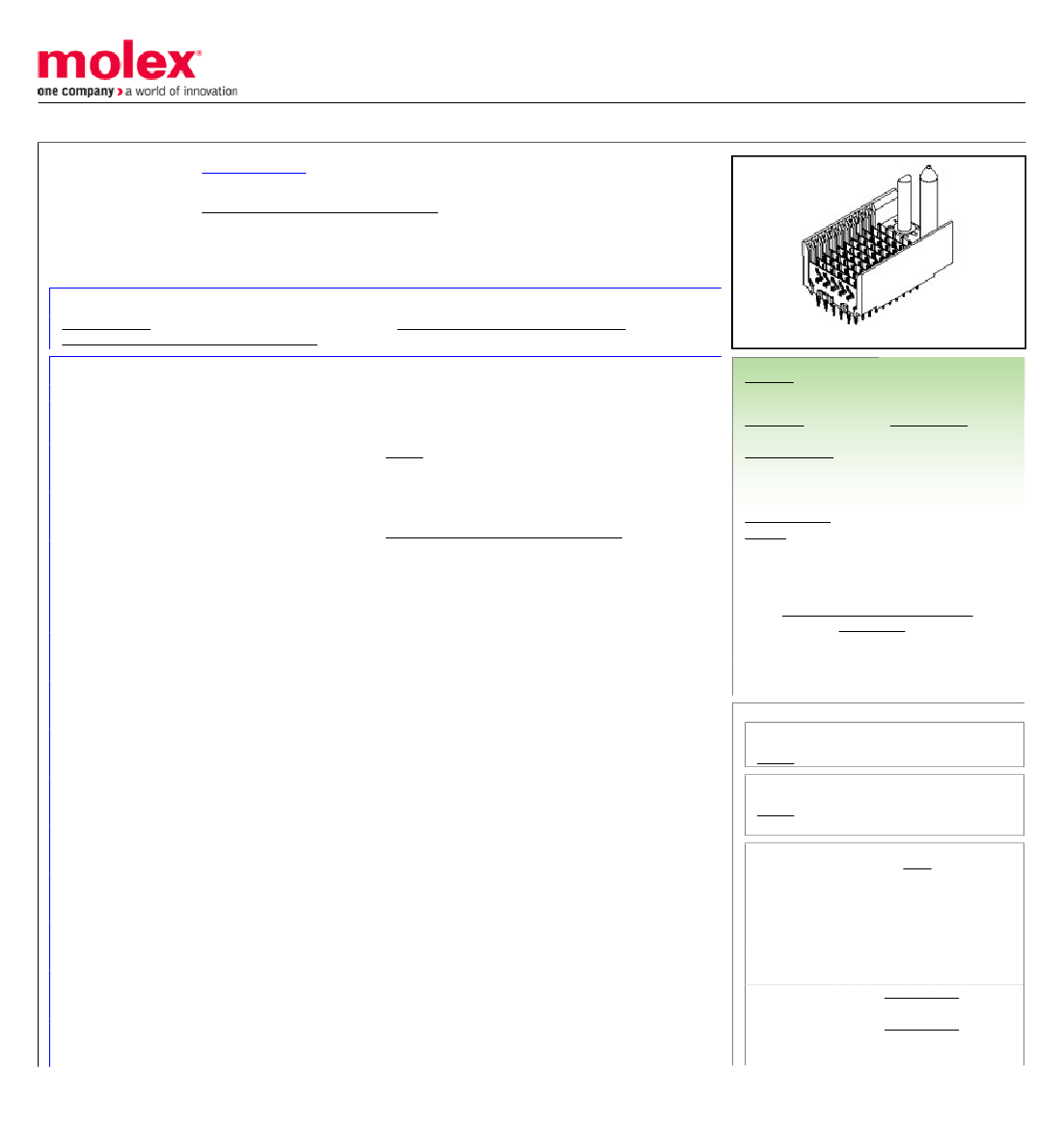

Preview

Download Datasheet

View All

This document was generated on 09/30/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0740591013

Active

VHDM® Backplane Connector Systems

VHDM® Single-Ended Board-to-Board Backplane Header, 2.00mm Pitch, Vertical, 6-

Rows, Guide Pin Signal Module, Shield End Version, Pin End Version, 60 Circuits,

Pin Length 4.25mm, Keying Orientation A. Series:74074 Enables designers to create

custom loaded connectors utilizing standard pin lengths 4.25, 4.75, 5.15 and 6.25mm

Documents:

Drawing (PDF)

Product Specification PS-74031-999 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

E29179

Backplane Connectors

74059

Backplane

TM-622010999

Position A

PCB Header

VHDM® Backplane Connector Systems

VHDM®

800753257238

Black

200

94V-0

Yes

Beryllium Copper, High Performance Alloy (HPA),

Stainless Steel

Gold

Matte Tin

High Temperature Thermoplastic

7.874/g

Open Pin Field

Vertical

2.50mm

None

1.80mm

Tube

2.00mm

1.00mm

Yes

-55°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

74059 Series

Mates With

74030 VHDM® Board-to-Board

Daughtercard Receptacle

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

6-Row Pin and

0622015800

Shield Repair Tool

Insertion Module

0622020203

for Advanced Mate

Signal Header, 6-

Recommended Resources
