Part Number

Search

M80-8542045

Description
Headers & Wire Housings 10+10 WAY DIL VERT CONN
CategoryThe connector    The connector
File Size45KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric View All

M80-8542045 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-8542045 - - View Buy Now

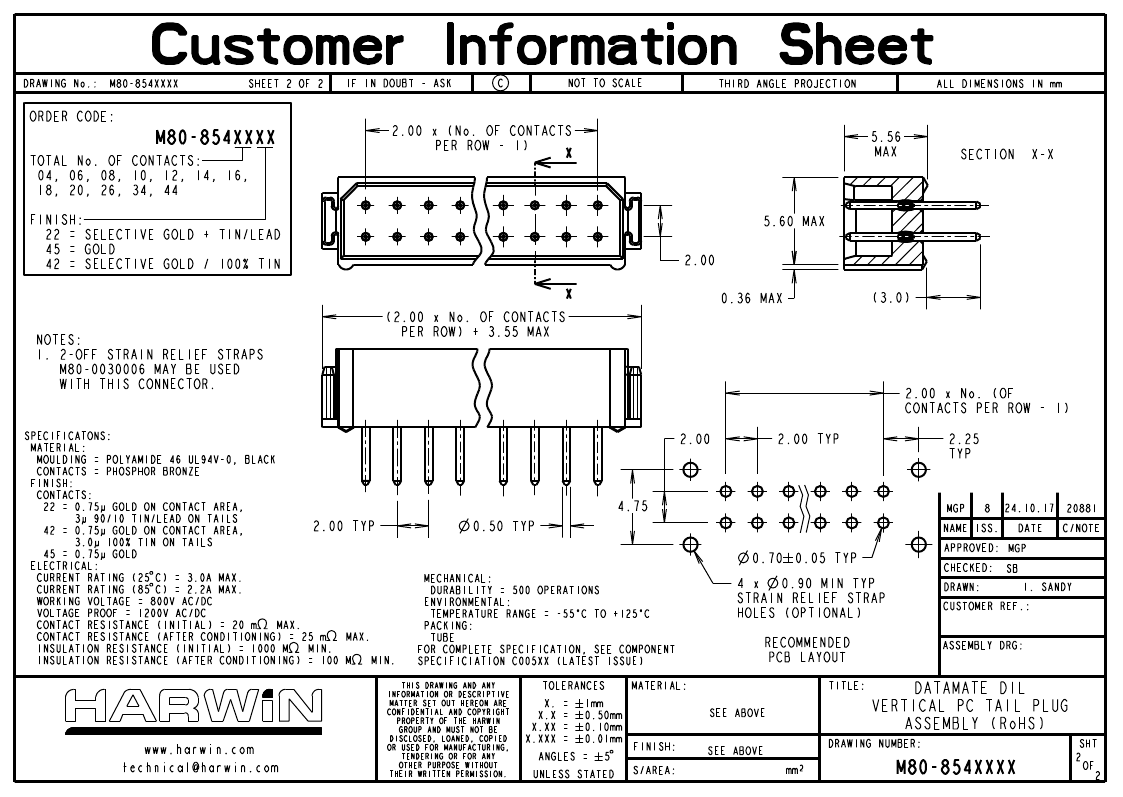

M80-8542045 Overview

Headers & Wire Housings 10+10 WAY DIL VERT CONN

M80-8542045 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPOLARIZED, SHROUDED
body width0.235 inch
subject depth0.219 inch
body length0.927 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage360VAC V
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialPOLYAMIDE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts20
UL Flammability Code94V-0
Base Number Matches1
