35507-0500: DescriptionHeaders & Wire Housings 5 Ckt Housing Sherlock W-T-B; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35507-0500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35507-0500	-	-	View	Buy Now

35507-0500 Overview

Headers & Wire Housings 5 Ckt Housing Sherlock W-T-B

35507-0500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	SHERLOCK, COMPATIBLE CONTACTS: 50212-8000, LOW PROFILE, POLARIZED
body width	0.228 inch
subject depth	0.295 inch
body length	0.484 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	5
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.695 N
Base Number Matches	1

Preview

Download Datasheet

View All

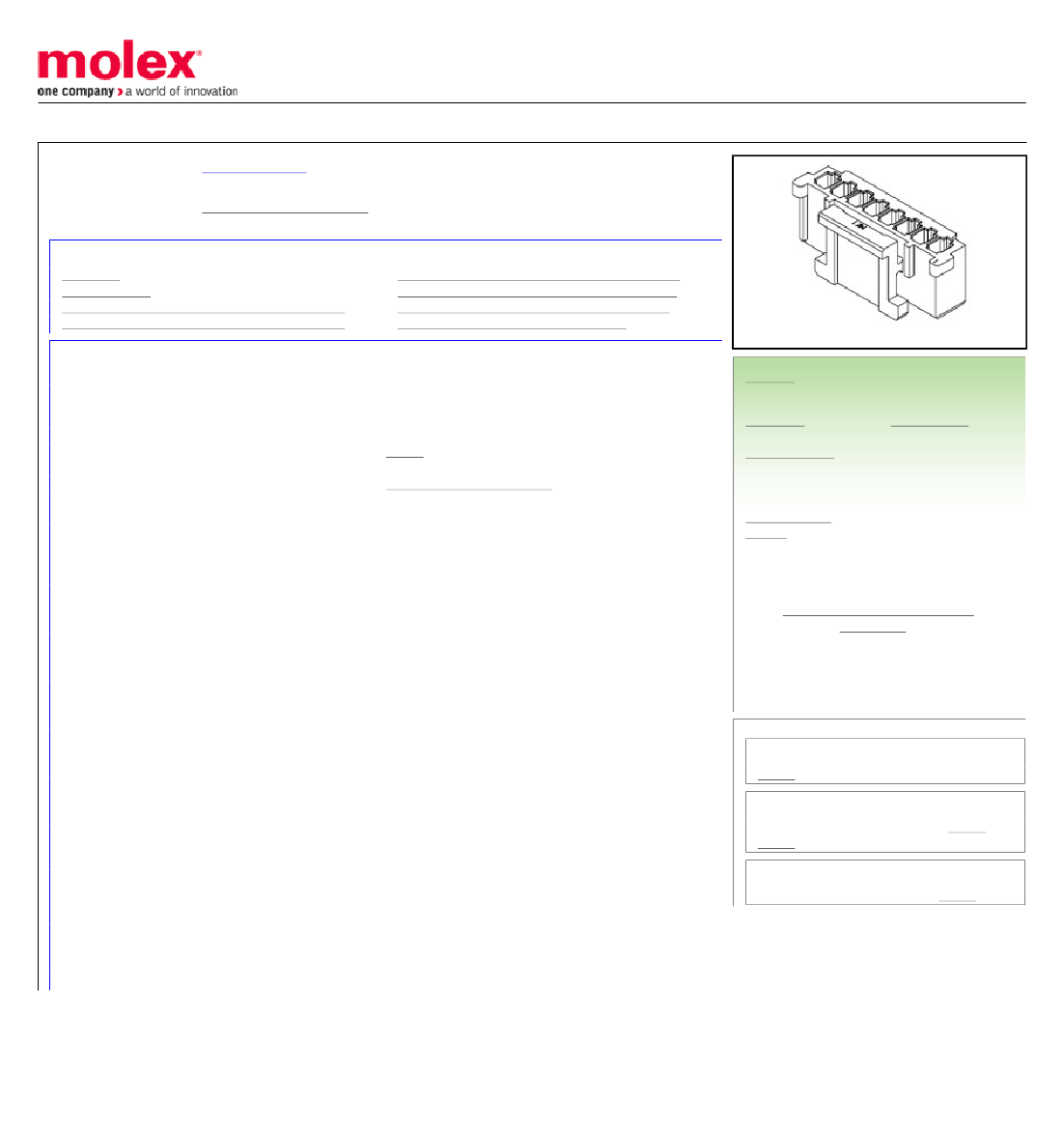

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0355070500

Active

Sherlock Connector System

2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 5 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35507-001-001 (PDF)

Product Specification PS-35507-002-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Product Specification PS-35507-003-001 (PDF)

Packaging Specification 355070200-100 (PDF)

Packaging Specification PK-35507-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

Crimp Housings

35507

Signal, Wire-to-Board

Sherlock Connector System

Sherlock

800754241878

Natural

94V-0

Receptacle

None

Yes

Polyester

0.253/g

Bag

2.00mm

Yes

-40°C to +105°C

2.0A

Use With

2.00mm Pitch Crimp Terminal 50212

355070200-100, PK-35507-001

PS-35507-001-001, PS-35507-002-001,

PS-35507-003-001

SD-35507-001, SD-35507-001-001

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Search Parts in this Series

35507 Series

Mates With

Sherlock Wire-to-Board Header 35362 ,

35363

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
