This document was generated on 05/19/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0877057911
Active
1.00mm (.039") Pitch DDR-II DIMM 240 Circuits Socket, Vertical, 1.8 Voltage, 2.54mm
(.100") Tail Length, Black Latches, Nylon 4/6 Glass-filled, Black Housing, Gold (Au)
Flash, with Plastic Peg, Lead Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87705-801 (PDF)
Product Specification PS-87705-802 (PDF)
Test Summary TS-87705-802 (PDF)
RoHS Certificate of Compliance (PDF)

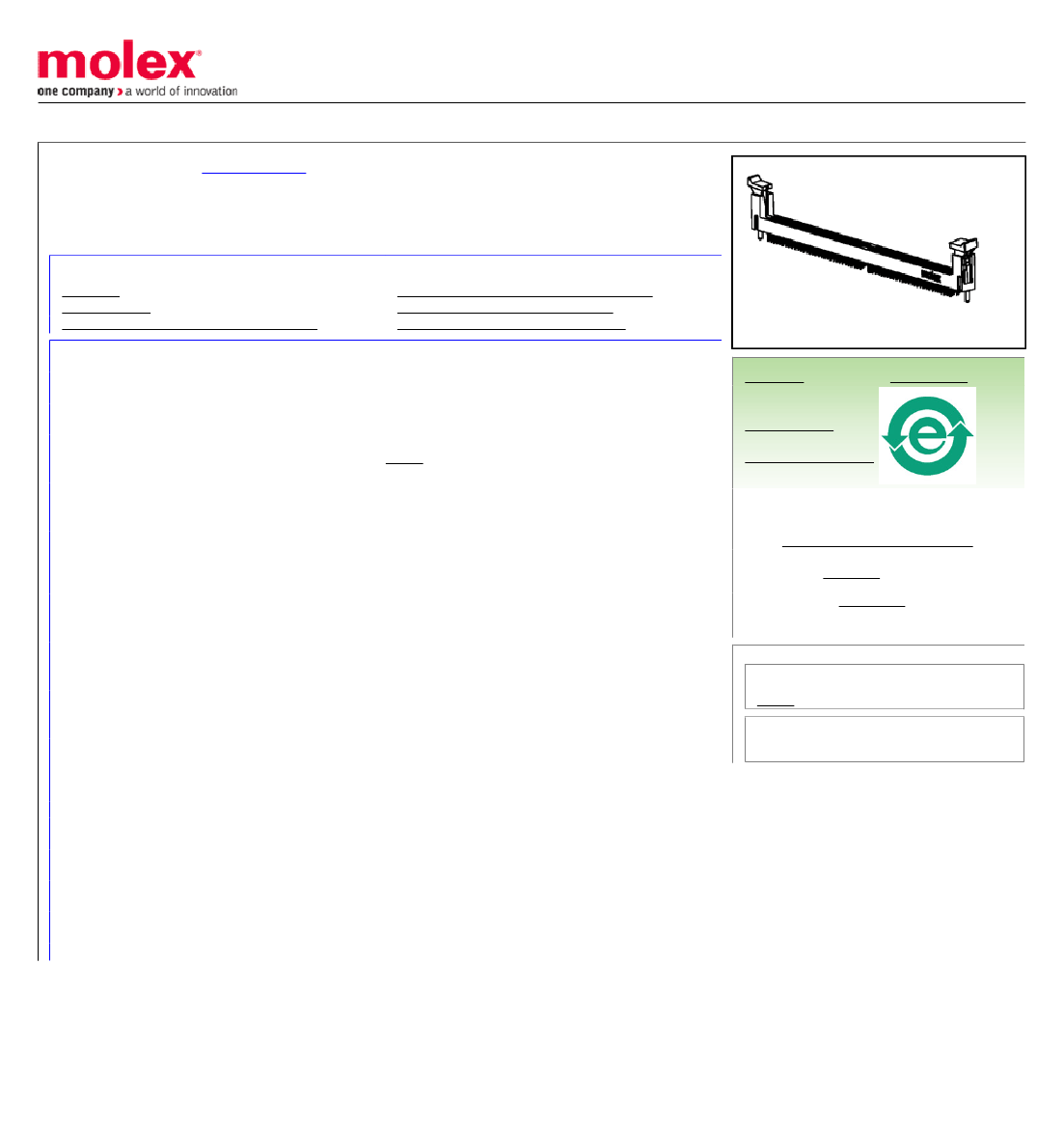

image - Reference only
Series
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Comments
Component Type
JEDEC Outline
Product Name
Memory Module Sockets
87705
<LI>Black Latches
Socket
MO-237
DDR2 DIMM
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Plating Mating
PC Tail Length
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Temperature Range - Operating
Termination Interface: Style
240
25
Vertical (Top Entry)
94V-0
Yes
Gold
2.54mm (.100")
Yes
1.60mm (.063")
Tray
1.00mm (.039")
-10°C to +85°C
Through Hole
Search Parts in this Series
87705Series
Mates With
JEDEC standard 1.27mm modules
Electrical
Current - Maximum per Contact
Voltage - Maximum
Voltage Key
0.5A
30V
1.8V, Center
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
Test Summary
PS-87705-801, PS-87705-802
SD-87705-802
TS-87705-802
