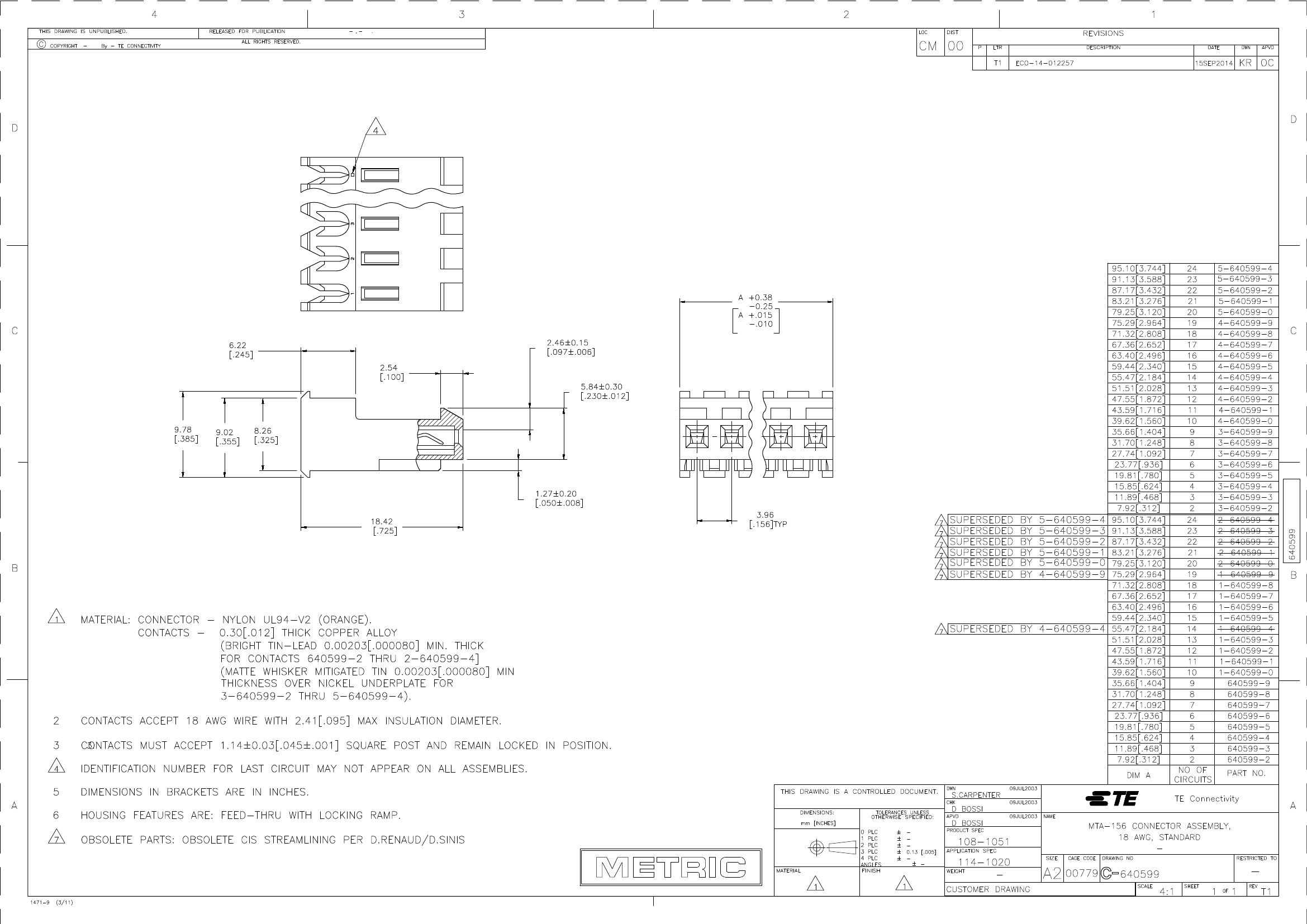

Board Connector, 3 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, Orange Insulator, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 2060524896 |
| Reach Compliance Code | compliant |
| Samacsys Description | 03P MTA156 CONN ASSY 18AWG ORA |
| Samacsys Manufacturer | TE Connectivity |
| Samacsys Modified On | 2020-10-09 20:32:13 |
| YTEOL | 6.5 |
| body width | 0.385 inch |
| subject depth | 0.385 inch |
| body length | 0.468 inch |
| Body/casing type | RECEPTACLE |
| Cable type | STRANDED |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | MATTE TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 7 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Durability | 25 Cycles |
| Electromagnetic interference shielding | NO |
| empty shell | YES |
| Filter function | NO |
| IEC compliance | NO |
| Minimum insulation diameter | 0.095 inch |
| Insulation resistance | 5000000000 Ω |
| Insulator color | ORANGE |
| insulator material | POLYAMIDE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Power Connector Ratings | 7A |
| Plug contact pitch | 0.156 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | LOCKING |
| Installation type | CABLE |
| Number of connectors | ONE |
| Number of ports | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Plating thickness | 200u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 7 A |
| Guideline | CSA, UL |
| Terminal pitch | 3.96 mm |
| Termination type | IDC |
| Total number of contacts | 3 |
| UL Flammability Code | 94V-2 |
| Maximum wire diameter | 18 AWG |
| Minimum wire diameter | 18 AWG |
