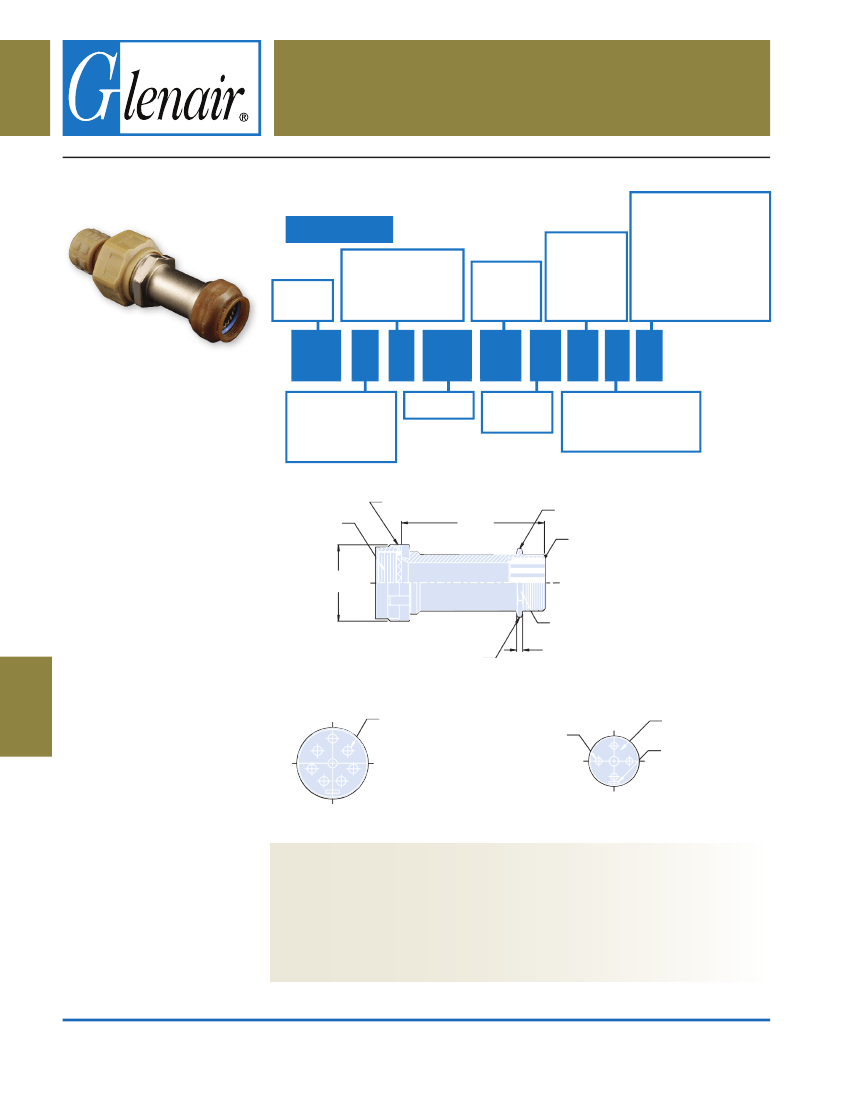

377-014
Convoluted Tubing-to-Connector Backshell
for Fiber Optic MIL-DTL-38999 Series III & IV Connectors
Special
Applications
Convoluted tubing-to-connector backshell, fiber optic, composite with grommet
How To Order
Angular Function
S
= Straight
W
= 90° Solid Elbow
T
= 45° Solid Elbow
Finish
Sym.
(Table II)
Optional
Entry Size
(Table IV)
Omit for Std.
Table III
SYM T
- Band Termination
Tubing Adapter for Series
74 Teflon type tubing
SYM K
- Compression Nut
Tubing Adapter for PEEK
tubing
SYM TN
- Compression Nut
Tubing Adapter for Series
74 Teflon type tubing
Product
Series
377
H S 014 XM 11 06 4 K
Basic No.
Shell Size
(Table III)
Length In 1/2 Inch
Increments
(Example: 4 = 2 Inches)
Connector
Designator,
MIL-DTL-38999,
Series III&IV
Anti-rotation
Device
A Thread
Length
(see notes)
Grommet Key Indicator
(Color White)
Grommet Key (8 at 45)
B
L Hex Flats
Positive Stop
.190 (4.8)
Sym S - Straight
F
2
8
7
6
25-8
1
5
3
4
Ø .20
8 Places
Applicable
to 25-8 Only
Ø .120 (3.0)
See Table III
for No.
of Holes
Cavity
Ident.
A
D E
C B
Insert Indent.
See Table III
Hole
Pattern
Material and Finish
• Adapters, Elbows, Coupling Nut, Nut: Hi-grade engineering thermoplastic/see table II
• Grommet, O-Ring: Fluorosilicone/N.A.
• Anti-Rotation Device: Corrosion resistant material/N.A.
Notes
• Standard minimum length: 1.5 inches, for shorter length consult factory.
• For Sealing Plugs, see Glenair drawing 687-142.
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-8
E-Mail: sales@glenair.com

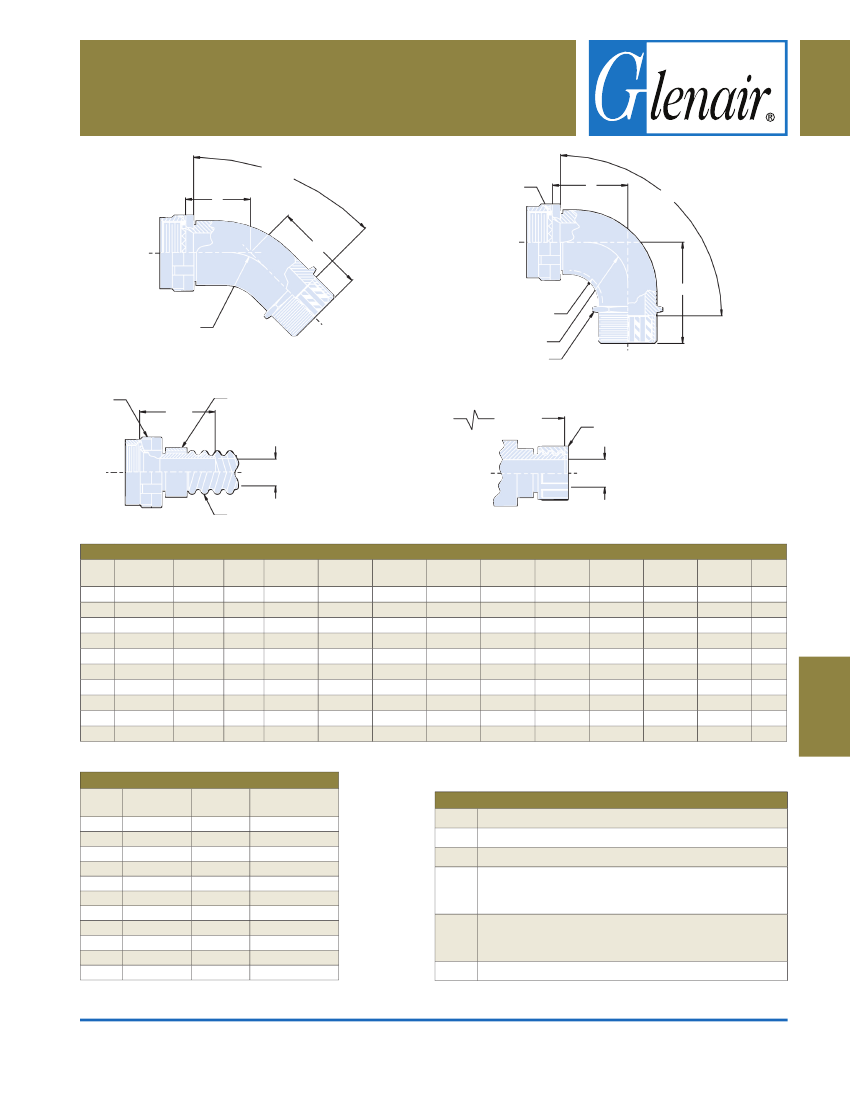

for Fiber Optic MIL-DTL-38999 Series III & IV Connectors
F
J Approx
on
C
L
O-Ring
D
H Approx
on
C
L
G
E
1.0 (25.4) Radius
Ref
K Rad Ref
Sym T -
45°
Anti-
Rotation
Device
Band Termination
See P/N Development
K Rad Ref
Mating Nut Must Bottom
On Shoulder Stop
Sym W -
90°
1.75
Max
1.75 Max
Nut
C
Ref
Sym T - Tubing
Adapter
SYM K - Compression
Nut Adapter, PEEK
SYM TN - Compression
Nut Adapter, Teflon
C
Ref
Spilt Helical Convoluted
Tubing (Not Supplied)
Shell
Size
11
13
15
17
19
21
23
25
25-8
A Thread
B
Tubing
Iso Metric
Max
Size
M15 X 1 - 6H 1.00 (25.4)
3/8
M18 X 1 - 6H 1.12 (28.4)
7/16
M22 X 1 - 6H 1.25 (31.8)
M25 X 1 - 6H 1.38 (35.1)
M28 X 1 - 6H 1.50 (38.1)
M31 X 1 - 6H
1.62 (41.0)
M34 X 1 - 6H 1.75 (44.5)
M37 X 1 - 6H 1.88 (47.8)
M37 X 1 - 6H 1.88 (47.8)
1/2
5/8
3/4
7/8
1
1
1 1/4
1 1/4
D
Max
1.78 (45.2)
1.84 (46.7)
1.90 (48.3)
1.97 (50.0)
2.11 (53.6)
2.07 (52.6)
2.14 (54.4)
2.19 (55.6)
2.19 (55.6)
2.19 (55.6)
E
Max
1.93 (49.0)
1.98 (50.3)
2.08 (52.8)
2.14 (54.4)
2.18 (55.4)
2.25 (57.2)
2.31 (58.7)
2.19 (55.6)
2.19 (55.6)
2.19 (55.6)
Table III: Shell Size
F
G
Max
Max
1.33 (33.8) 1.56 (39.6)
1.39 (35.3)
1.62 (41.1)
1.45 (36.8)
1.51 (38.4)
1.54 (39.1)
1.61 (40.9)
1.67 (42.4)
1.73 (43.9)
1.73 (43.9)
1.73 (43.9)
1.68 (42.7)
1.74 (44.2)
1.77 (45.0)
1.84 (46.7)
1.89 (48.0)
1.96 (49.8)
1.96 (49.8)
1.96 (49.8)
H
Approx
2.23 (56.6)
2.28 (57.9)
2.45 (62.2)
2.47 (62.7)
2.54 (64.5)
2.64 (67.1)
2.76 (70.1)
2.84 (72.1)
2.84 (72.1)
2.84 (72.1)
J
Radius
2.09 (53.1)
2.21 (56.1)
2.33 (59.2)
2.44 (62.0)
2.50 (63.5)
2.64 (67.1)
2.75 (69.9)
2.87 (72.9)
2.87 (72.9)
2.87 (72.9)
K
Radius
1.20 (30.5)
1.26 (32.0)
1.32 (33.5)
1.38 (35.1)
1.43 (36.3)
1.49 (37.8)
1.55 (39.4)
1.62 (41.1)
1.62 (41.1)
1.62 (41.1)
L
Flats
.938 (23.8)
.938 (23.8)
.938 (23.8)
1.250 (31.8)
1.250 (31.8)
1.500 (38.1)
1.500 (38.1)
1.812 (46.0)
1.812 (46.0)
1.812 (46.0)
Insert
Indent
11-2
13-4
15-5
17-8
19-11
21-16
23-21
25-29
25-8
25-37
Hole
Count
2
4
5
8
11
16
21
29
8
37
25-37
M37 X 1 - 6H 1.88 (47.8)
Entry
Size
03
04
05
06
07
08
10
11
13
15
17
Table IV: Entry Size
C Ref Sym C Ref Sym Optional Conduit
T & TN
K
Size Ref.
.219 (5.6)
.188 (4.8)
9/32
.236 (6.0)
-
5/32
.250 (6.4)
.265 (6.7)
3/8
.338 (8.6)
.330 (8.4)
7/16
.398 (10.0)
.390 (9.9)
1/2
.523 (13.2)
.515 (13.1)
5/8
.648 (16.4)
.640 (16.3)
3/4
.648 (16.4)
.640 (16.3)
3/4
.778 (19.6)
.765 (19.4)
7/8
.875 (22.7)
.890 (22.6)
1
1.078 (28.0) 1.125 (28.6)
1 1/4
Table II: Finish Description
Sym
-
XB
XM
Finish Description
Dash (-) For No Plating
No Plating - Black Color
Electroless Nickel Backshell
No Plating Supplied On Coupling Nut
Or Rear Entry Components - Amber Color
Cadmium Olive Drab Over Electroless Nickel Backshell -
No Plating Supplied on Coupling Nut or Rear Entry
Components - Amber Color
Copper Flash - GPS52-XMT (JCP-3)
Printed in U.S.A.
XW
XMT
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-9
E-Mail: sales@glenair.com
Special
Applications
377-014
Convoluted Tubing-to-Connector Backshell
F
DSP and ARM Processors
