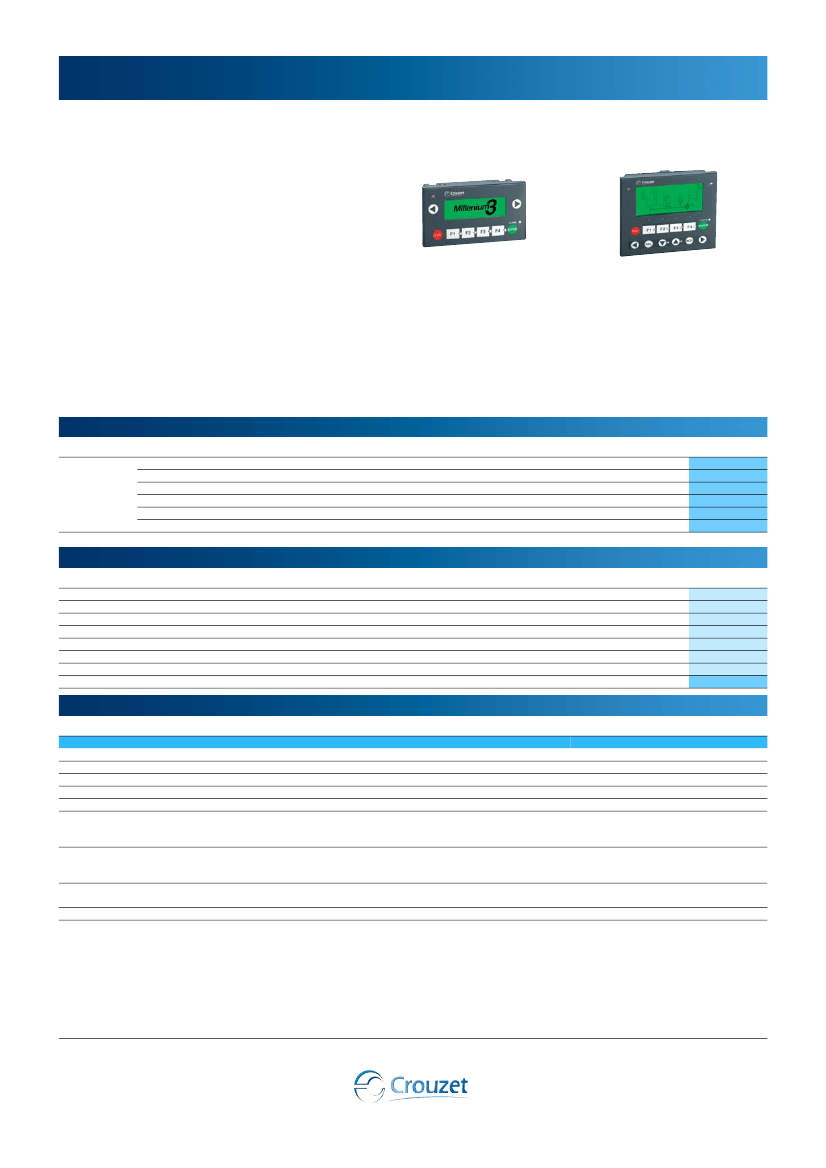

Millenium 3 accessories
➜
Programmable panels
■
Compact panels, backlit LCD, for industrial environments, for
use with 24 V DC Millenium
■
LED backlighting with 3 colours: green, orange and red, for
improved visibility
■
Display of predefined objects: text, data, bar charts, trend
curve
■
TrueType fonts for better display quality in Latin, Cyrillic,
Greek, Simplified Chinese or Katakana
■
Direct communication via the Millenium 3 programming port
or via Modbus protocol
■
Simple user-friendly programming using Vijeo Designer Lite
(compatible with Windows XP Professional or 32-bit Vista
Professional)
N401
■
Graphic resolution: 122 x 32 pixels
■
1 line of 5 characters to 4 lines of 20 characters
RT511
■
Touch panel (Touch-screen matrix 11 x 5 cells)
■
Graphic resolution: 198 x 80 pixels
■
2 lines of 5 characters to 10 lines of 33 characters
Part numbers
Type
RD
Designation
N401 "direct" user kit (N401 panel, N401 link cable
➞
M3)
N401 programming pack (Vijeo Designer Lite CD, RS232C prog. cable
➞
N401)
N401 "Modbus" user kit (N401 panel, Modbus RJ45 cable
➞
N401)
RT511 "direct" user kit (RT511 panel, RT511 link cable
➞
M3)
RT511 programming pack (Vijeo Designer Lite CD, RS232C prog. cable
➞
RT511)
RT511 "Modbus" user kit (RT511, Modbus RJ45 cable
➞
RT511)
Code
88970472
88970473
88970474
88970482
88970483
88970484
Accessories
Type
MA
MA
MA
MA
MA
MA
MA
PA
Description
Protective sleeves for N401 (in packs of 10)
Sheets of labels for N401 (in packs of 10 sheets of 6 labels)
N401 front panel sealing kit (flush-mounting frame)
Protective sleeves for RT511 (in packs of 10)
Sheets of labels for RT511 (in packs of 10 sheets of 6 labels)
RT511 front panel sealing kit (flush-mounting frame)
Printer cable for N401 & RT511 DB9
➞
Mini-Din (RS232) *
PC: USB
➞
DB9 (RS 232) link cable
Code
88970475
88970476
88970477
88970485
88970486
88970487
88970489
88950105
General characteristics
N401
Environmental characteristics
Certifications
Conformity to standards
Operating temperature
Storage temperature
Relative humidity
Protection rating
EC, UL
IEC 61131-2, UL508, CSA C22-2 no. 14
0
➞
+55°C
-20
➞
+60°C
0
➞
85% (without condensation)
Front: IP65 according to IEC 60529,
Nema 4X ("out door use")
Rear: IP20 according to IEC 60529
According to IEC 60068-2-27, semi-
sinusoidal impulse 11 ms, 15 gn on 3
axes
IEC 60068-2-6, ± 3.5 mm, 2
➞
8.45 Hz, 1
gn 8.45
➞
150 Hz
According to IEC 61000-4-2, level 3
According to IEC 61000-4-3, 10 V/m
According to IEC 61000-4-4, level 3
RT511
EC, UL
IEC 61131-2, UL508, CSA C22-2 no. 14
0
➞
+55°C
-20
➞
+60°C
0
➞
85% (without condensation)
Front: IP65 according to IEC 60529,
Nema 4X ("out door use")
Rear: IP20 according to IEC 60529
According to IEC 60068-2-27, semi-
sinusoidal impulse 11 ms, 15 gn on 3
axes
IEC 60068-2-6, ± 3.5 mm, 2
➞
8.45 Hz, 1
gn 8.45
➞
150 Hz
According to IEC 61000-4-2, level 3
According to IEC 61000-4-3, 10 V/m
According to IEC 61000-4-4, level 3
Shock resistance
Vibration resistance
Resistance to electrostatic discharge
Resistance to HF interference
1
Electrical characteristics
Supply voltage
Voltage limits
Consumption
Mechanical characteristics
Dimensions (l x h x p)
24 V
c
18
➞
30 V
c
± 5%
5 W max.
132 x 74 x 43 mm
Useful screen area (W x H) : 17.36 x 59
mm
119.4 x 63 mm± 0.4
1
➞
5
Flush-mounted, fixed with 2 spring clips
supplied pressure-mounted for panels
380
High brightness backlit LCD
Resolution: 122 x 32 pixels
1 line of 5 characters to 4 lines of 20
characters
LED backlighting in 3 colours: green,
orange, red
512 Kb flash memory
NA
English, French, German, Italian,
Spanish
Latin, Cyrillic, Greek, Katakana and
Simplified Chinese
6 LEDs
25 lines/page max.
Applications: 200 pages
Alarms: 256 pages
RS 232C/RS 485
Removable 3-pin screw terminal block
Direct link using the Millenium
programming port via the communication
OR printer cable
Connector: 25-pin female SUB-D (RS
232C/RS 485)
Connection: Multidrop
Modbus, Millenium 3 (SLIn & SLOut)
24 V
c
18
➞
30 V
c
± 5%
5 W max.
132 x 118 x 39 mm
Useful screen area (W x H) : 40 x 89 mm
119.6 x 105.2 mm± 0.5
1
➞
5
Flush-mounted, fixed with 4 spring clips
supplied pressure-mounted for panels
550
High brightness backlit LCD
Resolution: 198 x 80 pixels
2 lines of 5 characters to 10 lines of 33
characters
LED backlighting with 3 colours: green,
orange, red
512 Kb Flash memory
Matrix, 11 x 5 cells
English, French, German, Italian,
Spanishl
Latin, Cyrillic, Greek, Katakana and
Simplified Chinese
13 LEDs + buzzer
10 lines/page max.
Applications: 200 pages
Alarms: 256 pages
RS 232C/RS 485
Removable 3-pin screw terminal block
Direct link using the Millenium
programming port via the communication
OR printer cable
Connector: Female RJ45 (RS 232C/RS
485)
Connection: Multidrop
Modbus, Millenium 3 (SLIn & SLOut)

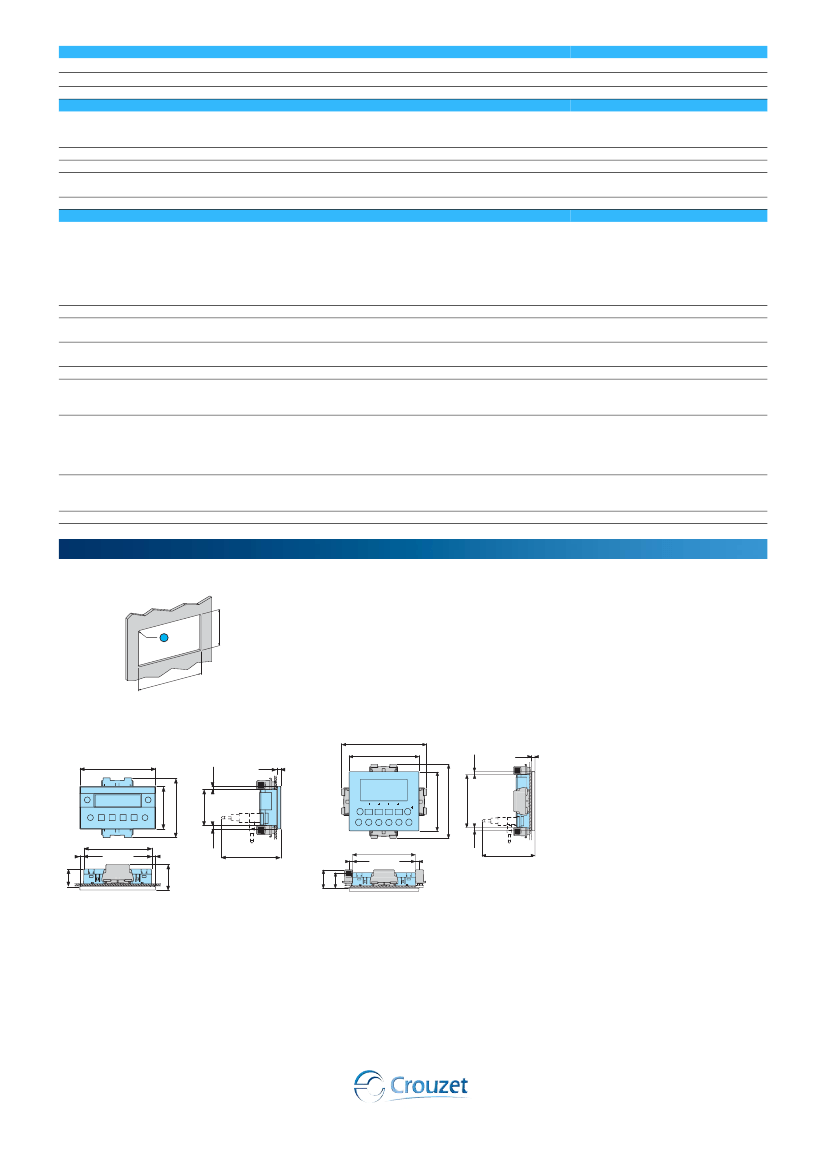

Panel cut-out
Density
Mounting
Weight (g)
Display characteristics
Description
Display unit touch-sensitive zone
Language
Display details
Status indication
Number of screens
Connection
Protocol
Dimensions (mm)
Panel cut-out
B
R = 1.5 mm maxi.
N401 :
L = 119.4 ±0.4
H = 63 ±0.4
RT511 :
L = 119.6 ±0.5
H = 105.2 ±0.5
RT511
160
137
6
7
H
1
L
N401
132
6
6
146
118
104
74
62
6
104,5
7
118
7
7
90
119
9
9
79
31
43
39
31
2
