34CMSP14B2V2QT: DescriptionToggle Switches Toggle Switch, Sub-Miniature, SPDT, ON-NONE-ON, right angle vertical mount, PC mount; CategoryMechanical and electronic products switch; File Size432KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

34CMSP14B2V2QT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34CMSP14B2V2QT	-	-	View	Buy Now

34CMSP14B2V2QT Overview

Toggle Switches Toggle Switch, Sub-Miniature, SPDT, ON-NONE-ON, right angle vertical mount, PC mount

34CMSP14B2V2QT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
body width	5.08 mm
body height	9.02 mm
Body length or diameter	10.16 mm
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

Preview

Download Datasheet

View All

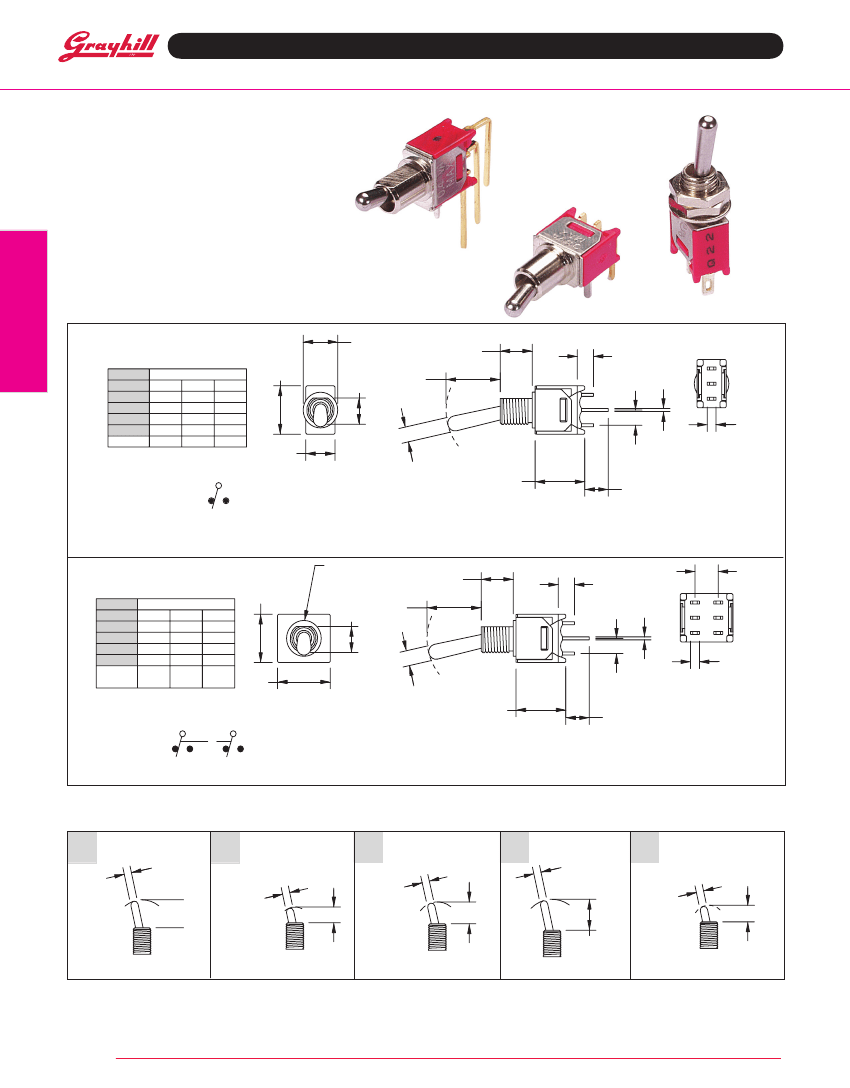

Series 34C: Sub-Miniature Toggle Switches

SerieS 34c

Sub-Miniature Toggle Switches

FeATUreS

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuators, Bushings, and

Terminations

• UL Recoginized

Toggle Switches

ModelS

SPdT

in inches (and millimeters)

Ø.236

(Ø6.00)

.173

(4.39)

.370

(9.40)

.220

(5.59)

MODEL NO.

MSP1

MSP2

MSP3

MSP4

MSP5

TERM. COMM.

SWITCH POSITION

NONE

OFF

(ON)

OFF

OPEN

2-3

.320

(8.13)

(ON)

2-1

.110

(2.79)

.020

(0.51)

.060

(1.52)

.200

(5.08)

Ø.100

(Ø2.54)

.100

(2.54)

.340

(8.64)

.160

(4.06)

()=MOMENTARY

02COMM.

SCHEMATIC

dPdT

MODEL NO.

MDP1

MDP2

MDP3

MDP4

MDP5

TERM. COMM.

SWITCH POSITION

NONE

OFF

(ON)

OFF

2-3,

OPEN

5-6

.320

(8.13)

(ON)

2-1,

5-4

Ø.236

(Ø6.00)

.173

(4.39)

.370

(9.40)

.220

(5.59)

.110

(2.79)

.160

(4.06)

.020

(0.51)

()=MOMENTARY

02COMM.

.360

(9.14)

Ø.100

(Ø2.54)

.100

(2.54)

.340

(8.64)

.160

(4.06)

.060

(1.52)

05COMM.

SCHEMATIC

3 4

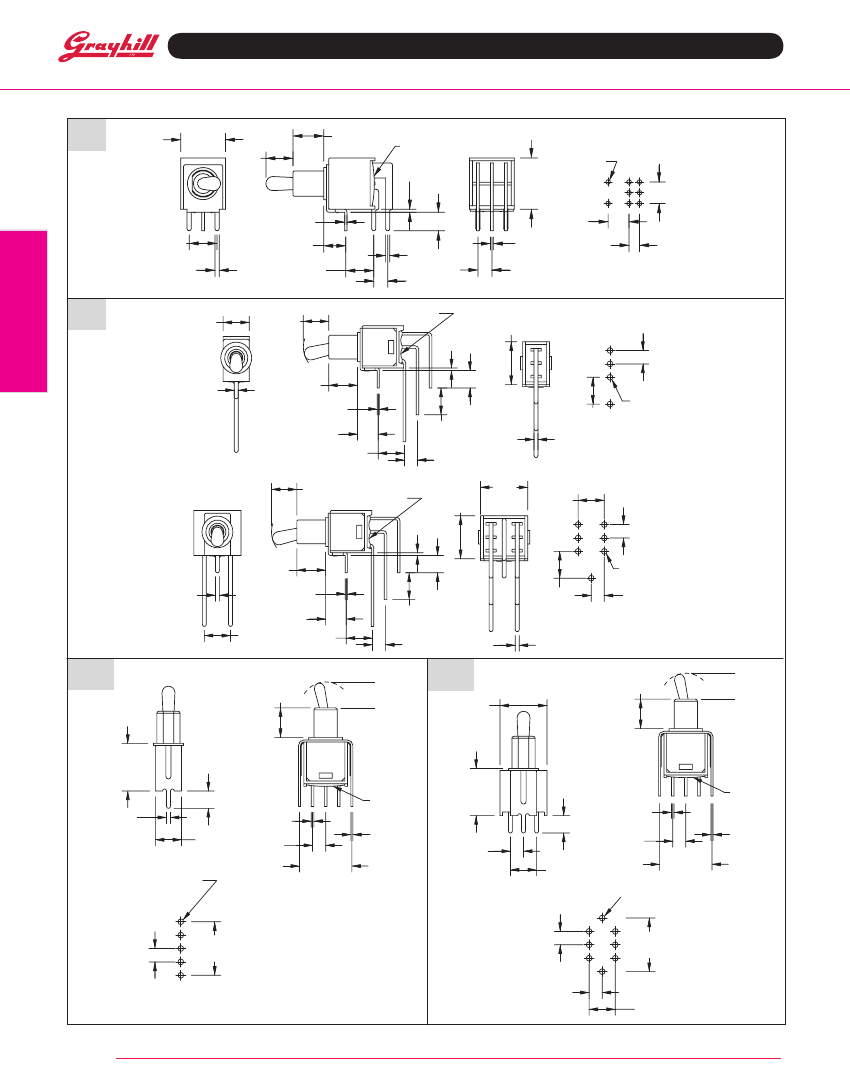

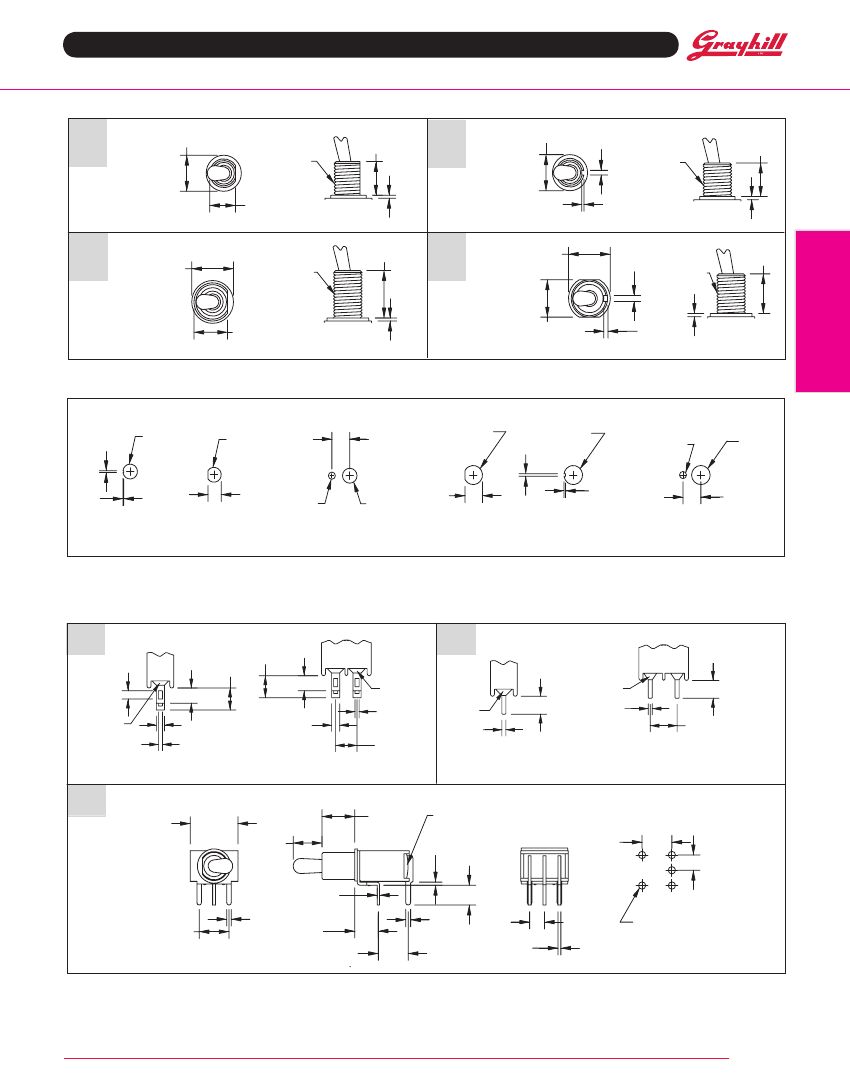

AcTUATor oPTioNS

Ø.100

(Ø2.54)

.370

(9.40)

in inches (and millimeters)

.210

(5.33)

Ø.100

(Ø2.54)

.290

(7.37)

Ø.100

(Ø2.54)

Ø.100

(Ø2.54)

.220

(5.59)

Ø.100

(Ø2.54)

.410

(10.41)

Actuator options 1, 2 and 3 shown with B1 to B4 bushing, subtract 0.90 (2.29) for bushing B5, subtract 0.40 (1,02) for bushing B7.

Actuators 4 and 5 shown with B5 and B6 bushing, add 0.90 (2.29) for bushing B1 to B3, add 0.50 (1,27) for bushing B7.

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
