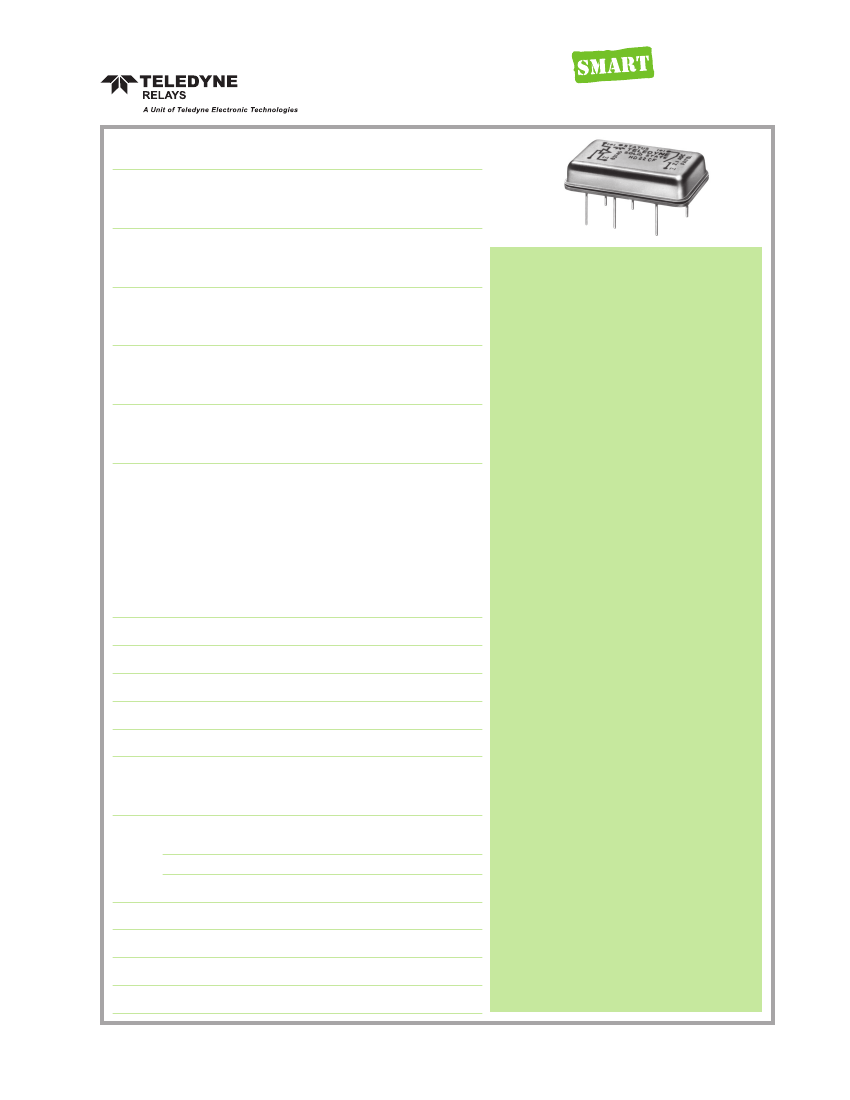

Series HD
2A, 60Vdc True Output Status Feedback,
Short-Circuit Protected DC Solid-State Relay
Part*
Number
HD00CFW
HD00CFY
HD02CFW
HD02CFY
HD20CFW
HD20CFY
HD22CFW
HD22CFY
HD24CFW
HD24CFY
88062-002
88062-004
SSR with Short Circuit Protection
and Switch Status
SSR with Short Circuit Protection
and Trip Status
88062-006
SSR with Short Circuit Protection
88062-008
SSR with Switch Status
FEATURES
• Available with short-circuit/current overload
protection
• Available with status output
• TTL and CMOS compatible control
• Low ON resistance power FET output
• Fast switching speed
• Meets 28 Vdc system requirements of
MIL-STD-704
• Optical isolation
• Low profile hermetic package
• Built and tested to the requirements of
MIL-PRF-28750
• Available to ‘W’ and ‘Y’ screening levels
DESCRIPTION
This all solid-state relay utilizes the latest
technology to provide a low ON resistance and
an optically isolated output. The control (input)
and load (output) are optically isolated to protect
input logic circuits from voltage and current
transients which can occur on the output supply.
The optical isolation also provides a full floating
output, thus allowing the load to be connected to
either output terminal. The control circuit is
buffered to enable the relay to be driven directly
from standard CMOS or open collector TTL logic
circuits. Available options include short-circuit
and current overload protection, which provides
complete protection for both the relay and the
system wiring. This feature not only provides
protection should a short or overload occur while
the relay is on, but will also provide protection
should the relay be switched into a short. In
either case, the relay will sense the short-circuit
condition and then block it indefinitely until the
short is removed and the unit is reset by cycling
the input control. The second option is a status
output line. This feature is available in either
switch status or trip status configurations. Switch
status returns the true status of the output switch
and is optically isolated from the load. It provides
status indication independent of the control circuit
of the relay. The status line provides a logic (0)
low when the input circuit is off and load circuit
continuity is present. The status line provides a
logic 1 (high) when the output is on. Trip status,
available only with HD24 Series relays, returns a
logic 0 (low) if the output trips off and a logic 1
(high) when the output is in a normal mode (on or
off). These options are available either together
or separately as standard features.
DESC Drawing
Number
Relay Description
Solid State Relay (SSR)
* The Y suffix denotes parameters tested to MIL-PRF-28750
specifications. The W suffix denotes parameters tested to Teledyne
specifications.
ELECTRICAL SPECIFICATIONS
(-55°C TO +105°C UNLESS OTHERWISE NOTED)
INPUT (CONTROL) SPECIFICATION
When used in 2 terminal configuration
(TTL or direct control) (See Fig. 1)
Min
Typ
14
Max Units
15
1.5
mAdc
Vdc
Vdc
-32
Vdc
Vdc
Input Current @ V
IN
= 5 Vdc (See Fig. 2)
Turn-Off Voltage (Guaranteed Off)
Turn-On Voltage (Guaranteed On)
Reverse Voltage Protection
Input Supply Range (See Note 1)
3.8
3.8
32
INPUT (CONTROL) SPECIFICATION
When used in 3 terminal configuration
(CMOS or open collector TTL) (See Fig. 1)
Min
Typ
Max Units
250
1
µAdc
mAdc
Vdc
Vdc
mAdc
Vdc
0.3
Vdc
Control Current
V
CONTROL
= 5 Vdc
V
CONTROL
= 18 Vdc
Control Voltage Range
Bias Supply Voltage (See Note 1)
Bias Supply Current @ V
BIAS
= 5 Vdc
Turn Off Voltage (Guaranteed Off)
Turn On Voltage (Guaranteed On)
© 2002 TELEDYNE RELAYS
0
3.8
14
3.2
18
32
15
(800) 284-7007 • www.teledynerelays.com
HD 45
HD\072002\Q1
Series HD
OUTPUT (LOAD) SPECIFICATIONS

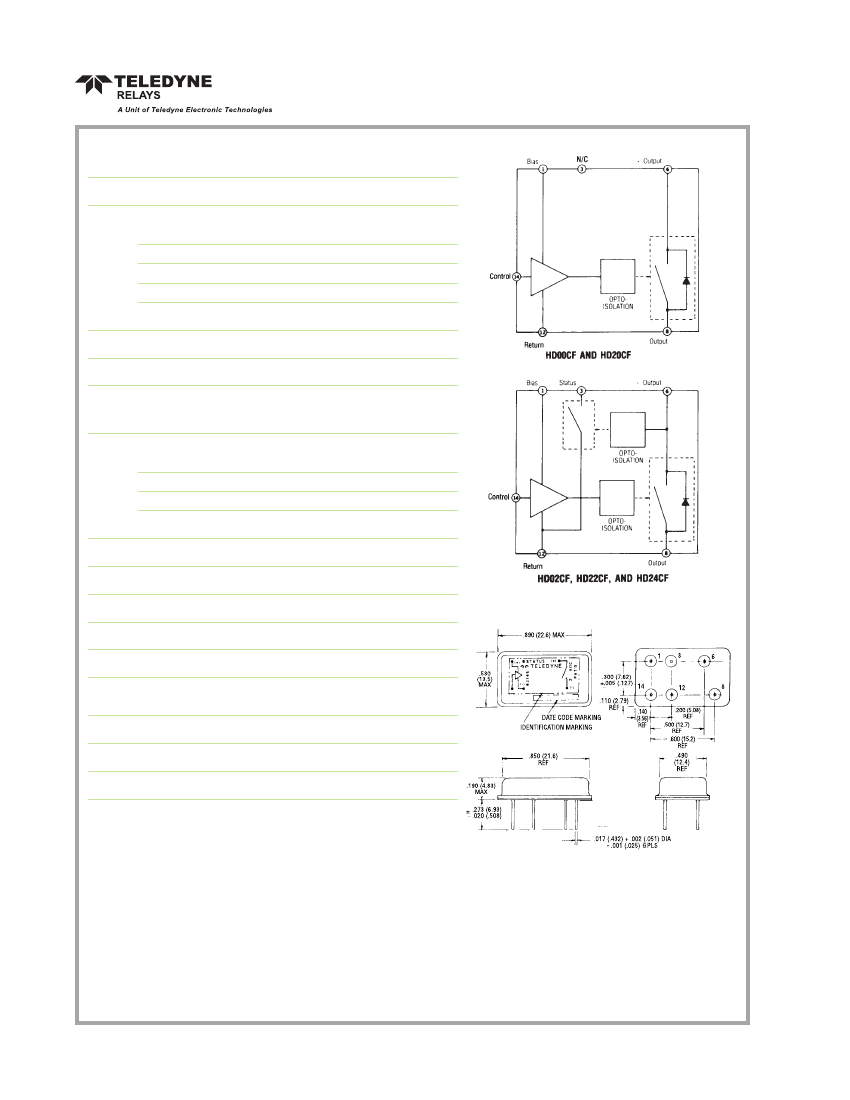

BLOCK DIAGRAM
Max Units
2.1
0.1
0.1
2
2
0.5
60
80
Adc
mA
mA
mA
mA
Vdc
Vdc
Vdc
(See Note 2)
Min
Typ
Continuous Load Current @ +25°C (See Fig. 3)
Leakage Current @ V
LOAD
= 60 Vdc
HD00CF, HD20CF
HD24CF
HD02CF
HD22CF
Output Voltage Drop
Continuous Operating Load Voltage
Transient Blocking Voltage (See Note 3)
ON Resistance R
ds
(on) at T
J
= 25°C
(See Note 4)
Turn-On Time (See Fig. 5)
HD00CF, HD20CF
HD24CF
HD02CF , HD22CF
Turn-Off Time (See Fig. 5)
Electrical System Spike
Output Capacitance at 25 Vdc, 100 KHz
Input to Output Capacitance
Dielectric Strength
Insulation Resistance @ 500 Vdc
Output Junction Temperature
@ I
LOAD
= I
MAX RATED
Maximum Junction Temperature (T
J
Max)
Thermal Resistance Junction to Ambient (θ
JA
)
Thermal Resistance Junction to Case (θ
JC
)
1000
10
9
0.15 Ohm
3
2
3
1
±600
850
10
ms
ms
ms
ms
Vdc
pF
pF
Vac
Ohm
MECHANICAL SPECIFICATIONS
125
°C
125
90
25
°C
°C/W
°C/W
•
Weight:
5.5 gm max
•
Case:
Hermetically sealed DIP
•
Material and Plating:
Pins and Header:Kovar gold plated per MIL G-
45204 Type III, Grade A, Class 1
DIMENSIONS ARE SHOWN IN INCHES
(MILLIMETERS)
HD 46
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2002 TELEDYNE RELAYS
HD\072002\Q1

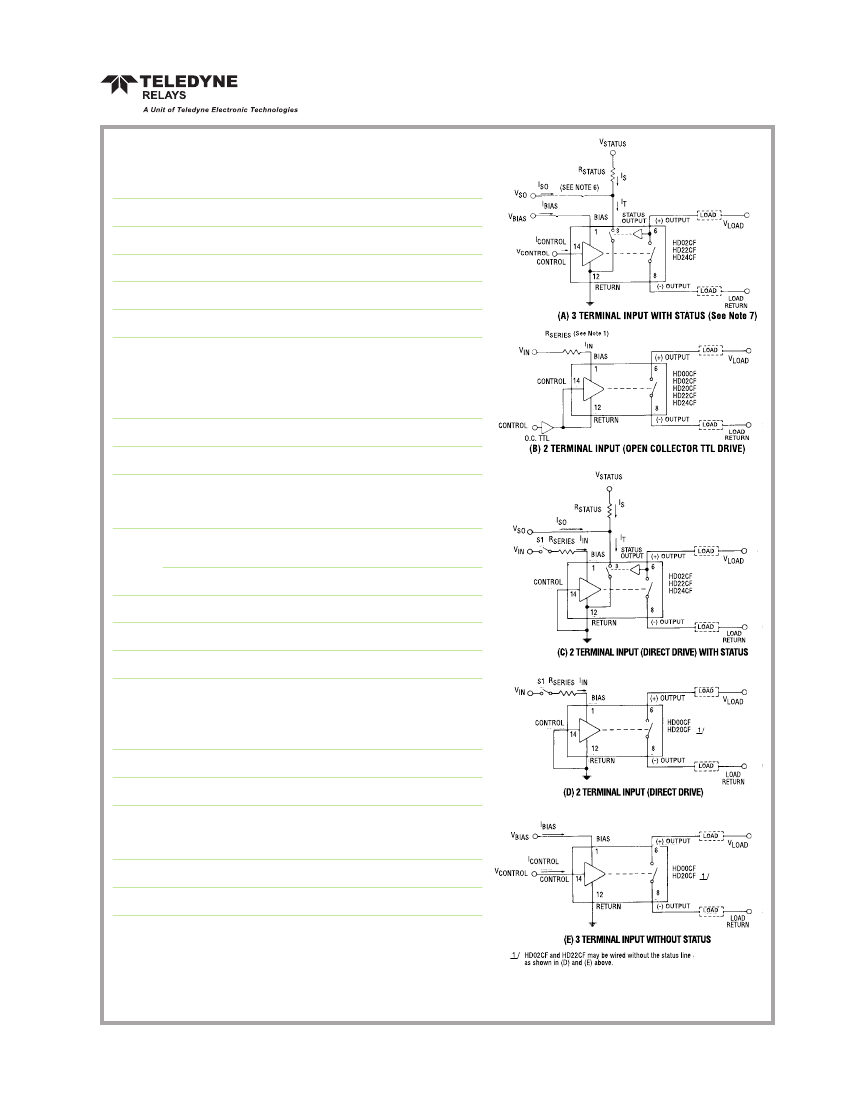

Series HD

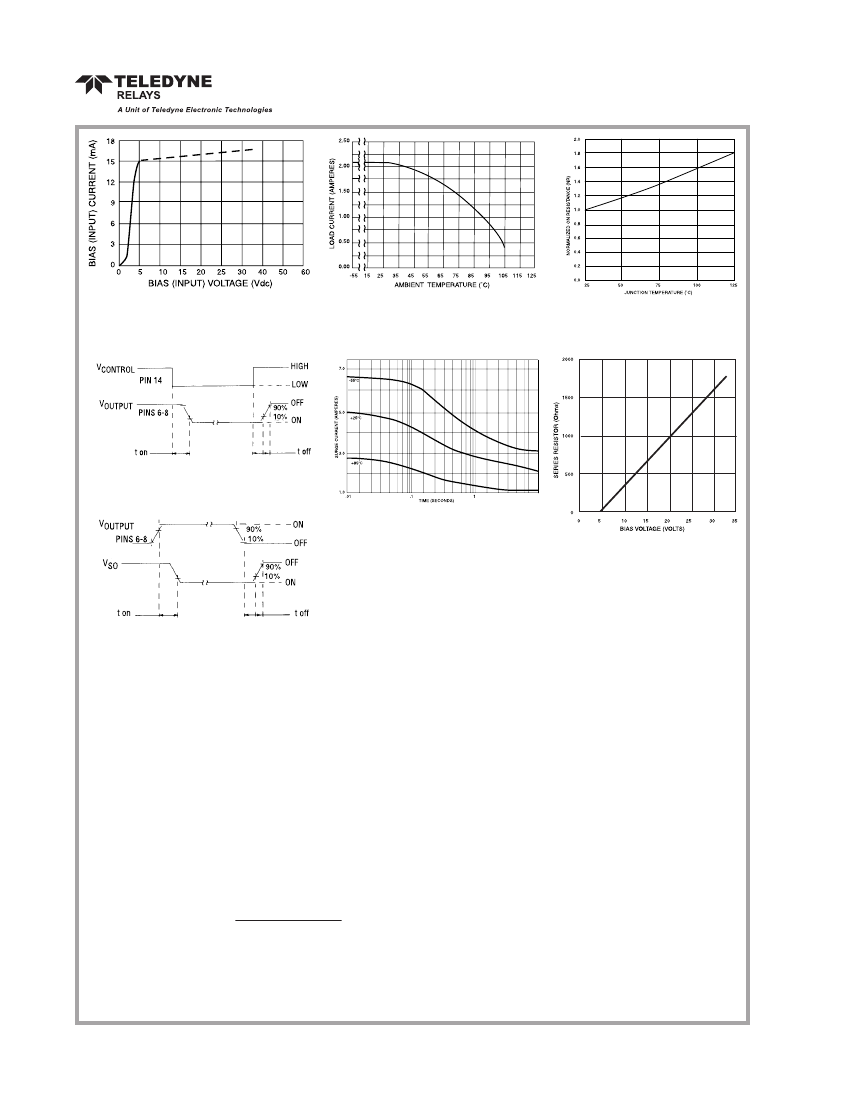

BIAS (INPUT) CURRENT VS BIAS
(OUTPUT) VOLTAGE
FIGURE 2 (See Note 1)
LOAD CURRENT DERATING CURVE
FIGURE 3
NORMALIZED ON RESISTANCE
VS JUNCTION TEMPERATURE
FIGURE 4 (See Note 4)
OUTPUT TURN-ON AND TURN-OFF TIMING
FIGURE 5
TYPICAL TRIP CURRENT VS TIME
FIGURE 7 (See Note 5)
SERIES LIMIT BIAS RESISTOR
VS BIAS VOLTAGE
FIGURE 8 (See Note 1)
STATUS TURN-ON AND TURN-OFF TIMING
(HD02CF & HD22CF)
FIGURE 6
NOTES:
1. Control input is compatible with CMOS or open collector TTL (with pull up resistor). For bias voltages above 6V, a series resistor
is required. Use the standard resistor value equal to or less than the value found in Figure 8.
2. The rated input voltage is 5V for all tests unless otherwise specified.
3. Transient blocking voltage test is performed per MIL-STD-704 (28 Vdc systems).
4. To calculate the maximum ON resistance for a given junction temperature, find the normalized ON resistance factor (NR) from
Figure 4. Calculate the new ON resistance as follows:
R
(ON)
= NR • R
ON
@ 25°C
5. Overload testing to the requirements of MIL-PRF-28750 is constrained to the limits imposed by the short circuit protection
characteristics as defined in this specification. System series inductance for “shorted-load” mode of operation should be 30 mH
MAXIMUM. Maximum repetition rate into a shorted load should not exceed 10 Hz.
6. A status pull up resistor is required for proper operation of the status output. Determine the current (Iso) required by the status
interface. Calculate the current (Is) through the status resistor such that the sink current through the status output is 0.6 mA.
Select the status resistor such that it does not allow more than 0.6 mA to flow through the status output.
V
STATUS
- 0.4V
R
STATUS
=
0.6 mA - Iso
7. Inductive loads should be diode suppressed. Input transitions should be
≤
1 ms duration and the input drive should be a
bounceless contact type.
HD 48
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2002 TELEDYNE RELAYS
HD\072002\Q1
