EC2-24ND datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> EC2-24ND

EC2-24ND: DescriptionLow Signal Relays - PCB 24V 10uA Relay Signal 2formC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size2MB，17 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com

Download Datasheet Parametric View All

EC2-24ND Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EC2-24ND	-	-	View	Buy Now

EC2-24ND Overview

Low Signal Relays - PCB 24V 10uA Relay Signal 2formC

EC2-24ND Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	NEC TOKIN ( KEMET Corporation )
Product Category	Low Signal Relays - PCB
RoHS	Details
Product	Slim Form Relay
Type	Miniature
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Current Rating	2 A
Maximum Switching Current	2 A
Coil Type	Non-Latching
Power Consumption	230 mW
Contact Termination	Solder Pin
Packaging	Tube
Mounting Style	Through Hole
Factory Pack Quantity	3360

Preview

Download Datasheet

View All

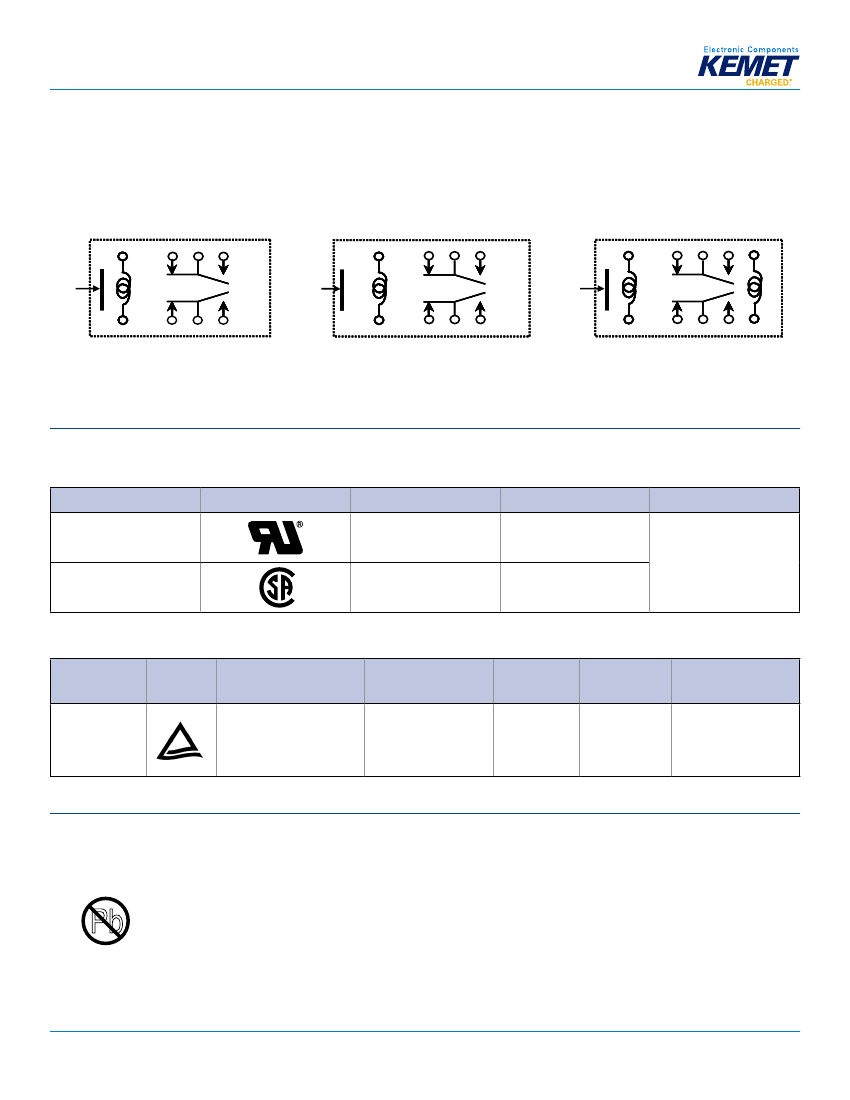

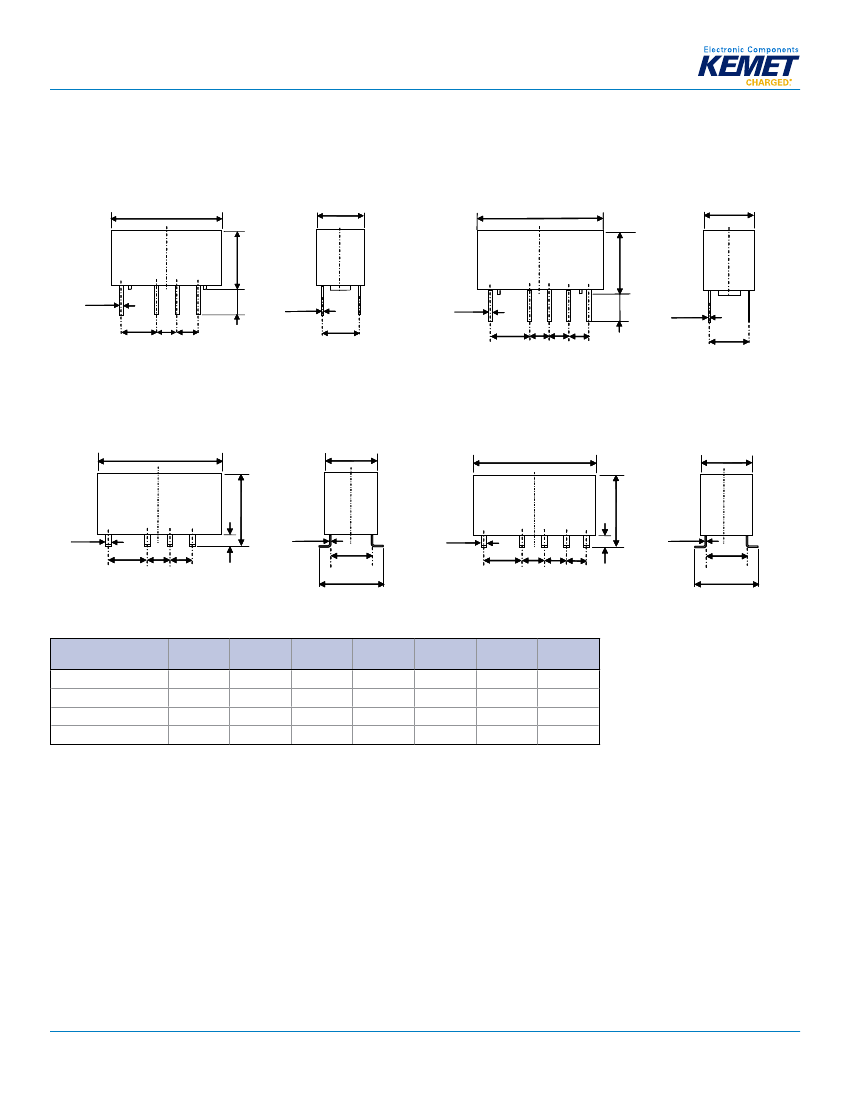

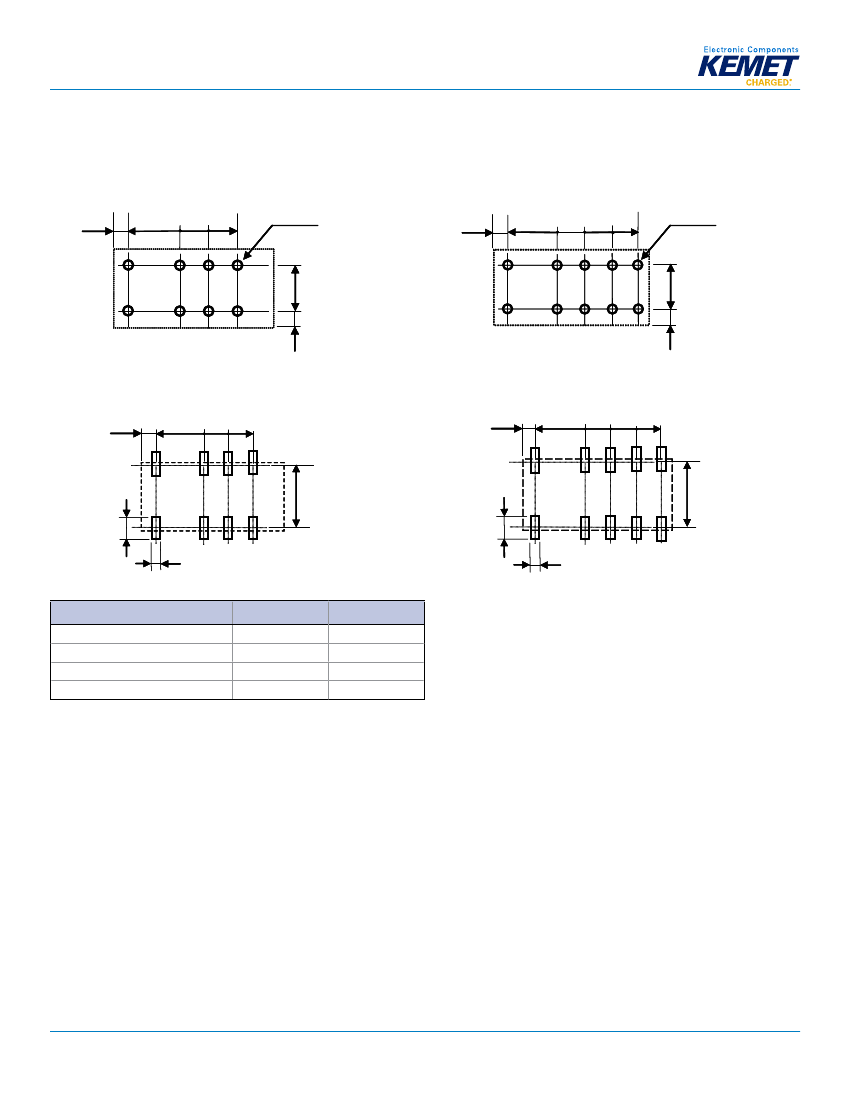

Miniature Signal Relays

EC2/EE2 Series

Overview

The KEMET EC2/EE2 miniature signal relays offer a

compact case size in a slim package. Minimal board space

is consumed with either a through-hole or surface mount

configuration. These relays are recognized by UL and CSA,

while also being compliant with Part 68 of the FCC’s 1,500

V surge capacity.

Applications

•

Electronic switching systems

PBX

Terminal equipment

Telephone systems

Benefits

• Low power consumption (< 200 mW)

• Compact and lightweight

• Low magnetic interference

• Tube or embossed tape and reel packaging

• UL recognized (E73266) and CSA certified (LR46266)

• Surface mount and through-hole options

• High Breakdown Voltage (NKX) type can withstand 1.5

kVAC at open contacts

Part Number System

EE2-

Series

Coil Voltage

Latch Type

Blank = Non-latch type

S = Single coil latch type

T = Double coil latch type

Lead Type

NU = Standard

NUH = Minimum footprint

NUX = High solder joint reliability

NKX = High breakdown voltage and

high solder joint reliability

-L

Packaging

Blank = Tube

-L = Embossed tape on reel

EC2- = Through-hole mount 3 = 3 VDC

EE2- = Surface mount

4.5 = 4.5 VDC

5 = 5 VDC

12 = 12 VDC

24 = 24 VDC

One world. One KEMET

R7002_EC2_EE2 • 8/8/2017
