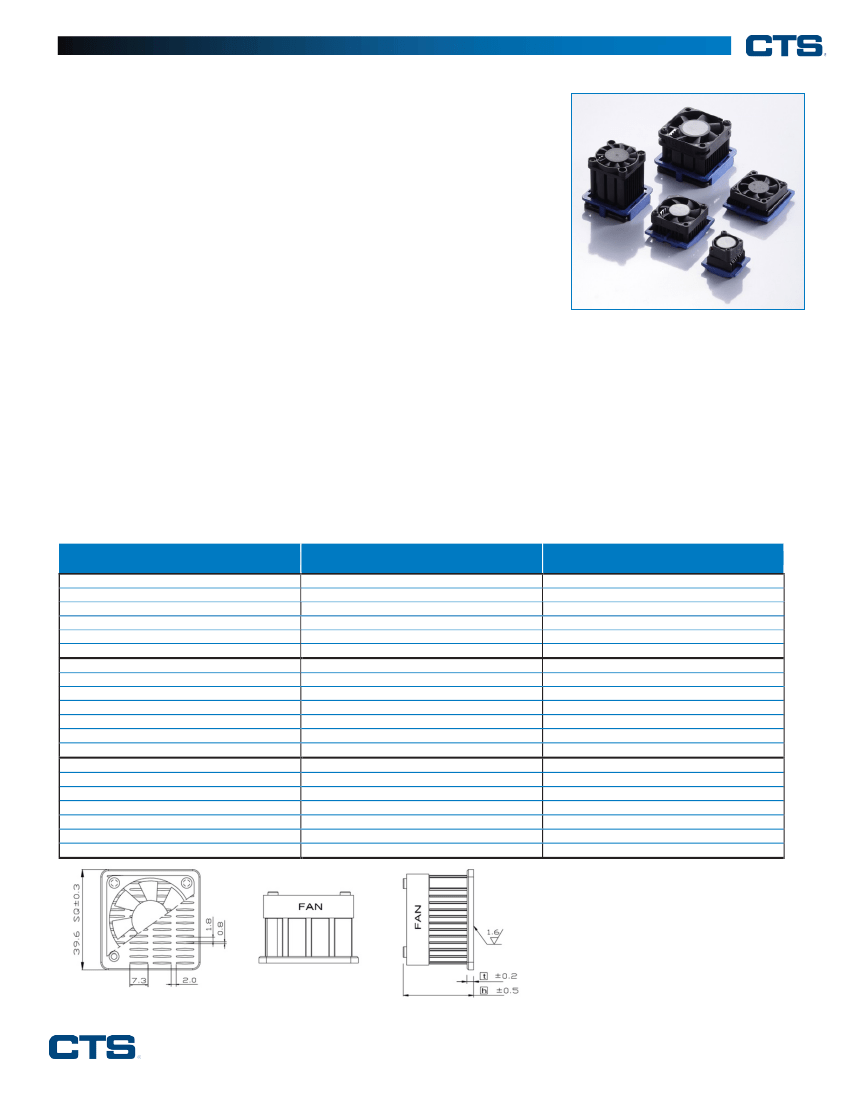

High Operating Temperature Integrated Fan Heat Sinks
DESIGN FEATURES
■
Industry-leading maximum operating temperature of 90°C
■
Compatible with chipset footprints ranging from 21x21 mm to 45x45
mm
■
Total heights from 16.1 mm for low profile applications to 44.6 mm
for lowest thermal resistance
■
Common 5VDC @ 0.5 A (max) USB 2.0 fan electrical specifications
■
Forged and extruded versions available
■
Choice of elliptical, round pin, and plate fin styles
DESCRIPTION
The FHS-090 Series of integrated-fan heat sinks is uniquely designed to absorb and disperse heat away from
high temperature devices while offering key features such as an operating temperature range of -10°C to 90°C,
calculated MTTF @ 90°C: 86,858 hours (GEM, 90% confidence) and various package sizes to best fit the
application. Thermal resistance values range from 4.07°C/W to as low as 1.24°C/W.
These new fansinks can maintain superior thermal dissipation for devices that emit high amount of heat. CTS’
fansinks are available in a wide range of footprints and fin heights which make them suitable for many elevated
temperature applications such as component testing, burn-in, high density servers, high- speed computing and
video, and use in areas where the system airflow is constrained.

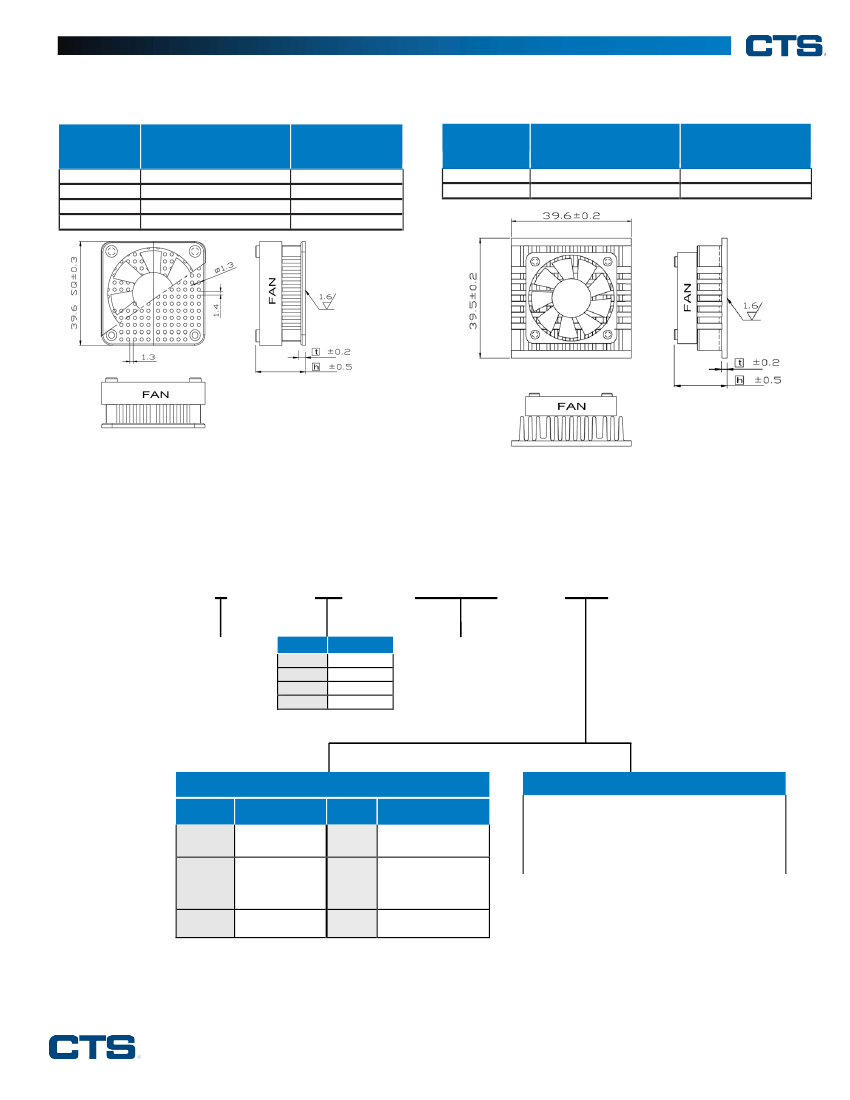

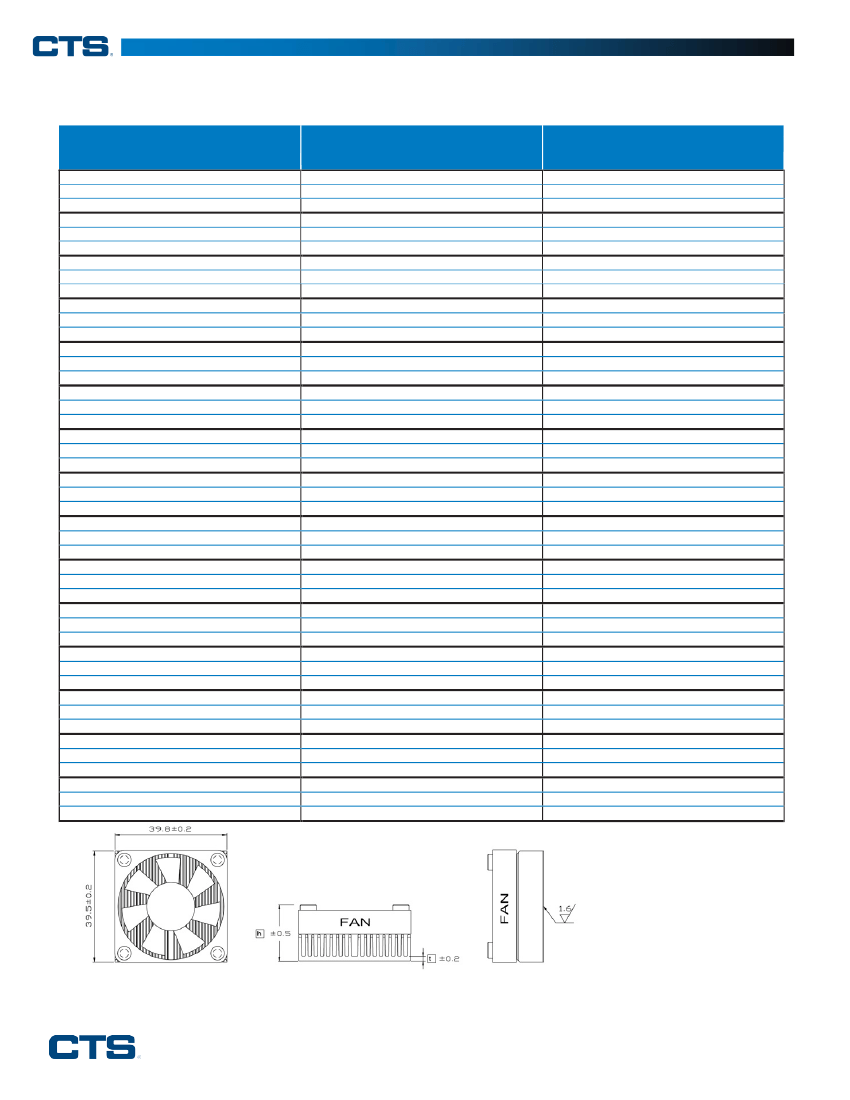

HIGH TEMP FAN HEAT SINKS - FHS-090 SERIES
Elliptical Fins
Part Number
FHE35-35-26
FHE35-35-30
FHE35-35-33
FHE35-35-35
FHE35-35-40
FHE35-35-45
FHE40-40-24
FHE40-40-27
FHE40-40-30
FHE40-40-33
FHE40-40-35
FHE40-40-40
FHE40-40-45
FHE43-43-22
FHE43-43-25
FHE43-43-28
FHE43-43-31
FHE43-43-33
FHE43-43-38
FHE43-43-43
Length x Width x Height
(mm)
35 x 35 x 26.0
35 x 35 x 29.6
35 x 35 x 32.6
35 x 35 x 34.6
35 x 35 x 39.6
35 x 35 x 44.6
40 x 40 x 23.6
40 x 40 x 26.6
40 x 40 x 29.6
40 x 40 x 32.6
40 x 40 x 34.6
40 x 40 x 39.6
40 x 40 x 44.6
42.5 x 42.5 x 21.6
42.5 x 42.5 x 24.6
42.5 x 42.5 x 27.6
42.5 x 42.5 x 30.6
42.5 x 42.5 x 32.6
42.5 x 42.5 x 37.6
42.5 x 42.5 x 42.6
Thermal Resistance (R
TH
)
1.65
1.54
1.48
1.46
1.40
1.36
1.75
1.54
1.42
1.34
1.32
1.27
1.24
1.65
1.46
1.33
1.28
1.26
1.23
1.19
FHE40-40-xx
North Americas: +1-800-757-6686 • International: +1-508-435-6831 • Asia: +65-655-17551 • thermalsales@ctscorp.com
Specifications are subject to change without notice.
1
RevD1014
