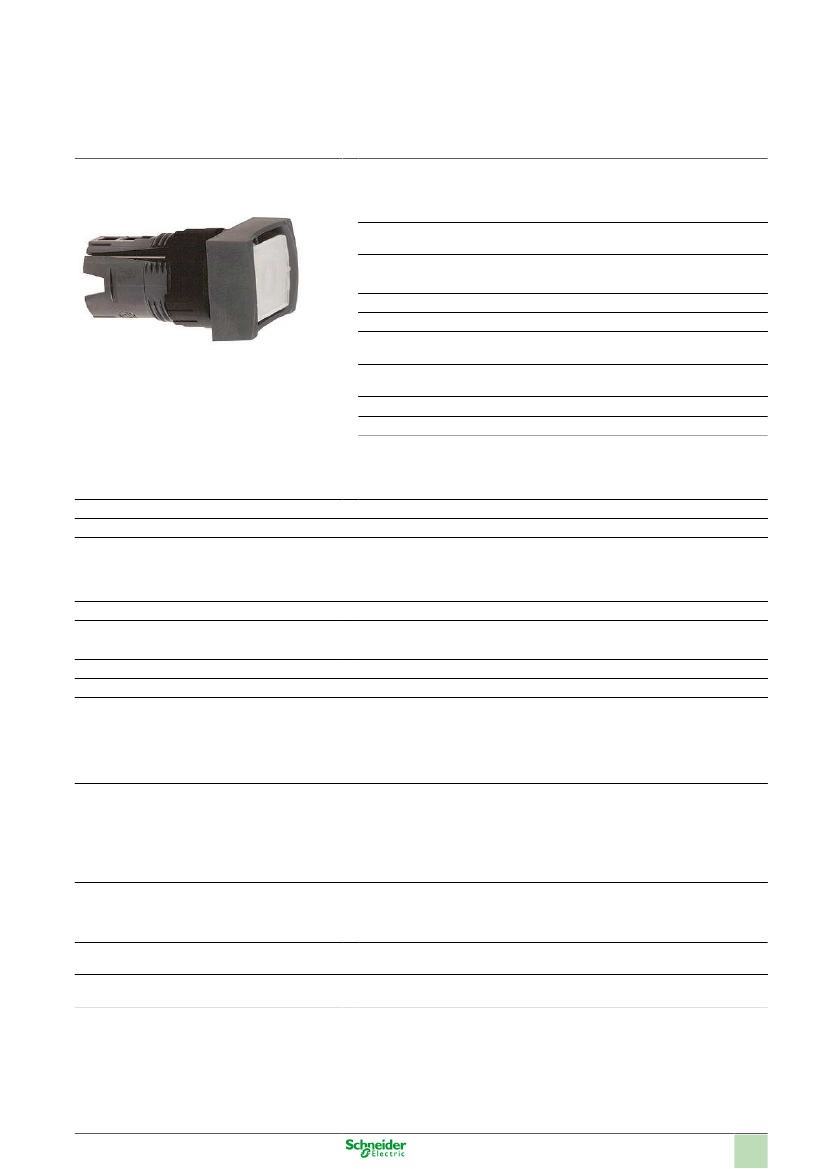

Product data sheet
Characteristics
ZB6DW0
rectang pushbutton head Ø16 spring return
without cap 12...24V
Main
Range of product
Product or component
type
Product compatibility
Device short name
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Operator profile
Harmony XB6
Head for illuminated pushbutton
Integral LED
ZB6
Plastic
16 mm
1
Rectangular
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Spring return
Without cap
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
24 mm
18 mm
33 mm
0.016 kg
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
IP65 conforming to IEC 60529
NEMA 4X conforming to UL 50
NEMA 4X conforming to CSA C22-2 No 94
NEMA 4 conforming to UL 50
NEMA 4 conforming to CSA C22-2 No 94
NEMA 13 conforming to UL 50
NEMA 13 conforming to CSA C22-2 No 94
CSA C22-2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CCC
CSA
GOST
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
+/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
Standards
Product certifications
Vibration resistance
Shock resistance
Mar 9, 2013
1
Printed Circuit Board Drillings (Viewed from Electrical Block Side)
A
B
(1)
(2)
(3)
24 mm/0.94 in. minimum for rectangular heads, 18 mm/0.71 in. minimum for square or circular heads
18 mm/0.71 in. minimum
6 x Ø 1.1 mm / 6 x Ø 0.04 in. holes.
0
0
1 x Ø 2.6
-0.2
mm / 1 x Ø 0.10 -
-0.008
in. hole for locating pin, only when using socket adaptor ZB6Y010.
1 x Ø 3.2
-0.2
mm / 1 x Ø 0.13
-0.008
in. hole for fixing of printed circuit board onto the front panel using body bracket ZB6Y011.
This hole must be drilled on the left-hand side, when heads are positioned at the normal angle. Fit a body bracket ZB6Y011 every
72 mm/2.83 in. maximum for cut-outs on 24 mm/0.94 in. centres (rectangular heads) and 54 mm/2.13 in. maximum for cut-outs on
18 mm/0.71 in. centres (square or circular heads).
0
0
General tolerances of the panel and printed circuit board: T1, T2: T1 + T2 = 0.3 mm/0.01 in. maximum.
Installation precautions:
Thickness of printed circuit board: 1.6 mm/0.06 in. minimum.
Mounting with Body Bracket
With socket adaptor ZB6Y010
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Head
Nut
Body
Body bracket
Contact block
Socket adaptor
Panel
Printed circuit
4
Microchip MCU
