FEATURES
!

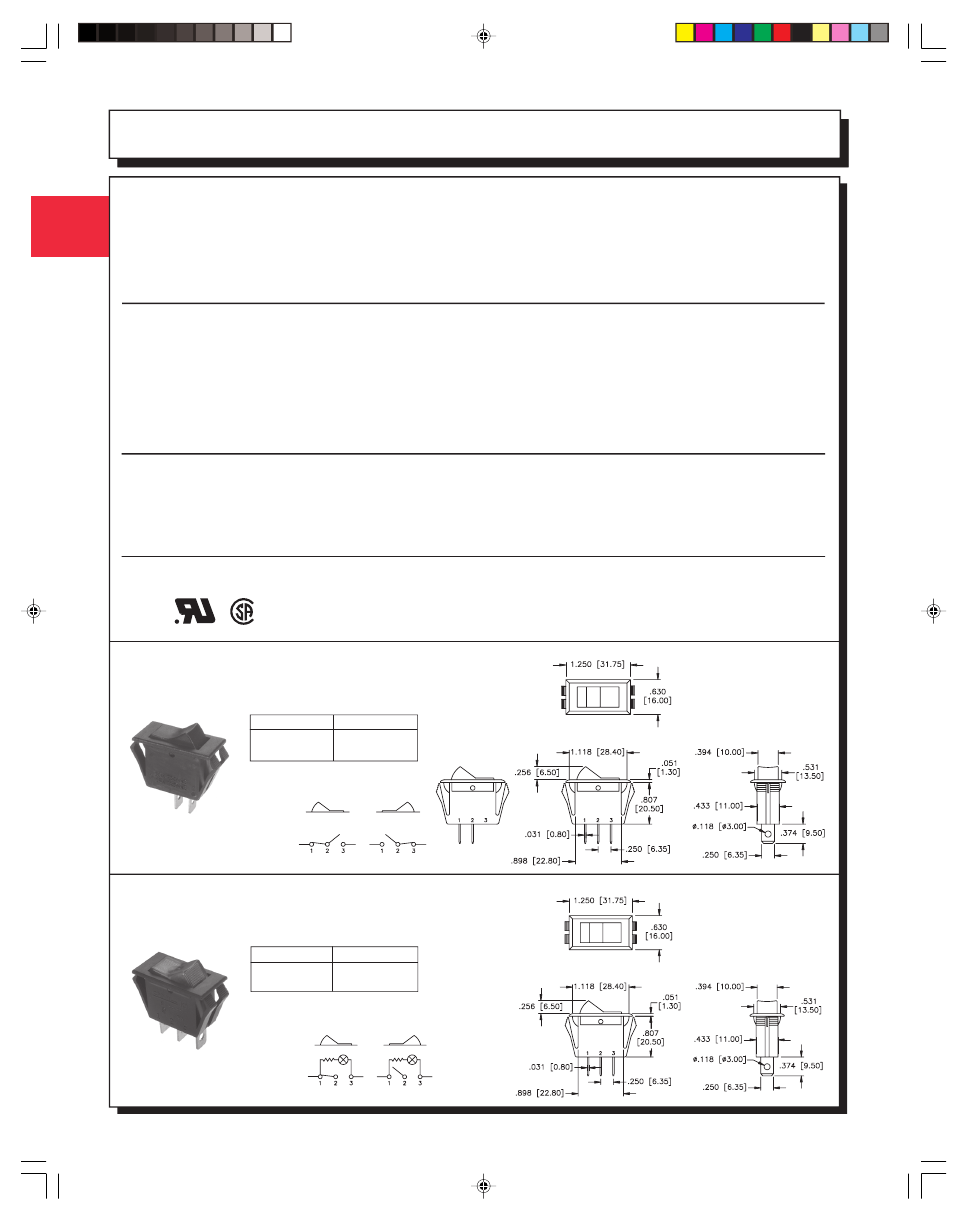

B SERIES SNAP-IN ROCKER SWITCHES
B
G
G
G
G
Cost effective illuminated or non-illuminated models.
Single pole and double pole maintained action models.
Actuator and case color selections.
Standard actuator marking options.
10A 250VAC (UL/CSA)
15A 125VAC (UL/CSA)
20 milliohms max.
100 megohms min. at 500 V
1000 VAC for 1 minute
6000 cycles at full load
-20°C to 85°C
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
SPECIFICATIONS
Contact ratings:
Initial contact resistance:
Insulation resistance:
Dielectric strength:
Electrical life:
Operating temperature range:
MATERIALS
Contacts:
Terminals:
Actuator:
Case:
Copper alloy
Silver or tin plated copper alloy
Nylon (UL94V-2 min.)
Nylon (UL94V-2 min.)
Lamps:
Neon or fluorescent.
AGENCY RECOGNITION
UL & CSA. Models are supplied with agency markings.
Single pole - non-illuminated - quick connect terminals
MODEL NO.
CIRCUIT
NONE ON
NONE OFF
B120R2NBB0NN
ON
B160R2NBB0NN
ON
Above models have black actuator.
Max. panel thickness: .083 [2.10]
Single pole - illuminated - quick connect terminals
MODEL NO.
CIRCUIT
NONE ON
NONE OFF
B120R2LBB1NN
ON
B160R2LBB1NN
ON
Above models have black actuator.
Max. panel thickness: .083 [2.10]
B46
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
B38-B53
46
9/10/00, 10:41 AM
New
!

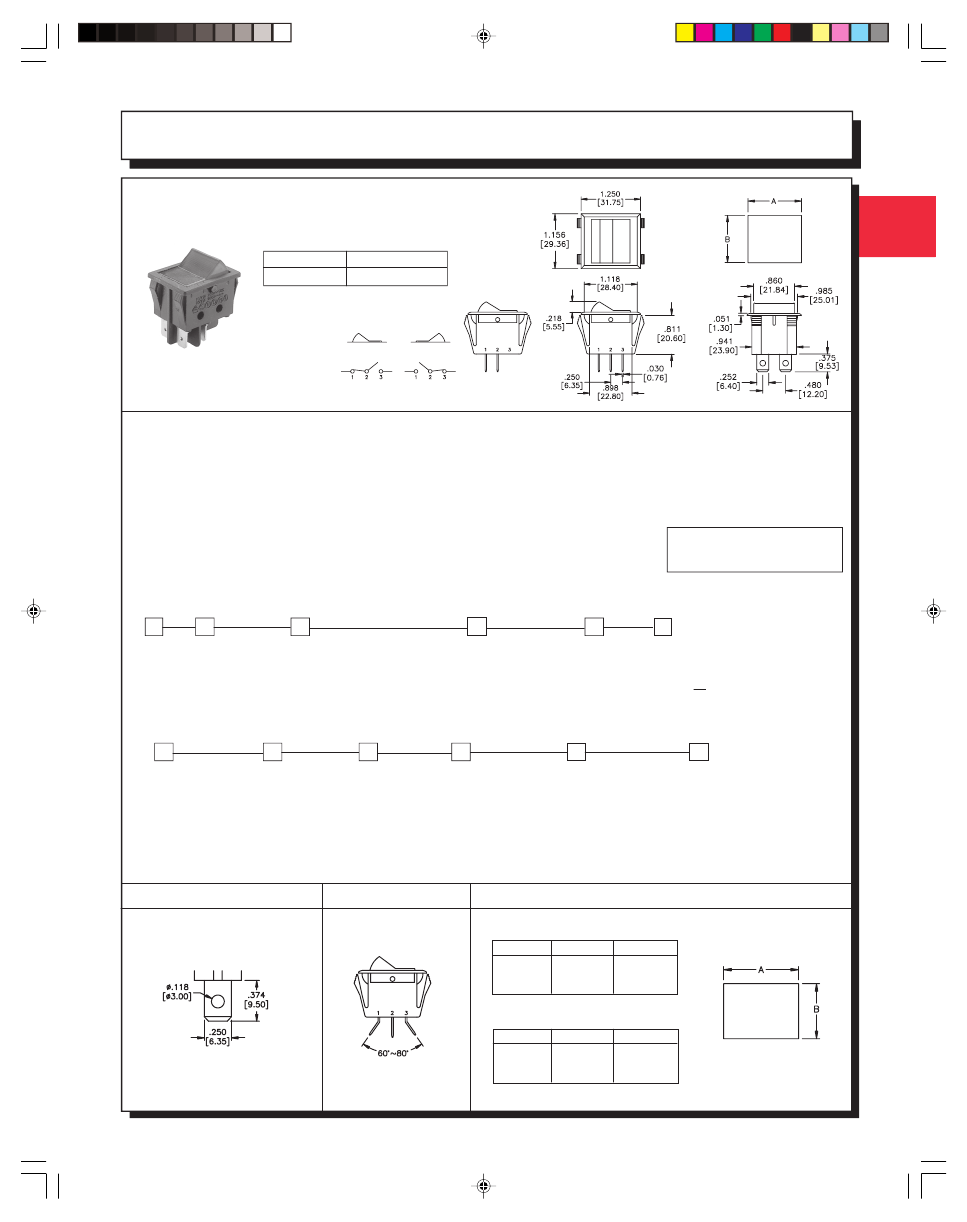

B SERIES SNAP-IN ROCKER SWITCHES
Double pole - non-illuminated - quick connect terminals
B
MODEL NO.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
CIRCUIT
NONE OFF
B260R2NBB0NN
ON
Above models have black actuator.
Additional ordering information:
Commonly ordered models are shown above with complete model numbers and specificat-
ions. Below is an order format that enables you to 'build your own switch' and specify the correct switch model number by simply
selecting from all available options shown and filling in the boxes.
'BUILD YOUR OWN SWITCH' ORDER FORMAT
Fill in boxes with selections shown for
Model Structure,
then add
Options
selections for complete model number.
Allowable options are shown below each respective box.
Example of completely specified
model number:
B160R2NBB0BN
Series
B
1
Single pole
2
Double pole
2
ON NONE ON*
6
ON OFF
*-Not available with
double pole
Actuator
color
Number
of poles
Electrical
functions
Terminals
0
Quick connect
Actuator
type
R
Rocker
1
2
3
4
HI LO
No marking
ON OFF
O
Case
marking
Actuator
marking
Illumination
Case
color
Lamp
position
Terminal
bending
N
No illum.
L
Illuminated
Note: illumination
available only with
Green, Orange or
Red Actuator
colors.
A
B
C
R
W
Gray
Black
Brown
Red
White
A
B
C
G
O
R
W
Y
Gray
Black
Brown
Green
Orange
Red
White
Yellow
0
No lamp
1
Solder to term. 1
2
Solder to term. 2
Note 1 & 2 have
neon lamp.
N
No bending
B
Bend terms. 1 & 3
N
No marking
M
"
G"
printing
(consult factory)
QUICK-CONNECT TERMINAL TERMINAL BENDING
PANEL CUT-OUTS
SINGLE POLE
pnl. tk'ness.
.029-.049"
.050-.078"
.079-.118"
A +0, -.004
.752"
.756"
.768"
B +0, -.004
.508"
.508"
.508"
DOUBLE POLE
pnl. tk'ness.
.029-.049"
.050-.078"
.079-.118"
A +0, -.004
1.126"
1.134"
1.150"
B +.006, -0
1.000"
1.000"
1.000"
0
B
B47
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
B38-B53
47
9/10/00, 10:41 AM
