R4N-2014-23-1024-WT datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> R4N-2014-23-1024-WT

R4N-2014-23-1024-WT: DescriptionIndustrial Relays Industrial relay, 4PDT 24VDC coil, 6A, 250VAC/24VDC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size3MB，8 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric View All

R4N-2014-23-1024-WT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R4N-2014-23-1024-WT	-	-	View	Buy Now

R4N-2014-23-1024-WT Overview

Industrial Relays Industrial relay, 4PDT 24VDC coil, 6A, 250VAC/24VDC

R4N-2014-23-1024-WT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	Industrial Relays
Coil Voltage	24 VDC
Coil Resistance	640 Ohms
Product	Industrial
Factory Pack Quantity	10

Preview

Download Datasheet

View All

R2, R3, R4

Industrial Electromagnetic Relays

•

Compact size

Relays of general application

Cadmium - free contacts

AC and DC coils

For plug-in sockets, 35 mm rail mount or on panel mounting *

WT (mechanical indicator + lockable front test button) - standard features of relays for plug-in sockets.

Relays may be provided with the test buttons (no latching) and plugs (see page 115)

• AUCOTEAM GmbH Berlin - railway standards.

E105728

Contact Data

Number and type of contacts

Contact material

Rated / max. switching voltage AC

Min. switching voltage

Rated load (capacity)

AC1

AC15

AC3

DC1

DC13

Min. switching current

Max. inrush current

Rated current

Max. breaking capacity

AC1

Min. breaking capacity

Contact resistance

Max. operating frequency

• at rated load

AC1

• no load

Coil Data

Rated voltage

50/60 Hz

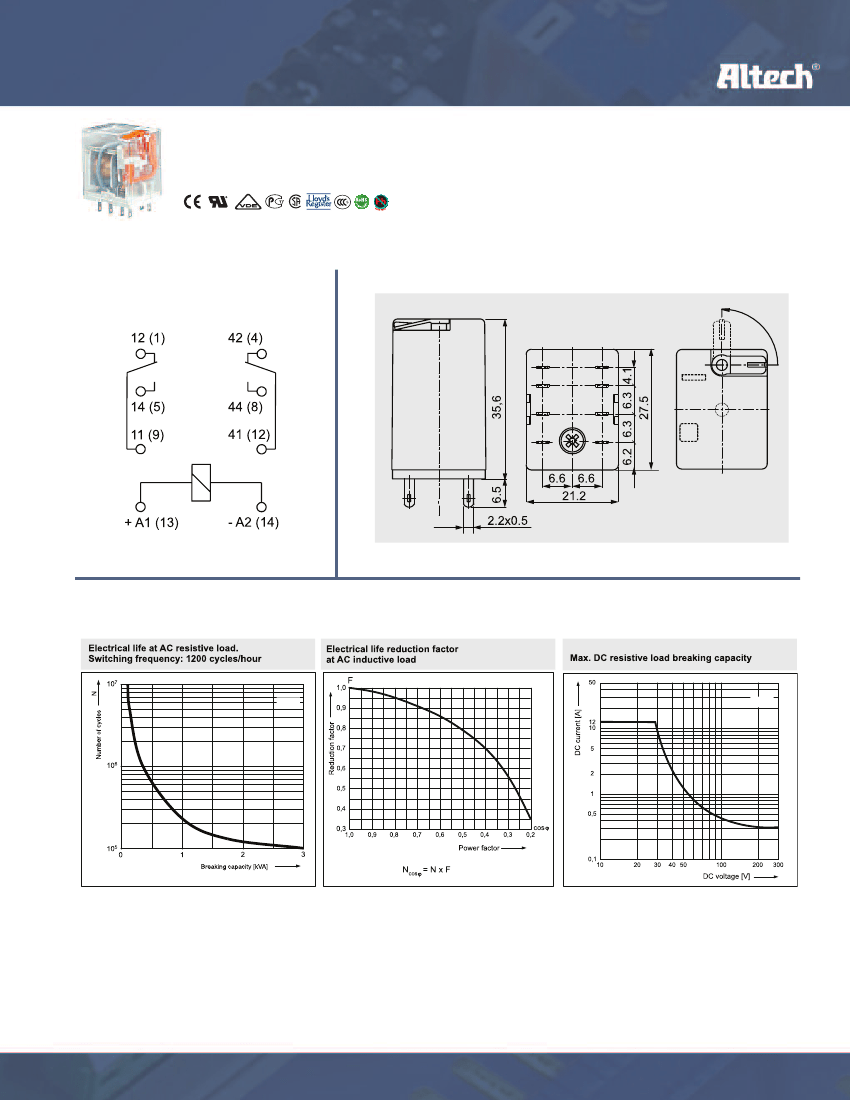

DPDT

AgNi**

250 V / 440 V

10 V

12 A / 250 V AC

3 A / 120 V; 1.5 A / 240 V (B300)

370 W (single-phase motor)

12 A / 24 V DC

(see Fig. 3.1)

0.22 A / 120 V; 0.1 A / 250 V (R300)

5 mA

24 A

12 A

3000 VA

0.3 W

≤

100 mΩ

1200 cycles/hour

18000 cycles/hour

6 ... 240 V

5 ... 220 V

AC:

≥

0.2 U

; DC:

≥

0.1 U

see page 54

1.6 VA

0.9 W

250 V AC

4000 V

1.2 / 50 µs

III

2500 V AC type of insulation: basic

1500 V AC type of clearance: micro-disco.

2500 V AC type of insulation: basic

≥

2.5 mm

≥

4 mm

AC: 10 ms / 8 ms; DC: 13 ms / 3 ms

> 10

; 12 A. 250 V AC

see Fig. 2.1

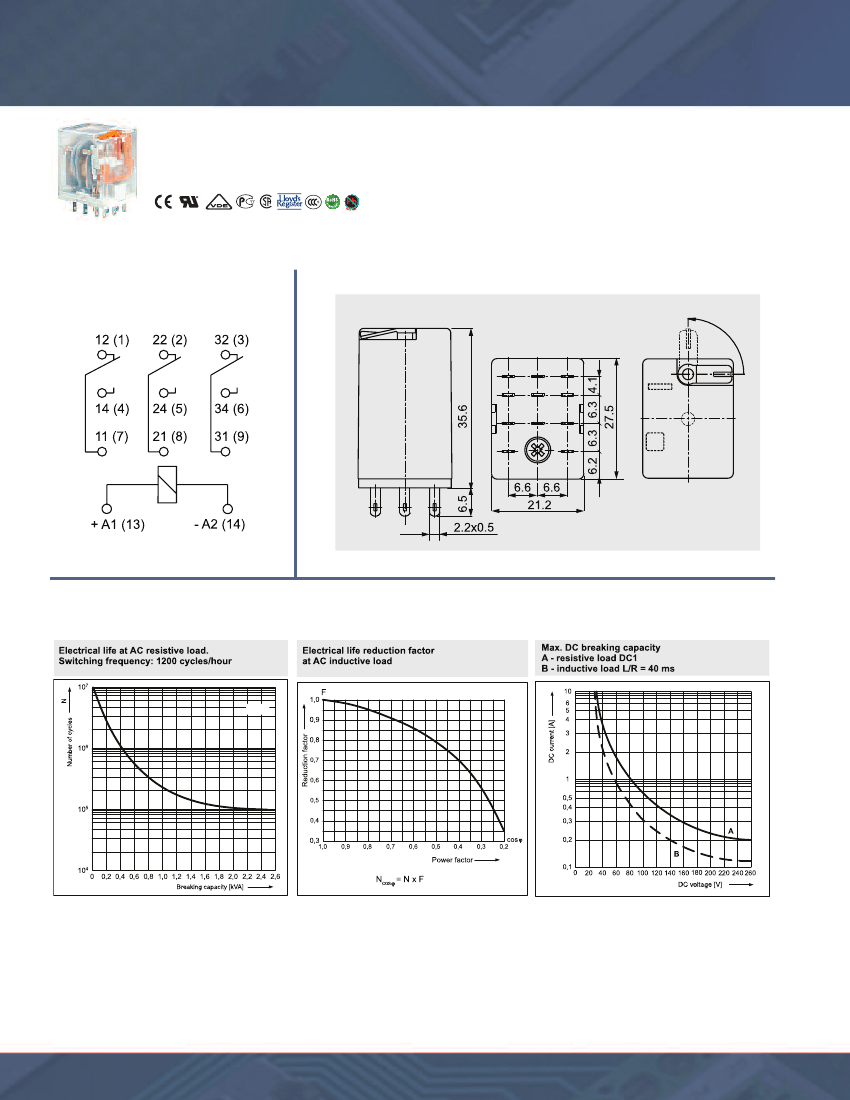

3PDT

AgNi**

250 V / 440 V

10 V

10 A / 250 V AC

3 A / 120 V; 1.5 A / 240 V (B300)

370 W (single-phase motor)

10 A / 24 V DC

(see Fig. 3.2)

0.22 A / 120 V; 0.1 A / 250 V (R300)

5 mA

20 A

10 A

2500 VA

0.3 W

≤

100 mΩ

1200 cycles/hour

18000 cycles/hour

6 ... 240 V

5 ... 220 V

AC:

≥

0.2 U

; DC:

≥

0.1 U

see page 54

1.6 VA

0.9 W

250 V AC

with AC coils: 2500 V

1.2 / 50 µs

with DC coils: 4000 V

1.2 / 50 µs

III

2500 V AC type of insulation: basic

1500 V AC type of clearance: micro-disco.

2500 V AC type of insulation: basic

≥

2.5 mm

≥

4 mm

AC: 10 ms / 8 ms; DC: 13 ms / 3 ms

> 10

; 10 A. 250 V AC

see Fig. 2.2

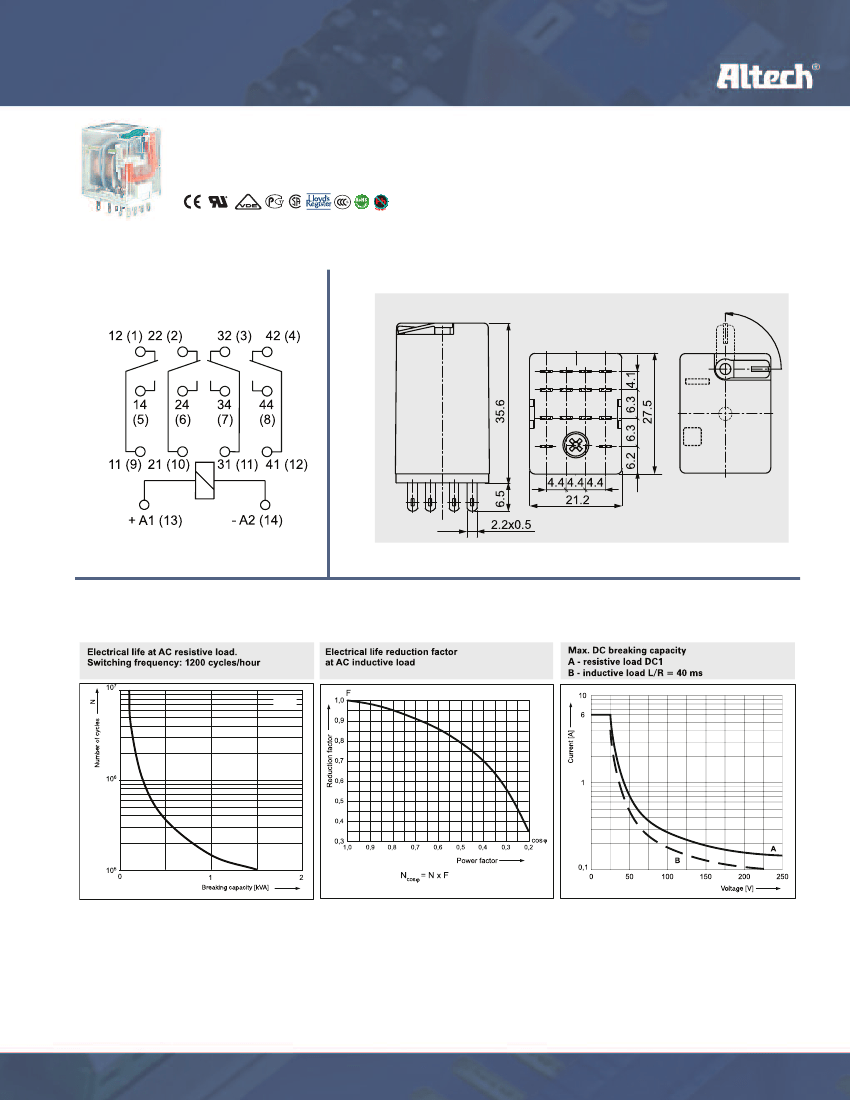

4PDT

AgNi**

250 V / 250 V

10 V

6 A / 250 V AC

1.5 A / 120 V; 0.75 A / 240 V (C300)

125 W (single-phase motor)

6 A / 24 V DC

(see Fig. 3.3)

0.22 A / 120 V; 0.1 A / 250 V (R300)

5 mA

12A

1500 VA

0.3 W

≤

100 mΩ

1200 cycles/hour

18000 cycles/hour

6 ... 240 V

5 ... 220 V

AC:

≥

0.2 U

; DC:

≥

0.1 U

see page 54

1.6 VA

0.9 W

250 V AC

2500 V

1.2 / 50 µs

2500 V AC type of insulation: basic

1500 V AC type of clearance: micro-disco.

2500 V AC type of insulation: basic

≥

1.6 mm

≥

3.2 mm

AC: 10 ms / 8 ms; DC: 13 ms / 3 ms

> 10

; 6 A. 250 V AC

see Fig. 2.3

Must release voltage

Operating range of supply voltage

Rated power consumption

Insulation

Insulation rated voltage

Rated surge voltage

Overvoltage category

Insulation pollution degree

Dielectric strength

• between coil and contacts

• contact clearance

• pole - pole

Contact - coil distance

• clearance

• creepage

General data

Operating / release time

(typical)

Electrical life

• resistive

AC1

• cosφ

Mechanical life (cycles)

Dimensions (L x W x H)

Weight

Ambient temperature

• storage

• operating

Cover protection category

Environmental protection

Shock resistance

(NO/NC)

Vibration resistance

Solder bath temperature

Soldering time

> 2 x 10

27.5 x 21.2 x 35.6 mm

35 g

-40...+85 °C

AC: -40...+55 °C; DC: -40...+70 °C

IP 40

PN-EN 60529

RTI

PN-EN 116000-3

10 g / 5 g

5 g 10...150 Hz

max. 270 °C

max. 5 s

> 2 x 10

27.5 x 21.2 x 35.6 mm

35 g

-40...+85 °C

AC: -40...+55 °C; DC: -40...+70 °C

IP 40

PN-EN 60529

RTI

PN-EN 116000-3

10 g / 5 g

5 g 10...150 Hz

–

> 2 x 10

27.5 x 21.2 x 35.6 mm

35 g

-40...+85 °C

AC: -40...+55 °C; DC: -40...+70 °C

IP 40

PN-EN 60529

RTI

PN-EN 116000-3

10 g / 5 g

5 g 10...150 Hz

max. 270 °C

max. 5 s

* PCB or threaded bolt versions contact Altech Corp.

** Other contact materials (eg. gold plated) available, contact Altech Corp.

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE
