Timer relay - ETD-BL-1T-OFF-CC- 30MIN - 2917467
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Timer relay with off delay (with control contact) and an adjustable time range (0.3 min - 30 min), with screw
connection

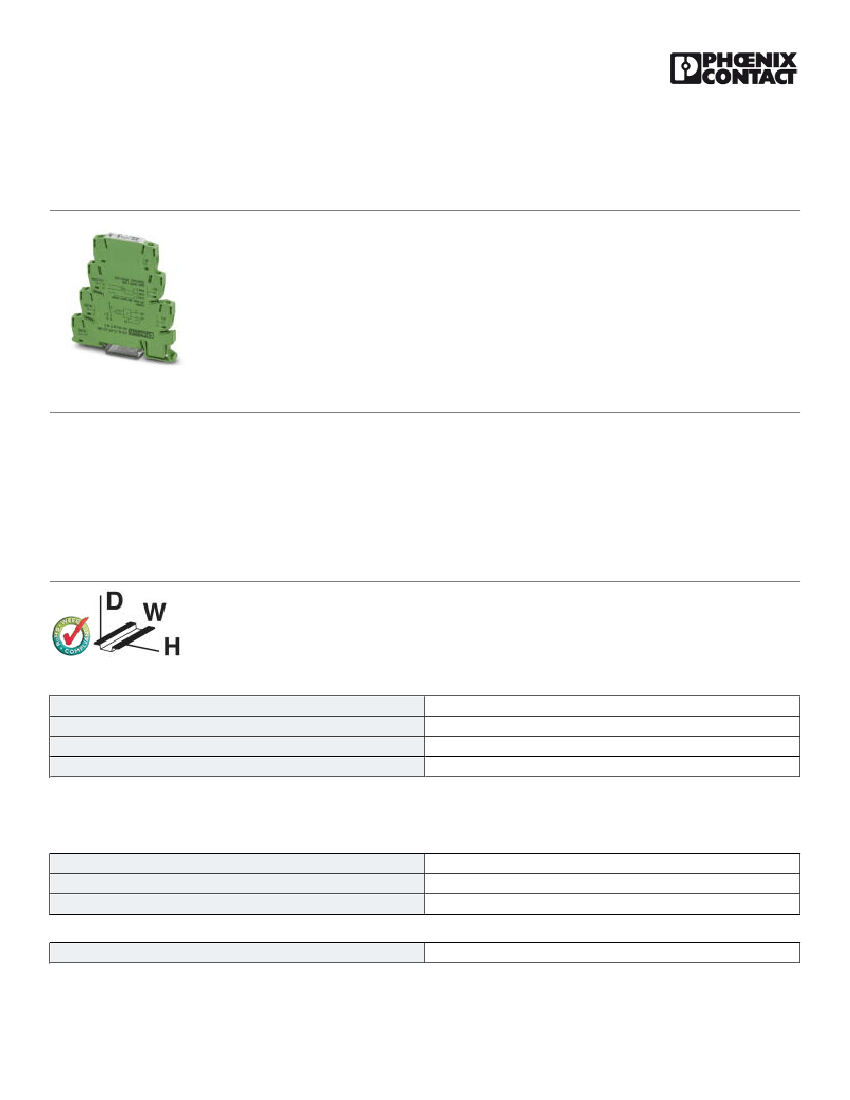

The figure shows the ETD-BL-1T-
OFF-CC- 10S 2917450 version
Product Description
Compact timer relay in 6.2 mm housing for controlling time sequences.
The time is set on the front of the device using a labeled thumbwheel, which is recessed to protect against accidental modification. A screwdriver is
used to change the settings (blade width 2.5 mm).
The compact timer relays are available with different time ranges as well as with a screw, spring-cage, and push-in connection.
Product Features
■
■
6.2 mm narrow design width
High level of setting accuracy thanks to labeled and illuminated thumb wheel
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
80.0 g
85364900
Germany
Technical data
Dimensions
Width
Height
Depth
6.2 mm
80 mm
86 mm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 65 °C
04/27/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/2917467
Timer relay - ETD-BL-1T-OFF-CC- 30MIN - 2917467
Technical data
Ambient conditions
Ambient temperature (storage/transport)
Permissible humidity (operation)
Noise immunity
-25 °C ... 80 °C
15 % ... 85 %
EN 61000-6-2
When being exposed to interference, there may be minimal deviations.
Coil side
Input voltage range
Function
Time setting range
24 V DC (19,2 V DC ...30 V DC)
OFF-CC: Off delay with control contact
0.3 min. ... 30 min.
Contact side
Contact type
Output fuse
1 floating PDT
6.3 A (fast-blow)
General
Status display
Mechanical service life
Mounting position
Assembly instructions
Color
Housing insulation material
Permissible humidity (operation)
Rated insulation voltage
Conformance
ATEX
UL, USA / Canada
GL
Green LED (POWER)
Yellow LED (relay active)
Approx. 2 x 10 cycles
any
on standard DIN rail NS 35 in accordance with EN 60715
green
Polyamide PA, self-extinguishing
15 % ... 85 %
300 V AC (According to EN 50178)
CE-compliant
II 3 G Ex nA nC IIC T4 Gc X
UL/C-UL listed UL 508
GL EMC 1 C
7
Connection data
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Connection method
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
30
12
8 mm
Screw connection
Control contact
04/27/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/2917467
Timer relay - ETD-BL-1T-OFF-CC- 30MIN - 2917467
Technical data
Control contact
Connection name
Control pulse length
Non-floating, terminals A1-B1
min. 50 ms
Standards and Regulations
Electromagnetic compatibility
Noise emission
Noise immunity
Flammability rating according to UL 94
Low Voltage Directive
Conformance
ATEX
UL, USA / Canada
GL
Conformance with EMC Directive 2004/108/EC
EN 61000-6-4
EN 61000-6-2
V0
Conformance with LV directive 2006/95/EC
CE-compliant
II 3 G Ex nA nC IIC T4 Gc X
UL/C-UL listed UL 508
GL EMC 1 C
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27371103
27371103
27371701
27371701
27371790
27371790
27371605
27371605
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001439
EC001439
EC001439
EC001439
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211920
39121519
39121519
39121519
39121519
04/27/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/2917467
Timer relay - ETD-BL-1T-OFF-CC- 30MIN - 2917467
Approvals
Approvals
Approvals
UL Listed / cUL Listed / GL / GL-SW / EAC / GL / cULus Listed
Ex Approvals
ATEX
Approvals submitted
Approval details
UL Listed
cUL Listed
GL
GL-SW
EAC
GL
cULus Listed
Drawings
04/27/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/2917467
Timer relay - ETD-BL-1T-OFF-CC- 30MIN - 2917467
Block diagram
B1
A1 +
12
14
t
A2 –
11
U = 24 V DC
