Model JV
Digital Pressure Gauge With
VCR Fittings
DESCRIPTION

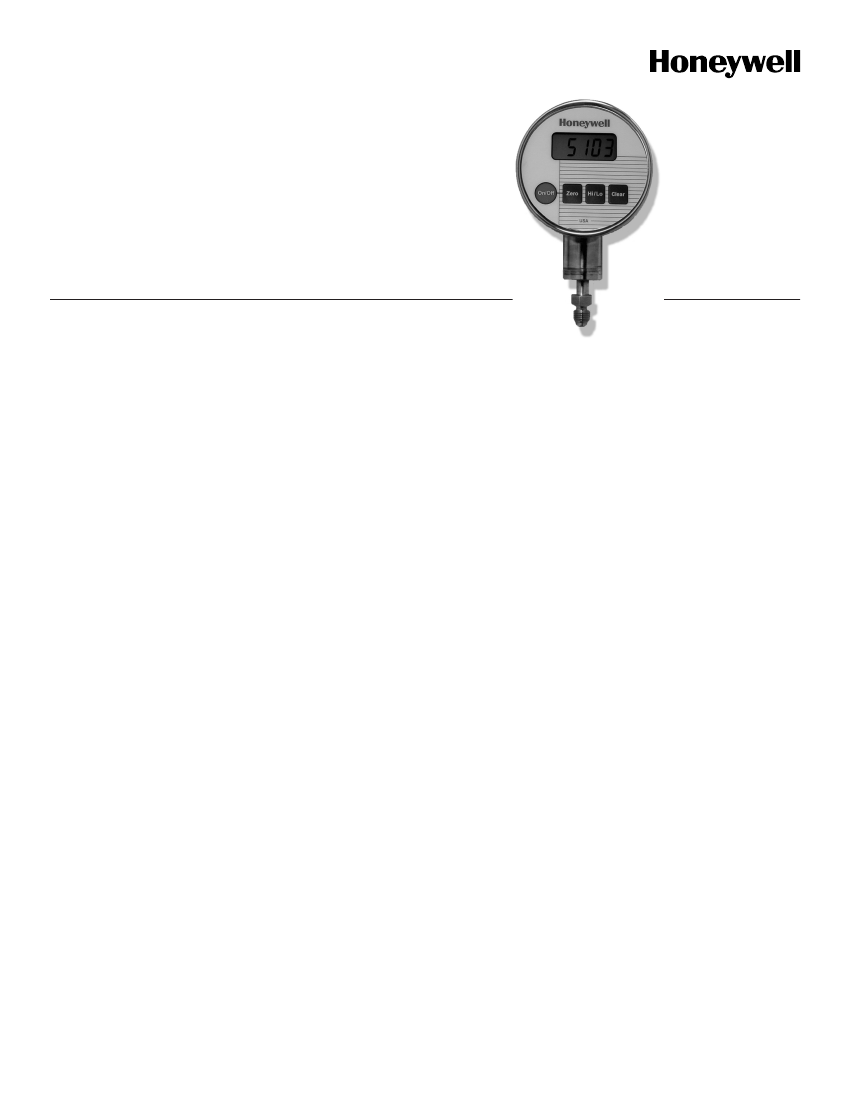

Using VCR, the Series JV digital pressure test gauge with 0. 2%
full scale accuracy uses transducer technology and a stainless
steel diaphragm for high over pressure protection. The transduc-
er technology provides enhanced accuracy over the entire pres-
sure range. The JV has no moving parts and thus, may provide a
long life with fewer re-calibrations.
The stainless steel NEMA construction also provides EMI and
RFI protection. The JV provides high resolution with an easy to
read digital display. There are no operator errors due to interpo-
lation of hash marks or parallax errors. The units can be scaled
to read in various engineering units, such as in-Hg, ft-H
2
0, etc.
The Model JVB provides a 4 mA to 20 mA, two-wire output. The
Model JVE provides a 0 Vdc to 5 Vdc output. The Model JVR has
two programmable limits and relays with no analog output. The
Model JVX provides a 0 Vdc to 5 Vdc output with two program-
mable limits and relays for process control or alarm indication.
The Model JVW is powered by one or two common 9 V alkaline
batteries. The Model JVT is powered by a 110 Vac adapter. The
JVV, JVB, JVE, JVR, and JVX models are powered by an 11 Vdc
to 32 Vdc power supply.
Each unit has a membrane face with raised buttons and tactile
feedback for setup and operation. The high, low, and clear but-
tons are easily accessible on this front membrane. Zero adjust-
ment and zero offset/tare functions are standard on each unit.
Calibration and setup parameters are stored on a memory chip
to protect from loss even when power is interrupted. Unauthor-
ized set ups and calibrations are also blocked with internal
security. Various combinations of the front panel buttons can be
deactivated.
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
Passivation or oxygen-cleaned options
Two programmable limits and relays (optional)
Test gauge accuracy - 0.2 % full scale
High and low detection - Microprocessor based
Ranges to 5000 psi - gage, absolute, vacuum, or compound
4½ digit display with 0.5 in height
Customer recalibration
Zero offset/tare
On/off switch disable feature
Optional carrying case and panel mounting rings
NEMA 4 rating (optional)
NIST traceable (optional)
Model JV
PERFORMANCE SPECIFICATIONS
Characteristic
Linearity and hysteresis
Pressure range 0 psi to
ADDITIONAL SPECIFICATIONS
Pressure range (psi)
Maximum safe
over pressure
(psi)
1
10
25
75
150
250
500
1000
1200
1500
1500
2000
3000
4000
6000
7500
12000
15000
Measure
0.2 % full scale (better than test gauge
accuracy)
1, 5, 15, 30, 50, 100, 200, 300, 500, 750,
1000, 1500, 2000, 3000, 5000, 7500,
10000 psi
Standard
3 times per sec
Standard: Models JVB, JVE, JVX
Model JV
0 psi to 1 psi = 1 (opt)
0 psi to 5 psi = 5 (opt)
0 psi to 15 psi = 15
0 psi to 30 psi = 30
0 psi to 50 psi = 50
0 psi to 100 psi = 100
0 psi to 200 psi = 200
0 psi to 300 psi = 300
0 psi to 500 psi = 500
0 psi to 750 psi = 750
0 psi to 1000 psi = 1K
0 psi to 1500 psi = 1.5K
0 psi to 2000 psi = 2K
0 psi to 3000 psi = 3K
0 psi to 5000 psi = 5K
0 psi to 7500 psi = 7.5K
0 psi to 10000 psi = 10K
1
0.001
0.005
0.01
0.02
0.05
0.1
0.1
0.2
0.5
0.5
1
1
1
2
5
5
5
High and low capture
Update speed
Zero and span signal
adjustment
ENVIRONMENTAL SPECIFICATIONS
Characteristic
Temperature, operating
Measure
-1 °C to 71 °C [30 °F to 160 °F]
ELECTRICAL SPECIFICATIONS
Characteristic
Rating
Power, Model JVW
Power, Model JVT
Power, Model JVV
Power, Model JVB
Power, Model JVE
Power, Model JVR
Power, Model JVX
Electrical connection
Measure
NEMA 2 (optional NEMA 4)
One or two 9 V alkaline batteries (in-
cluded)
110 Vac adapter @ 60 Hz (included)
11 Vdc to 32 Vdc @ 100 mA (3 ft cable
included)
11 Vdc to 32 Vdc (depending on loop
resistance) @ 20 mA
11 Vdc to 32 Vdc @ 100 mA
11 Vdc to 32 Vdc @ 100 mA
11 Vdc to 32 Vdc @ 100 mA
3 ft cable (standard) on Models: JVB,
JVE, JVR, JVX, JVV
Maximum safe overpressure is the pressure which the unit can experience oc-
casionally without the loss of accuracy or permanent damage

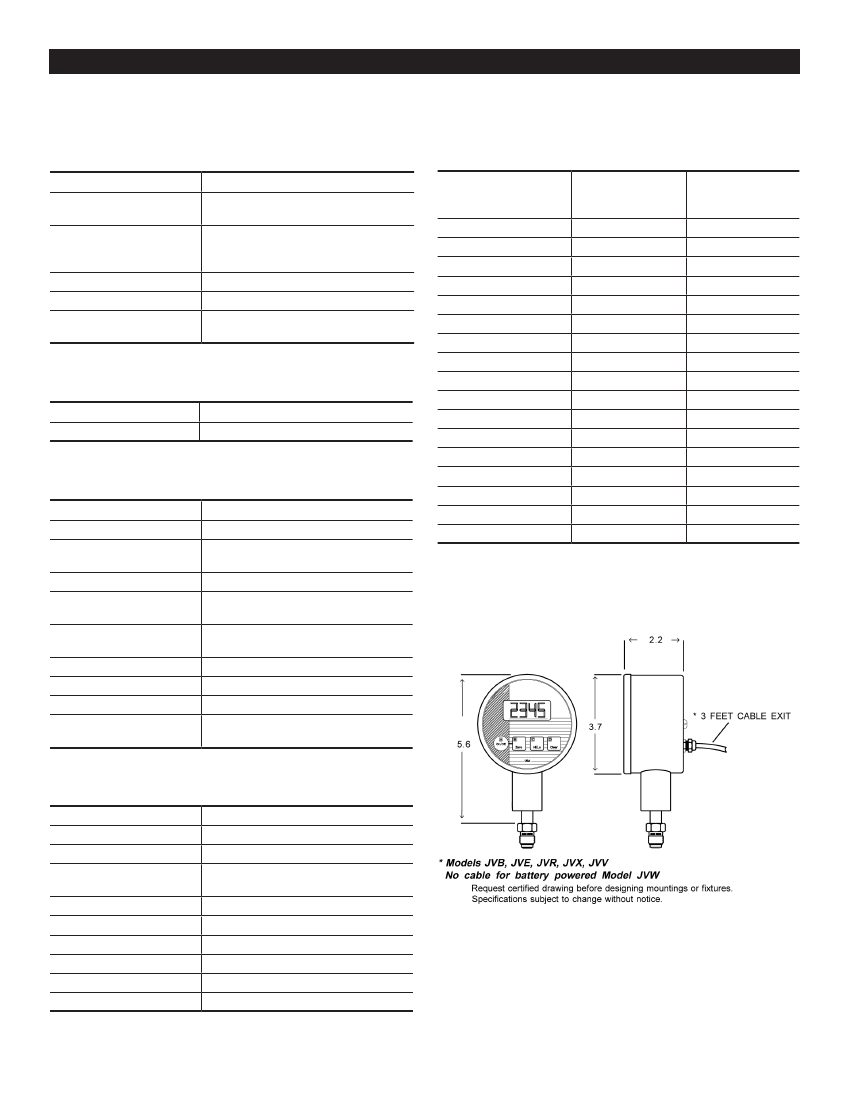

MOUNTINg DIMENSIONS AND CHARACTERISTICS
MECHANICAL SPECIFICATIONS
Characteristic
Diameter
Display
Pressure port
Wetted parts
Case material
Face membrane
Calibration data
Low battery indication
Limits and relays
Measure
93,98 mm [3.7 in]
4½ LCD digits - 12,7 mm [0.5 in] high
Size 4 stainless steel VCR (male) (Other
VCR parts available. Consult factory)
Stainless steel
Stainless steel
Tactile feedback raised buttons
Stored on memory chip
Standard on Model JVW
Models JVR and JVX
For reference only
2 Honeywell • Sensing and Control
Model JV
ORDER gUIDE
JV
SERIES
JV*
* = Example
Digital Pressure Gauge With VCR Fittings
W 100 G
Z
V
(
)
Warranty.
Honeywell warrants goods of its manufacture as
being free of defective materials and faulty workmanship.
Honeywell’s standard product warranty applies unless agreed
to otherwise by Honeywell in writing; please refer to your
order acknowledgement or consult your local sales office for
specific warranty details. If warranted goods are returned to
Honeywell during the period of coverage, Honeywell will repair
or replace, at its option, without charge those items it finds
defective.
The foregoing is buyer’s sole remedy and is in lieu
of all warranties, expressed or implied, including those of
merchantability and fitness for a particular purpose. In no
event shall Honeywell be liable for consequential, special, or
indirect damages.
While we provide application assistance personally, through our
literature and the Honeywell web site, it is up to the customer to
determine the suitability of the product in the application.
Specifications may change without notice. The information we
supply is believed to be accurate and reliable as of this printing.
However, we assume no responsibility for its use.
For more information about Sensing and Control products, visit
www.honeywell.com/sensing or call +1-815-235-6847
Email inquiries to info.sc@honeywell.com
MODEL DESIGNATION
Models with output signal
B = 4 mA to 20 mA (two-wire)
E = 0 Vdc to 5 Vdc
R = 2 programmable limits & relays
X = 0 Vdc to 5 Vdc with two limits & relays
Models with no output signal
W = Battery powered (9 V alkaline)*
T = 110 Vac adapter (included)
V = 11 Vdc to 32 Vdc (3 ft. cable)
1
5
15
30
50
This order
code is
used ONLY
if you want
NEMA 4
rating
PRESSURE RANGE (PSI)
=
=
=
=
=
0-1 (opt)
0-5 (opt)
0-15
0-30
0-50
100=
200=
300=
500=
750=
1K =
0-100*
0-200
0-300
0-500
0-750
0-1000
REFERENCE
G
A
V
C
=
=
=
=
1.5K =
2K =
3K =
5K =
7.5K =
10K =
0-1500
0-2000
0-3000
0-5000
0-7500
0-10000
Gage (std) reads zero at atmosphere*
Absolute (opt) reads zero at vacuum
(15 psi or higher)
Vacuum (opt) scaled in In Hg
(15 psi or lower)
Compound (opt) reads both positive and negative
(vacuum) pressure
No electrical connection (Model JVW - 9 V battery)*
3 foot cable
ac adapter (Model JVT)
Bendix (opt) (PTIH-10-6P or equal) connector sold
separately
ELECTRICAL CONNECTION
Z
C
T
B
=
=
=
=
Call factory for availability of other electrical connections and cable lengths.
VCR PRESSURE FITTING
V = Size 4 stainless steel VCR (male)*
Other VCR ports available. Please call factory.
WARNINg
PERSONAL INJURY
• DO NOT USE these products as safety or emergency
stop devices or in any other application where failure of
the product could result in personal injury.
Failure to comply with these instructions could result in
death or serious injury.
NEMA 4 CONSTRUCTION
4 = NEMA 4 (not available on Model JVT)
FIELD SELECTABLE STANDARD UNITS OF MEASURE
Bar =
MBar
kPa =
MPa =
Bar
= Millibar
Kilopascals
Megapascals
Ft H20
In H20
In Hg
mmHg
=
=
=
=
Feet of water
Inches of water
Inches of mercury
mm of mercury
Consult factory for other units of measure not listed
WARNINg
MISUSE OF DOCUMENTATION
• The information presented in this catalogue is for
reference only. DO NOT USE this document as product
installation information.
• Complete installation, operation and maintenance
information is provided in the instructions supplied with
each product.
Failure to comply with these instructions could result in
death or serious injury.
NOTES
1.
The limit/relay models include two LED status indicators on front
face and two form C relays (normally open, common, normally
closed) that are rated at a maximum 24 Vdc/Vac at 1 A or 48 Vdc/
Vac at 1/2 A.
Sensing and Control
Automation and Control Solutions
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422 USA
+1-815-235-6847
www.honeywell.com/sensing
008696-1-EN IL50 GLO
May 2008
Copyright © 2008 Honeywell International Inc. All rights reserved.
