59020-1-T-04-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> 59020-1-T-04-F

59020-1-T-04-F: DescriptionProximity Sensors NO 10-15AT 750mm 59020 Firecracker; CategoryThe sensor; File Size414KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

59020-1-T-04-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59020-1-T-04-F	-	-	View	Buy Now

59020-1-T-04-F Overview

Proximity Sensors NO 10-15AT 750mm 59020 Firecracker

59020-1-T-04-F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Proximity Sensors
RoHS	Details
Sensing Method	Magnetic
Sensing Distance	4.5 mm
Mounting Style	Wire
Output Configuration	SPST-NO
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Packaging	Bulk
Description/Function	Firecracker reed sensor
Length	15.24 mm
Barrel Size	5.1 mm
Operating Supply Current	250 mA
Operating Supply Voltage	170 V
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Reed Sensors

Firecracker > 59020

59020 Miniature Firecracker Reed Sensor + 57020 Actuator

Description

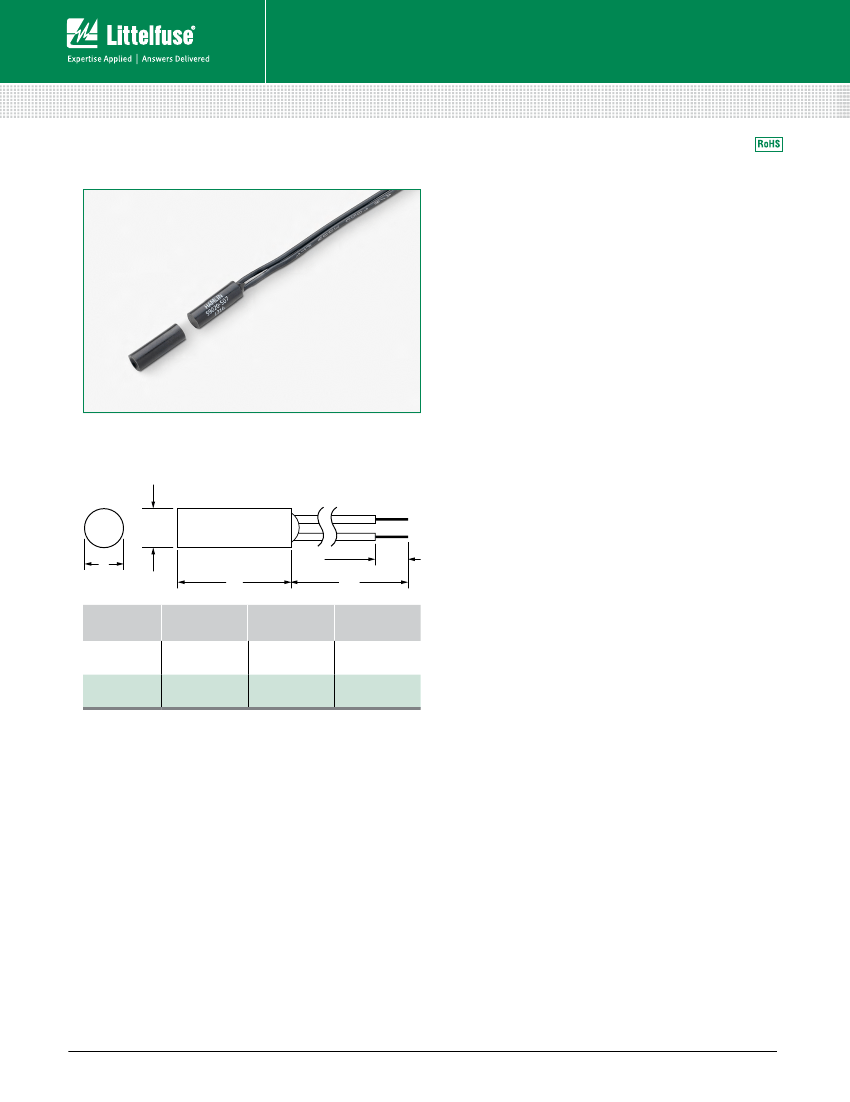

The 59020 Firecracker Reed Sensor is a miniature cylindrical reed sensor

15.24mm x 5.10mm (0.600” x 0.201”) with a normally open contact. It is capable

of switching up to 170Vdc at 10W. It has a variety of cable lengths and connector

options. It functions best with the 57020-000 actuator.

Note: The 57020 Actuator is sold separately.

Features

• Magnetically operated proximity

sensor

• Normally open contact

• Customer defined sensitivity option

• Choice of cable length and

connector

Dimensions

Dimensions in mm (inch)

Benefits

• Hermetically sealed, magnetically

operated contacts continue to

operate long after optical and other

technologies fail due to

contamination

6.35

(.250) NOM.

• Quick and easy to install

• No standby power requirement

• Operates through non-ferrous

materials such as wood, plastic or

aluminium

Applications

• Position and Limit Sensing

• Security Systems

• Level Sensing

• Linear Actuators

Nom.

57020 Actuator

59020 Sensor

Nom.

15.24 (.600)

Nom.

300 (11.81)±

10.00 (.393)

5.10 (.201)

Revised: 12/11/17

Specifications are subject to change without notice.

littelfuse.com
