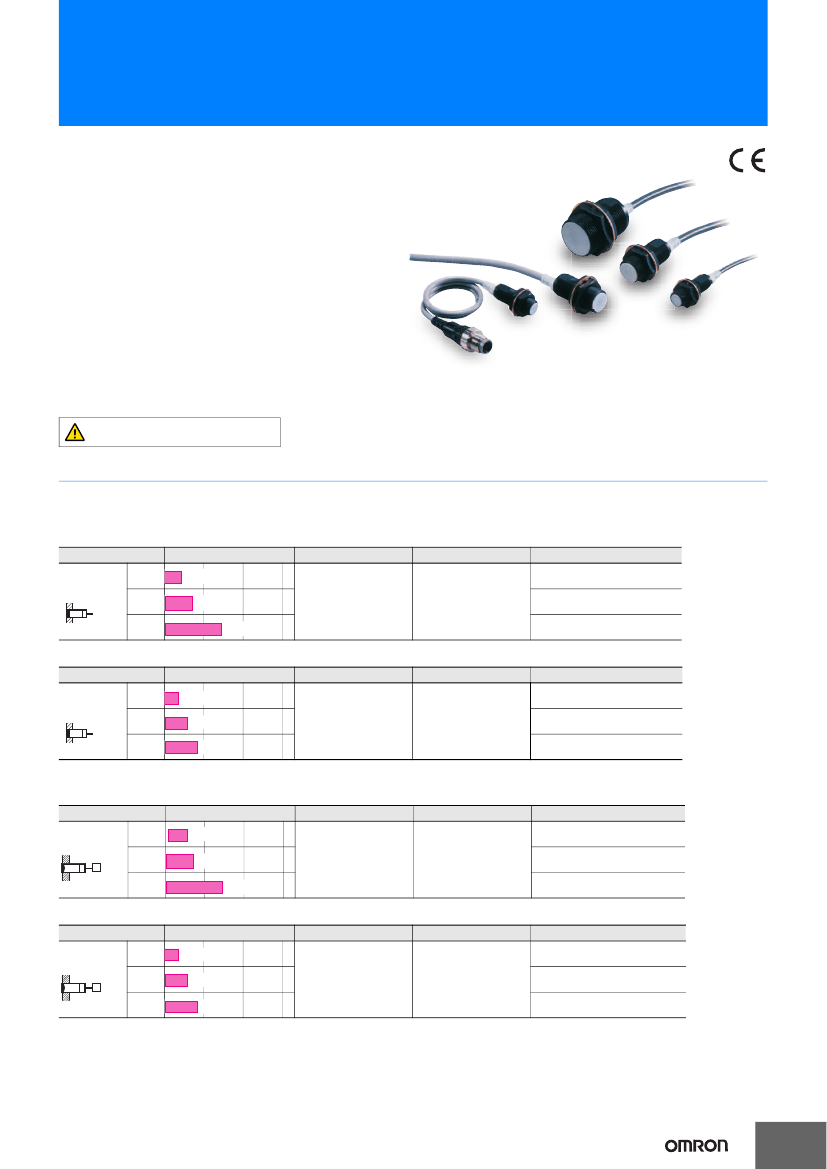

Spatter-resistant Proximity Sensor
E2EQ
CSM_E2EQ_DS_E_9_1
Spatter-resistant Fluororesin-
coated Proximity Sensor
• Superior spatter resistance.
• Long Sensing-distance Models added for sensing
distances up to 15 mm.
• Pre-wired Smartclick Connector Models are also
available.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Be sure to read
Safety Precautions
on
page 6.
Ordering Information
Sensors
[Refer to
Dimensions
on page
7.]
Pre-wired Models
Long Sensing-distance Models
Appearance
M12
Sensing distance
Output configuration
Operation mode
Model
E2EQ-X4X1 2M
DC 2-wire
(no polarity)
NO
E2EQ-X8X1 2M
E2EQ-X15X1 2M
4 mm
8 mm
15 mm
Shielded
M18
M30
Standard Models
Appearance
M12
Sensing distance
Output configuration
Operation mode
Model
E2EQ-X3D1 2M
DC 2-wire
NO
E2EQ-X7D1 2M
E2EQ-X10D1 2M
3 mm
7 mm
10 mm
Shielded
M18
M30
Pre-wired Smartclick Connector Models (M12)
Long Sensing-distance Models
Appearance
M12
Sensing distance
Output configuration
DC 2-wire
(no polarity)
(3)-(4)
pin arrangement
Operation mode
Model
E2EQ-X4X1-M1TJ 0.3M
NO
E2EQ-X8X1-M1TJ 0.3M
E2EQ-X15X1-M1TJ 0.3M
4 mm
8 mm
15 mm
Shielded
M18
M30
Standard Models
Standard Models
M12
Sensing distance
Output configuration
DC 2-wire
(1)-(4)
pin arrangement
Operation mode
Model
E2EQ-X3D1-M1TGJ 0.3M
NO
E2EQ-X7D1-M1TGJ 0.3M
E2EQ-X10D1-M1TGJ 0.3M
3 mm
7 mm
10 mm
Shielded
M18
M30
1
E2EQ
Pre-wired Connector Models (M12)
Long Sensing-distance Models
Appearance
M12
Sensing distance
Output configuration
DC 2-wire
(without polarity)
(3)-(4)
pin arrangement
Operation mode
Model
E2EQ-X4X1-M1J 0.3M
NO
E2EQ-X8X1-M1J 0.3M
E2EQ-X15X1-M1J 0.3M
4 mm
8 mm
15 mm
Shielded
M18
M30
Standard Models
Standard Models
M12
Sensing distance
Output configuration
DC 2-wire
(1)-(4)
pin arrangement
Operation mode
Model
E2EQ-X3D1-M1GJ 0.3M
NO
E2EQ-X7D1-M1GJ 0.3M
E2EQ-X10D1-M1GJ 0.3M
3 mm
7 mm
10 mm
Shielded
M18
M30
Accessories (Order Separately)
Sensor I/O Connectors (M12, Sockets on One Cable End)
(Models with Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)
[Refer to XS2, XS5.]
Appearance
Cable length
2m
5m
2m
5m
2m
5m
2m
5m
2m
5m
Sensor I/O Connector model number
XS2F-D421-DC0-F
XS2F-D421-GC0-F
XS2F-D422-DC0-F
XS2F-D422-GC0-F
XS2F-D421-DA0-F
XS2F-D421-GA0-F
XS2F-D422-DA0-F
XS2F-D422-GA0-F
XS5F-D421-D80-F
XS5F-D421-G80-F
E2EQ-X@X1-M1TJ
E2EQ-X@D1-M1TGJ
E2EQ-X@D1-M1GJ
E2EQ-X@X1-M1J
Applicable Proximity Sensor model number
Straight
L-shape
Straight
L-shape
Smartclick
Connector
Straight
Note: Refer to
Introduction to Sensor I/O Connectors/Sensor Controllers
for details.
Ratings and Specifications
Long Sensing-distance Models
Model
Item
Sensing distance
Set distance
*1
Differential travel
Standard sensing object
Response frequency
*2
Control
output
Load current
Residual voltage
*3
E2EQ-X4X1
E2EQ-X4X1-M1(T)J
4 mm
±10%
0 to 3.2 mm
15% max. of sensing distance
Iron, 12
×
12
×
1 mm
1 kHz
3 to 100 mA
5 V max. (Load current: 100 mA, Cable length: 2 m)
Load ON: NO; For details, refer to the timing charts on page 5.
Load short-circuit protection, Surge suppressor
Operating:
−25
to 70°C, Storage:
−40
to 85°C, (with no icing or condensation)
±15%
max. of sensing distance at 23°C in the temperature range of
−40
to 85°C
±10%
max. of sensing distance at 23°C in the temperature range of
−25
to 70°C
±1%
max. of sensing distance at rated voltage in the rated voltage
±15%
range
Destruction: 1,000m/s
2
10 times each in X, Y, and Z directions
Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models
Approx. 65 g
Approx. 20 g
Approx. 140 g
Approx. 40 g
Approx. 190 g
Approx. 90 g
±15%
max. of sensing distance at 23°C in
the temperature range of
−25
to 70°C
Iron, 18
×
18
×
1 mm
0.5 kHz
Iron, 30
×
30
×
1 mm
0.25 kHz
E2EQ-X8X1
E2EQ-X8X1-M1(T)J
8 mm
±10%
0 to 6.4 mm
E2EQ-X15X1
E2EQ-X15X1-M1(T)J
15 mm
±10%
0 to 12 mm
Operation mode (with sensing
object approaching)
Protection circuits
Ambient temperature range
Temperature influence
Voltage influence
Shock resistance
Connection method
Weight
(packed
state)
Pre-wired Models
Pre-wired
Connector Models
*1. Use the Sensor within the range in which the green indicator is ON.
*2. The response frequency is an average value.
*3. The residual voltage is 5 V. Make sure that the device connected to the Sensor can withstand the residual voltage.
2
E2EQ
Standard Models
Model
Item
Sensing distance
Set distance
Differential travel
Standard sensing object
Response frequency
*
Control
output
Load current
Residual voltage
E2EQ-X3D1
E2EQ-X3D1-M1(T)GJ
3 mm
±10%
0 to 2.4 mm
10% max. of sensing distance
Iron, 12
×
12
×
1 mm
1 kHz
3 to 100 mA
3 V max. (Load current: 100 mA, Cable length: 2 m)
Load ON: NO; For details, refer to the timing charts on page 5.
Load short-circuit protection, Surge suppressor
Operating/Storage:
−25
to 70°C (with no icing or condensation)
±10%
max. of sensing distance at 23°C in the temperature range of
−25
to 70°C
±2.5%
max. of sensing distance at rated voltage in the rated voltage
±15%
range
Destruction: 1,000 m/s
2
10 times each in X, Y, and Z directions
E2EQ-X@D1: Pre-wired Models (Standard cable length: 2 m)
E2EQ-X@D1-M1GJ: Pre-wired Connector Models (Standard cable length: 300mm)
Approx. 120 g
Approx. 160 g
Approx. 110 g
Approx. 220 g
Approx. 190 g
Iron, 18
×
18
×
1 mm
500 Hz
Iron, 30
×
30
×
1 mm
400 Hz
E2EQ-X7D1
E2EQ-X7D1-M1(T)GJ
7 mm
±10%
0 to 5.6 mm
E2EQ-X10D1
E2EQ-X10D1-M1(T)GJ
10 mm
±10%
0 to 8 mm
Operation mode (with sensing
object approaching)
Protection circuits
Ambient temperature range
Temperature influence
Voltage influence
Shock resistance
Connection method
Weight
(packed
state)
Pre-wired Models
Pre-wired
Approx. 80 g
Connector Models
* The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and
a set distance of half the sensing distance.
Common Ratings and Performance
Model
Item
Detectable object
Power supply voltage
(operating voltage range)
Leakage current
Indicators
Ambient humidity range
Insulation resistance
Dielectric strength
Vibration resistance
Degree of protection
Case
Materials
Sensing surface
Clamping nuts
Toothed washer
Accessories
E2EQ-X4X1
E2EQ-X4X1-M1(T)J
E2EQ-X3D1
E2EQ-X3D1-M1(T)GJ
E2EQ-X8X1
E2EQ-X8X1-M1(T)J
E2EQ-X7D1
E2EQ-X7D1-M1(T)GJ
E2EQ-X15X1
E2EQ-X15X1-M1(T)J
E2EQ-X10D1
E2EQ-X10D1-M1(T)GJ
Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data
on page
4.)
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
0.8 mA max.
Operation indicator (red), Setting indicator (green)
Operating/Storage: 35% to 95% (with no condensation)
50 MΩ min. (at 500 VDC) between current-carrying parts and case
1,000 VAC for 1 min between current-carrying parts and case
Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
IEC 60529 IP67, in-house standards: oil-resistant
Fluororesin coating (Base material: brass)
Fluororesin
Fluororesin coating (Base material: brass)
Zinc-plated iron
Instruction manual
3
E2EQ

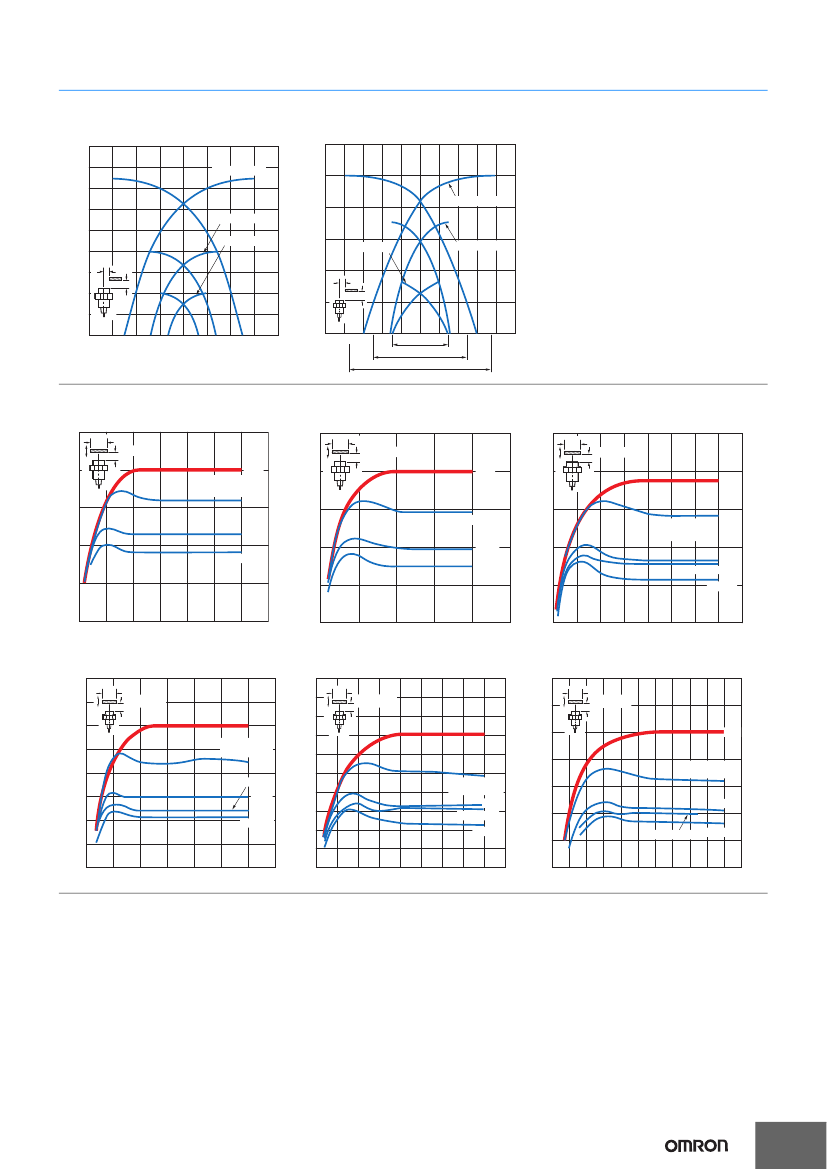

Engineering Data (Reference Value)
Sensing Area
E2EQ-X@X@(-M1(T)J) Shielded Models E2EQ-X@D@(-M1(T)GJ)
Distance X (mm)
18
16
14
12
E2EQ-X8X
10
E2EQ-X4X
8
6
4
2
2
0
−20
−15
−10
−5
0
5
10
15
20
−20 −16 −12
−8
−4
0
4
8
12
16 20
Distance Y
(mm)
Y
X
4
6
E2EQ-X3D1
E2EQ-X7D1
E2EQ-X15X
Distance X (mm)
10
E2EQ-X10D1
8
Y
X
Distance Y (mm)
E2EQ-X3D1 Sensing Head
E2EQ-X7D1 Sensing Head
E2EQ-X10D1 Sensing Head
Influence of Sensing Object Size and Material
E2EQ-X4X1(-M1(T)J)
Distance X (mm)
5
d
×
d
E2EQ-X8X1(-M1(T)J)
Distance X (mm)
10
d
×
d
E2EQ-X15X1(-M1(T)J)
Distance X (mm)
20
d
×
d
X
4
t = 1 mm
Iron
Stainless steel
(SUS304)
X
8
t = 1 mm
Iron
X
16
t = 1 mm
Iron
3
6
Brass
Stainless steel
(SUS304)
4
Copper
Brass
Copper
2
12
Stainless steel
(SUS304)
8
Brass
Aluminum
4
Copper
2
1
0
5
10
15
20
25
30
35
0
10
20
30
40
50
0
10
20
30
40
50
60
70
80
Side length of sensing object: d (mm)
Side length of sensing object: d (mm)
Side length of sensing object: d (mm)
E2EQ-X3D1(-M1(T)GJ)
Distance X (mm)
4.0
3.5
3.0
2.5
2.0
Aluminum
1.5
1.0
0.5
Brass
Copper
d
×
d
E2EQ-X7D1(-M1(T)GJ)
Distance X (mm)
10
9
8
7
6
5
4
3
2
1
Stainless steel
(SUS304)
Brass
Aluminum
Copper
Iron
d
×
d
E2EQ-X10D1(-M1(T)GJ)
Distance X (mm)
14
d
×
d
X
t = 1 mm
Iron
Stainless steel
(SUS304)
X
t = 1
mm
12
10
8
6
X
t = 1
mm
Iron
Stainless steel
(SUS304)
Brass
4
2
Aluminum
Copper
0
5
10
15
20
25
30
35
Side length of sensing object: d (mm)
0
5
10
15
20
25
30
35
40
45
Side length of sensing object: d (mm)
0
5
10
15
20 25 30 35 40 45 50 55
Side length of sensing object: d (mm)
4
E2EQ
Residual Output Voltage
E2EQ-X@X@(-M1(T)J)
Residual output voltage (V)
5
Leakage Current
E2EQ-X@D@(-M1(T)GJ)
Residual output voltage (V)
5
E2EQ-X@D
Leakage current (mA)
1.5
4
4
1.0
3
3
E2EQ-X3D1
2
0.5
2
1
1
E2EQ-X7D1
E2EQ-X10D1
0
1
3
5
10
30
50
100
0
1
3
5
10
30 50
Load current (mA)
100
300 500 1,000
Load current (mA)
0
10
20
30
40
Power supply voltage (V)
I/O Circuit Diagrams
Long Sensing-distance Models
Model
Operation
mode
Timing Chart
Output circuit
4
Brown
Load
+V
Unstable
sensing
Non-sensing area area
Set position
Stable sensing area
Proximity
Sensor
main
circuit
3
Blue
0V
E2EQ-X4X1
E2EQ-X8X1
E2EQ-X15X1
E2EQ-X4X1-M1(T)J
E2EQ-X8X1-M1(T)J
E2EQ-X15X1-M1(T)J
Sensing
object
NO
(%)
100
Rated
sensing
distance
80 (TYP)
0
ON
ON
ON
OFF
Setting indicator
OFF
(green)
Operation indicator
OFF
(red)
Control output
Note 1. The load can be connected to either the +V or
0 V side.
Note 2. There is no polarity. Therefore, the brown and
blue lines have no polarity.
Connector Pin Arrangement
1
2
3
4
Note: Pins 1 and 2 are not used.
Standard Models
Model
Operation
mode
Timing Chart
Output circuit
Brown
Non-sensing area
Sensing
object
Unstable Set position
sensing
Stable sensing area
area
Proximity Sensor
1
Proximity
Sensor
main
circuit
Blue
4
Load
+V
E2EQ-X3D1
E2EQ-X7D1
E2EQ-X10D1
E2EQ-X3D1-M1(T)GJ
E2EQ-X7D1-M1(T)GJ
E2EQ-X10D1-M1(T)GJ
0V
(%)
100
Rated
sensing
distance
80 (TYP)
0
NO
Note: The load can be connected to either the +V
or 0 V side.
Connector Pin Arrangement
1
2
4
3
ON
Setting indicator
OFF
(green)
ON
Operation
OFF
indicator (red)
ON
Control output
OFF
Note: Pins 2 and 3 are not used.
5
京公网安备 11010802033920号
EEWORLD
