Microstructure Pressure Sensors
Low Cost, Compensated, DIP Package
0 psi to 1 psi up to 0 psi to 100 psi
FEATURES
•
Low Cost DIP
•
Precision Temperature
Compensation
•
Calibrated Zero & Span
•
Small Size
•
Low Noise
•
High Impedance for Low
Power Applications
•
Prime Grade Available
(SDXxxxyy-A)
TYPICAL APPLICATIONS
•
Medical Equipment
•
Computer Peripherals
•
Pneumatic Controls
•
HVAC
SDX Series

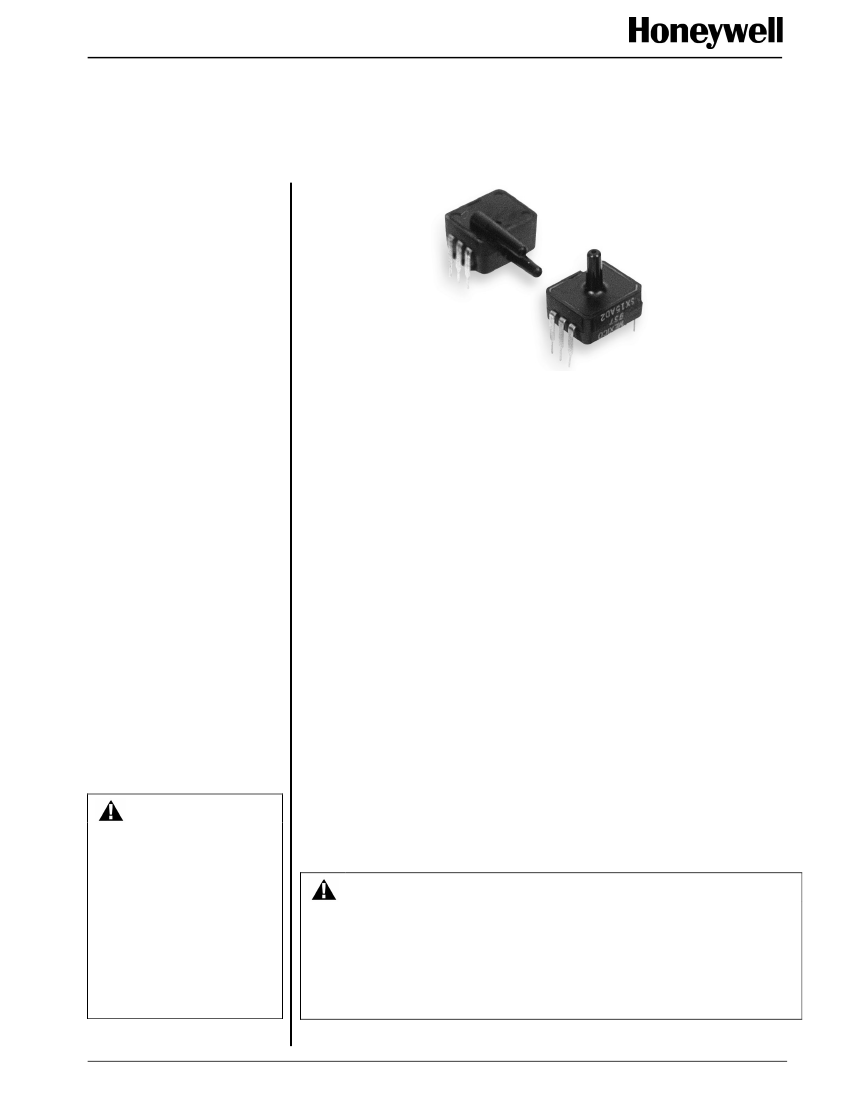

The SDX series sensors provide a very cost effective solution for pressure
applications that require small size plus performance. These calibrated and
temperature compensated sensors give an accurate and stable output over
a 0 °C to 50 °C [32
°F
to 122
°F]
temperature range. This series is intended
for use with non-corrosive, non-ionic working fluids such as air, dry gases
and the like.
Devices are available to measure absolute and gage pressures from 1 psi
(SDX01) up to 100 psi (SDX100). The absolute devices have an internal
vacuum reference and an output voltage proportional to absolute pressure.
The SDX devices are available in standard commercial and prime grades
(SDCxxxyy – A) to allow optimization of accuracy and cost in any given
application.
The SDX devices feature an integrated circuit (IC) sensor element and laser
trimmed thick film ceramic housed in a compact solvent resistant case. The
package is a double-wide (i.e. 0.600 inches lead spacing) dual-inline
package (DIP). This is the same familiar package used by IC manufacturers
except it is only 11,94 mm [0.470 in] long and has a pressure port(s). The pc
2
board area used by each DIP is approximately 0.26 in . This extremely small
size enables the use of multiple sensors in limited available space. The DIP
provides excellent corrosion resistance and isolation to external package
stress.
The DIP mounts on a pc board like a standard IC with through-hole pins.
The pins anchor the pressure sensor to the pc board and provide a more
secure and stable unit than other types of packages.
WARNING
PERSONAL INJURY
DO NOT USE these
products as safety or
emergency stop devices or
in any other application
where failure of the product
could result in personal
injury.
Failure to comply with
these instructions could
result in death or serious
injury.
The output of the bridge is ratiometric to the supply voltage and operation
from any dc supply voltage up to 20 Vdc is acceptable.
Contact your local honeywell representative or go to Honeywell’s website at
www.honeywell.com/sensing for additional details.
WARNING
MISUSE OF DOCUMENTATION
•
The information presented in this product sheet is for reference only. Do not
use this document as a product installation guide.
•
Complete installation, operation, and maintenance information is provided in
the instructions supplied with each product.
Failure to comply with these instructions could result in death or serious
injury.
Sensing and Control
Microstructure Pressure Sensors
Low Cost, Compensated, DIP Package
0 psi to 1 psi up to 0 psi to 100 psi
PRESSURE RANGE SPECIFICATIONS
Model No*, Pressure Connection,
Pressure Type
Gage
SDX01G2
SDX01G2-A
SDX05G2
SDX05G2-A
SDX15G2
SDX15G2-A
Diff/Gage
SDX01D4
SDX01D4-A
SDX05D4
SDX05D4-A
SDX15D4
SDX15D4-A
Absolute
--
--
--
--
--
--
SDX15A2
SDX15A4
SDX15A2-A
SDX15A4-A
--
--
SDX30A2
SDX30A4
SDX30A2-A
SDX30A4-A
--
--
SDX100A2
SDX100A4
SDX100A2-A
SDX100A4-A
Operating
Pressure
0 psid to 1 psid
0 psid to 5 psid
0 psid to 15 psid
Proof
(2)
Pressure
20 psid
20 psid
30 psid
SDX Series
Full-Scale Span
Min.
17.37 mV
17.82 mV
57.90 mV
59.40 mV
86.85 mV
89.10 mV
86.85 mV
86.85 mV
89.10 mV
89.10 mV
86.85 mV
89.10 mV
86.85 mV
86.85 mV
89.10 mV
89.10 mV
96.50 mV
99.00 mV
96.50 mV
96.50 mV
99.00 mV
99.00 mV
Typ.
18.00 mV
18.00 mV
60.00 mV
60.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
90.00 mV
100.00 mV
100.00 mV
100.00 mV
100.00 mV
100.00 mV
100.00 mV
(1)
Max.
18.63 mV
18.80 mV
62.10 mV
60.60 mV
93.15 mV
90.90 mV
93.15 mV
93.15 mV
90.90 mV
90.90 mV
93.15 mV
90.90 mV
93.15 mV
93.15 mV
90.90 mV
90.90 mV
103.5 mV
101.0 mV
103.5 mV
103.5 mV
101.0 mV
101.0 mV
0 psia to 15 psia
30 psia
SDX30G2
SDX30G2-A
SDX30D4
SDX30D4-A
0 psid to 30 psid
60 psid
0 psia to 30 psia
60 psia
SDX100G2
SDX100G2-A
SDX100D4
SDX100D4-A
0 psid to 100 psid
150 psid
0 psia to 100 psia
150 psia
* Ordering information: Order model number. (-A) = Prime Grade
Pressure Connection and Pressure Type
G2
= “D2” DIP Package, Temperature Compensated Gage Sensor
G2-A = “D2” DIP Package, Prime Grade, Temperature Compensated Gage Sensor
D4
= “D4” DIP Package, Temperature Compensated Differential Sensor
D4-A = “D4” DIP Package, Prime Grade, Temperature Compensated Differential Sensor
A2
= “D2” DIP Package, Temperature Compensated Absolute Sensor
A2-A = “D2” DIP Package, Prime Grade, Temperature Compensated Absolute Sensor
A4
= “D4” DIP Package, Temperature Compensated Absolute Sensor
A4-A = “D4” DIP Package, Prime Grade, Temperature Compensated Absolute Sensor
GENERAL SPECIFICATIONS
Characteristic
Supply Voltage (V
S)
Common Mode Pressure
Lead Soldering Temperature
(2 seconds to 4 seconds)
Description (Maximum Ratings) All Devices
20 Vdc
150 psig
250 °C [482
°F]
ENVIRONMENTAL SPECIFICATIONS
Characteristic
Compensated Operating Temperature
Operating Temperature
Storage Temperature
Humidity Limits
Description (Maximum Ratings) All Devices
0 °C to 50 °C [32
°F
to 122
°F]
-40 °C to 85 °C [-40
°F
to 185
°F]
-55 °C to 125 °C [-67
°F
to 257
°F]
0 % RH to 100 % RH
2 Honeywell
•
Sensing and Control
Microstructure Pressure Sensors
Low Cost, Compensated, DIP Package
0 psi to 1 psi up to 0 psi to 100 psi
SDX SERIES PERFORMANCE CHARACTERISTICS
(3)
SDX Series
Typ.
0.0
0.0
±0.2
±0.1
±0.4
±0.4
±0.2
±0.2
±0.2
4.0
4.0
3.0
100
±0.1
Max.
+1.0
0.3
±1.0
±0.25
±2.0
±1.0
±1.0
±0.5
±0.5
–
–
5.0
–
–
Unit
mV
mV
% FSO
% FSO
% FSO
% FSO
mV
mV
% FSO
kOhm
kOhm
Vdc
µS
mV
Characteristic
Zero Pressure Offset
(4)
Zero Pressure Offset (Prime Grade)
(5)
Combined Linearity and Hysteresis
(5) (13)
Combined Linearity and Hysteresis
(Prime Grade)
(6)
Temperature Effect on Span 0 °C to 50 °C [32
°F
to 122
°F]
(6)
Temperature Effect on Span 0 °C to 50 °C [32
°F
to 122
°F]
(Prime Grade)
(6)
Temperature Effect on Offset 0 °C to 50 °C [32
°F
to 122
°F]
(6)
Temperature Effect on Offset 0 °C to 50 °C [32
°F
to 122
°F]
(Prime Grade)
(7)
Repeatability
(8)
Input Resistance
(9)
Output Resistance
(10)
Common Mode Voltage
(11)
Response Time
(12)
Long Term Stability of Offset and Span
Min.
-1.0
-0.3
–
–
–
–
–
–
–
–
–
1.5
–
–
SPECIFICATION NOTES
Note 1:
Note 2:
Note 3:
Full-Scale Span is the algebraic difference between the output voltage at full-scale pressure and the output at zero pressure.
Full-Scale Span is ratiometric to the supply voltage.
Maximum pressure above which causes permanent sensor failure.
Reference Conditions: (Unless otherwise noted)
T
A
= 25 °C, Supply V
S
= 12 Vdc, Common Mode Line pressure = 0 psig, Pressure applied to Port B. For absolute devices only,
pressure is applied to Port A, and the output polarity is reversed.
Maximum zero pressure offset for absolute devices is ±500 Microvolt.
Hysteresis – the maximum output difference at any point within the operating pressure range for increasing and decreasing
pressure.
Maximum error band of the offset voltage and the error band of the span, relative to the 25 °C [77 °F] reading.
Maximum difference in output at any pressure within the operating pressure range and the temperature within 0 °C to 50 °C
[32 °F to 122 °F] after:
a) 100 temperature cycles, 0 °C to 50 °C [32 °F to 122 °F]
b) 1.0 million pressure cycles, 0 psi to full-scale span.
Input resistance is the resistance between V
S
and ground.
Output resistance is the resistance between the + and - outputs.
Common Mode voltage of the output arms for V
S
=12 Vdc.
Response time for a 0 psi to Full-Scale Span pressure step change, 10 % to 90 % rise time.
Long term stability over a one-year period.
Maximum combined Linearity and Hysteresis for the SDX05 prime grade is ±0.5 %.
Note 4:
Note 5:
Note 6:
Note 7:
Note 8:
Note 9:
Note 10:
Note 11:
Note 12:
Note 13:

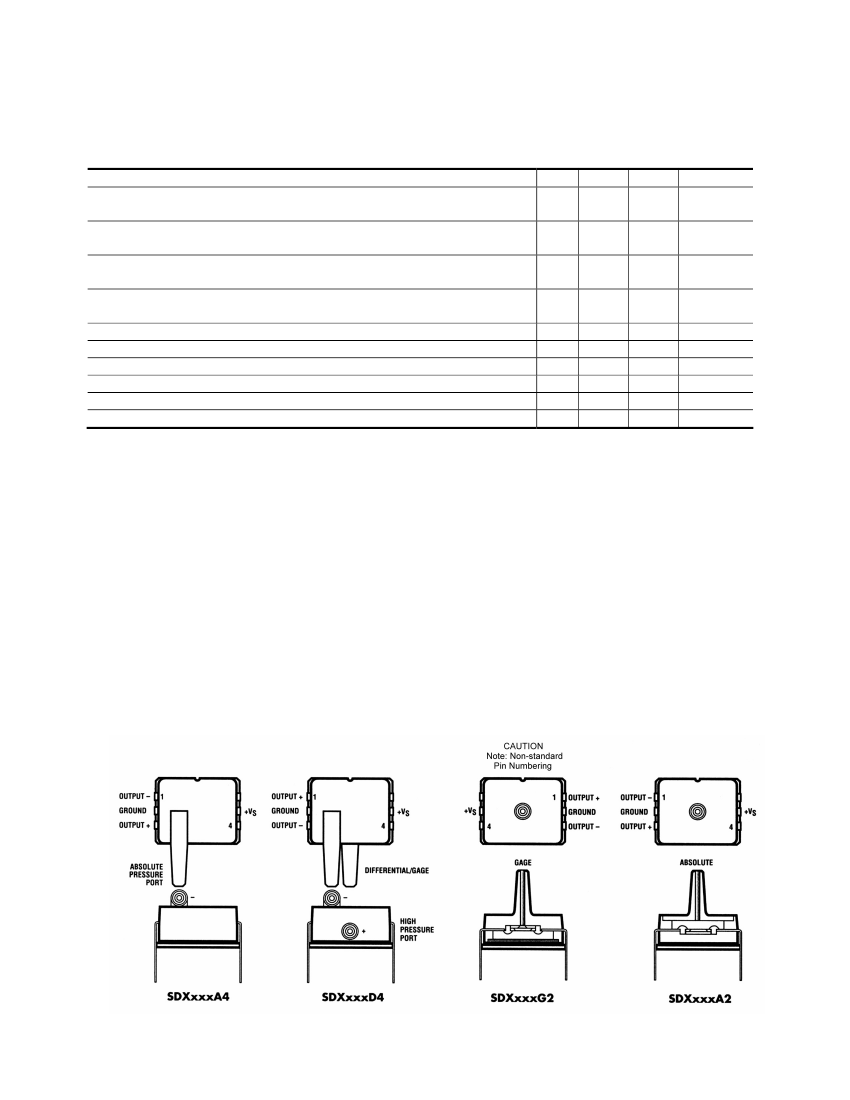

ELECTRICAL CONNECTIONS
Honeywell
•
Sensing and Control 3
Microstructure Pressure Sensors
Low Cost, Compensated, DIP Package
0 psi to 1psi up to 0 psi to 100psi

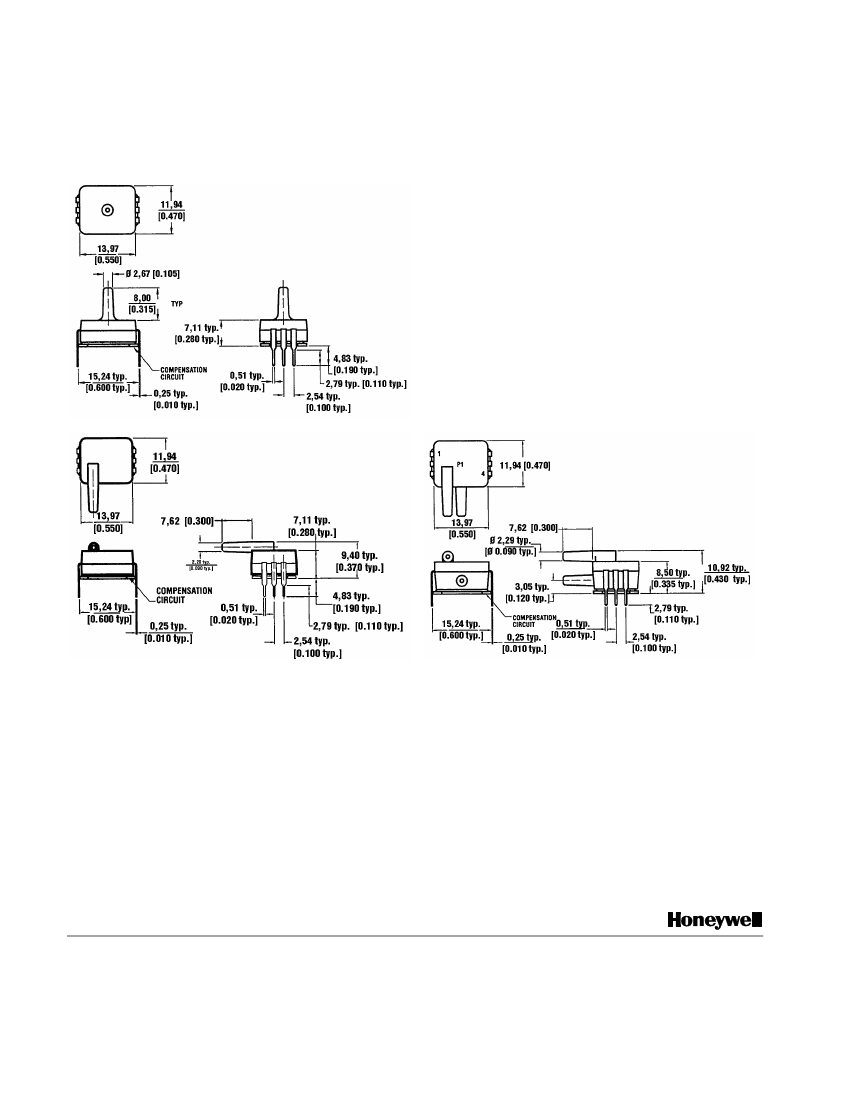

PHYSICAL DIMENSIONS for Reference Only (mm/in)
SDX A2/G2 Package
SDX Series
SDX A4 Package
SDX D4 Package
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as being
free of defective materials and faulty workmanship.
Contact your local sales office for warranty information. If
warranted goods are returned to Honeywell during the
period of coverage, Honeywell will repair or replace
without charge those items it finds defective.
The
foregoing is Buyer’s sole remedy and is in lieu of all
other warranties, expressed or implied, including
those of merchantability and fitness for a particular
purpose.
Specifications may change without notice. The
information we supply is believed to be accurate and
reliable as of this printing. However, we assume no
responsibility for its use.
While we provide application assistance personally,
through our literature and the Honeywell web site, it is up
to the customer to determine the suitability of the product
in the application.
For application assistance, current specifications, or
name of the nearest Authorized Distributor, contact a
nearby sales office. Or call:
1-800-537-6945 USA/Canada
1-815-235-6847 International
FAX
1-815-235-6545 USA
INTERNET
www.honeywell.com/sensing
info.sc@honeywell.com
Sensing and Control
www.honeywell.com/sensing
Honeywell
11 West Spring Street
Freeport, Illinois 61032
008103-2-EN IL50 GLO 104 Printed in USA
Copyright 2003 Honeywell International Inc. All Rights Reserved
