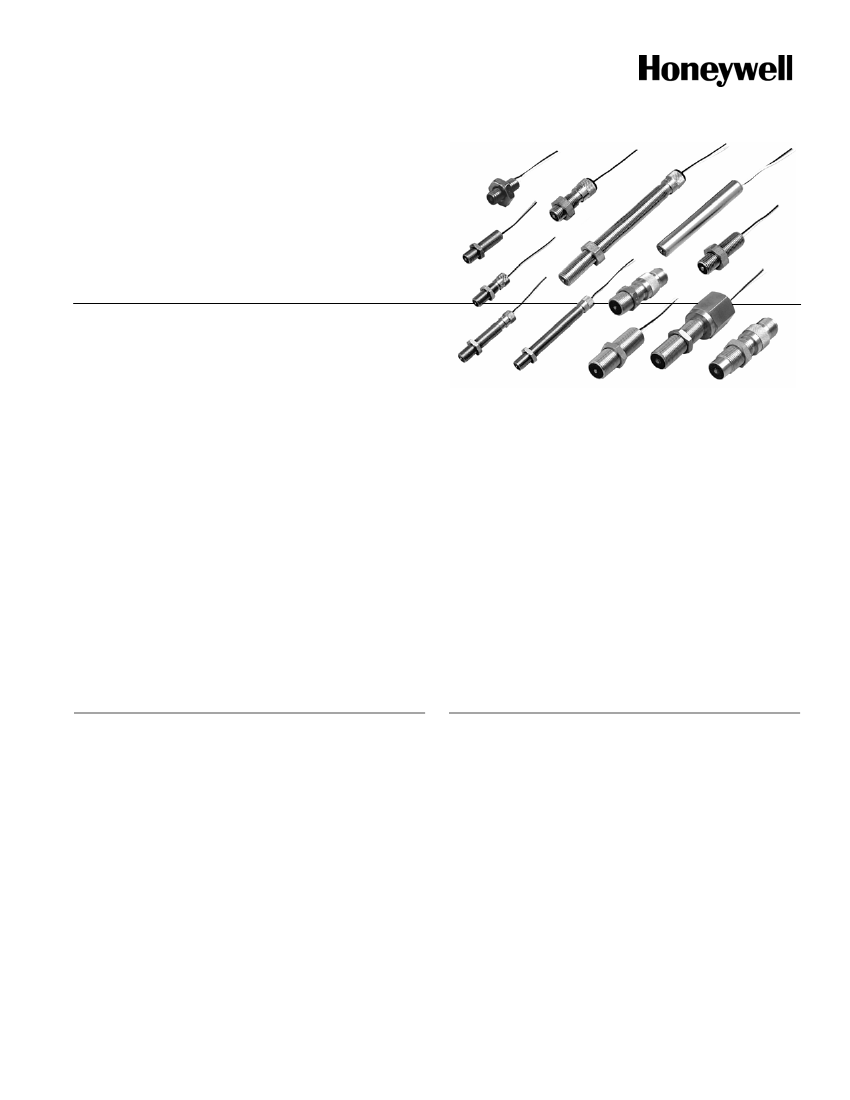

General Purpose
Industrial VRS Magnetic
Speed Sensors
DESCRIPTION
General Purpose VRS sensors are designed for use in
applications with medium to high speeds or in electrically noisy
environments with relatively small air gaps.
Passive VRS (Variable Reluctance Speed) Magnetic Speed
sensors are simple, rugged devices that do not require an
external voltage source for operation.
A permanent magnet in the sensor establishes a fixed
magnetic field. The approach and passing of a ferrous metal
target near the sensor’s pole piece (sensing area) changes the
flux of the magnetic field, dynamically changing its strength.
This change in magnetic field strength induces a current into a
coil winding which is attached to the output terminals.
FEATURES
•
Self-powered operation
•
Direct conversion of actuator speed to output frequency
•
Simple installation
•
No moving parts
•
Designed for use over a wide range of speeds
•
Adaptable to a wide variety of configurations
•
Customized VRS products for unique speed sensing
applications
•

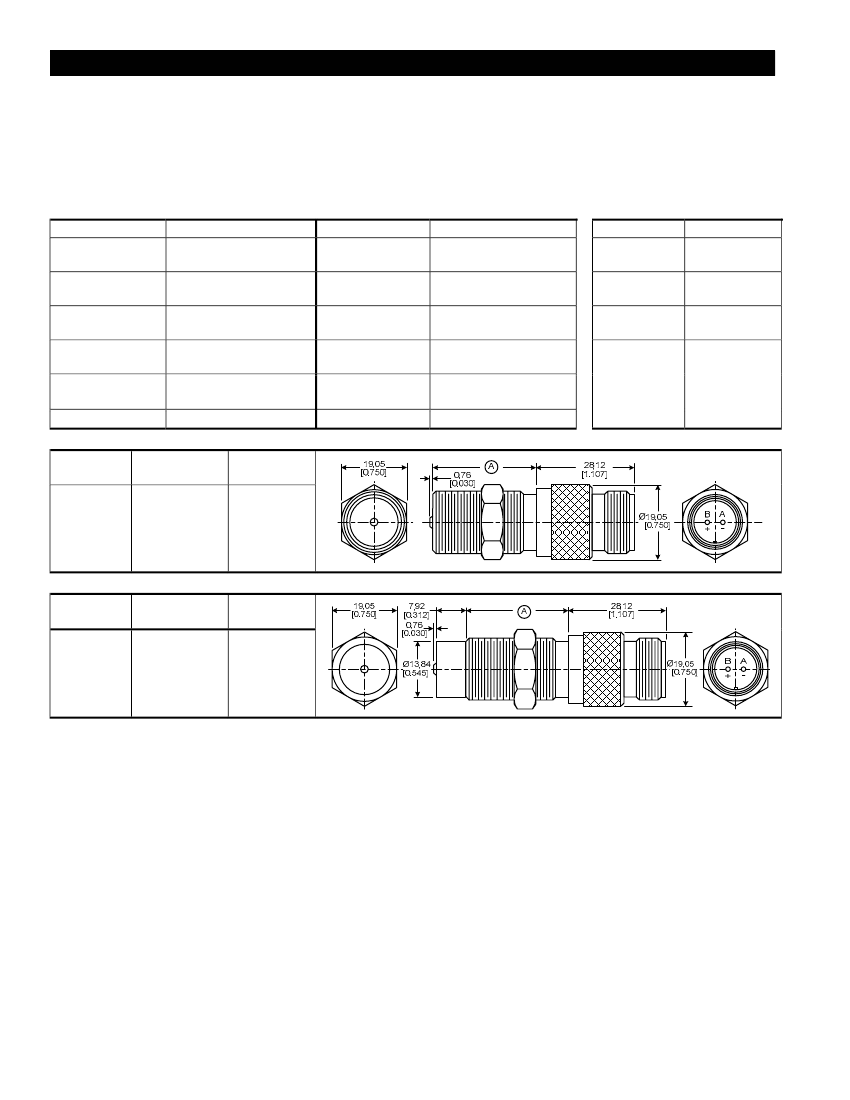

Housing diameters: 5/8 in (M16), 3/8 in (M12) mm,
1/4 in (M8), 10/32 in
•
Housing materials/styles: stainless steel threaded or
smooth
•
Terminations: MS3106 connector, preleaded
•
Output voltages: 8 Vp-p to 40 Vp-p
The output signal of a VRS sensor is an ac voltage that varies
in amplitude and wave frequency as the speed of the
monitored device changes, and is usually expressed in peak to
peak voltage (Vp-p).
One complete waveform (cycle) occurs as each target passes
the sensor’s pole piece. If a standard gear were used as a
target, this output signal would resemble a sine wave if viewed
on an oscilloscope.
Honeywell also offers VRS sensors for high output, power
output, high resolution, high temperature and hazardous
location applications, as well as low-cost molded versions.
POTENTIAL APPLICATIONS
•
Engine RPM (revolutions per minute) measurement on
aircraft, automobiles, boats, buses, trucks and rail
vehicles
•
Motor RPM measurement on drills, grinders, lathes and
automatic screw machines
•
Motor RPM measurement on precision camera, tape
recording and motion picture equipment
•
Process speed measurement on food, textile, paper,
woodworking, printing, tobacco and pharmaceutical
industry machinery
•
Motor speed measurement of electrical generating
equipment
•
Speed measurement of pumps, blowers, mixers, exhaust
and ventilating fans
•
Flow measurement on turbine meters
•
Wheel-slip measurement on autos and locomotives
•
Gear speed measurement
