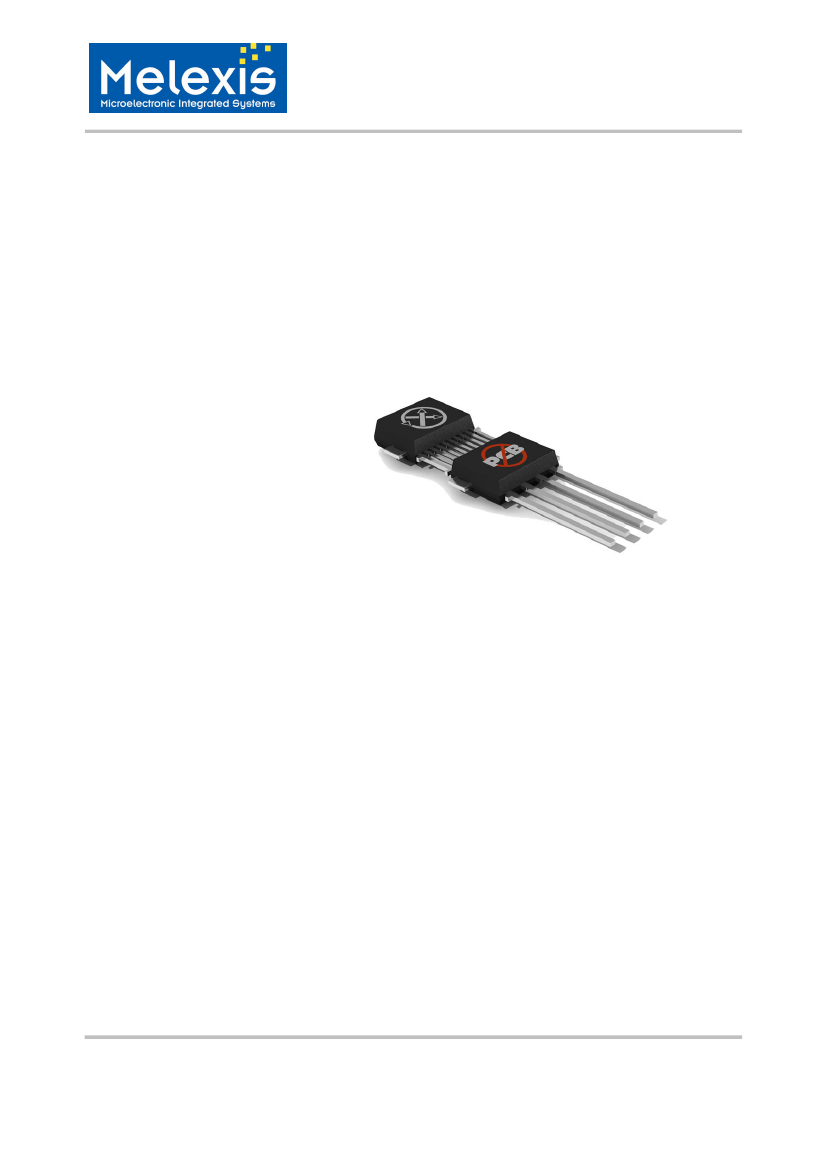

MLX90364
Triaxis® Position Sensor Assembly
Features and Benefits
Absolute Rotary & Linear Position Sensor IC
Robust Dual Mold Package (DMP) feat. 4 Decoupling Capacitors (ESD/EMC)
Reliable NoPCB Module Integration
Triaxis Hall Technology
Simple Magnetic Design
Programmable Transfer Characteristic (Multi-Points – Piece-Wise-Linear)
Selectable Output Mode: Analog (Ratiometric) – Pulse Width Modulation (PWM)
12 bit Resolution - 10 bit Thermal Accuracy
Open/Short Diagnostics
On Board Diagnostics
Over-Voltage Protection
Under-Voltage Detection
48 bit ID Number option
Automotive Temperature Range
AEC-Q100 & AEC-Q200 Qualified
DMP-4 RoHS Compliant
Applications
Absolute Rotary Position Sensor
Absolute Linear Position Sensor
EGR Valve Position Sensor
Turbo Actuator
Throttle Position Sensor
Clutch,Shift & Fork Position Sensor
Ride Height Position Sensor
Float Level Sensor
MLX90364
Rev 4.1
Page 1 of 36
Datasheet
19/11/2015

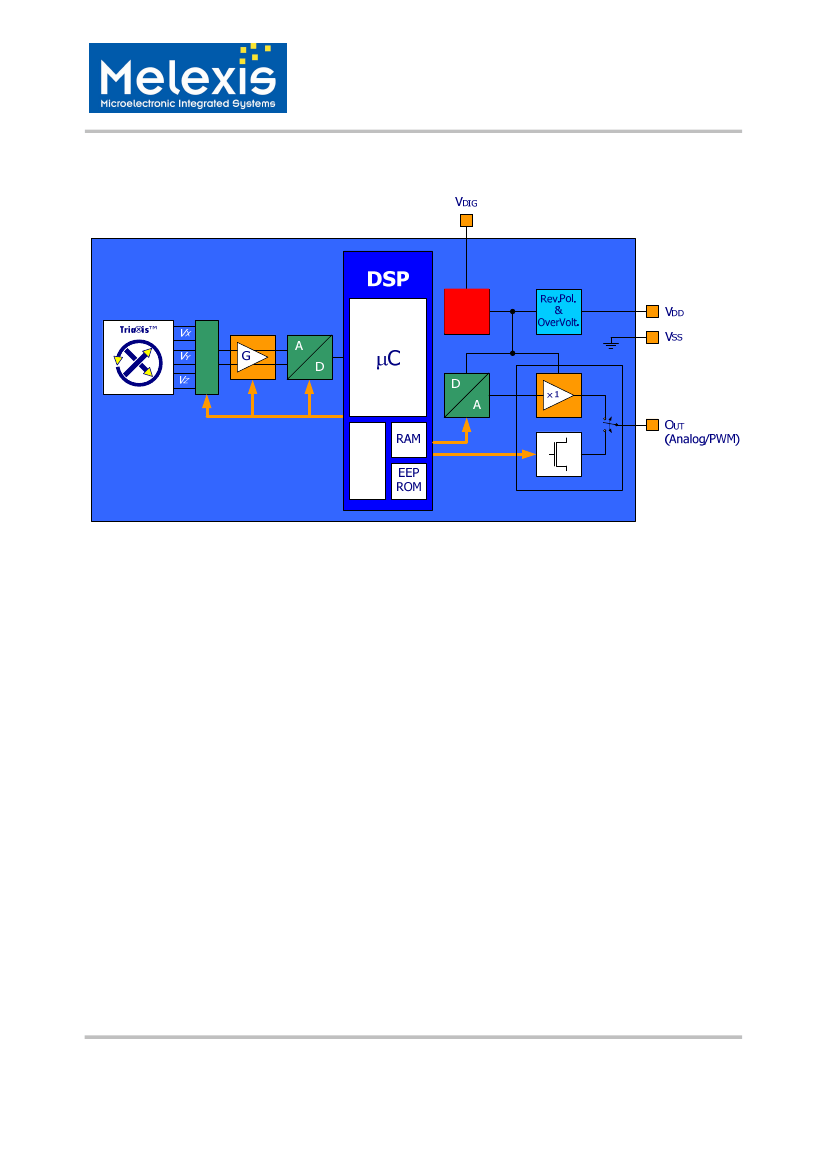

MLX90364
Triaxis® Position Sensor Assembly
2. Description
The MLX90364 Triaxis® Position Sensor Assembly is a high accuracy linear and angular position sensor which
eliminates need for inclusion of a printed circuit board (PCB) within sensing modules.
This device is based on a Dual Mold Package (DMP) construction, which integrates a Triaxis position sensing die
together with the decoupling capacitors necessary to meet the strenuous ESD and EMC requirements. No PCB is
needed.
The Triaxis position sensing die is nothing but the one used for the MLX90365 in conventional surface-mount
packages (SOIC-8 – single die & TSSOP-16 – dual die).
The decoupling capacitors are X8R type and well suited for package integration and the target
operating temperature range.
Similarly to other Triaxis products, the MLX90364 is sensitive to the flux density applied orthogonally and parallel
to the IC surface i.e. the 3 components of the flux density applied to the IC (i.e. BX, BY and BZ).
This allows the MLX90364 with the correct magnetic circuit to decode the absolute position of any moving magnet
(e.g. rotary position from 0 to 360 Degrees or linear displacement, stroke).
MLX90364 reports a programmable ratiometric analog output signal compatible with any resistive potentiometer or
programmable linear Hall sensor. Through programming, the MLX90364 provides also a digital PWM (Pulse Width
Modulation) output characteristic.
MLX90364 Triaxis® Position Sensor Assembly enables the realization of position sensor modules for which a PCB
is no longer needed: this yield to an increase of the electrical, mechanical and environmental robustness of the final
application.

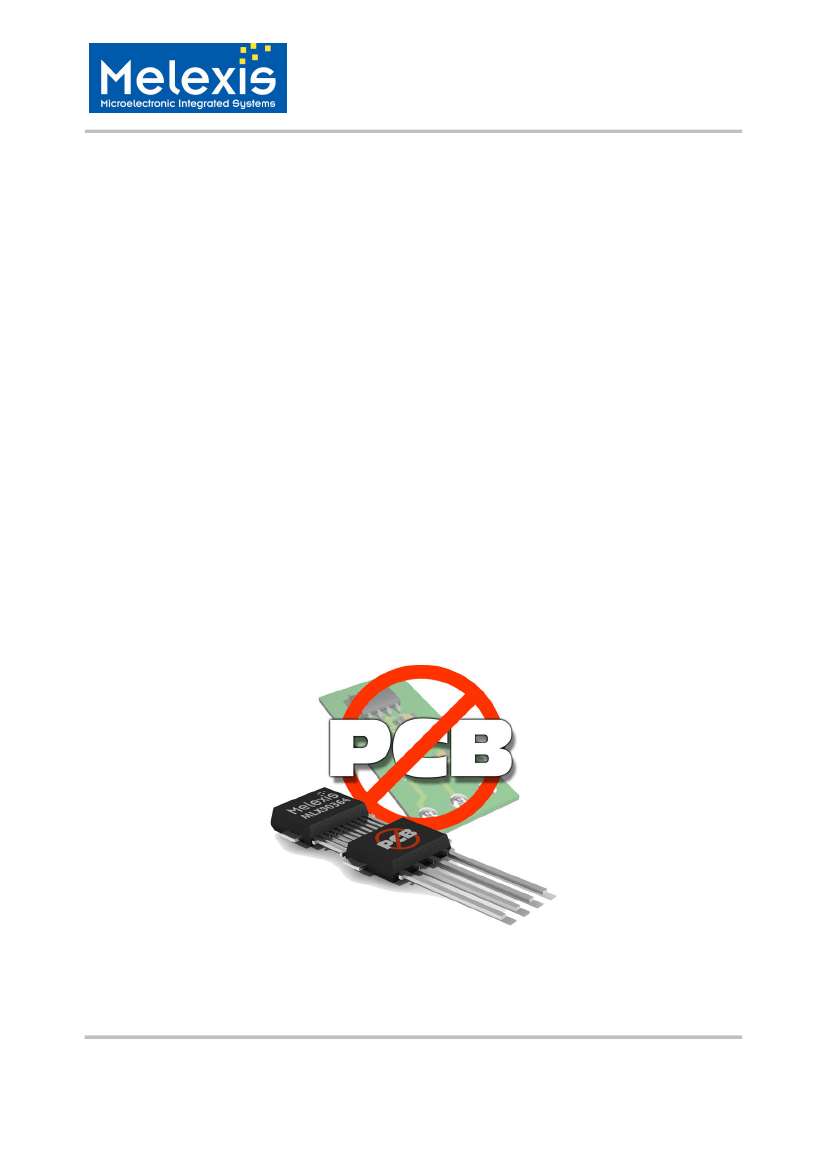

Figure 2 NoPCB – MLX90364 makes conventional PCB redundant
MLX90364
Rev 4.1
Page 4 of 36
Datasheet
19/11/2015
MLX90364
Triaxis® Position Sensor Assembly
Table of Contents
FEATURES AND BENEFITS ....................................................................................................................... 1
APPLICATIONS ............................................................................................................................................ 1
ORDERING INFORMATION......................................................................................................................... 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
FUNCTIONAL DIAGRAM ...................................................................................................................... 3
DESCRIPTION ....................................................................................................................................... 4
GLOSSARY OF TERMS
−
ABBREVIATIONS
−
ACRONYMS ............................................................ 7
PINOUT .................................................................................................................................................. 7
ABSOLUTE MAXIMUM RATINGS ....................................................................................................... 8
DESCRIPTION ....................................................................................................................................... 8
MLX90364 ELECTRICAL SPECIFICATION ....................................................................................... 10
MLX90364 TIMING SPECIFICATION ................................................................................................. 12
MLX90364 PWM TIMING SPECIFICATION ....................................................................................... 12
10. MLX90364 ACCURACY SPECIFICATION ......................................................................................... 13
10.1.
10.2.
10.3.
N
ORMAL
M
AGNETIC RANGE
: 20
M
T
≤
B < 70
M
T .................................................................................... 13
E
XTENDED
R
ANGE
#1 : 15
M
T
≤
B < 20
M
T ............................................................................................. 14
E
XTENDED
R
ANGE
#2: 10
M
T
≤
B < 15
M
T .............................................................................................. 14
11. MLX90364 PWM ACCURACY SPECIFICATION ............................................................................... 15
12. MLX90364 MAGNETIC SPECIFICATION .......................................................................................... 16
13. MLX90364 CPU & MEMORY SPECIFICATION ................................................................................. 16
14. MLX90364 END-USER PROGRAMMABLE ITEMS ........................................................................... 17
15. DESCRIPTION OF END-USER PROGRAMMABLE ITEMS .............................................................. 18
15.1.
O
UTPUT
M
ODE
.......................................................................................................................................... 18
15.1.1. Analog Output Mode ............................................................................................................................ 18
15.1.2. PWM Output Mode............................................................................................................................... 18
15.2.
O
UTPUT
T
RANSFER
C
HARACTERISTIC
....................................................................................................... 19
15.2.1. Enable scaling Parameter (only for LNR type 4 pts) ........................................................................... 19
15.2.2. CLOCKWISE Parameter ...................................................................................................................... 19
15.2.3. Discontinuity Point (or Zero Degree Point) ......................................................................................... 20
15.2.4. 4-Pts LNR Parameters.......................................................................................................................... 20
15.2.5. 17-Pts LNR Parameters........................................................................................................................ 20
15.2.6. CLAMPING Parameters ...................................................................................................................... 21
15.3.
I
DENTIFICATION
........................................................................................................................................ 22
15.4.
L
OCK
......................................................................................................................................................... 22
15.5.
S
ENSOR
F
RONT
-E
ND
................................................................................................................................. 22
15.5.1. MAPXYZ ............................................................................................................................................... 22
15.5.2. SMISM, k and SEL_k Parameters ........................................................................................................ 23
15.5.3. GAINMIN and GAINMAX Parameters ................................................................................................ 23
15.6.
F
ILTER
...................................................................................................................................................... 23
15.6.1. Hysteresis Filter ................................................................................................................................... 23
15.6.2. FIR Filters ............................................................................................................................................ 24
15.7.
P
ROGRAMMABLE
D
IAGNOSTIC
S
ETTINGS
................................................................................................. 25
15.7.1. DIAG mode........................................................................................................................................... 25
15.7.2. DIAG Level ........................................................................................................................................... 25
MLX90364
Rev 4.1
Page 5 of 36
Datasheet
19/11/2015
