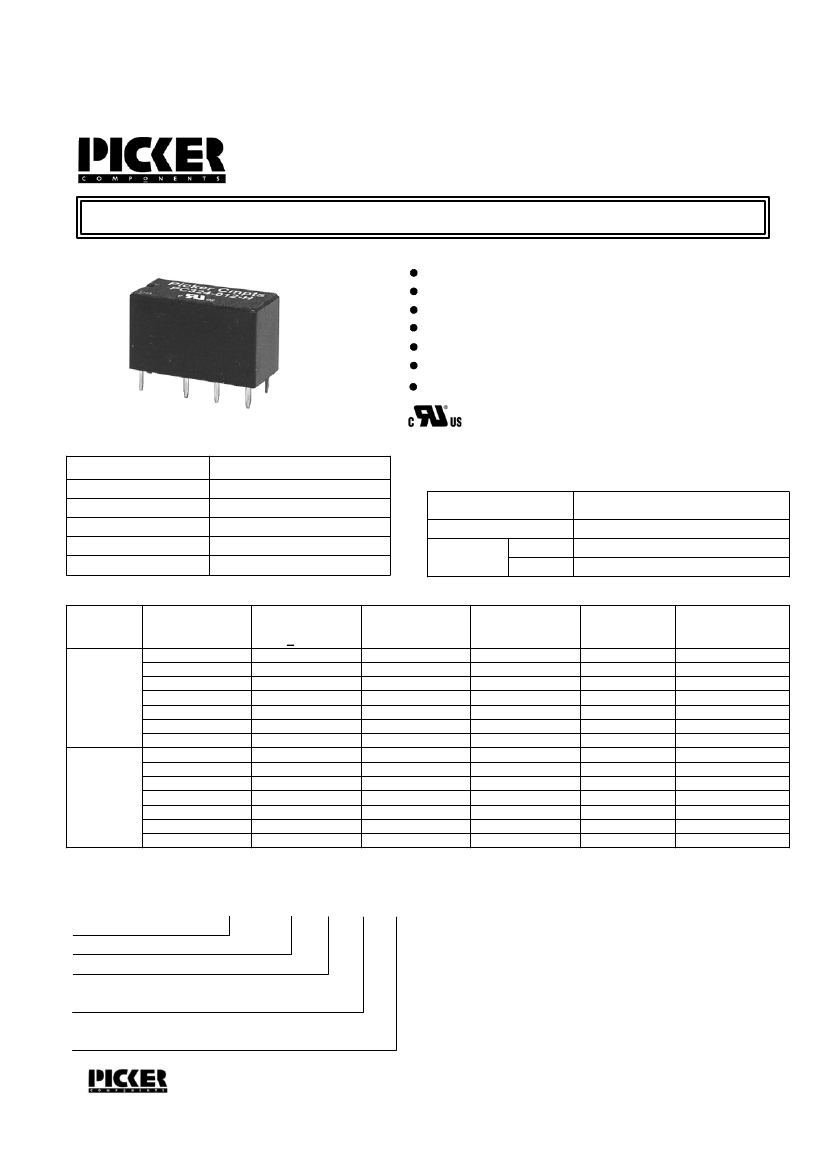

Subminiature PCB Telecom Relay With Bifurcated Contacts
PC324
FEATURES
Subminiature design
DIL Package for PC board or socket
Contact capacity from 1 mA to 2 A
Meets FCC part 68 voltage surge
Class "B" insulation standard
Sealed immersion cleanable
Bifurcated crossbar contacts
File # E86876
CONTACT RATINGS
Contact Form
Switching Current Range
Switching Voltage Range
Max. Continuous Current
Switching Power Range
UL Rated Loads
2 Form C
DPDT (crossbar contacts)
1 mA to 2 A
10 mVAC - 250VAC; 10 mVDC - 220 VDC
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgNi + Au (Silver Nickle + Gold Clad)
AgPd + Au (Silver Palladium + Gold Clad)
50 mOhm max @ 1mA, 20mV, 1KHz, meets DIN 4160 part 4
5
2 Amps
10 micro W to 30 W / 62.5 VA
1A / 24 VDC 0.5A / 125 VAC
1 X 10 Operations
1 X 10
8
Operations
COIL DATA
Type
Coil
Voltage
3
5
Resistance
Ohms
+ 10%
16
45
66
140
280
1070
3900
22.5
62.5
90
203
360
1440
5760
Must Operate
Voltage Max.
(VDC)
2.1
3.5
4.2
6.3
8.4
16.8
33.6
2.1
3.5
4.2
6.3
8.4
16.8
33.6
Allowable
Operating
Voltage Range
2.1 - 7.0
3.5 -7.8
4.2 - 9.7
6.3 - 14.5
8.4 - 19.4
16.8 - 37.6
33.6 - 74.2
2.1 - 7.0
3.5 -7.8
4.2 - 9.7
6.3 - 14.5
8.4 - 19.4
16.8 - 37.6
33.6 - 74.2
Hold
Voltage
1.0
1.25
1.5
2.25
3
6
12
1.0
1.25
1.5
2.25
3
6
12
Must
Release
Voltage
0.3
0.5
0.6
0.9
1.2
2.4
4.8
0.3
0.5
0.6
0.9
1.2
2.4
4.8
Coil Code A
0.56 W
TO
0.59 W
6
9
12
24
48
3
5
6
9
12
24
48
Coil Code B
0.40 W
Note: Custom coil voltages within the ranges shown are available on special order.
ORDERING INFORMATION
Example:
Model
Coil Voltage
Contact Material
Nil: AgNi + Au; P: AgPd + Au
Sensitivity
A: 0.56 W; B: 0.40 W
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PC324 Rev B 4-8-04
PC324
-12
P
A
PAGE 1
PC324S
CHARACTERISTICS
Operate Time
Operate Bounce
Release Time
Release Bounce
Insulation Resistance
Dielectric Strength
Surge Strength
Capacitance
Shock Resistance
Vibration Resistance
Allowable Max. Power
Consumption at 20 C
Ambient Temperature
Power Consumption
Weight
5 ms. max.
1 ms. typical
3 ms. max.
2.5 ms. typical
1000 Megohms min. at 500 VDC, 50% RH
1000 V rms, 1 min. between coil and contacts and between adjacent parts
1000 V rms, 1 min. between open contacts
1500 V, between coil and contacts (FCC Part 68)
0.7 pf max. between contacts; 0.9 pf max. between adjacent poles; 1.0 pf max. between coil and contacts
50 g, 11 ms.
10 g, 10 - 70 Hz
1.02 W
-40 degrees C to 65 degrees C (-40 degrees C to 70 degreec C for 0.4 w coil)
0.40 W to .59 W
4.5 grams approx.
PC324S
Dimensions in Inches (millimeters)
Drawings are 2X actual size
Side View
.787
(20.0)
End View
.386
(9.8)
.472
(12.0)
.130
(3.3)
.30
(7.62)
.30
(7.62)
.040 Dia. Typ.
(1.0)
.20 .20
(5.08) (5.08)
Bottom View
PC Board Layout
Wiring Diagram
Notes:
Tolerances + .010 unless otherwise noted
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888) 997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PAGE 2
